90MB17N0-M0EAY0

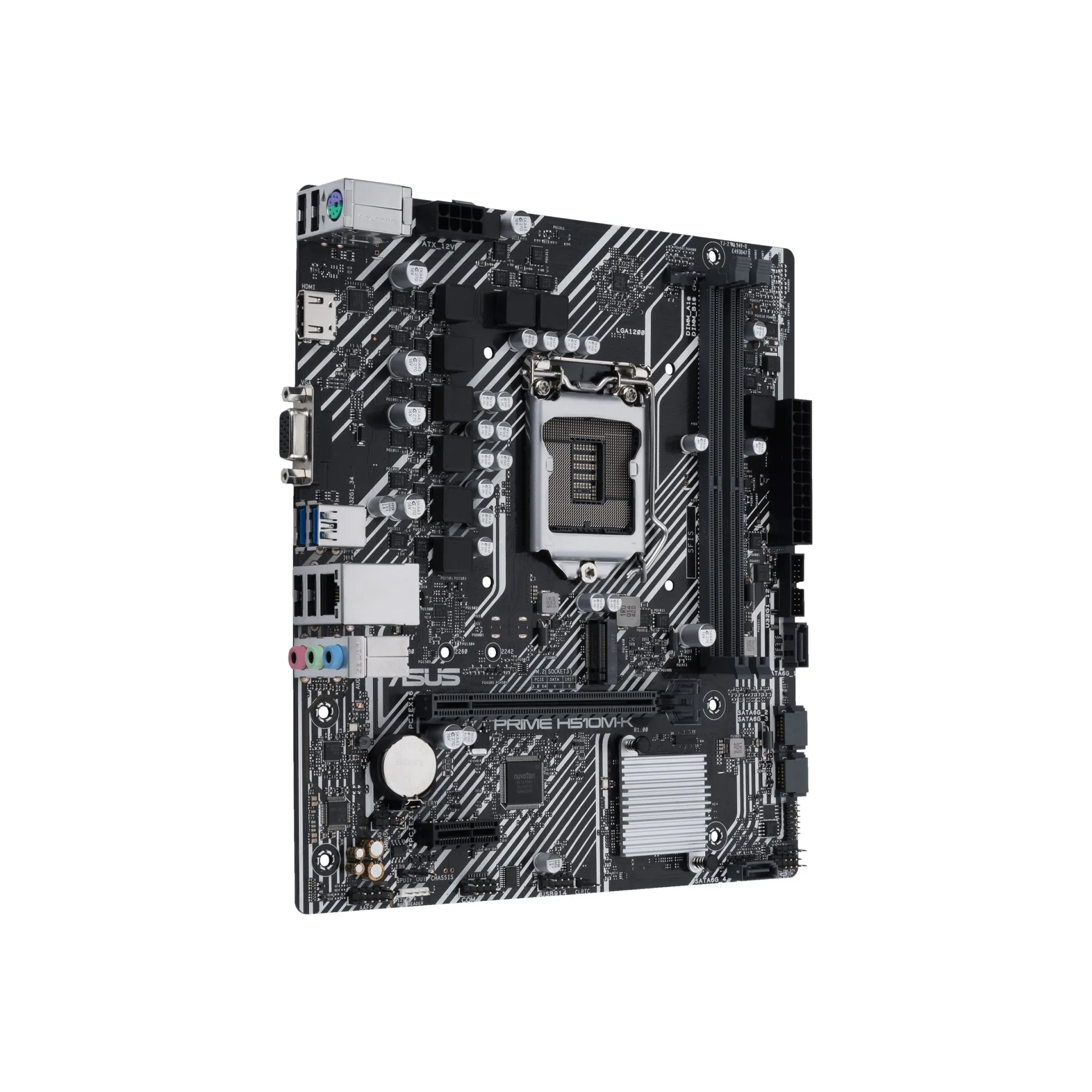

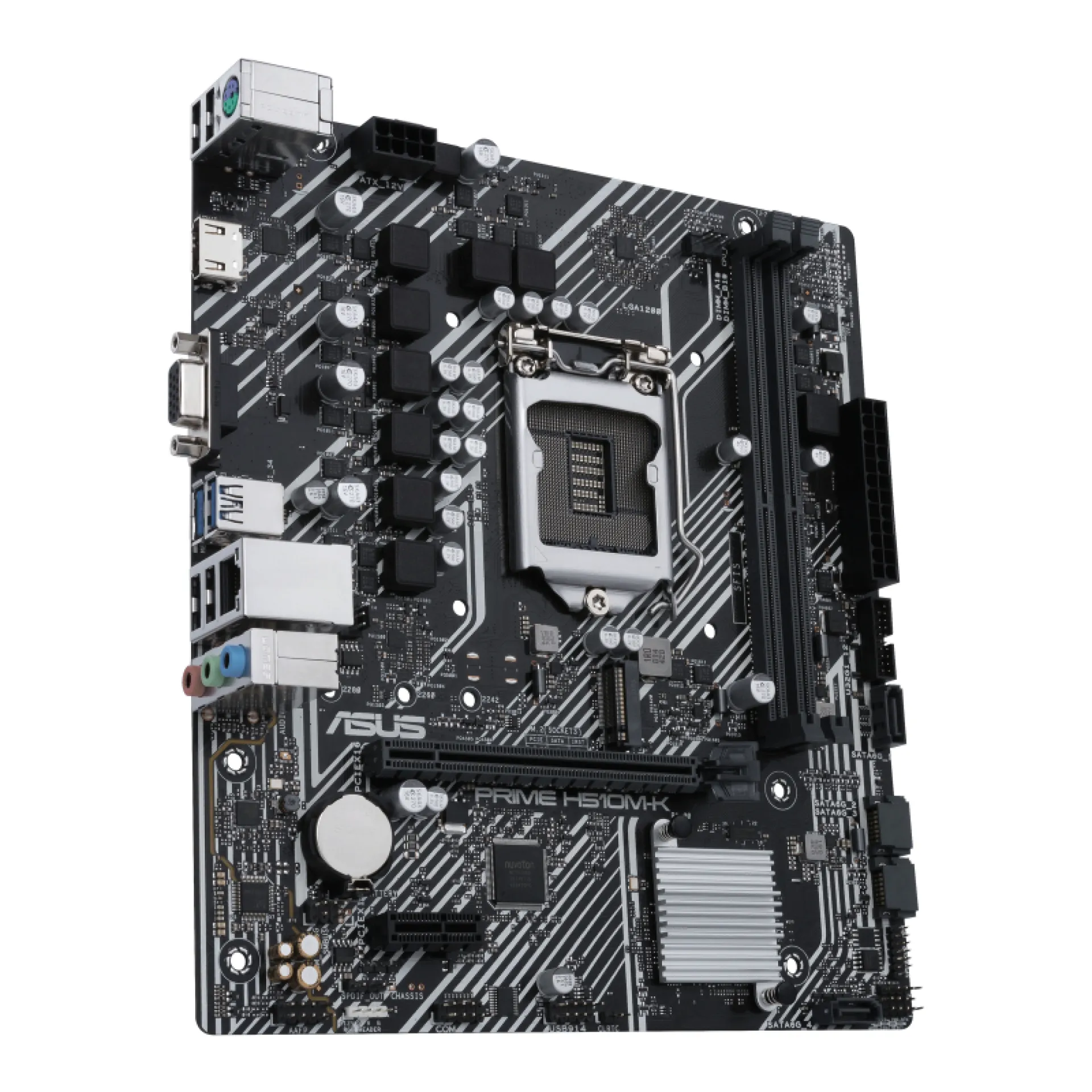

Compact Micro-ATX Intel LGA1200 Motherboard Platform with essential PCIe expansion using the 90MB17N0-M0EAY0

The 90MB17N0-M0EAY0 is a Micro-ATX motherboard built on the Intel H510 chipset for LGA1200 10th/11th Gen Intel Core platforms, targeting reliable office PCs, entry workstations, and compact edge nodes where predictable compatibility and controlled expansion matter. The platform supports dual-channel DDR4 memory via 2 DIMM slots up to 64GB, providing sufficient bandwidth for productivity and light content workloads without introducing unnecessary complexity such as ECC or out-of-band management.

For I/O architecture, the 90MB17N0-M0EAY0 balances GPU and storage connectivity within a compact footprint: a PCIe 4.0 x16 mechanical slot enables a single full-height full-length accelerator or display GPU, while a PCIe 3.0 x1 slot supports add-in NICs, capture, or interface cards. Storage is optimized for mixed SSD and HDD deployments through 1 M.2 socket (PCIe 3.0 x4 or SATA) plus 4 SATA 6Gb/s ports, aligning with fast boot volumes and economical bulk storage. Integrated 1GbE via Intel I219LM supports stable enterprise LAN integration, and HDMI/VGA outputs allow iGPU-based deployments when a compatible CPU is selected.

Why Choose the 90MB17N0-M0EAY0?

The 90MB17N0-M0EAY0 provides a pragmatic density-to-performance profile for standardized desktop fleets and space-constrained builds, delivering modern PCIe slot topology and flexible storage options without the overhead of server-class BMC/IPMI. It scales cleanly from basic endpoints to single-GPU workstations, with TPM support and AMI UEFI BIOS contributing to consistent provisioning and secure baseline configurations.

ASUS applies a validation-first engineering approach focused on electrical stability, firmware maturity, and component selection aligned to mainstream data centre and enterprise desktop standards, supporting repeatable rollouts and long-term platform availability within managed IT environments.

Key Applications:

SMB office productivity systems
Entry-level single-GPU workstations
Compact lab validation nodes
Edge gateways with local storage
Digital signage and kiosk PCs

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your rollout requirements for the 90MB17N0-M0EAY0 and can extend the warranty up to 6 years to secure long lifecycle deployments and predictable operating costs.

Technical details of 90MB17N0-M0EAY0

CPU Socket: H5 (LGA 1200)

Onboard Memory: No

RAID Support: No

CPU Manufacturer: Intel

CPU Supported Type: Core i9, Core i7, Core i5, Core i3, Pentium Gold, Celeron

Form Factor: Micro-ATX

Chipset: Intel H510

RAM Maximum Capacity: 64GB

Max RAM Frequency : 3200MHz

RAM Slots: 2 DIMM DDR4

RAM Channels: Dual-Channel

PCIe Slots: 1 PCIe 3.0 x1, 1 PCIe 4.0 x16

M.2 Slots: 1 PCIe 3.0 x4/SATA M.2 2280, M.2 2260, M.2 2242 M-Key

Network Ports: 1 RJ45 1 Gbps

ECC Support: Non-ECC

Onboard Network: Ethernet

Suitability: Motherboard

Onboard CPU: No

RAID Support: No

Onboard Graphic: Yes

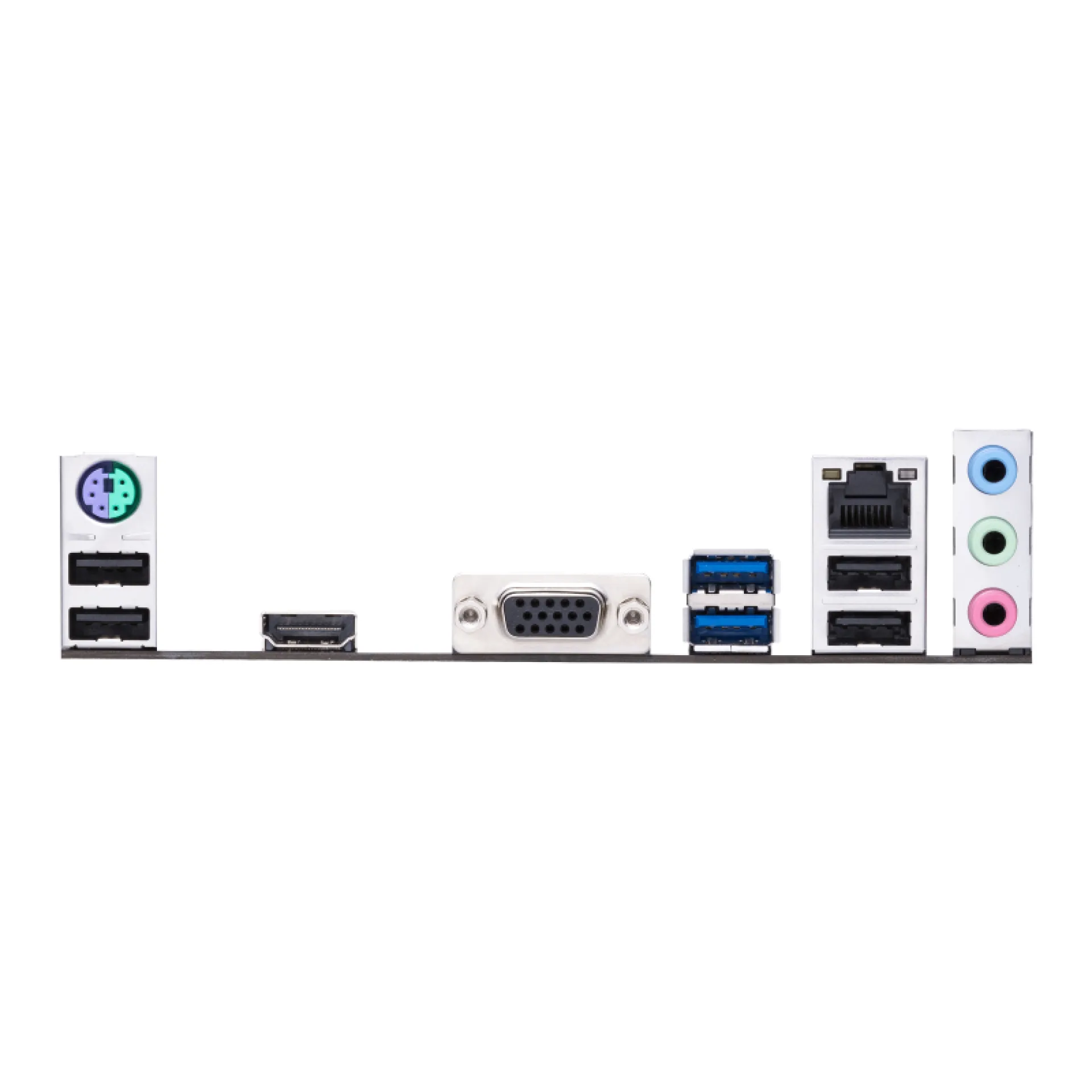

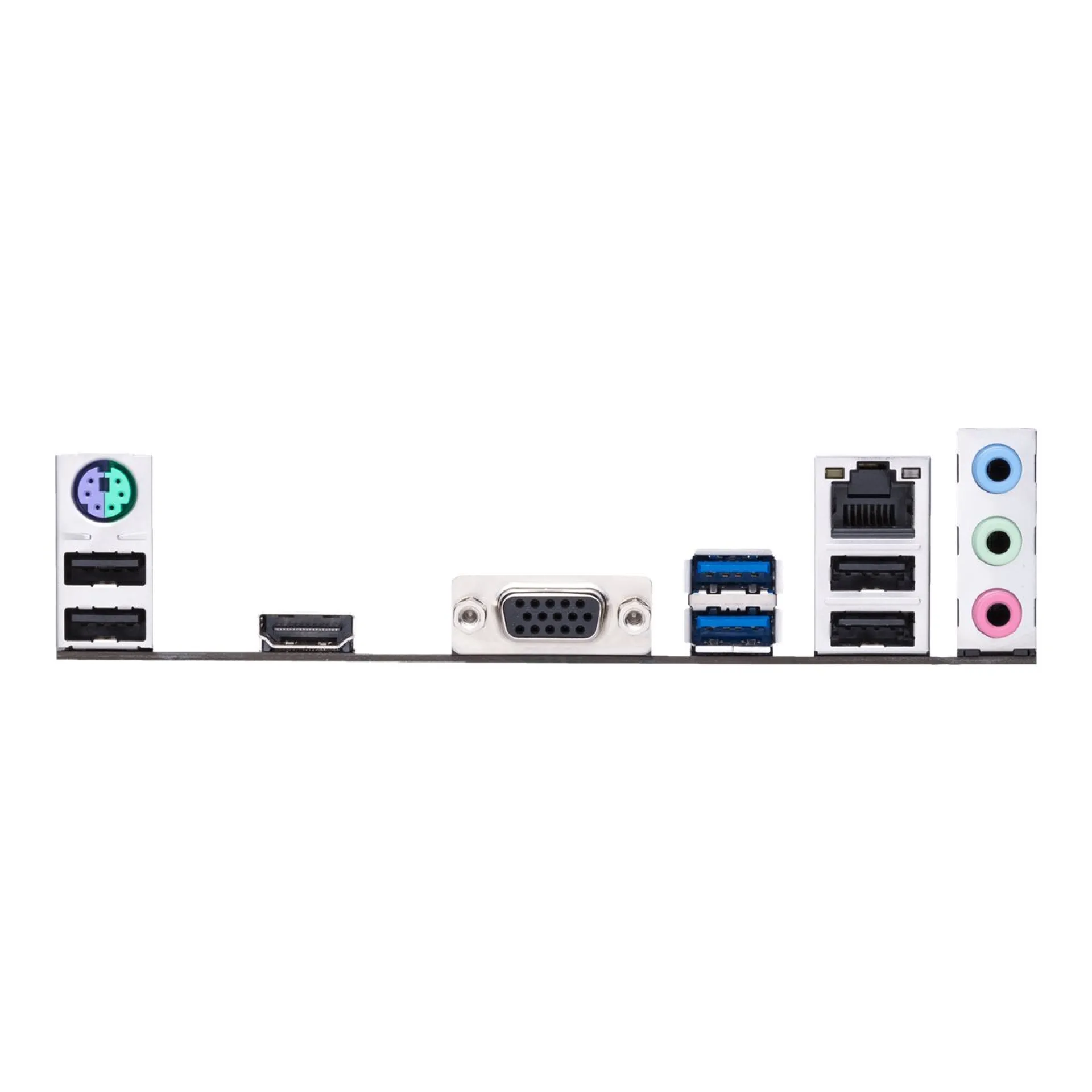

Video Output: 1x HDMI, 1x VGA

USB Ports: 2x USB 2.0 header, 2x USB 3.2 Gen 1 Header, 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0 Type-A

Other Ports: 1x S/PDIF-Header, 1x Speaker-Header, 1x TPM Header

Trusted Platform Module (TPM): Yes

BIOS: AMI UEFI

Wi-Fi Support: None

Onboard Audio Chipset: Realtek ALC897

Embedded: No

Card Reader: No

How long is the Warranty and how you can get technical support for 90MB17N0-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
