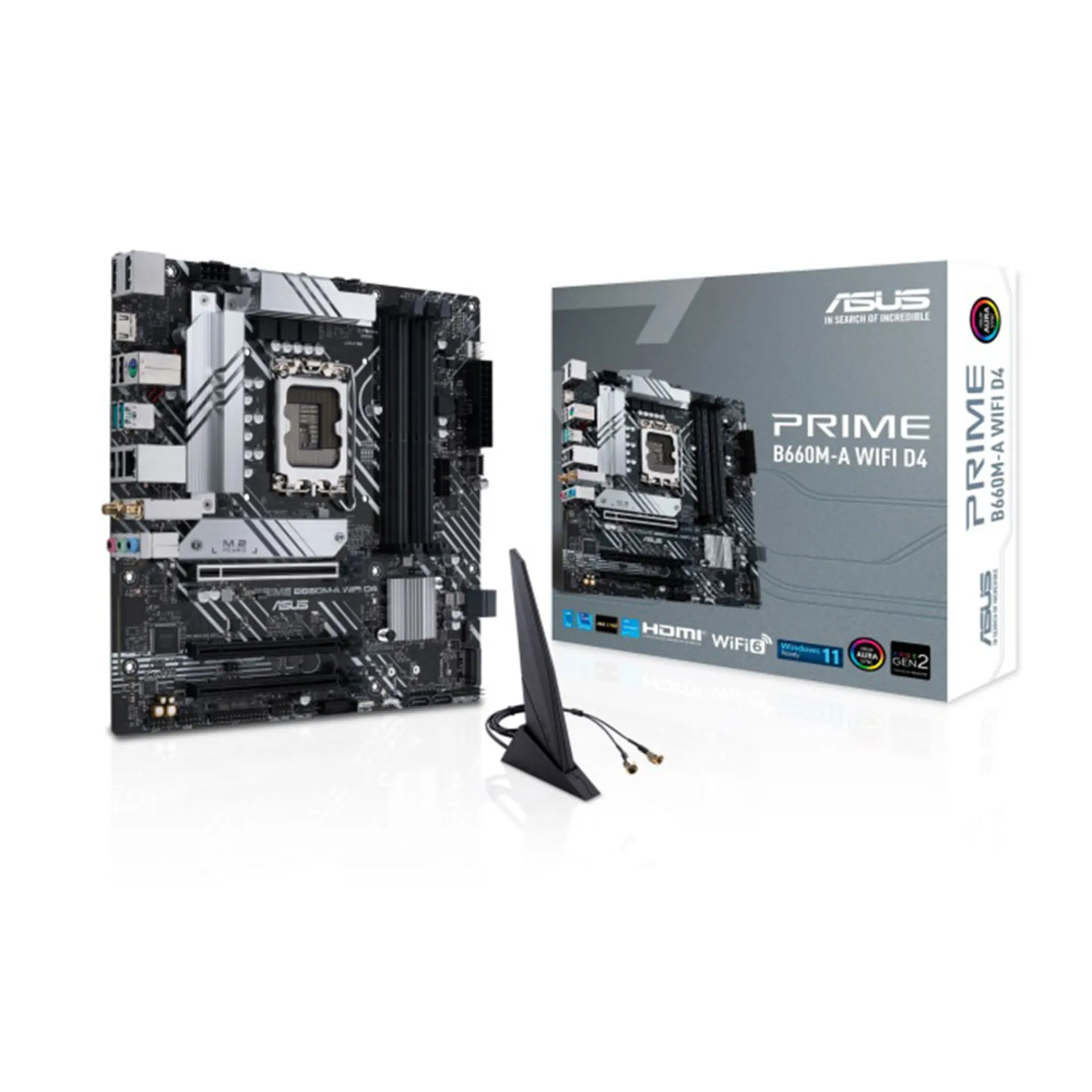

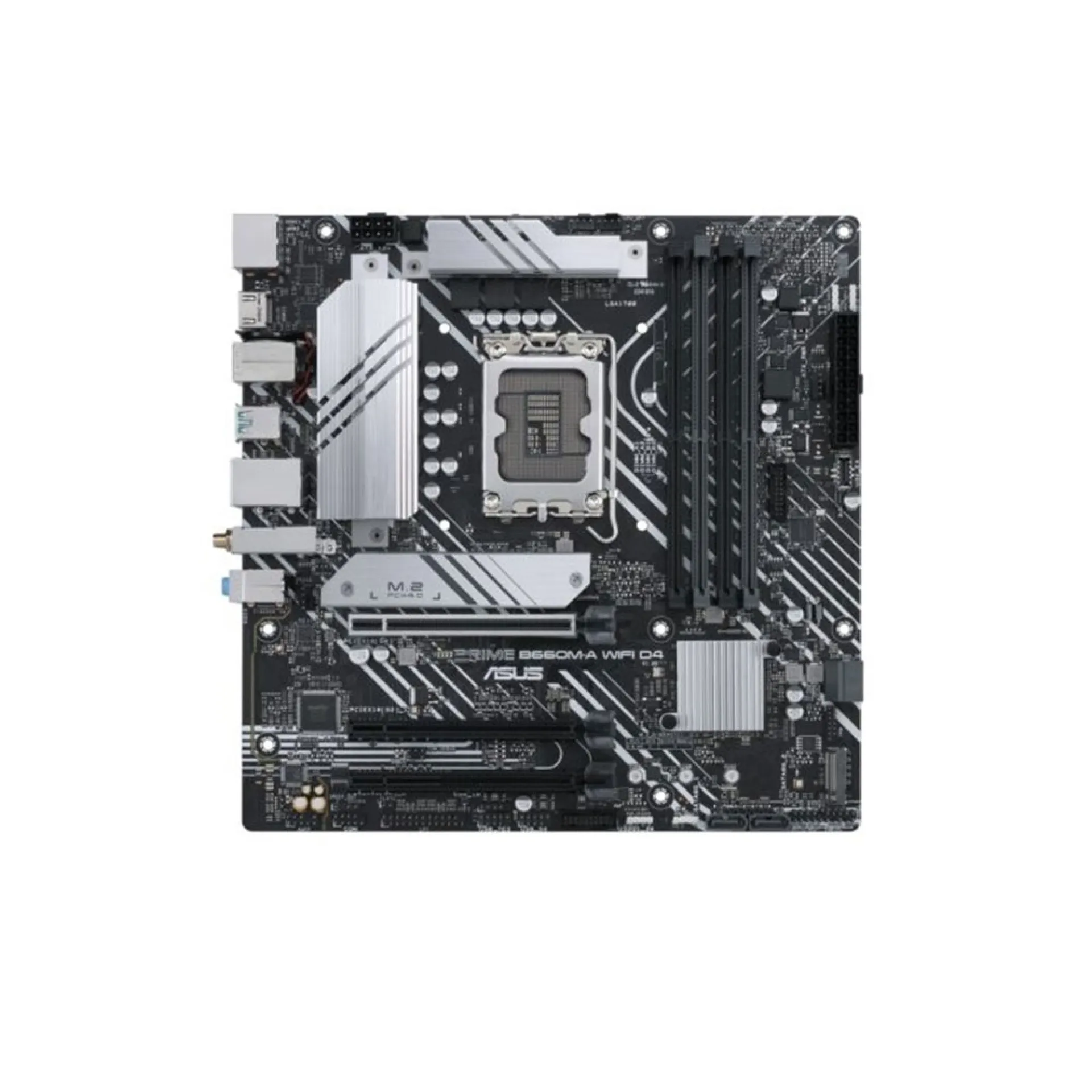

90MB1AE0-M1EAY0 ASUS Micro-ATX Single V (LGA 1700) 4 DIMM Slots Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for 90MB1AE0-M1EAY0 and save cash:

Quantity	Unit price
To 9	€186.00
To 19	€177.00 €186.00 (4.84% saved)
To 49	€173.00 €186.00 (6.99% saved)
From 50	€168.00 €186.00 (9.68% saved)

Product line:

Prime

See all ASUS

See other ASUS products

€186.00

Out of stock

Not available

Happyware Article Number:

SE7M9134-168696

Manufacturer Number:

90MB1AE0-M1EAY0

Brand:

ASUS

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

90MB1AE0-M1EAY0

High-Performance Micro-ATX Intel B660 DDR4 Motherboard with integrated Wi‑Fi 6 using the 90MB1AE0-M1EAY0

The 90MB1AE0-M1EAY0 is a Micro-ATX ASUS motherboard built on the Intel B660 platform for LGA1700 processors, aligning cost-efficient desktop and entry workstation deployments with modern connectivity and storage requirements. It supports Intel Core, Pentium Gold, and Celeron CPUs and pairs them with a dual-channel DDR4 memory architecture across 4 DIMM slots, scaling to 128GB at DDR4-3200 JEDEC for predictable, validated operation in SMB and departmental environments.

For expansion planning, the 90MB1AE0-M1EAY0 provides a primary PCIe 4.0 x16 slot for a single GPU or high-throughput add-in card, complemented by additional PCIe 3.0 slots to accommodate NIC, storage, or capture adapters without compromising lane efficiency. Storage design is optimized for mixed media: 2 M.2 (M-Key) NVMe slots for low-latency datasets and boot volumes, plus 4 SATA ports with RAID support for capacity tiers, backups, or mirrored OS configurations. Integrated Intel 1GbE and Wi‑Fi 6 with Bluetooth 5.2 enables flexible placement in edge and branch systems where wired and wireless availability varies.

Why Choose the 90MB1AE0-M1EAY0?

The 90MB1AE0-M1EAY0 delivers a balanced density-to-performance profile by combining LGA1700 compute, DDR4 scalability, and dual NVMe capability in a compact Micro-ATX footprint. This architecture supports consistent rollouts, straightforward serviceability, and controlled expansion for standardised builds that require reliable I/O, predictable firmware behaviour, and a clear upgrade path via PCIe 4.0.

ASUS engineering focuses on platform stability through validated component selection and UEFI firmware maturity, supporting TPM integration and enterprise-aligned security baselines. The board’s I/O options, including DisplayPort 1.4, HDMI 2.1, and a COM port, simplify integration across modern displays and legacy peripherals in controlled IT environments.

Key Applications:

SMB edge and branch systems
Entry workstation desktops
Mixed NVMe and SATA storage nodes
Single GPU or NIC add-in configurations

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment targets for the 90MB1AE0-M1EAY0, enabling efficient planning for standardised builds. For larger rollouts, bulk order discounts support cost-controlled procurement across multiple sites.

Technical details of 90MB1AE0-M1EAY0

CPU Socket:

V (LGA 1700)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Pentium Gold Celeron Core

Form Factor:

Micro-ATX

Chipset:

Intel B660

RAM Maximum Capacity:

128GB

Max RAM Frequency :

3200MHz

RAM Slots:

4 DIMM DDR4

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 3.0 x16 1 PCIe 4.0 x16

M.2 Slots:

1 WiFi+BT-Modul M.2 2230 E-Key 2 NVME M.2 2242, M.2 2260, M.2 2280 M-Key

Network Ports:

1 RJ45 1 Gbps

ECC Support:

Non-ECC

Onboard Network:

Ethernet

Onboard CPU:

RAID Support:

Yes

Video Output:

2x HDMI 2.1 1x DisplayPort 1.4

USB Ports:

1x USB 3.2 Gen 1 4x USB 2.0 Type-A 2x USB 3.2 Gen 1 Header 2x USB 3.2 Gen 2 Type-A 2x USB 2.0 1x USB 2.0

Other Ports:

1x COM Port

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

Wi-Fi 6 (802.11ax)

Bluetooth integrated:

5.2

Embedded:

How long is the Warranty and how you can get technical support for 90MB1AE0-M1EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
