90MB18P0-M0EAY0

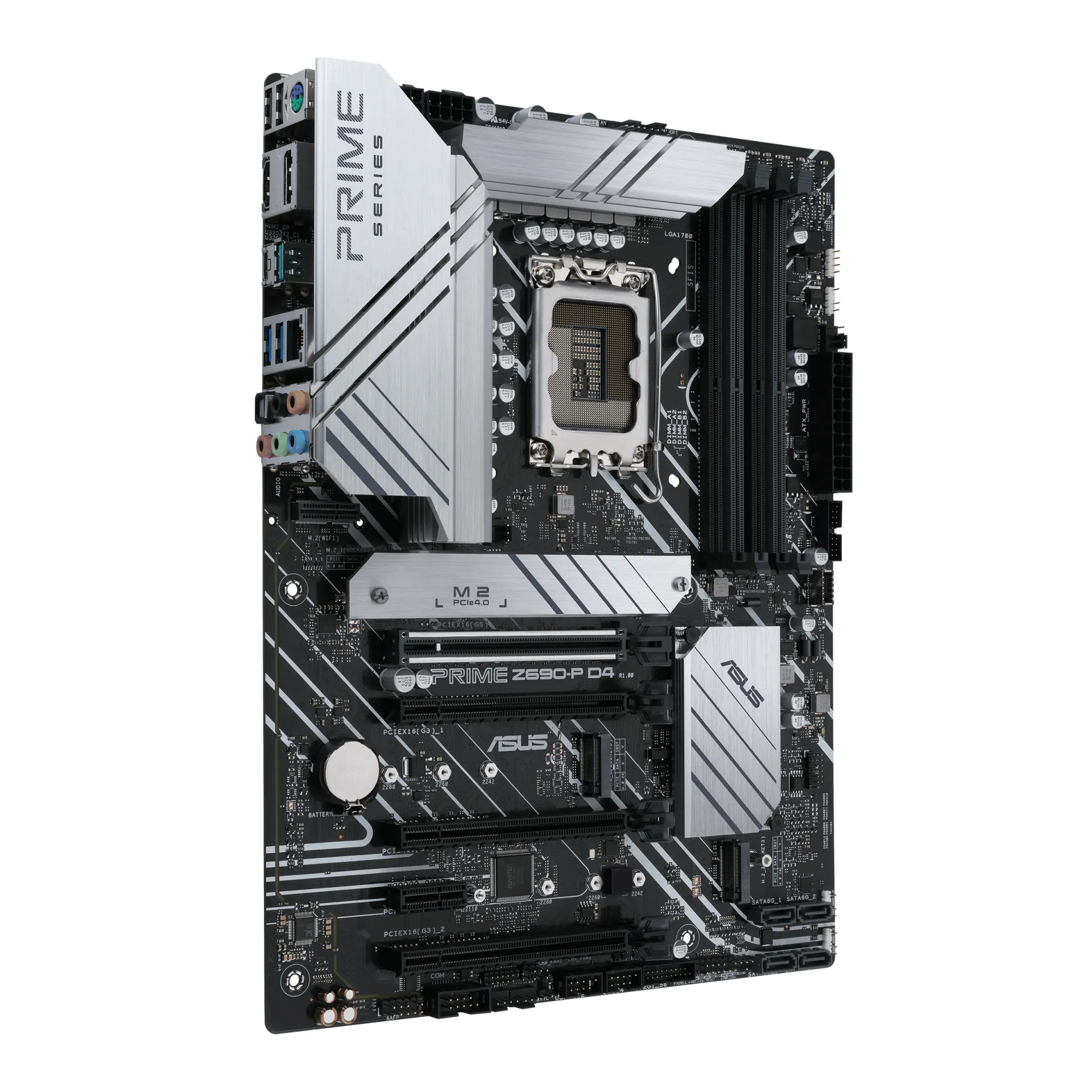

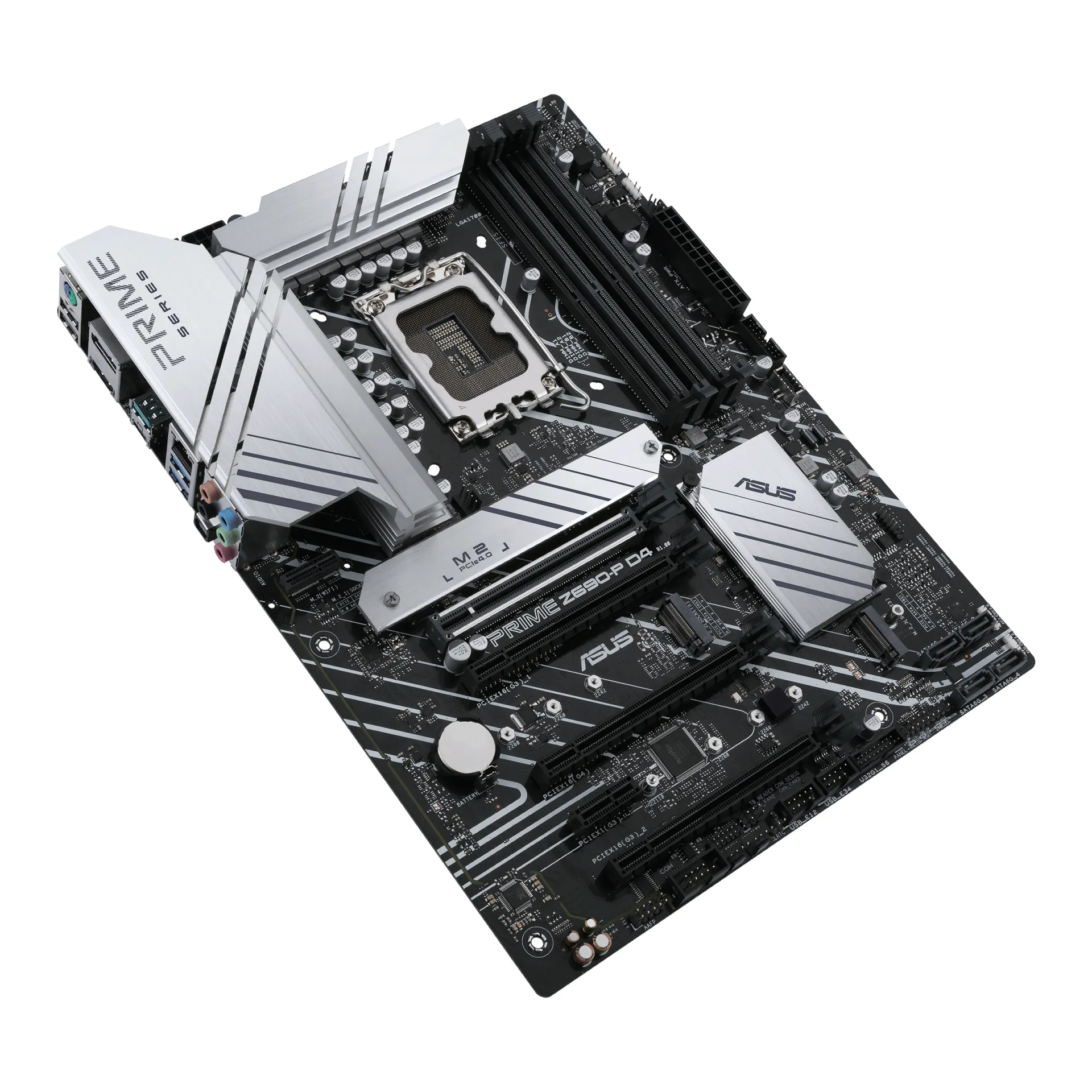

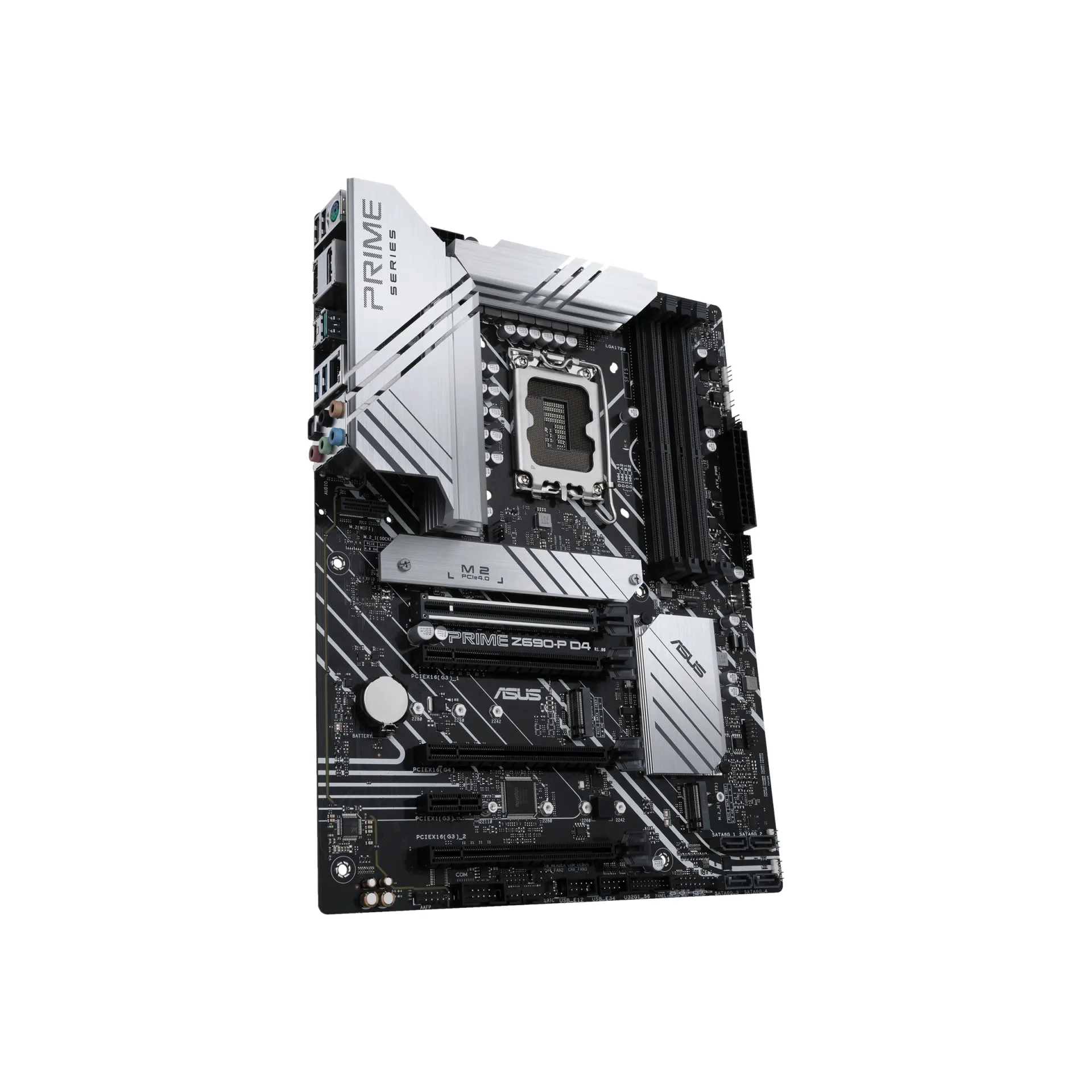

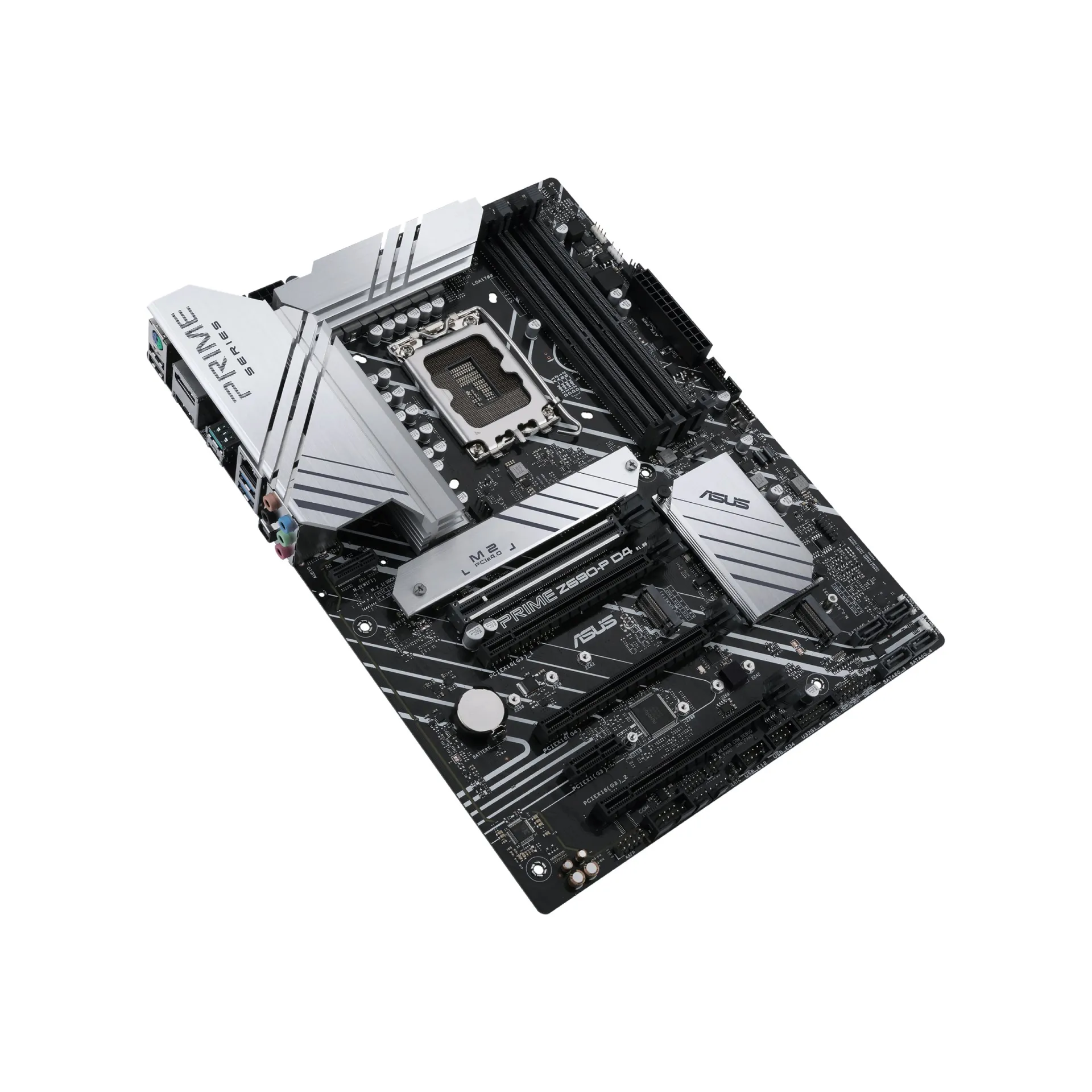

ATX Intel Z690 Desktop/Workstation Motherboard Architecture with the 90MB18P0-M0EAY0

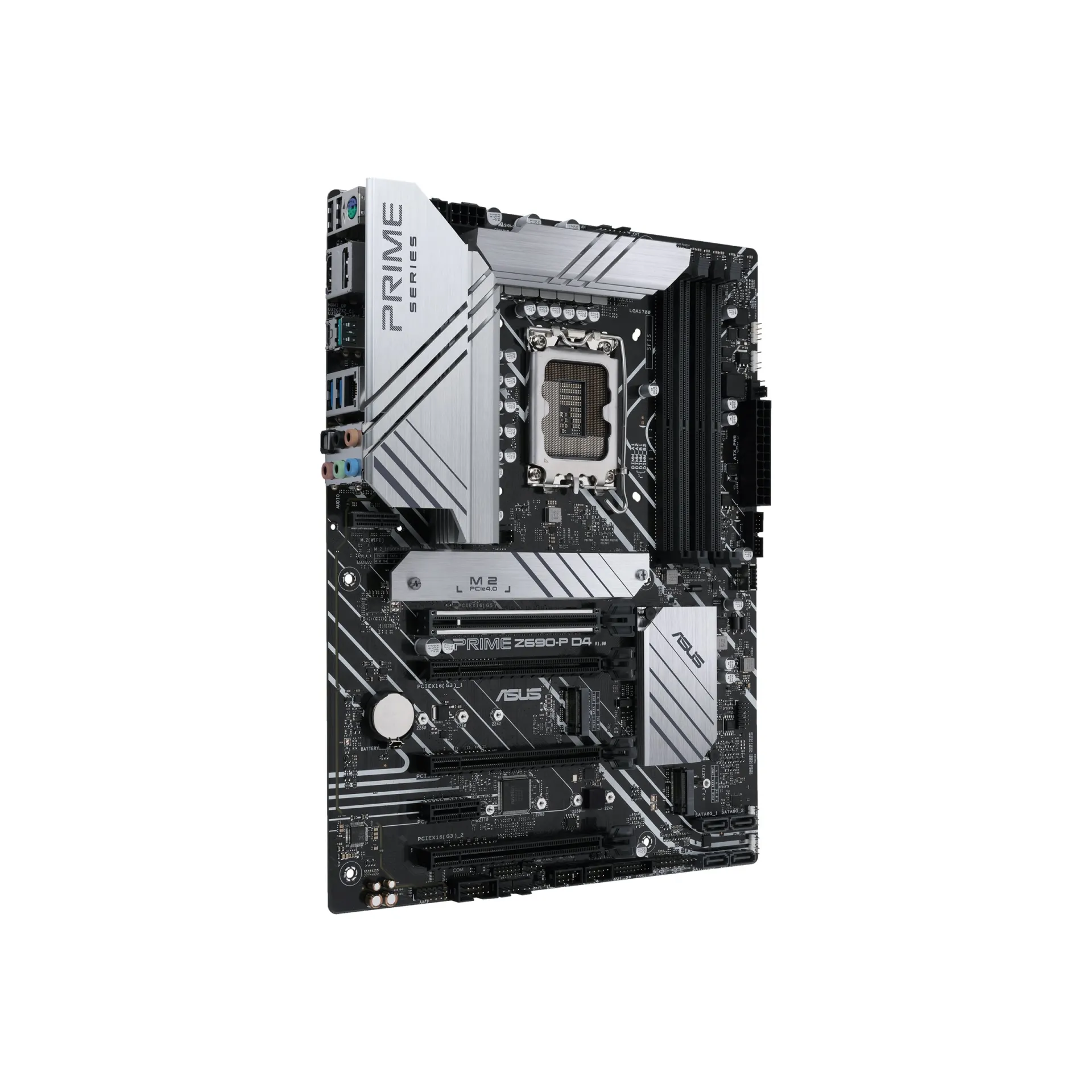

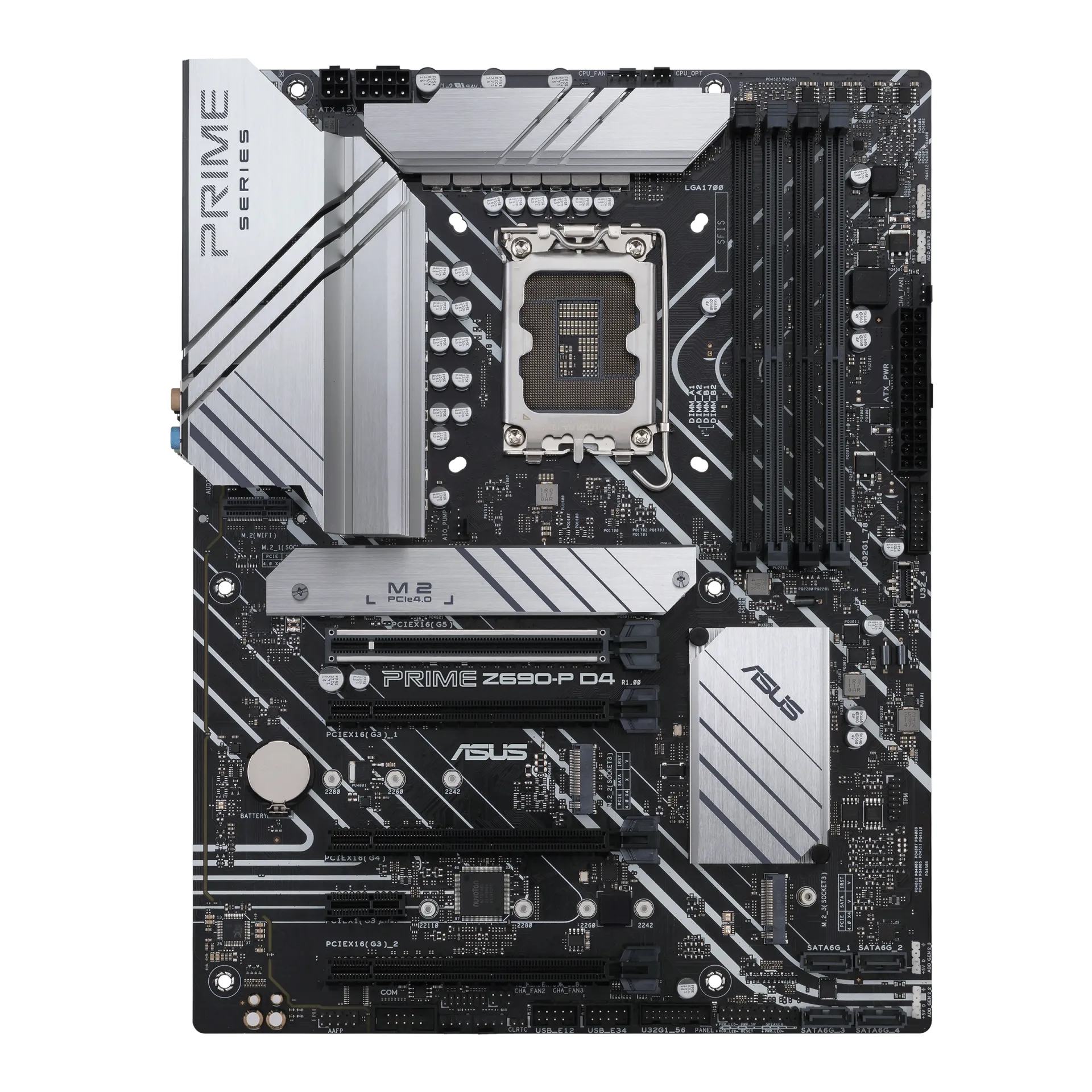

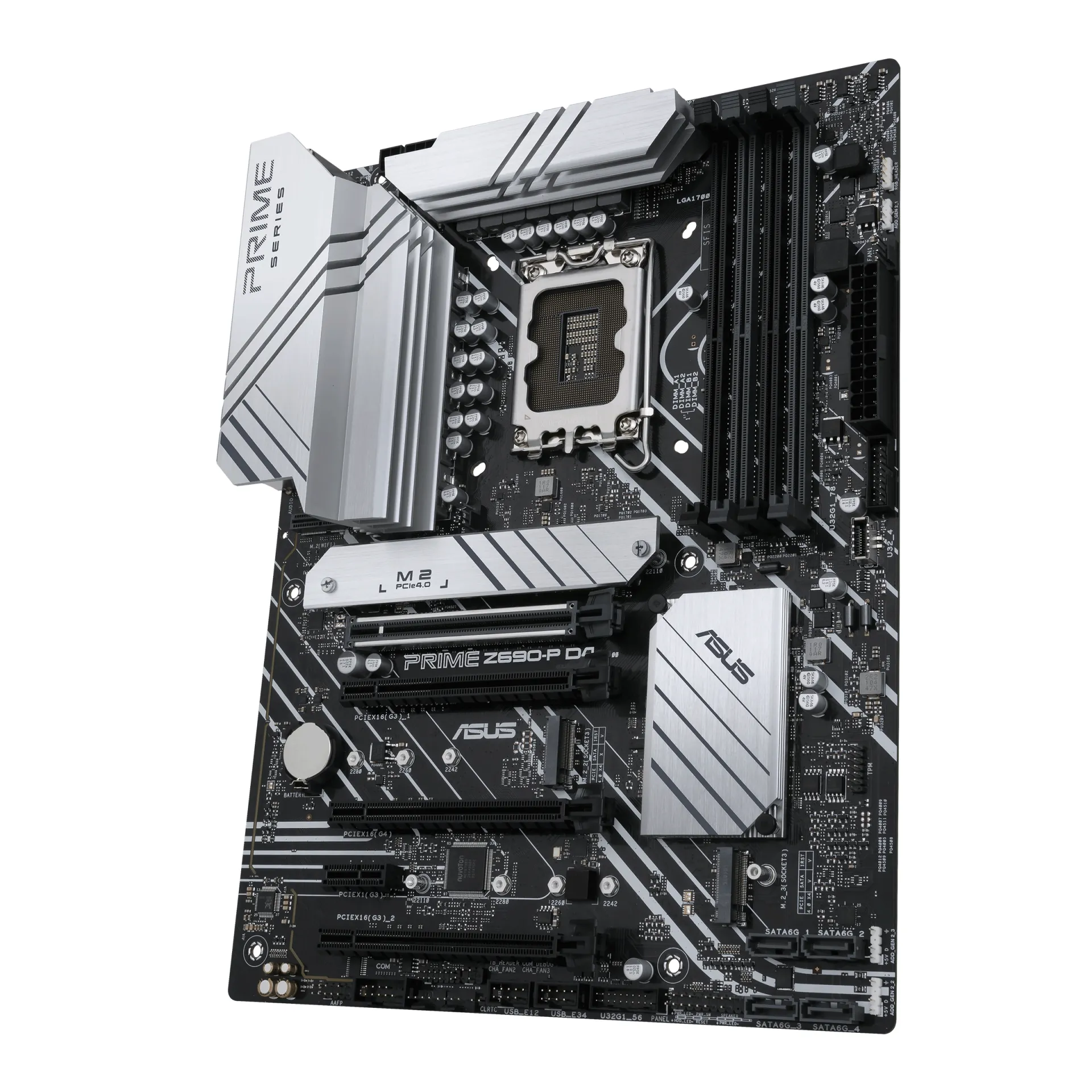

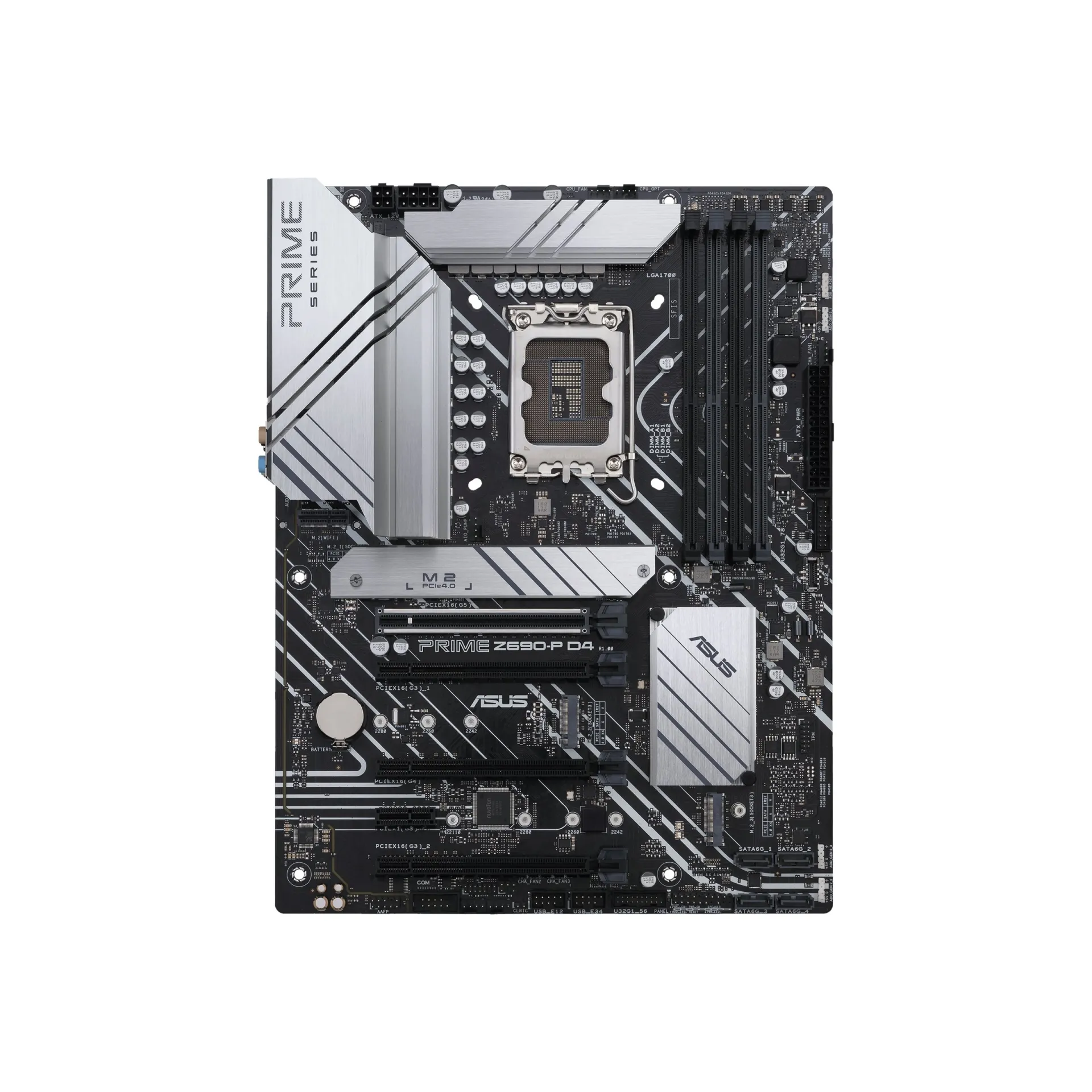

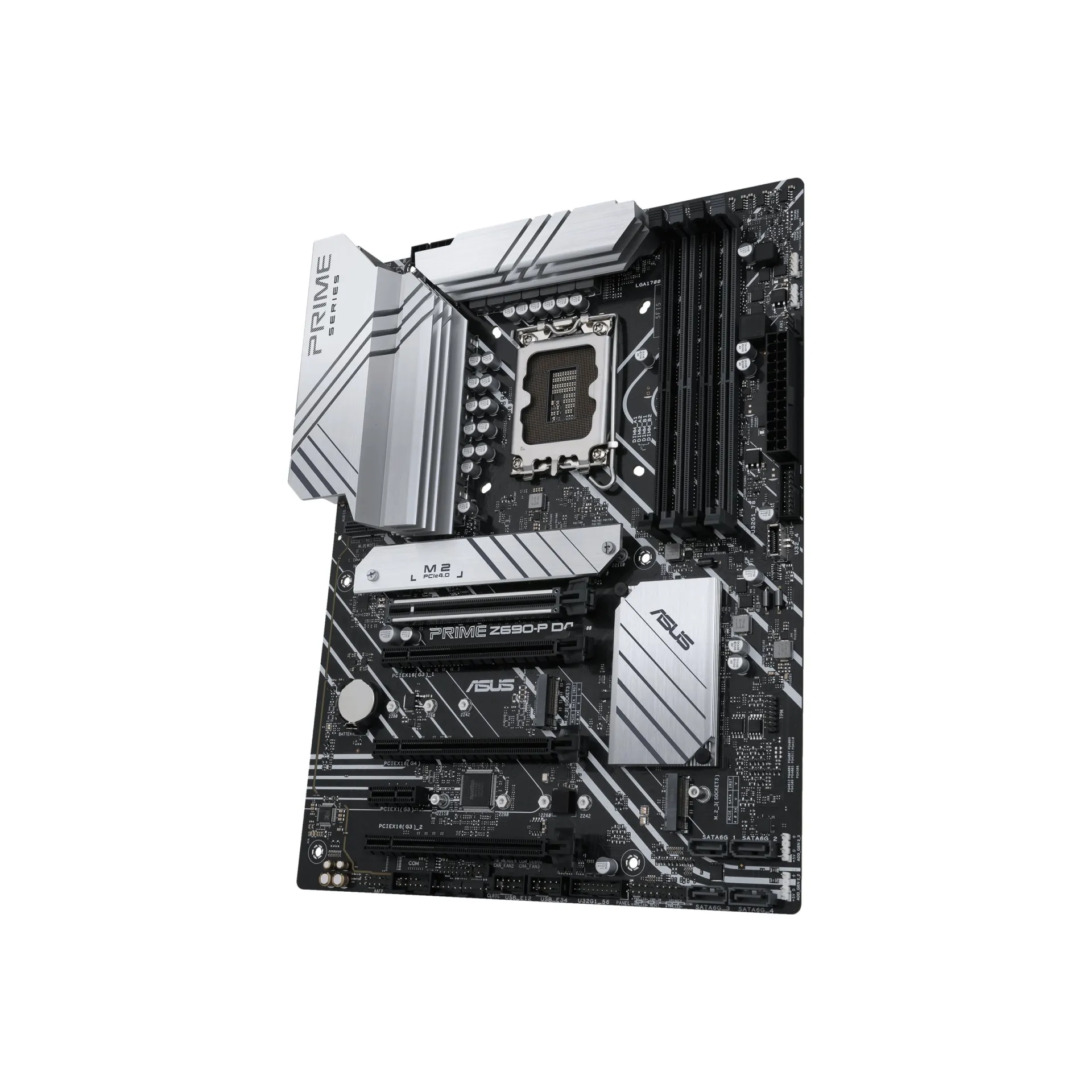

The 90MB18P0-M0EAY0 is an ASUS ATX motherboard built on the Intel Z690 platform with an LGA1700 socket, designed for 12th Gen-class Intel Core processors where high I/O bandwidth and predictable desktop reliability are required. It targets engineering workstations, virtualisation labs, and content creation nodes that need a balanced CPU-to-storage fabric without moving to an ECC server platform.

With DDR4 support across 4 DIMM slots up to 128GB, the 90MB18P0-M0EAY0 enables cost-efficient memory scaling while maintaining stable thermals and compatibility for fleet-standardised builds. PCIe topology is aligned to modern discrete GPU and accelerator workflows via a PCIe 5.0 x16 slot for next-generation graphics, complemented by additional PCIe 4.0 and PCIe 3.0 expansion for capture cards, high-speed adapters, or lab NICs. Storage is optimised for fast scratch and multi-volume layouts with 3 PCIe 4.0 x4 M.2 NVMe slots plus 4 SATA 6Gb/s ports, allowing separation of OS, project, and cache tiers; an additional M.2 E-Key slot supports optional Wi-Fi/BT modules when required.

Why Choose the 90MB18P0-M0EAY0?

The 90MB18P0-M0EAY0 delivers an enterprise-relevant density-to-performance profile for ATX workstations by combining PCIe 5.0 GPU readiness, multi-M.2 NVMe capacity, and 2.5GbE networking in a single, serviceable platform. It scales from productivity deployments to lab virtualisation and GPU-enabled content pipelines while maintaining straightforward integration into standard chassis, power, and cooling designs.

ASUS engineering emphasises signal integrity, firmware maturity, and component validation to support long uptime cycles in professional environments, with TPM support and RAID capabilities aligned to modern endpoint security and storage resilience requirements.

Key Applications:

Engineering and productivity workstations
Virtualisation and homelab platforms
NVMe scratch for content creation
PCIe Gen5 discrete GPU builds
Multi-drive desktop storage arrays

At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout requirements for 90MB18P0-M0EAY0-based builds, plus bulk order discount options to support standardised workstation and lab deployments.

Technical details of 90MB18P0-M0EAY0

CPU Socket:

V (LGA 1700)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Core i9 Core i7 Core i5 Core i3 Pentium Gold Celeron

Form Factor:

ATX

Chipset:

Intel Z690

RAM Maximum Capacity:

128GB

Max RAM Frequency :

3200MHz

RAM Slots:

4 DIMM DDR4

PCIe Slots:

1 PCIe 3.0 x1 1 PCIe 4.0 x16 1 PCIe 5.0 x16 2 PCIe 3.0 x16

M.2 Slots:

1 PCIe 4.0 x4 M.2 2280/2260/2242 M-Key 1 PCIe 4.0 x4 M.2 22110/2280/2260/2242 M-Key 1 PCIe 4.0 x4; SATA M.2 22110/2280/2260/2242 M-Key 1 PCIe 4.0/USB M.2 2230 E-Key

Network Ports:

1 RJ45 2.5 Gbps

ECC Support:

Non-ECC

Onboard Network:

Ethernet

Suitability:

Gaming Desktop

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

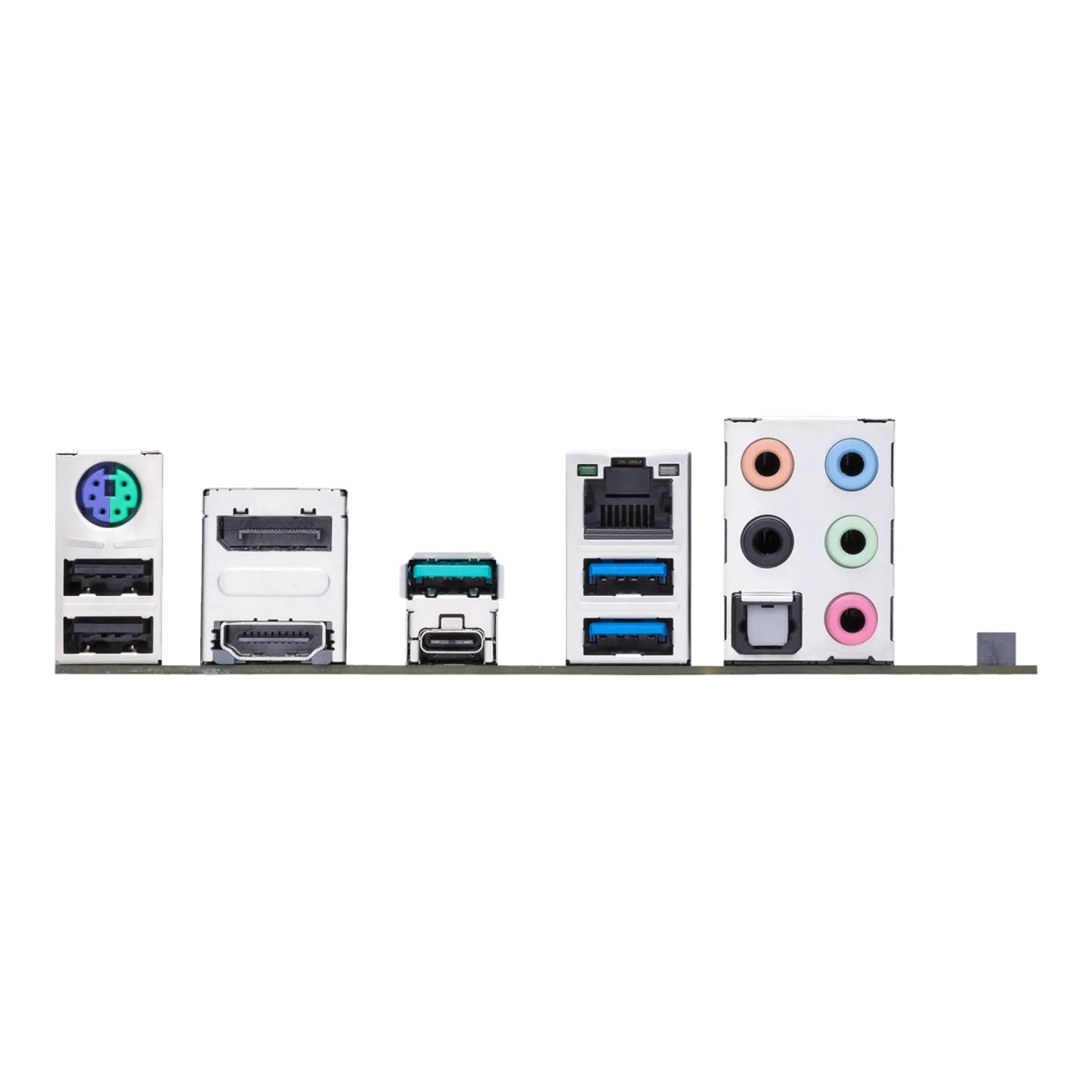

Video Output:

1x HDMI 1x DisplayPort 1.4

USB Ports:

2x USB 3.0 Type-A 1x USB 3.1 Type-A 1x USB 3.2 Type-C 2x USB 2.0 Type-A 4x USB 3.0 Type-A 1x USB 3.0 Type-C

Other Ports:

1x Serial Port

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

None

Embedded:

Card Reader:

How long is the Warranty and how you can get technical support for 90MB18P0-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
