90MB15Z0-M0EAY0 ASUS Micro-ATX Single AM4 4 DIMM Slots Desktop Mainboard

Get extra volume discount for 90MB15Z0-M0EAY0 and save cash:

Quantity	Unit price
To 19	€109.00
To 49	€101.00 €109.00 (7.34% saved)
To 99	€92.70 €109.00 (14.95% saved)
From 100	€87.20 €109.00 (20% saved)

Product line:

ASUS Prime

See all Server Motherboards

See other ASUS products

€109.00

Out of stock

Not available

Happyware Article Number:

SH7M7550-685886

Manufacturer Number:

90MB15Z0-M0EAY0

Brand:

ASUS

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

90MB15Z0-M0EAY0

High-Performance Micro-ATX AMD AM4 Motherboard Platform for Cost-Efficient Edge and Office Builds with the 90MB15Z0-M0EAY0

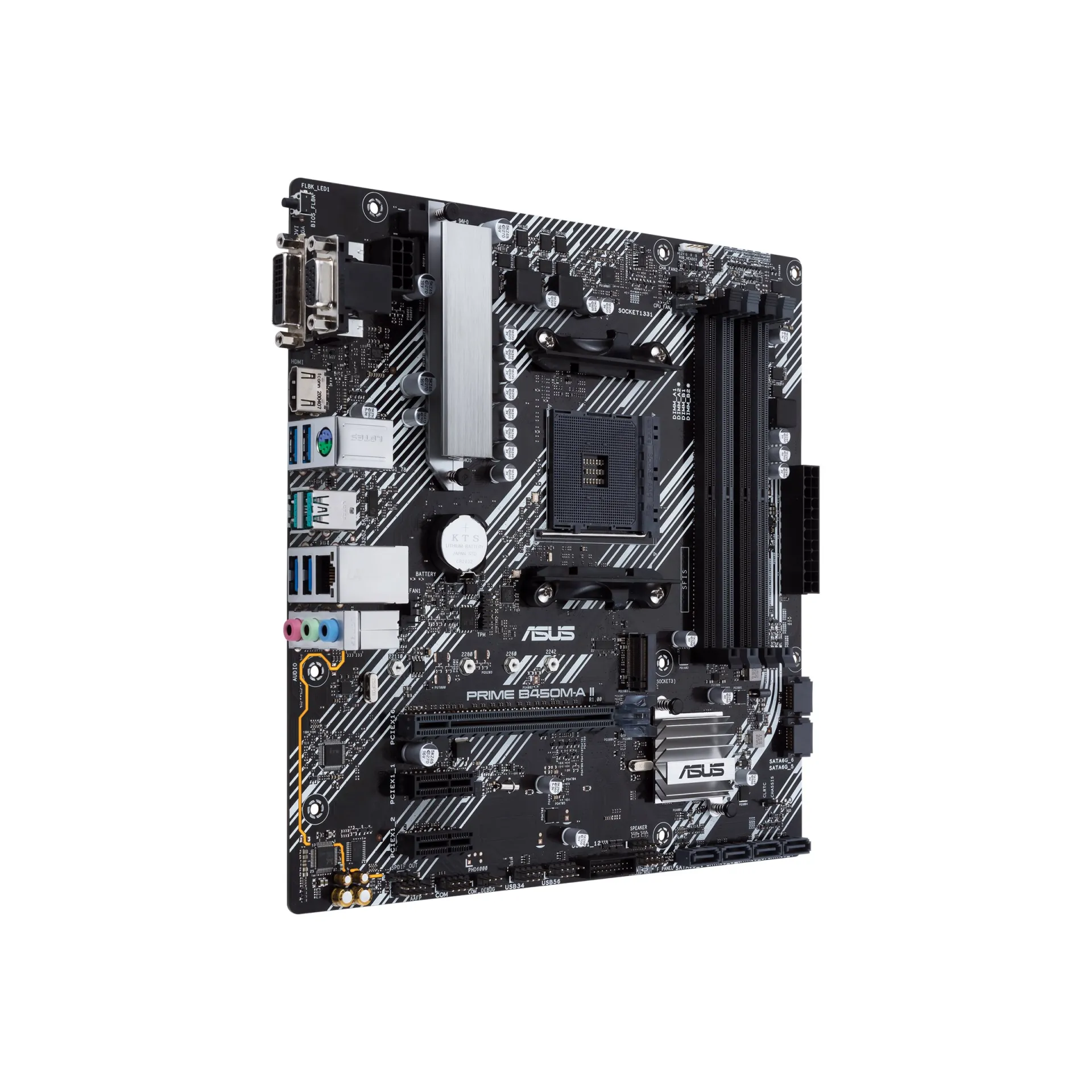

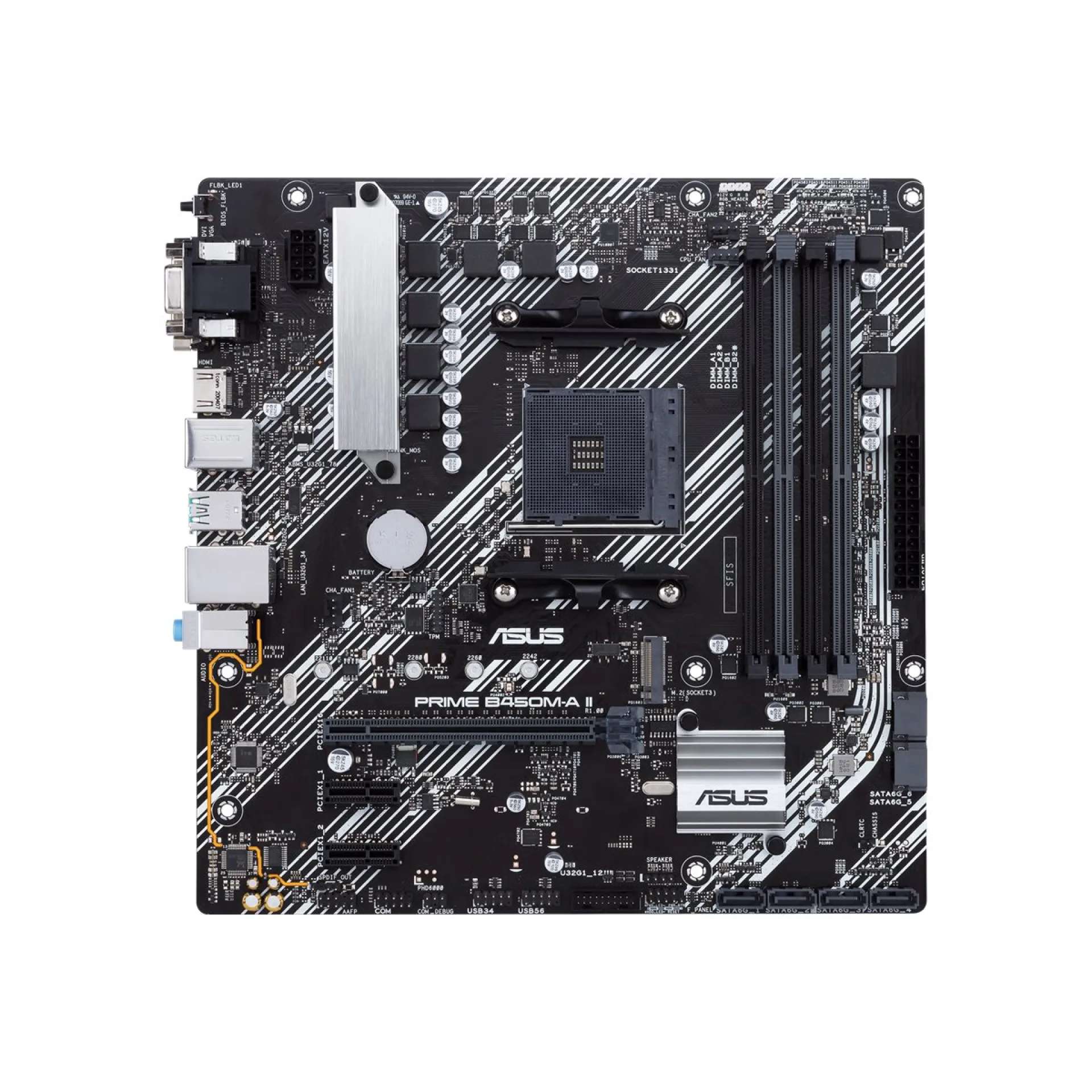

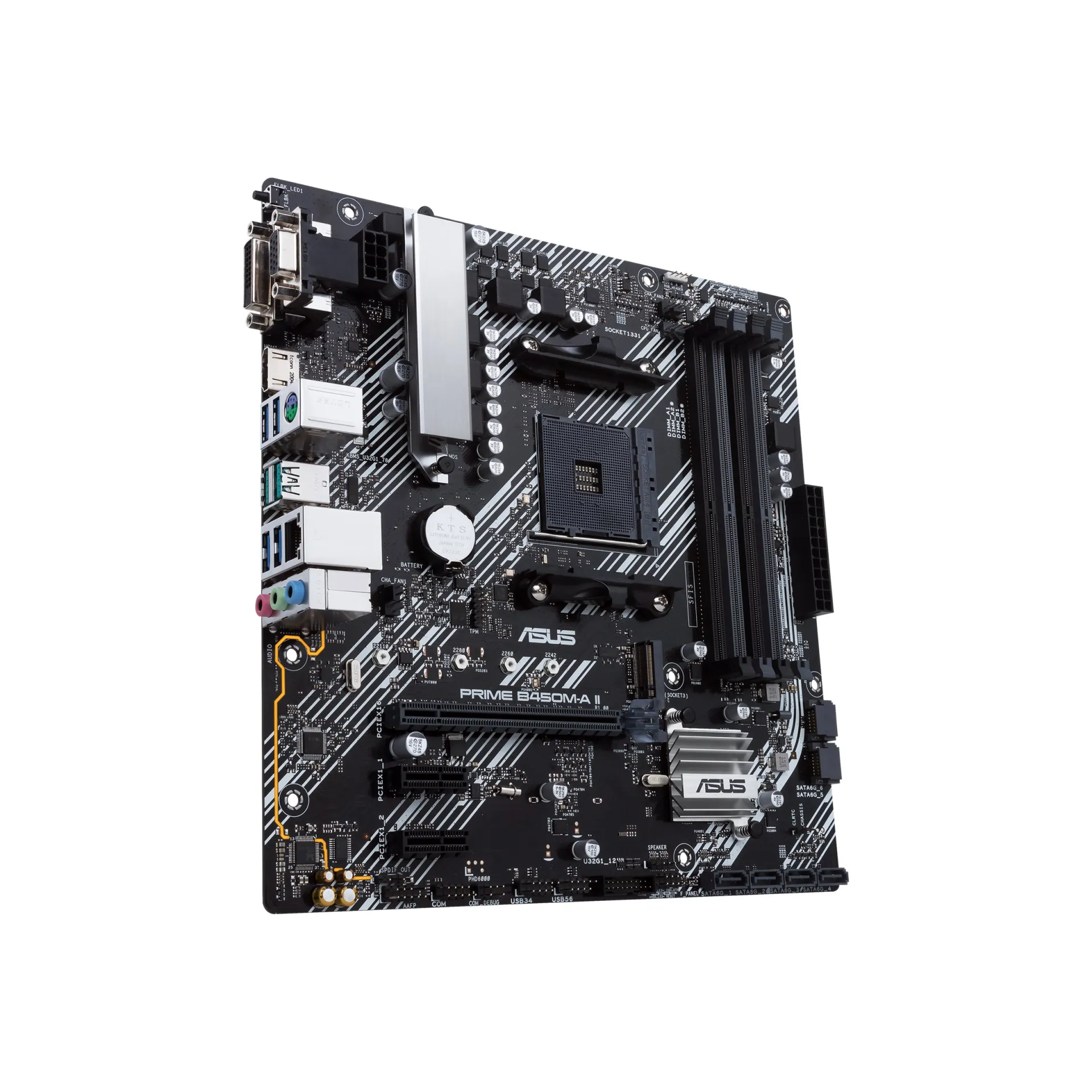

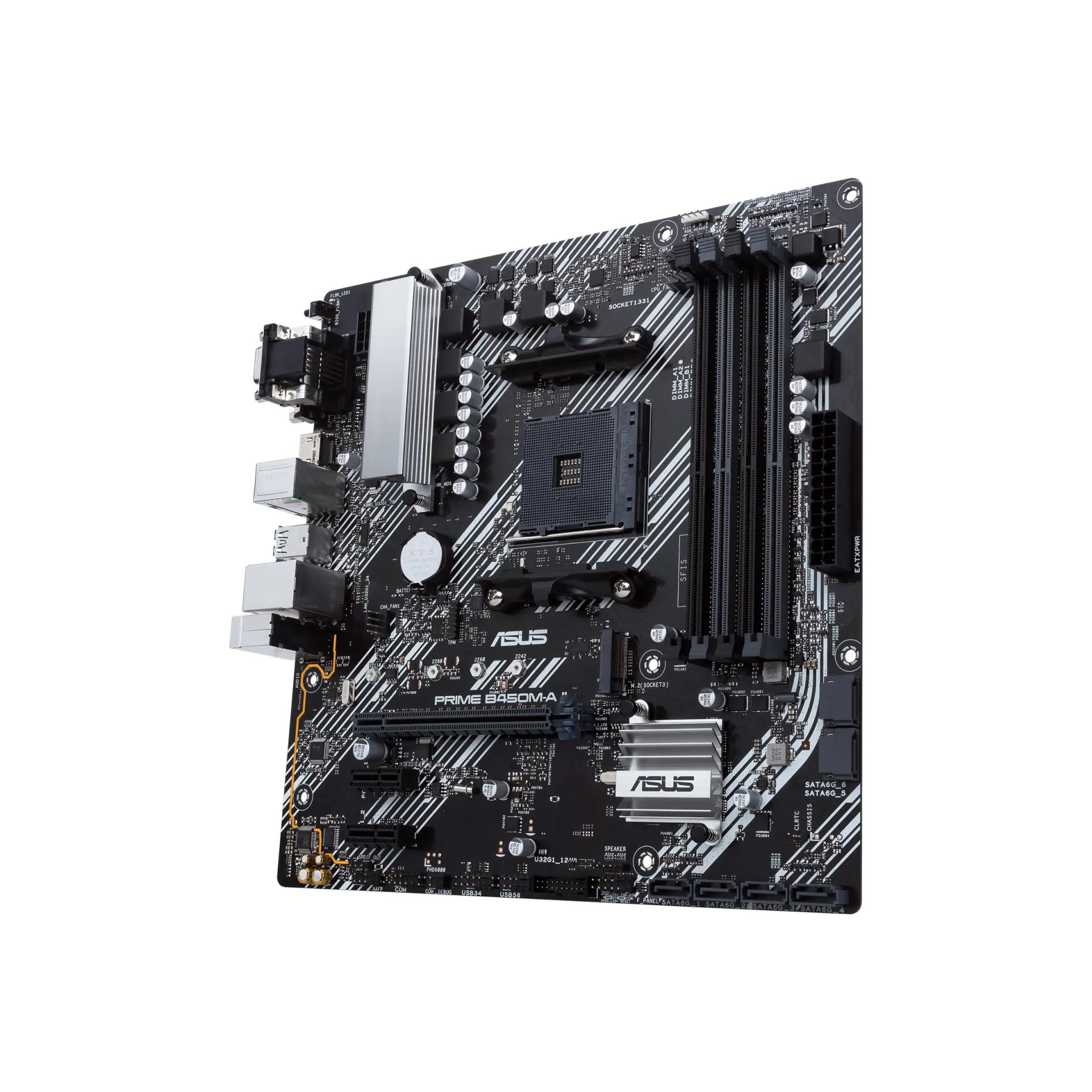

The 90MB15Z0-M0EAY0 is an ASUS Prime B450M-A II Micro-ATX motherboard designed for stable AMD AM4 deployments on the B450 chipset, balancing compute flexibility with compact integration for enterprise endpoints, lab nodes, and light workstation roles. It supports Ryzen and Athlon CPU families, enabling right-sized core counts for productivity and test environments without overprovisioning platform cost.

With 4 DDR4 DIMM slots, the 90MB15Z0-M0EAY0 provides dual-channel memory capacity up to 128GB and supports ECC or non-ECC operation depending on the installed CPU, which is relevant for data integrity in budget virtualization or edge caching scenarios. Expansion is engineered around PCIe 3.0, offering a full-length PCIe 3.0 x16 slot for a single GPU or high-throughput adapter, complemented by PCIe 2.0 x1 slots for additional NICs or I/O cards. Storage architecture combines 6 SATA 6Gb/s ports with an M.2 socket supporting PCIe 3.0 x4 NVMe or SATA, letting architects mix low-cost bulk SATA with fast NVMe for OS, scratch, or database logs.

Why Choose the 90MB15Z0-M0EAY0?

The 90MB15Z0-M0EAY0 fits density-driven rollouts where standardized AM4 compute, predictable PCIe 3.0 expansion, and flexible storage lanes are needed in a Micro-ATX footprint. For branch office, lab, or edge deployments, it delivers a pragmatic performance-to-cost profile while retaining enterprise-relevant controls such as RAID support and a TPM header option for measured boot strategies.

ASUS designs this platform with conservative power delivery, validated firmware behavior, and broad component compatibility aligned to modern data centre and SMB operational standards. UEFI BIOS features and USB BIOS Flashback simplify lifecycle maintenance, enabling controlled updates even when CPU or memory changes are part of staged deployment.

Key Applications:

Office and SMB desktop endpoints
Budget virtualization and test hosts
Single-GPU light content creation
Edge nodes with multi-drive local storage

At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout plan for the 90MB15Z0-M0EAY0 and can secure a bulk order discount when standardizing this board across multiple sites.

Technical details of 90MB15Z0-M0EAY0

CPU Socket:

AM4

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

AMD

CPU Supported Type:

Ryzen Athlon (Zen-based) Athlon - Raven2

Form Factor:

Micro-ATX

Chipset:

AMD B450

RAM Maximum Capacity:

128GB

Max RAM Frequency :

4400MHz

RAM Slots:

4 DIMM DDR4

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 3.0 x16 2 PCIe 2.0 x1

M.2 Slots:

1 PCIe 3.0 x4/SATA M.2 22110/2280/2260/2242 M-Key

Network Ports:

1 RJ45 1 Gbps

ECC Support:

ECC Non-ECC

Onboard Network:

Ethernet

Suitability:

Desktop

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

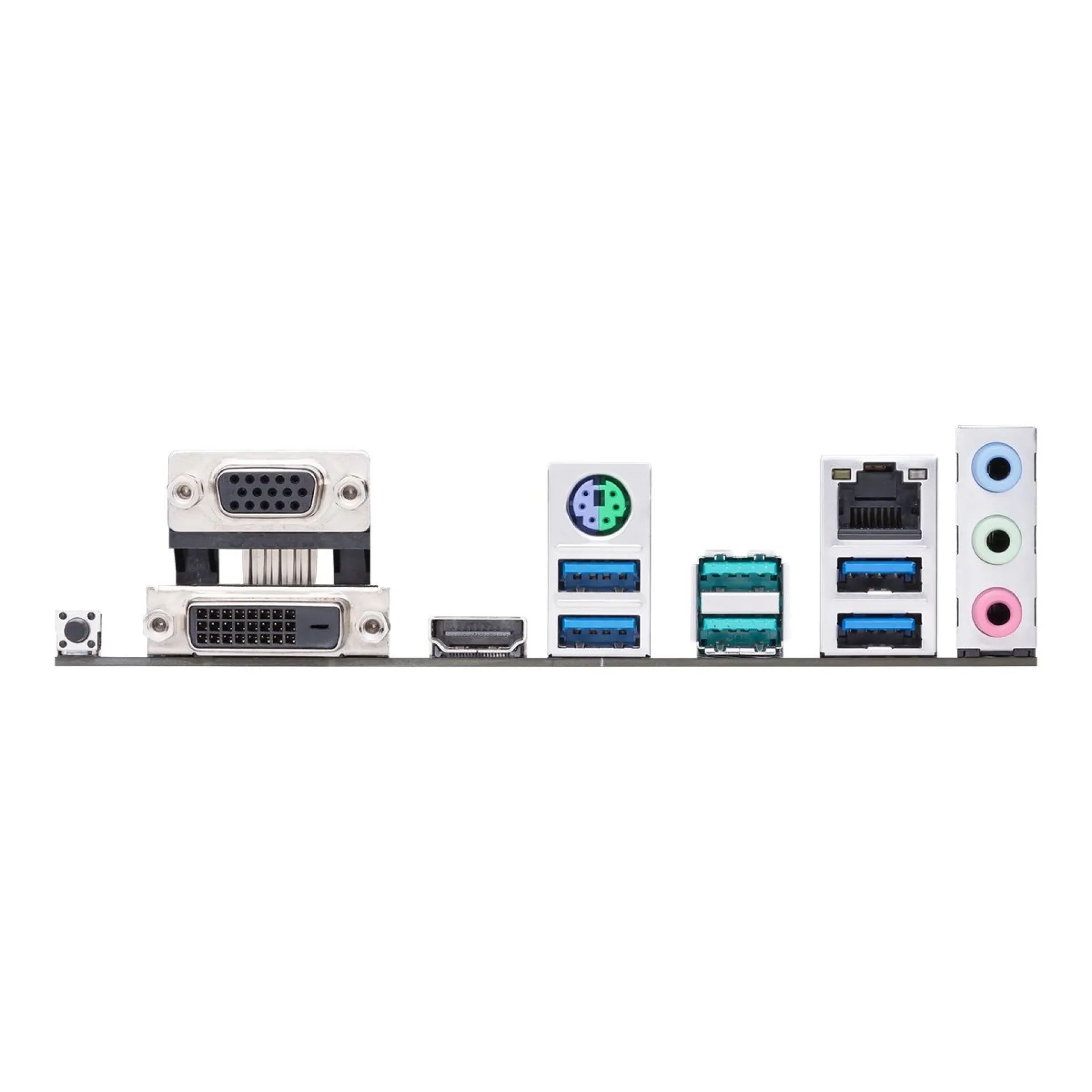

1x DVI-D 1x HDMI 2.0 1x VGA

USB Ports:

4x USB 2.0 Type-A 2x USB 3.2 Gen 1 Header 2x USB 3.2 Gen 2 Type-A 4x USB 3.2 Gen 1 Type-A

Other Ports:

1x PS/2 Combo 1x S/PDIF-Header 1x Serial Port 3x 3.5mm Klinke (Realtek ALC887) 1x Speaker-Header 1x TPM Header

Trusted Platform Module (TPM):

Optional

BIOS:

AMI UEFI

Wi-Fi Support:

None

Embedded:

GPIO Pins:

Card Reader:

How long is the Warranty and how you can get technical support for 90MB15Z0-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
