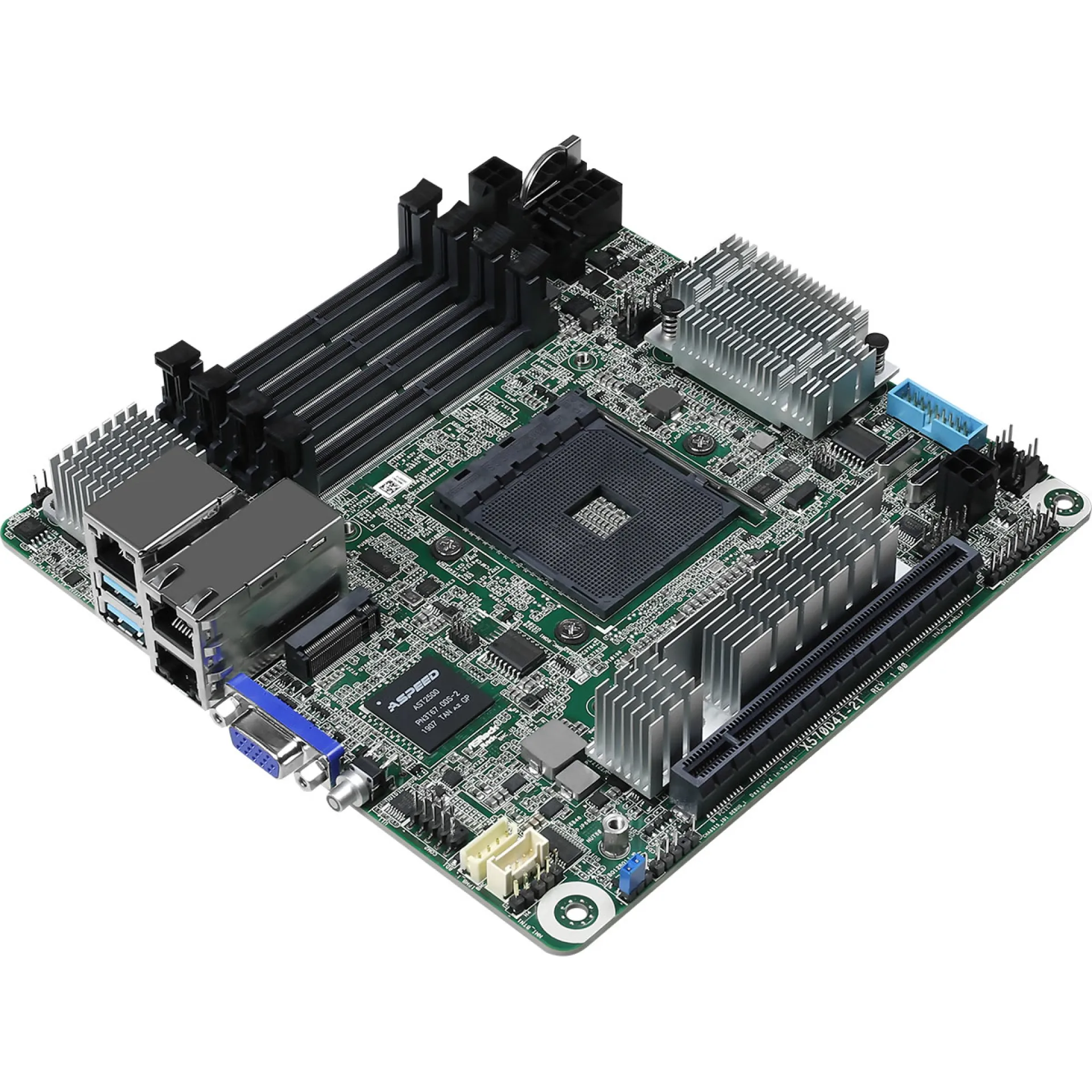

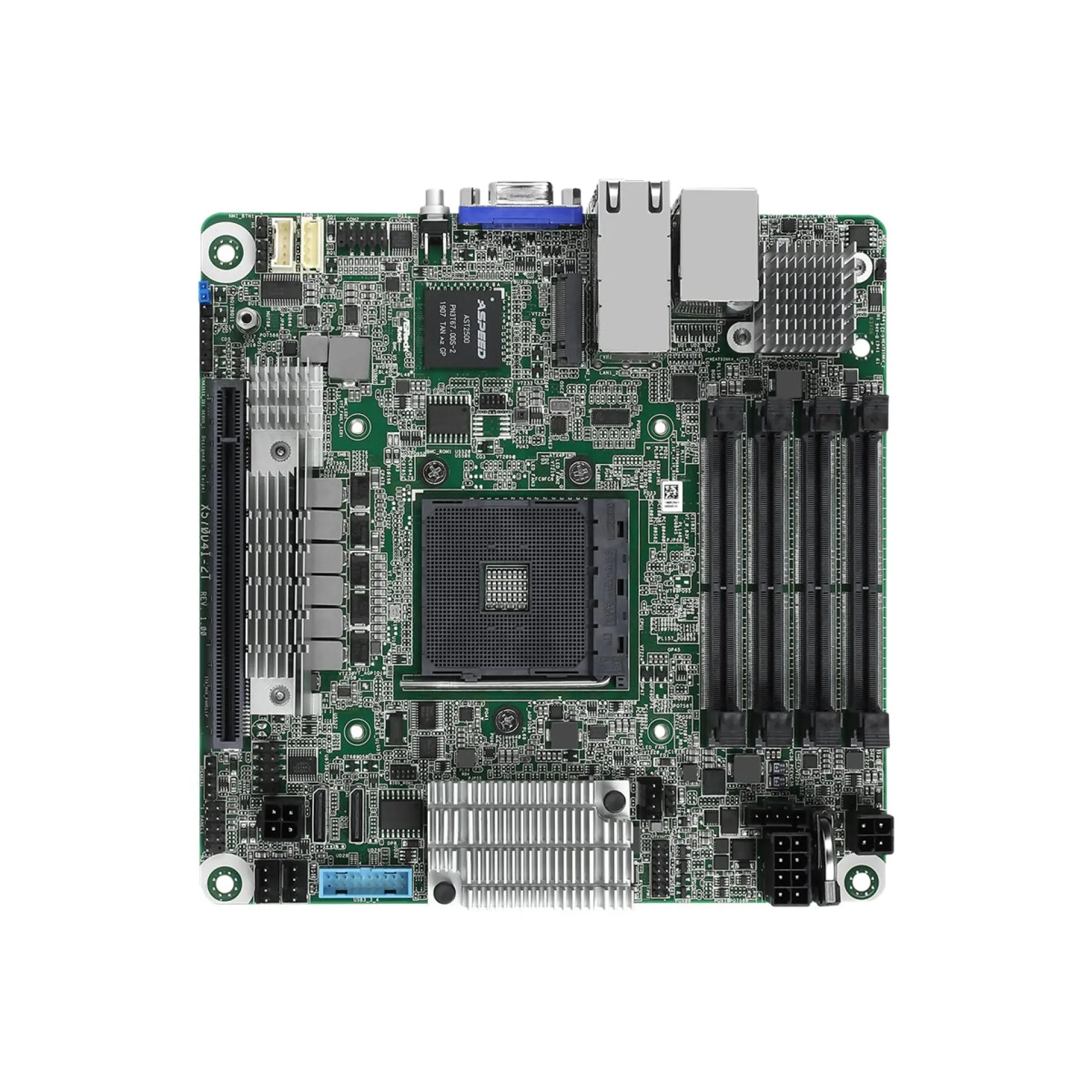

X570D4I-2T

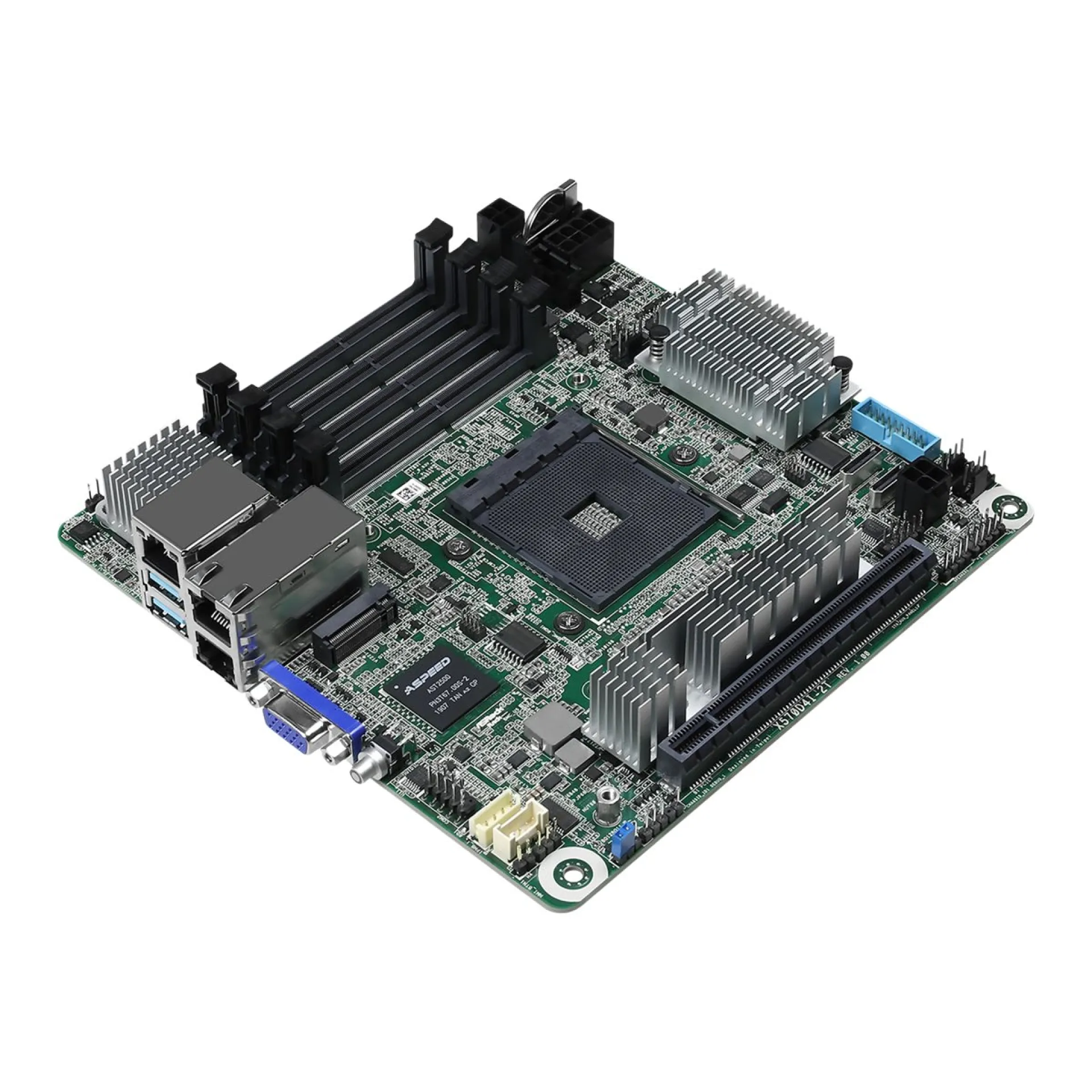

High-Performance Mini-ITX Server/Workstation Motherboard featuring AMD X570 PCIe 4.0 and Dual 10GbE with the X570D4I-2T

The X570D4I-2T is a compact AM4 platform engineered for enterprise edge and small-footprint server deployments where high I/O density and remote manageability must fit a Mini-ITX envelope. Built on the AMD X570 chipset, the X570D4I-2T supports AMD Ryzen processors and pairs them with a 4-slot DDR4 SO-DIMM memory architecture that can run ECC or non-ECC to align reliability requirements with workload criticality.

For expansion, the X570D4I-2T exposes a full-bandwidth PCIe 4.0 x16 interface, enabling modern NIC, accelerator, or storage controller integration without sacrificing lane efficiency. Storage is optimized for mixed media designs, combining 8x SATA 6Gb/s with an M.2 (M-Key) slot that supports PCIe 4.0 x4 or SATA, plus SATA RAID 0/1/10 for straightforward resiliency in compact systems. Dual 10GbE RJ45 based on Intel X550-AT2 delivers predictable throughput for virtualization labs, branch-office consolidation, and fast NAS or iSCSI targets.

Why Choose the X570D4I-2T?

The X570D4I-2T provides a high density-to-performance ratio by unifying PCIe 4.0, dual 10GbE, and server-class management in a board sized for constrained racks, wall cabinets, and embedded enclosures. With integrated IPMI/BMC out-of-band control and TPM support, the X570D4I-2T enables scalable, policy-driven operations and faster recovery workflows across distributed sites.

ASRock designs server motherboards with an emphasis on electrical integrity, validated component selection, and management features aligned to modern data centre standards. The X570D4I-2T reflects this approach by combining stable platform behavior with remote lifecycle control for long-lived deployments.

Key Applications:

Edge and branch office compute nodes
Virtualization lab hosts
Compact 10GbE storage gateways
Small footprint servers with IPMI management
Engineering workstations requiring dual 10GbE

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your needs and an extended warranty up to 6 years to secure long-term operation of X570D4I-2T-based systems in distributed enterprise environments.

Technical details of X570D4I-2T

CPU Socket: AM4

Onboard Memory: No

RAID Support: Yes

CPU Manufacturer: AMD

CPU Supported Type: Ryzen

Form Factor: Mini-ITX

Chipset: AMD X570

RAM Maximum Capacity: 128GB

Max RAM Frequency : 2933MHz

RAM Slots: 4 SO-DIMM DDR4

PCIe Slots: 1 PCIe 4.0 x16

M.2 Slots: 1 PCIe 4.0 x4/SATA M.2 M-Key

Network Ports: 2 RJ45 10 Gbps

ECC Support: ECC, Non-ECC

Onboard Network: Ethernet

Suitability: Server, Workstation

Onboard CPU: No

RAID Support: Yes

Onboard Graphic: Yes

Video Output: 1x VGA

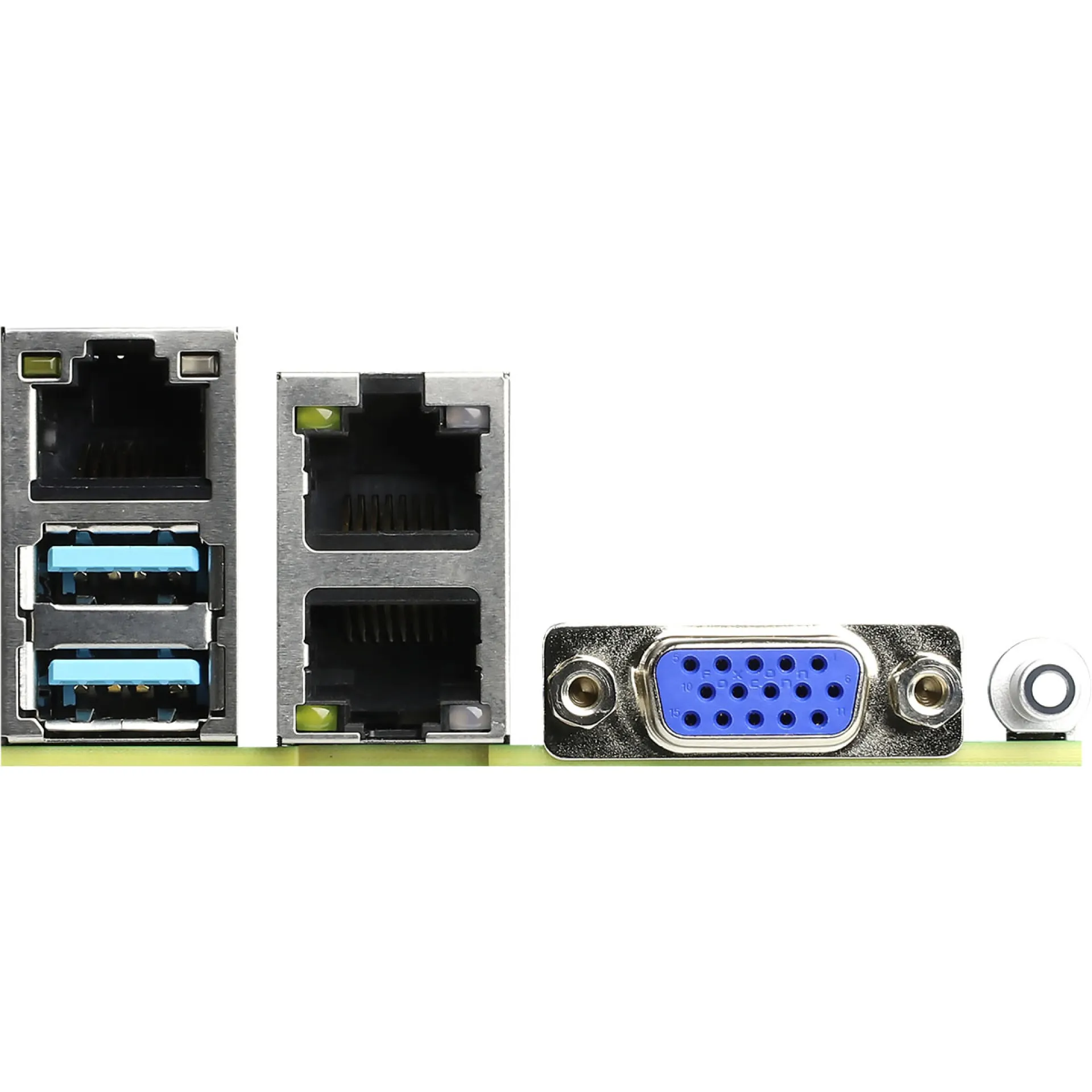

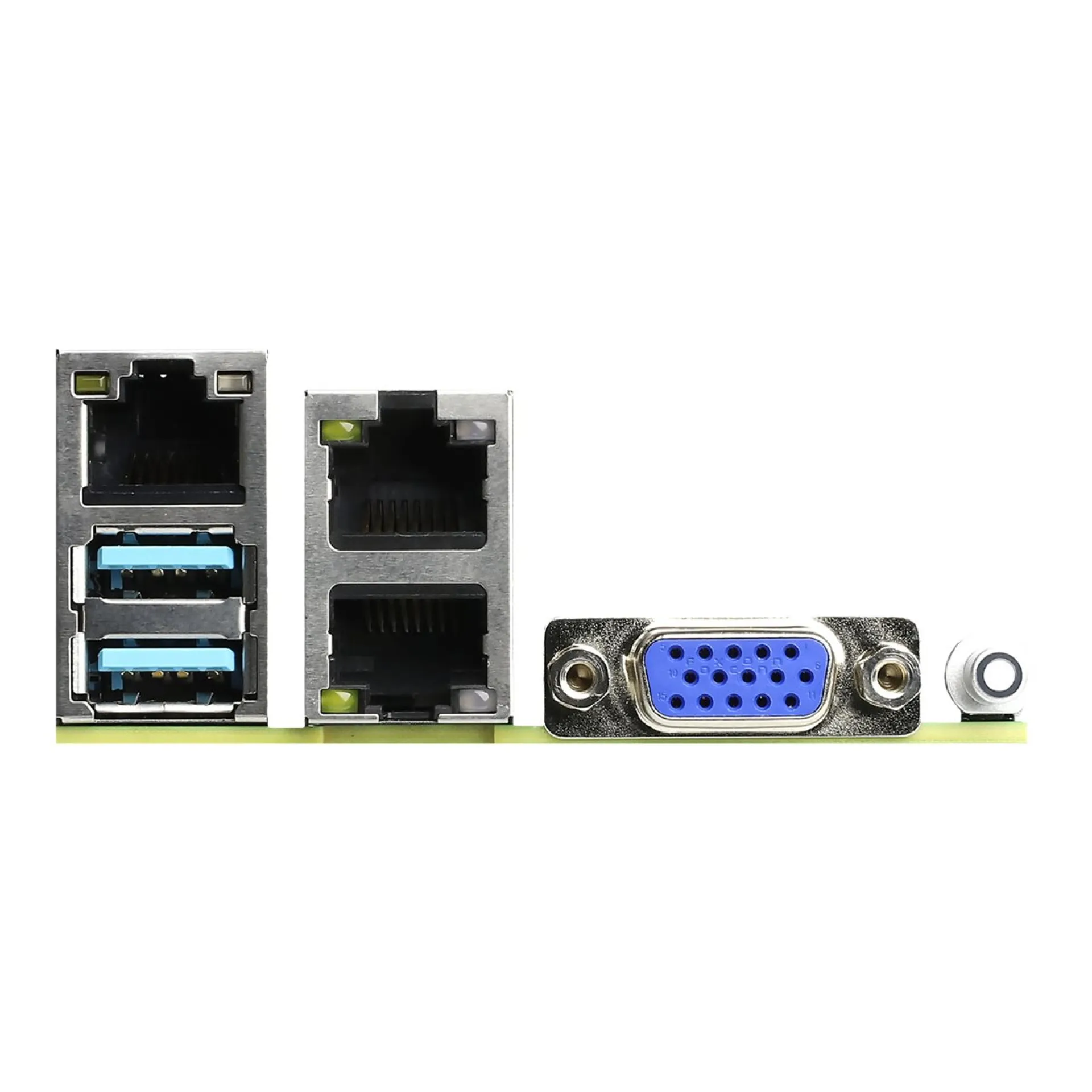

USB Ports: 2x USB 3.2 Gen 1 ports, 2x USB 3.2 Gen 2 Type-A

Other Ports: 1x COM Port, 1x IPMI Management Port

Trusted Platform Module (TPM): Yes

BIOS: 32MB AMI UEFI

Wi-Fi Support: None

Onboard Audio Chipset: No

Embedded: No

Card Reader: No

How long is the Warranty and how you can get technical support for X570D4I-2T

Warranty:	12 months (part)
RMA Url:	https://www.asrock.com/support/?cat=RMA
Description:	Items must be returned first for RMA processing. No advanced replacements.
