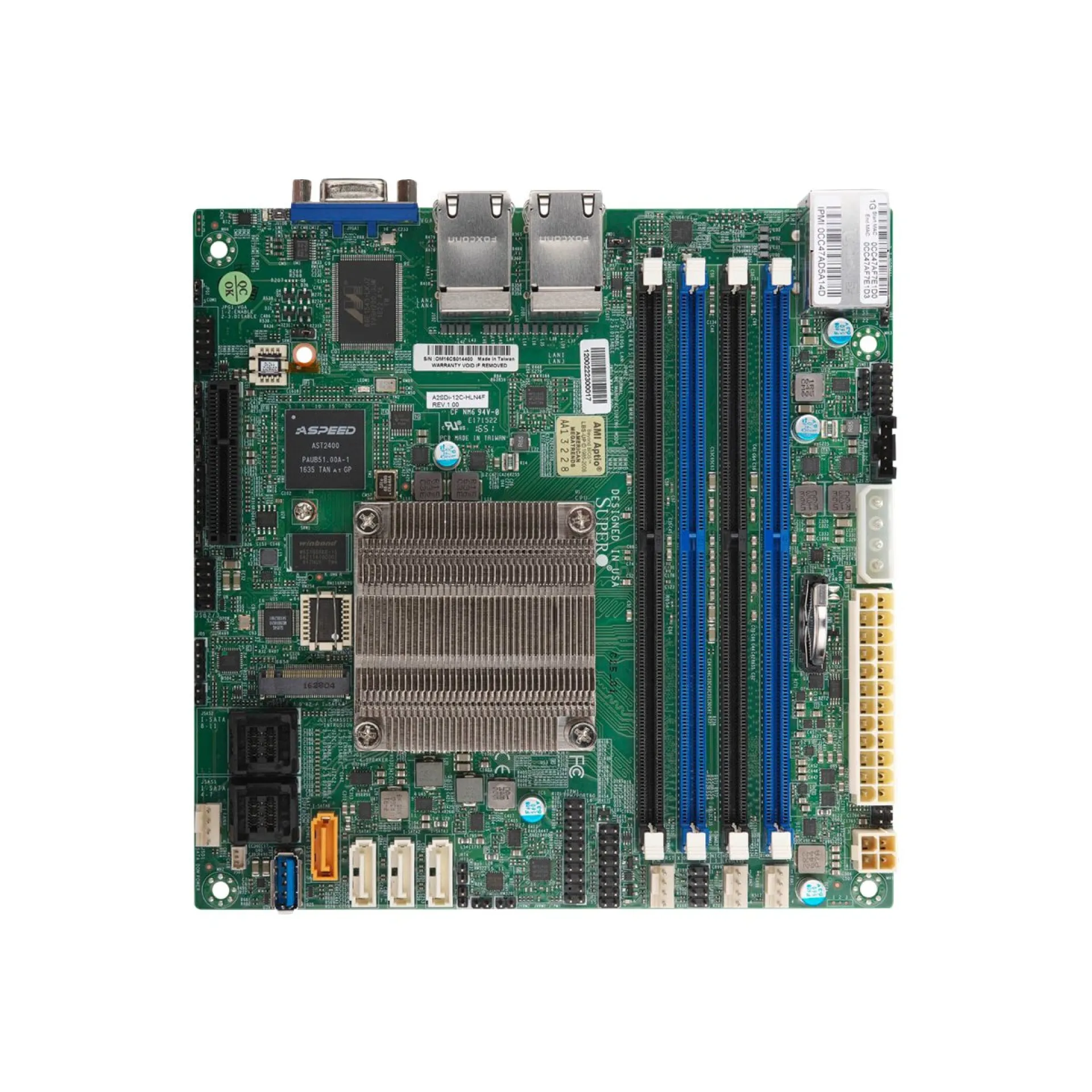

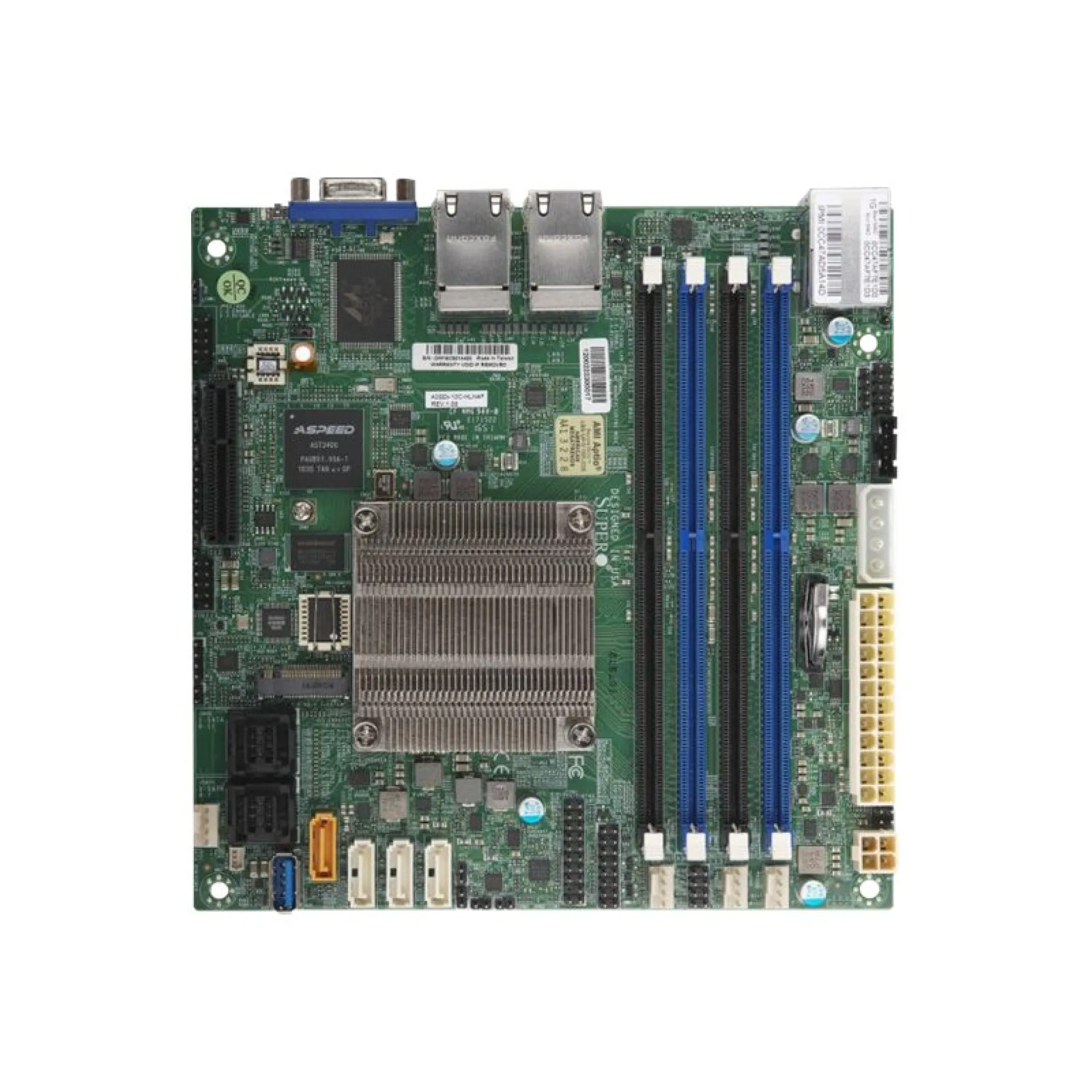

MBD-A2SDI-8C-HLN4F-B Supermicro Mini-ITX Single System on Chip (SoC) 4 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-A2SDI-8C-HLN4F-B and save cash:

Quantity	Unit price
To 9	€570.00
To 19	€542.00 €570.00 (4.91% saved)
To 49	€531.00 €570.00 (6.84% saved)
From 50	€514.00 €570.00 (9.82% saved)

See all Mini ITX Motherboard

See other Supermicro products

€570.00

Out of stock

Not available

Happyware Article Number:

SH5M2369-510474

Manufacturer Number:

MBD-A2SDI-8C-HLN4F-B

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-A2SDI-8C-HLN4F-B

High-Density Mini-ITX Server Motherboard featuring Intel Atom C3000 SoC efficiency with the MBD-A2SDI-8C-HLN4F-B

The MBD-A2SDI-8C-HLN4F-B is a Mini-ITX server motherboard designed for edge and branch deployments where deterministic performance, low power draw, and integrated networking reduce platform complexity. Built on the Intel Atom C3000 SoC platform, it targets control-plane and network-service workloads that benefit from a 25W-class thermal envelope and a consolidated, highly reliable bill of materials.

Memory architecture on the MBD-A2SDI-8C-HLN4F-B is optimized for uptime-focused services, providing 4 DDR4 DIMM slots with ECC capability (subject to DIMM/SoC support) and capacity scaling up to 256GB for light virtualization and in-memory network functions. For I/O, the platform exposes PCIe 3.0 for predictable peripheral performance: an M.2 M-Key slot supports PCIe 3.0 x2 or SATA for compact boot or cache devices, complemented by a SATA III 6Gb/s port for persistent storage. A PCIe 3.0 x4 slot enables NIC, accelerator, or specialized I/O expansion, while remaining aligned to appliance-class mechanical constraints rather than full-length GPU designs.

Why Choose the MBD-A2SDI-8C-HLN4F-B?

The MBD-A2SDI-8C-HLN4F-B delivers a strong density-to-performance ratio by combining compute, networking, and management on a Mini-ITX footprint, reducing cabling, failure domains, and rack-edge operational overhead. With 4x 1GbE plus a dedicated IPMI management port, it scales cleanly across fleets of remote nodes and supports standardized remote lifecycle workflows.

Supermicro designs platforms with an engineering-first focus on long-life components, remote manageability, and compatibility with modern data centre practices. Integrated BMC/IPMI management with ASPEED AST2400 graphics, TPM header support, and enterprise-oriented I/O help align the board with secure provisioning and hands-off operations.

Key Applications:

Edge microservers and branch compute nodes
Firewall, router, and VPN appliances
SD-WAN and lightweight NFV services
Industrial remote site control-plane systems
Light virtualization and infrastructure services

At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout quantities for the MBD-A2SDI-8C-HLN4F-B and the option to extend warranty up to 6 years to protect long-lived edge deployments.

Technical details of MBD-A2SDI-8C-HLN4F-B

CPU Socket: System on Chip (SoC)

Onboard Memory: No

RAID Support: No

CPU Manufacturer: Intel

CPU Supported Type: Atom

Form Factor: Mini-ITX

Chipset: System-on-Chip (SoC)

RAM Maximum Capacity: 256GB

Max RAM Frequency : 2400MHz

RAM Slots: 4 DIMM DDR4

PCIe Slots: 1 PCIe 3.0 x4

M.2 Slots: 1 PCIe 3.0 x2/SATA M.2 2280, M.2 2242 M-Key

Network Ports: 4 RJ45 1 Gbps

ECC Support: ECC, Non-ECC

Onboard Network: Ethernet

Suitability: Server

Onboard CPU: Yes

RAID Support: No

Onboard Graphic: Yes

Video Output: 1x VGA

USB Ports: 1x USB 3.0 Type-A, 2x USB 2.0

Other Ports: 1x COM Port, 1x IPMI Management Port, 1x SuperDOM (Disk on Module) ports, 1x TPM Header

Trusted Platform Module (TPM): Yes

BIOS: AMI UEFI

Wi-Fi Support: None

Onboard Audio Chipset: No

Embedded: No

Card Reader: No

How long is the Warranty and how you can get technical support for MBD-A2SDI-8C-HLN4F-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
