90-MXBDH0-A0UAYZ
High-Density Mini-ITX AM4 Platform Motherboard with PCIe 4.0 Expansion using the 90-MXBDH0-A0UAYZ

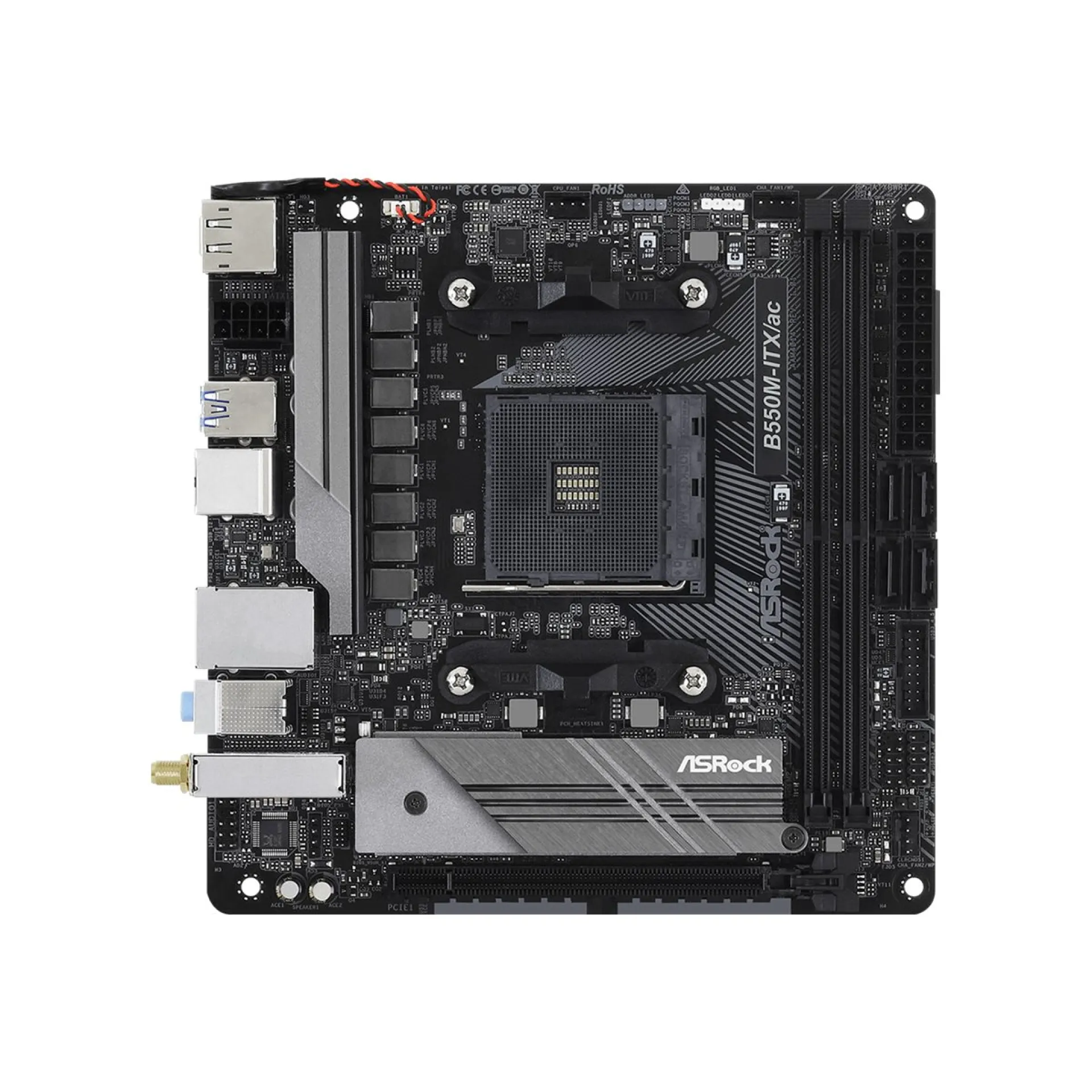

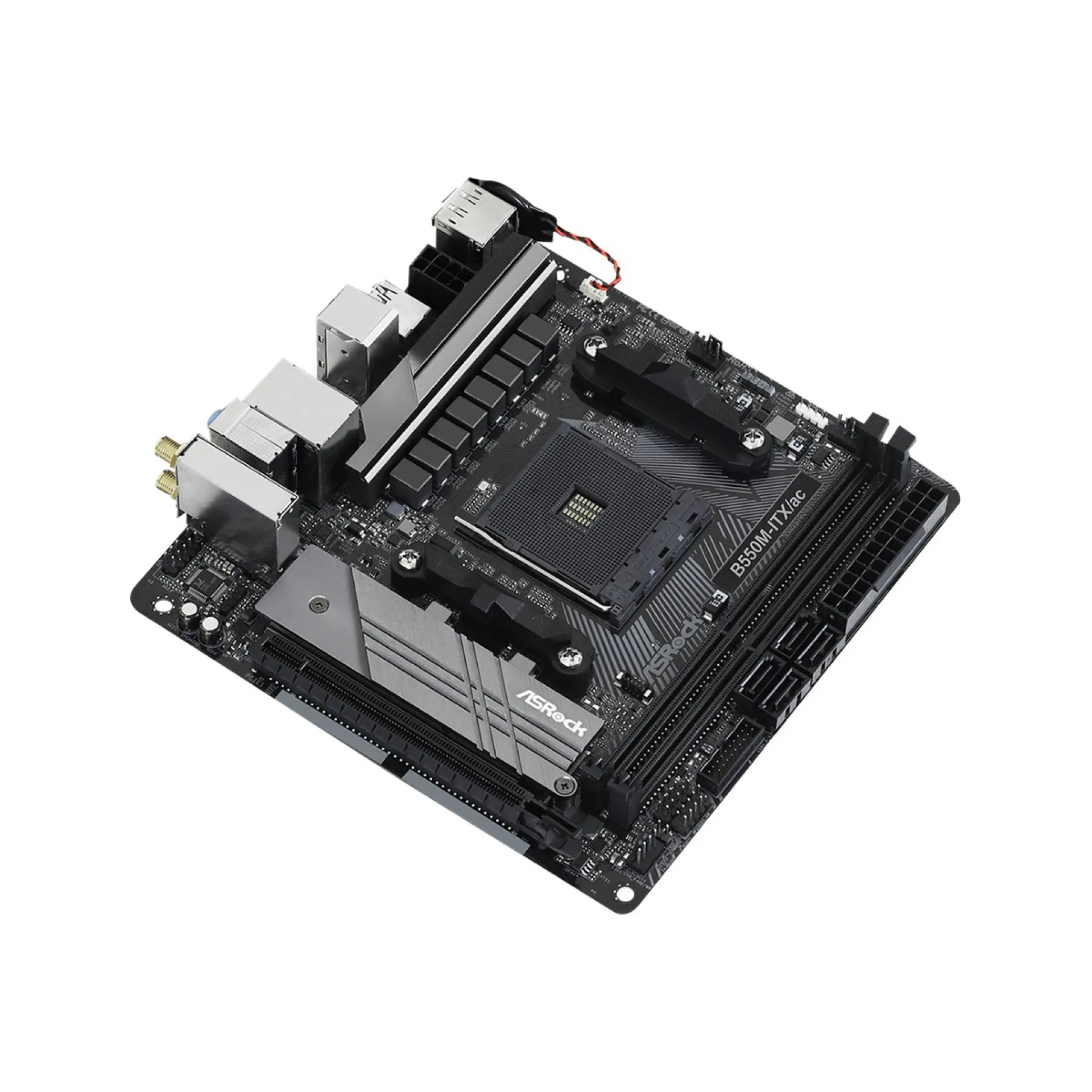

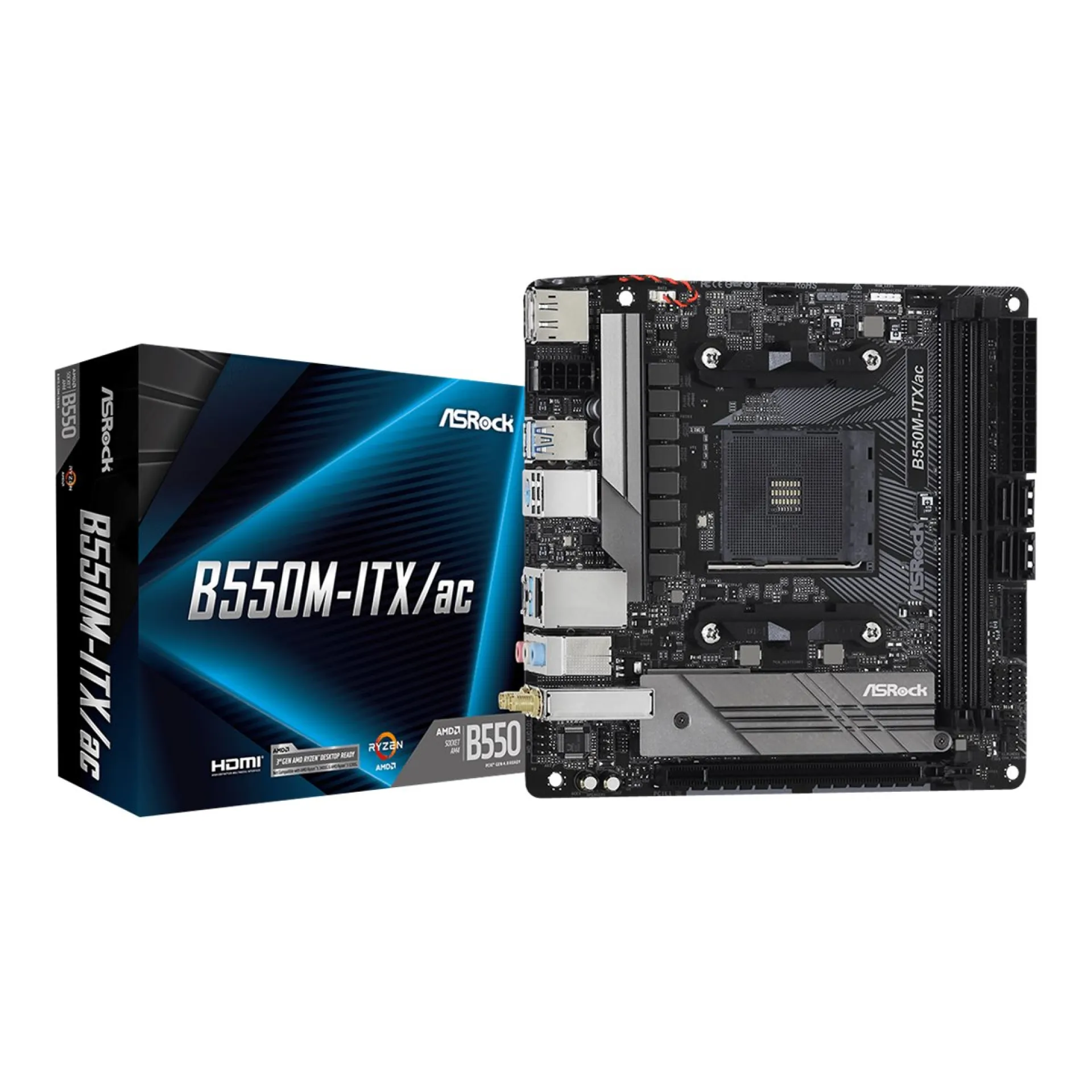

The 90-MXBDH0-A0UAYZ is a compact ASRock Mini-ITX motherboard built on the AMD B550 chipset to enable space-efficient Ryzen deployments in edge, branch, and lab environments. It targets IT teams that need a reliable AM4 platform with modern I/O while keeping chassis volume, power, and thermal envelopes under control.

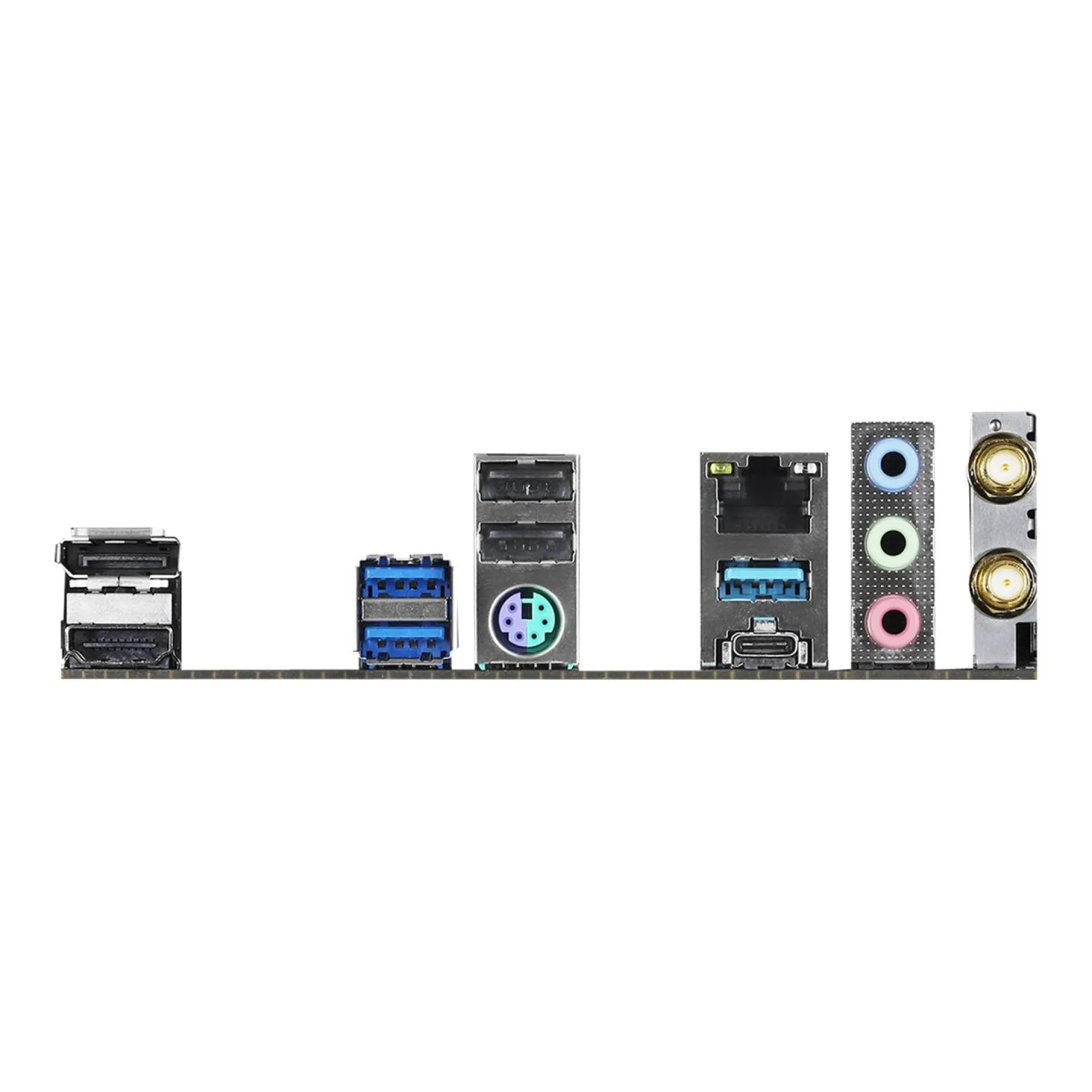

Architecturally, the 90-MXBDH0-A0UAYZ balances compute and I/O by pairing Ryzen CPU support with dual-channel DDR4 memory across 2 DIMM slots (up to 64GB), including ECC UDIMM capability where the CPU supports it. A single PCIe 4.0 x16 slot provides full-height, full-length mechanical compatibility for GPU acceleration or high-throughput adapters, while the M.2 2280 (M-Key) interface supports PCIe 4.0 x4 NVMe or SATA to anchor low-latency storage. For mixed-media footprints, 4x SATA 6Gb/s ports and chipset RAID support simplify resilient local storage layouts, and HDMI/DisplayPort outputs allow APU-driven display for KVM-free local service.
Why Choose the 90-MXBDH0-A0UAYZ?
The 90-MXBDH0-A0UAYZ delivers a strong density-to-performance ratio by concentrating PCIe 4.0 expansion, NVMe capability, and Ryzen compute into a Mini-ITX footprint suited to edge enclosures and compact nodes. It scales cleanly from single-purpose gateways to small virtualization hosts, using standard enterprise components and predictable platform behavior for repeatable rollouts.
ASRock designs this platform with a pragmatic focus on electrical stability, validated interoperability, and firmware maturity aligned to modern data centre and branch standards. The result is an AM4 motherboard engineered for continuous operation where manageability is handled by the host OS and tooling rather than onboard BMC/IPMI.
Key Applications:
- Edge and branch compute nodes
- Small virtualization and lab hosts
- Compact GPU-enabled workstations
- NVMe plus SATA mixed storage systems
- Network appliance and gateway builds
At Happyware - Server Hardware you benefit from non-binding offers tailored to your platform bill of materials for 90-MXBDH0-A0UAYZ-based rollouts, plus an extended warranty up to 6 years to secure long-lifecycle deployments and procurement planning.
Technical details of 90-MXBDH0-A0UAYZ
How long is the Warranty and how you can get technical support for 90-MXBDH0-A0UAYZ
| Warranty: | 12 months (part) |
|---|---|
| RMA Url: | https://www.asrock.com/support/?cat=RMA |
| Description: | Items must be returned first for RMA processing. No advanced replacements. |
| Support Portal: | https://support.happyware.com |
|---|
Customer reviews about 90-MXBDH0-A0UAYZ
Login
- Express shopping
- Save your data and settings
- Order overview and shipping information
- Manage your newsletter subscription
Similar/Alternative Products

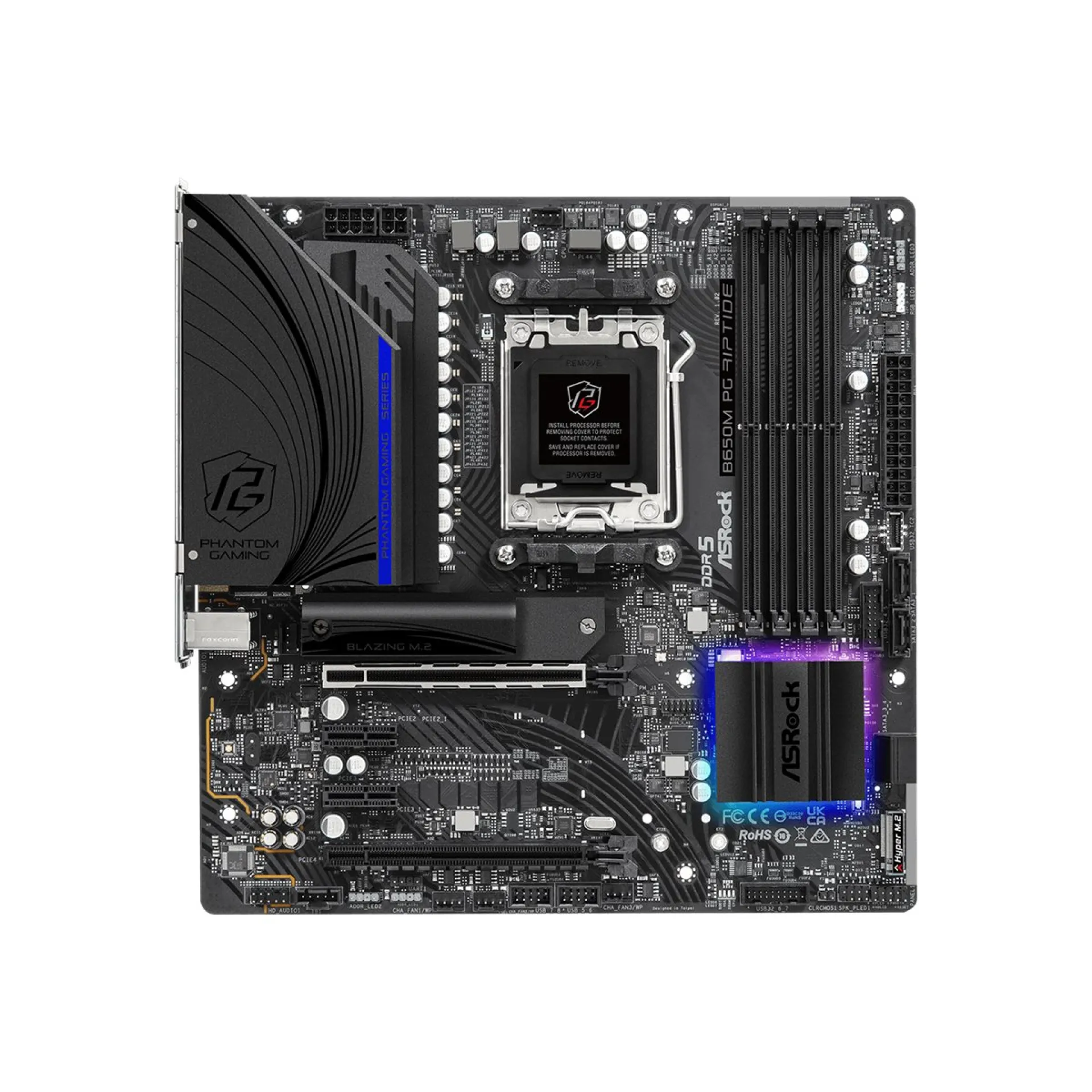

90-MXBJ90-A0UAYZ ASRock Micro-ATX Single AM5 4 DIMM Slots Mainboard
