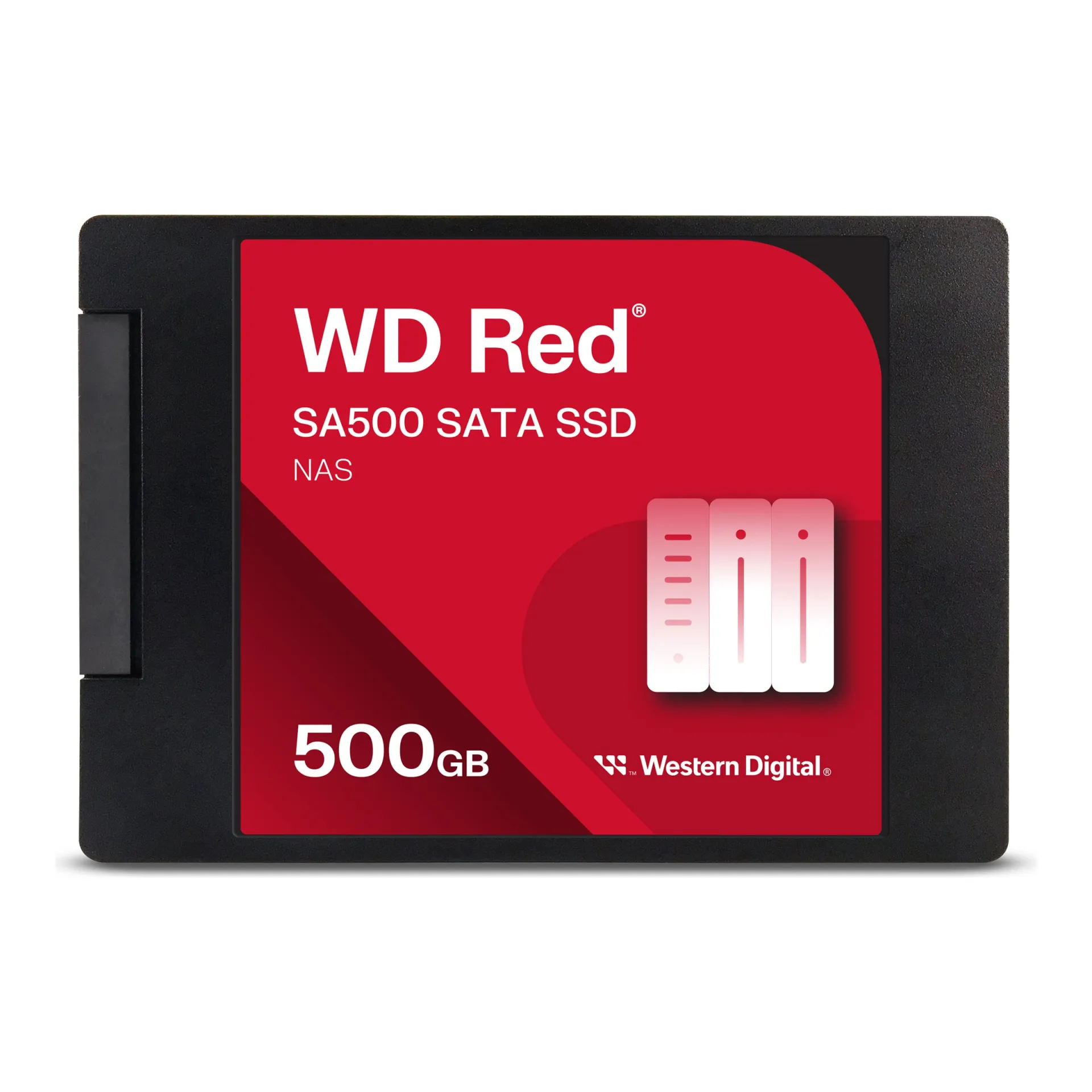

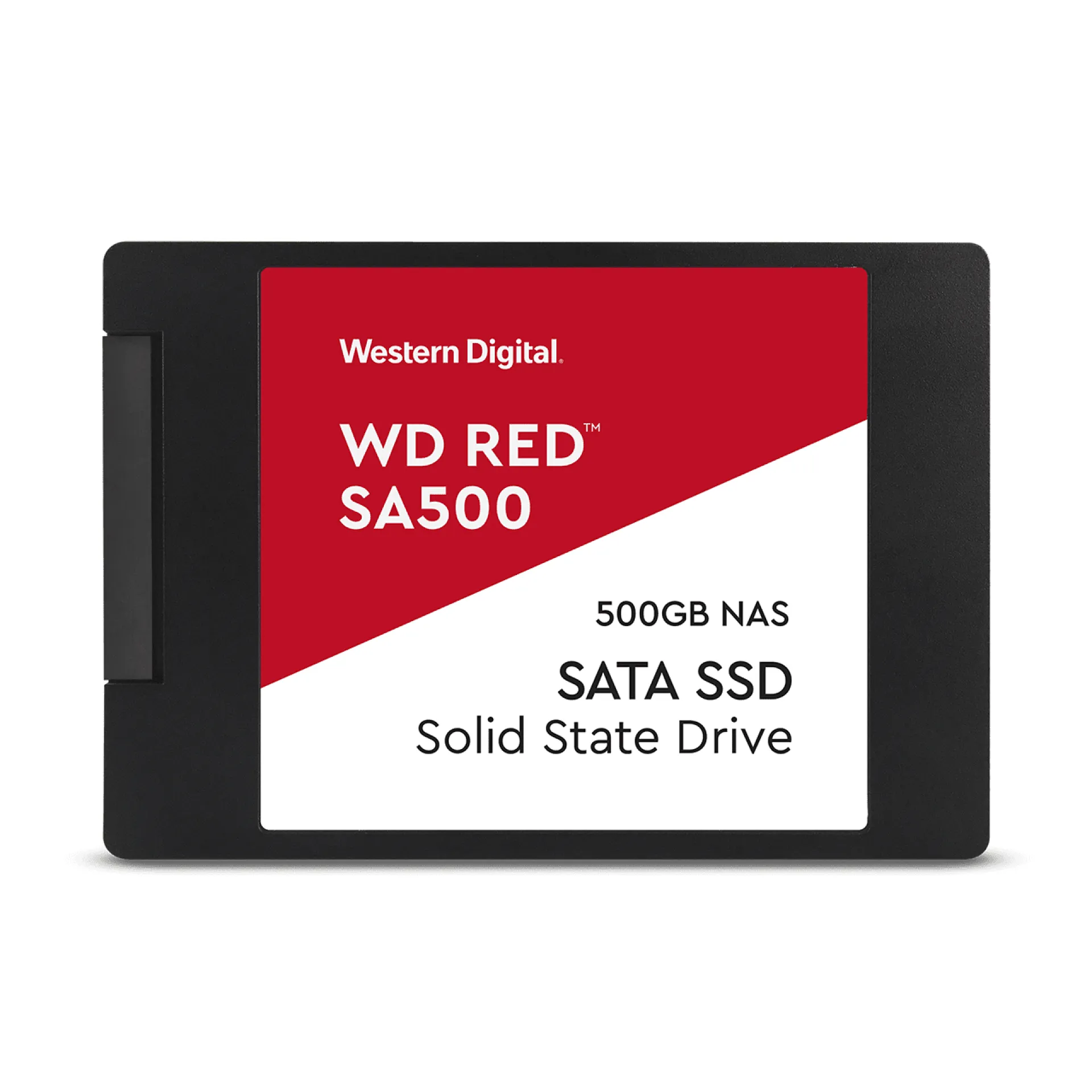

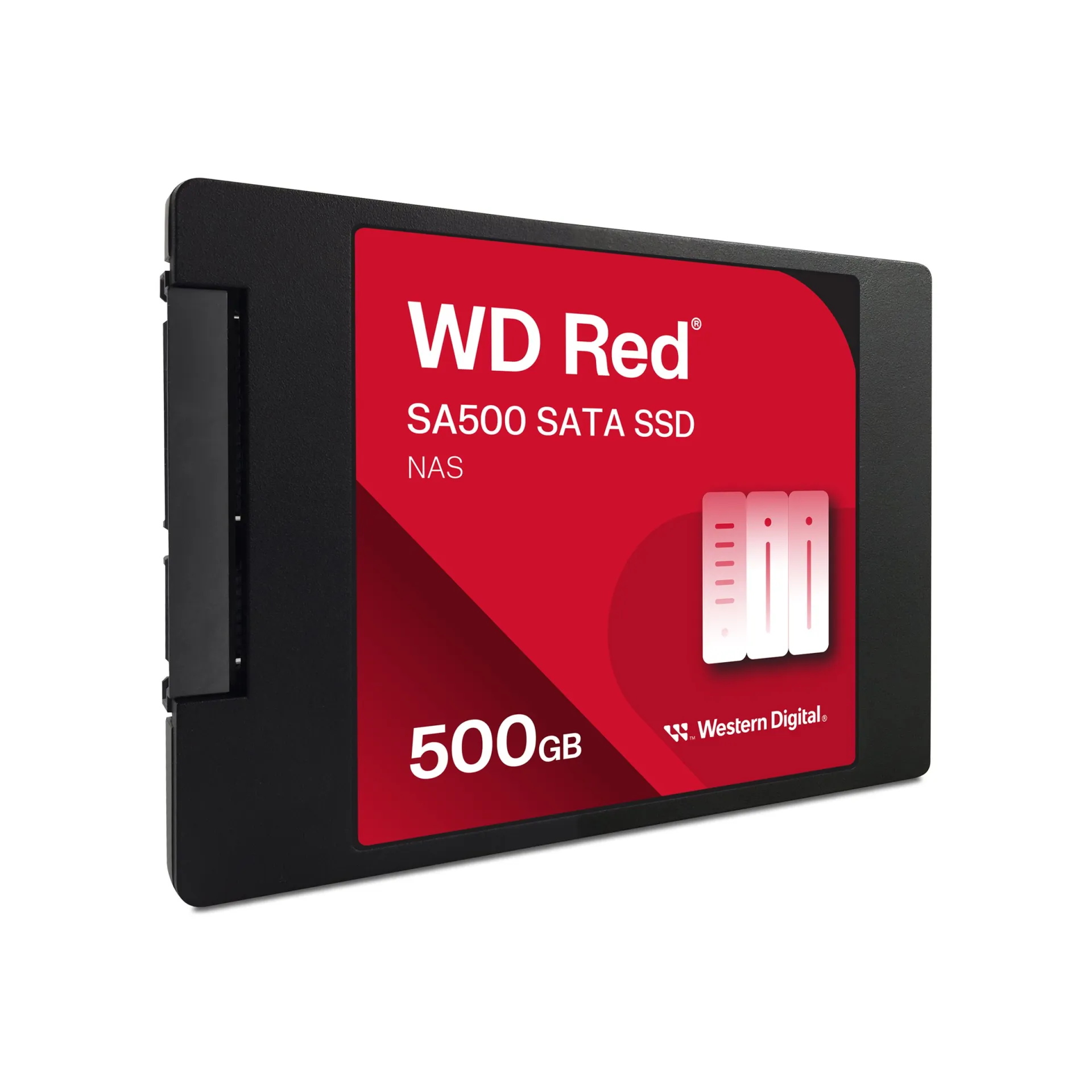

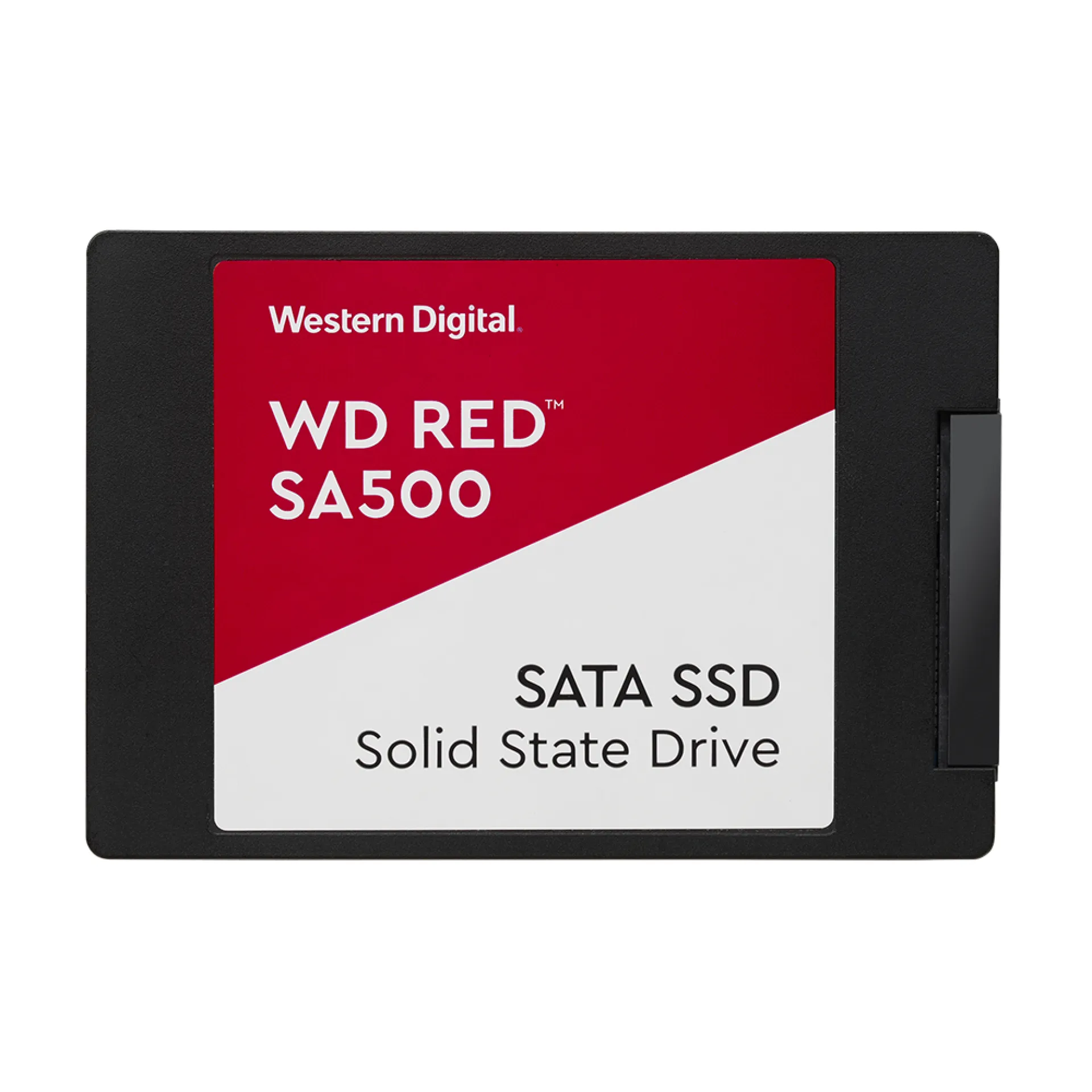

WDS500G1R0A WD Red 500GB SATA 2.5" Server SSD

High-Performance 2.5in SATA NAS SSD for boot and cache tiers with the WDS500G1R0A

The WDS500G1R0A is a 500GB WD Red NAS internal SATA SSD designed for always-on storage nodes where predictable latency and low power matter more than PCIe bandwidth. In SMB NAS appliances and edge/ROBO systems, the WDS500G1R0A is typically deployed as a dedicated OS volume, metadata tier, or read-heavy cache to accelerate front-end response while keeping the primary capacity layer on HDDs.

Architecturally, the WDS500G1R0A uses TLC NAND and a SATA 6Gb/s interface in a 2.5in 7mm form factor, fitting standard internal SSD bays across compact NAS chassis. Sequential performance up to 560MB/s read and 530MB/s write, with 4K IOPS up to 95K read and 85K write, supports boot storms, service restarts, and small-block access patterns common in file services. With 350TBW endurance (0.38 DWPD) and a 2.0M hours reliability rating, the WDS500G1R0A aligns to continuous-duty NAS workloads; note that the WDS500G1R0A is not positioned as a hot-swap rated drive and does not specify SED or hardware encryption, which informs security and maintenance design.

Why Choose the WDS500G1R0A?

The WDS500G1R0A provides an efficient density-to-performance profile for SATA-based NAS platforms, delivering responsive boot and cache behavior without consuming PCIe lanes needed for NICs or HBA expansion. For IT teams standardizing on proven SATA backplanes, the WDS500G1R0A supports scalable rollouts with consistent operational characteristics, low idle power, and endurance sized for read-centric service tiers.

WD engineers storage for sustained reliability in modern data centre and distributed NAS environments, focusing on stable firmware behavior, controlled thermals, and compatibility across common SATA implementations to support long-lived infrastructure refresh cycles.

Key Applications:

• NAS OS boot volumes
• Read-heavy SSD caching
• SMB file services
• Edge/ROBO always-on storage

At Happyware - Server Hardware you benefit from non-binding offers tailored to your NAS deployment and bill of materials, helping you standardize WDS500G1R0A procurement across sites with clear technical alignment and predictable lead times.
