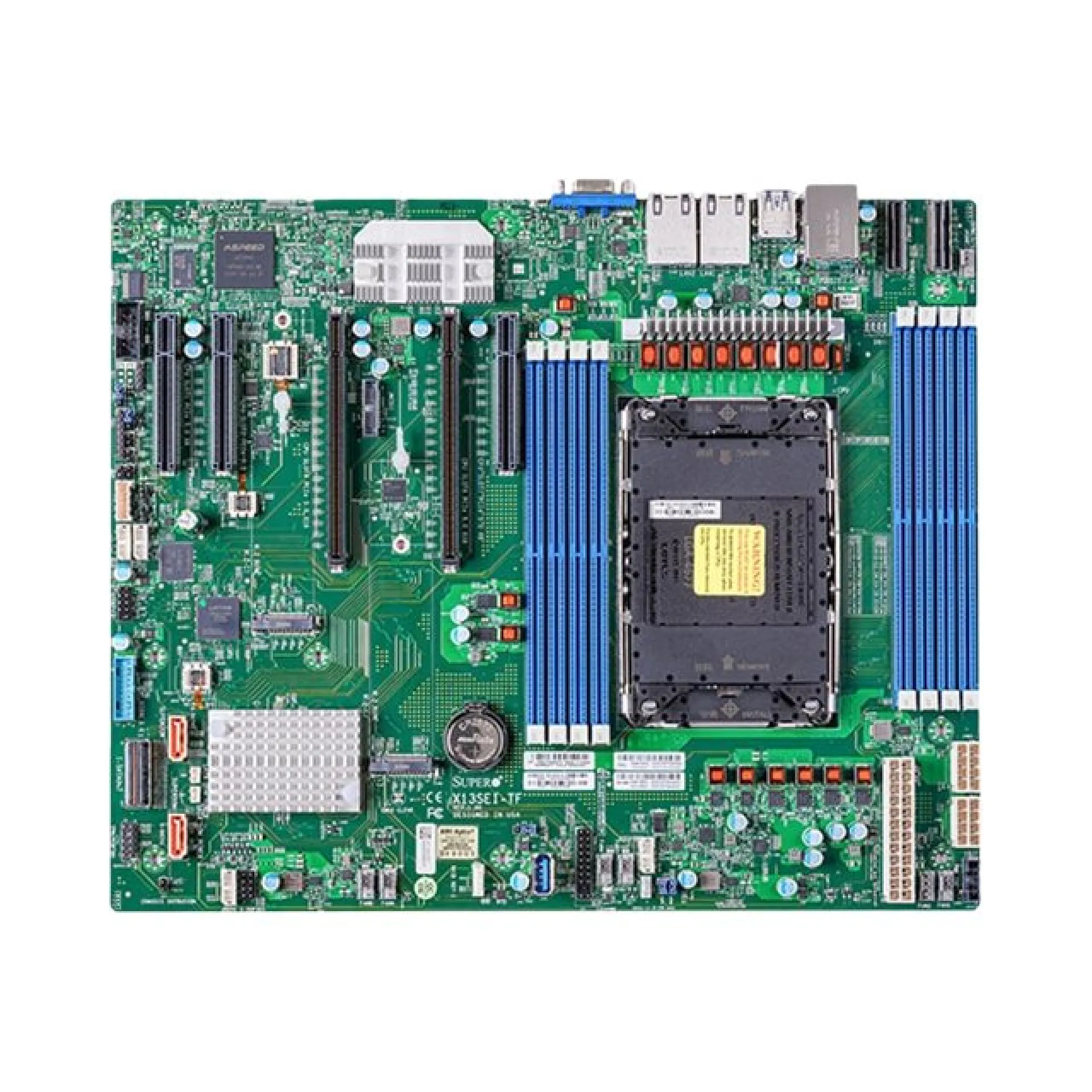

MBD-X13SEI-TF-B Supermicro E-ATX Single E (LGA 4677) 8 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X13SEI-TF-B and save cash:

Quantity	Unit price
To 4	€831.00
To 9	€807.00 €831.00 (2.89% saved)
To 19	€790.00 €831.00 (4.93% saved)
From 20	€774.00 €831.00 (6.86% saved)

Product line:

X13

See all EATX Motherboard

See other Supermicro products

€831.00

Out of stock

Not available

Happyware Article Number:

SH9M7845-474391

Manufacturer Number:

MBD-X13SEI-TF-B

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X13SEI-TF-B

High-Performance E-ATX Server Motherboard featuring PCIe 5.0 Expansion and DDR5 ECC with the MBD-X13SEI-TF-B

The MBD-X13SEI-TF-B is an E-ATX single-socket server motherboard built for Intel Xeon Scalable (LGA4677) deployments where core density, I/O bandwidth, and remote manageability must align in a balanced platform. With the Intel C741 chipset, the MBD-X13SEI-TF-B targets general-purpose rack servers, virtualization nodes, and scale-up compute designs that benefit from strong per-socket capability without the complexity of dual-socket architectures.

Memory architecture is optimized around 8 DDR5 ECC RDIMM slots, enabling up to 2TB capacity and high bandwidth for consolidation and data-intensive services. PCIe Gen5 expansion provides a clear path for high-throughput NICs, accelerators, and storage controllers, while the storage layout combines 10x SATA III with 4x NVMe ports and dual PCIe 5.0 x4 M.2 slots for fast boot, cache, or mirrored OS media. For network-heavy nodes, the MBD-X13SEI-TF-B integrates dual 10GbE (Intel X550) and a dedicated IPMI management interface to keep data and control planes cleanly separated.

Why Choose the MBD-X13SEI-TF-B?

The MBD-X13SEI-TF-B delivers an enterprise-ready density-to-performance profile by pairing a 350W-capable Xeon Scalable socket with modern DDR5 and PCIe 5.0 I/O, allowing scalable configurations from lean edge servers to high I/O virtualization hosts. Integrated BMC/IPMI, UEFI BIOS controls, TPM header support, and RAID-capable storage connectivity help standardize secure, remotely operated deployments across fleets.

Supermicro engineering emphasizes platform longevity, validated interoperability, and serviceable layouts aligned to modern data center standards, enabling consistent provisioning, predictable thermals, and reliable lifecycle operation in mixed workload environments.

Key Applications:

Virtualization and private cloud nodes
General-purpose compute servers
Edge and ROBO infrastructure
Software-defined storage and caching tiers
Network-heavy service nodes

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your project requirements for the MBD-X13SEI-TF-B, plus an extended warranty of up to 6 years to protect long-term platform standardization.

Technical details of MBD-X13SEI-TF-B

CPU Socket: E (LGA 4677)

Onboard Memory: No

RAID Support: Yes

CPU Manufacturer: Intel

CPU Supported Type: Xeon Scalable

Form Factor: E-ATX

Chipset: Intel C741

RAM Maximum Capacity: 2TB

Max RAM Frequency : 5600MHz

RAM Slots: 8 DIMM DDR5

PCIe Slots: 2 PCIe 5.0 x8, 2 PCIe 5.0 x16, 3 PCIe 5.0 x8

M.2 Slots: 2 NVME/PCIe 5.0 x4 M.2 22110, M.2 2280 M-Key

Network Ports: 2 RJ45 10 Gbps

ECC Support: ECC

Onboard Network: Ethernet

Suitability: Server

Onboard CPU: No

RAID Support: Yes

Onboard Graphic: Yes

Video Output: 1x VGA

USB Ports: 1x USB 3.2 Gen 1 ports, 1x USB 3.2 Gen 1 Type-A, 2x USB 2.0 ports, 2x USB 3.2 Gen 1

Other Ports: 1x COM Port, 1x IPMI Management Port, 1x TPM Header, 2x SATA DOM (Disk on Module)

Trusted Platform Module (TPM): Yes

BIOS: AMI UEFI

Wi-Fi Support: None

Onboard Audio Chipset: No

Embedded: No

Card Reader: No

How long is the Warranty and how you can get technical support for MBD-X13SEI-TF-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
