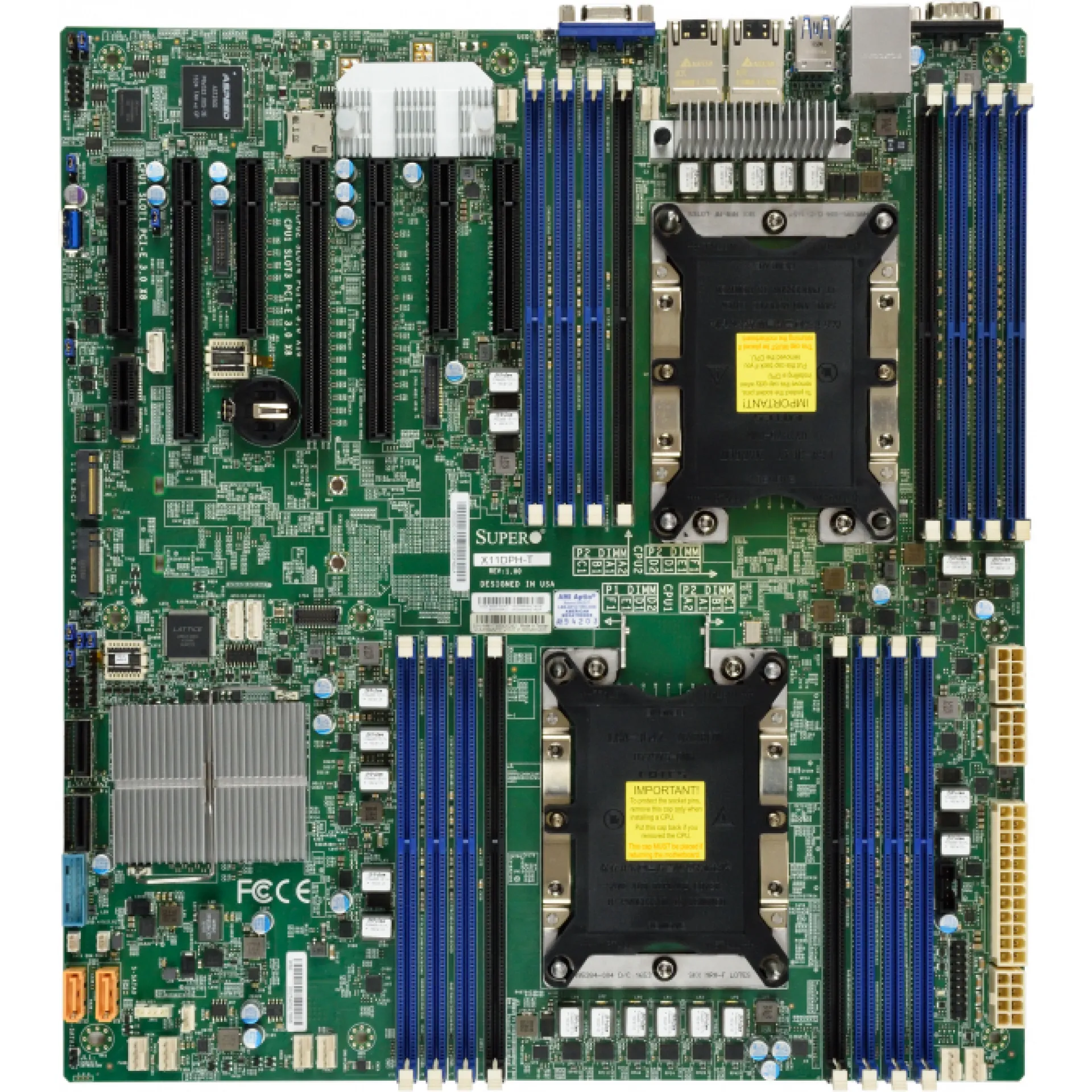

MBD-X11DPH-T-B Supermicro E-ATX Dual P (LGA 3647) 16 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X11DPH-T-B and save cash:

Quantity	Unit price
To 4	€731.00
To 9	€710.00 €731.00 (2.87% saved)
To 19	€695.00 €731.00 (4.92% saved)
From 20	€681.00 €731.00 (6.84% saved)

Product line:

X11

See all Dual CPU Motherboard

See other Supermicro products

€731.00

Out of stock

Not available

Happyware Article Number:

SH8M2217-364008

Manufacturer Number:

MBD-X11DPH-T-B

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X11DPH-T-B

High-Performance E-ATX Server Motherboard featuring dual-socket Xeon scalability with the MBD-X11DPH-T-B

The MBD-X11DPH-T-B is an E-ATX server motherboard built on the Supermicro X11DPH-T platform for dual-socket Intel Xeon Scalable processors (LGA3647) with the Intel C624 chipset, enabling dense compute configurations with up to 205W TDP CPUs. Designed for enterprise virtualisation and multi-tenant infrastructure, the MBD-X11DPH-T-B prioritises balanced core counts, memory bandwidth, and deterministic I/O for predictable performance under consolidation-heavy workloads.

For memory architecture, the MBD-X11DPH-T-B provides 16 DDR4 ECC DIMM slots across 6 channels, scaling to 4TB and up to 2933 MT/s to sustain high VM density and in-memory services. PCIe 3.0 expansion is optimised for flexible host connectivity with 3 x16 and 4 x8 FHFL slots, supporting accelerator-class cards mechanically and high-lane peripherals where required. Storage design combines 10 SATA III ports for capacity-oriented software-defined storage with 2 M.2 NVMe PCIe 3.0 x4 (M-Key, up to 22110) for boot, cache, or metadata tiers, reducing contention on bulk SATA pools.

Why Choose the MBD-X11DPH-T-B?

The MBD-X11DPH-T-B delivers a practical density-to-performance profile by pairing dual-socket compute with high DIMM capacity, broad PCIe connectivity, and an integrated dual 10GbE fabric suitable for cluster nodes and edge aggregation. Enterprise features such as IPMI 2.0/BMC remote management, RAID support, and a TPM header support controlled deployment at scale with consistent serviceability.

Supermicro engineering focuses on platform longevity, validated server-grade components, and predictable firmware management aligned with modern data centre operational standards, enabling reliable integration into racks, blades, and dedicated appliance designs.

Key Applications:

Enterprise virtualisation hosts
Software-defined storage nodes
Cluster and edge compute nodes
Database and in-memory services
Remote-managed infrastructure pods

At Happyware - Server Hardware you benefit from Non-Binding Offers that map the MBD-X11DPH-T-B to your CPU, memory, and I/O design targets, and you can secure an Extended Warranty of up to 6 years to protect long-life data centre deployments.

Technical details of MBD-X11DPH-T-B

CPU Socket: P (LGA 3647)

Onboard Memory: No

RAID Support: Yes

CPU Manufacturer: Intel

CPU Supported Type: Xeon Scalable

Form Factor: E-ATX

Chipset: Intel C624

RAM Maximum Capacity: 4000GB

Max RAM Frequency : 2933MHz

RAM Slots: 16 DIMM DDR4

RAM Channels: 6-Channel

PCIe Slots: 3 PCIe 3.0 x16, 4 PCIe 3.0 x8

M.2 Slots: 2 NVME/PCIe 3.0 x4 M.2 22110, M.2 2242, M.2 2260, M.2 2280 M-Key

Network Ports: 2 RJ45 10 Gbps

ECC Support: ECC

Onboard Network: Ethernet

Suitability: Server

Onboard CPU: No

RAID Support: Yes

Onboard Graphic: Yes

Video Output: 1x VGA

USB Ports: 1x USB 3.0 Type-A, 2x USB 3.0 Gen 1 Header, 4x USB 3.0 Type-A

Other Ports: 1x TPM Header

Trusted Platform Module (TPM): Yes

BIOS: AMI UEFI

Wi-Fi Support: None

Onboard Audio Chipset: No

Embedded: No

Card Reader: No

How long is the Warranty and how you can get technical support for MBD-X11DPH-T-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
