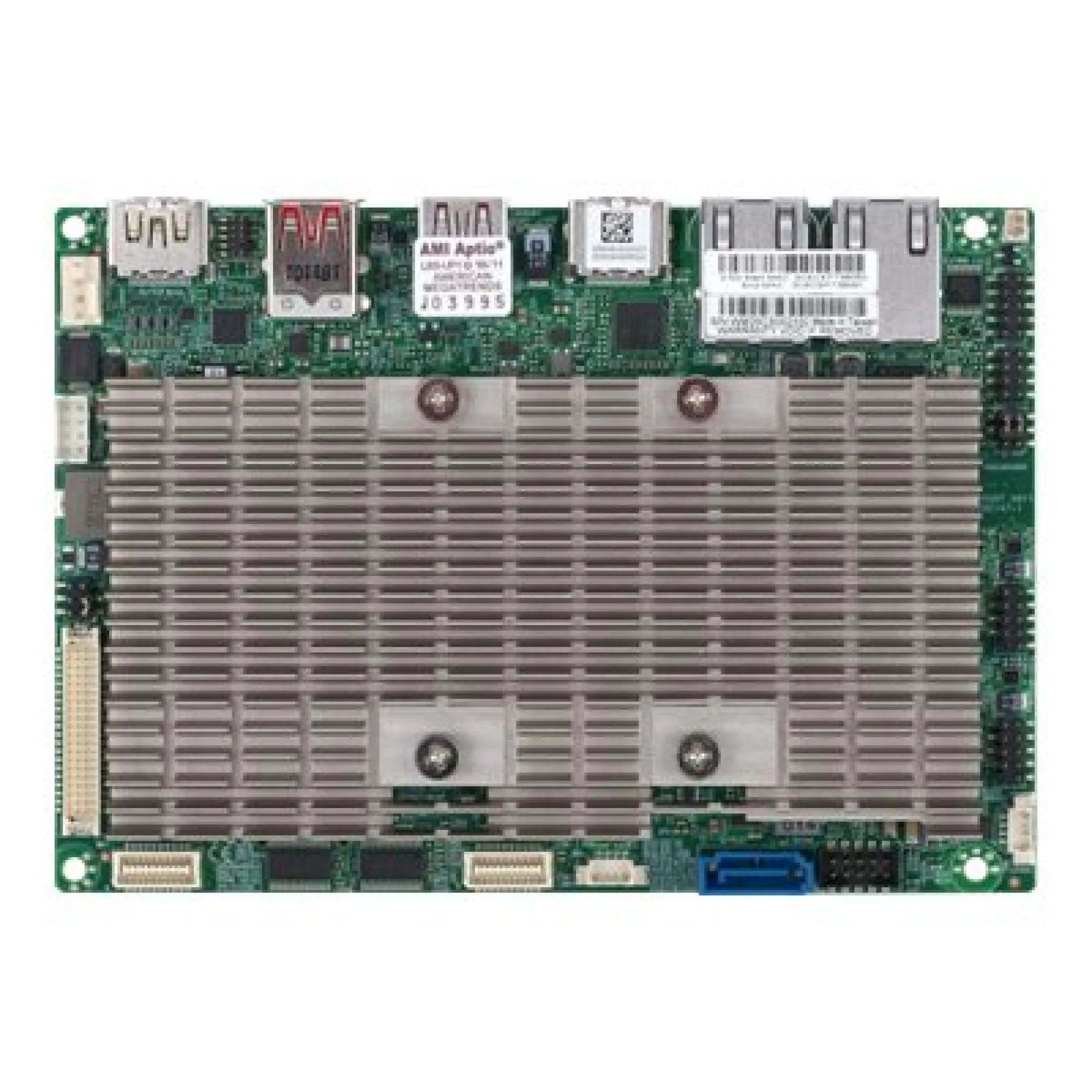

MBD-X12STN-L-B Supermicro 3.5" SBC Single FCBGA1449 2 SO-DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X12STN-L-B and save cash:

Quantity	Unit price
To 9	€565.00
To 19	€537.00 €565.00 (4.96% saved)
To 49	€526.00 €565.00 (6.9% saved)
From 50	€509.00 €565.00 (9.91% saved)

Product line:

X13

See all Embedded Motherboard

See other Supermicro products

€565.00

Out of stock

Not available

Happyware Article Number:

SH8M2701-760562

Manufacturer Number:

MBD-X12STN-L-B

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X12STN-L-B

High-Density 3.5" Embedded Server Motherboard featuring Intel SoC edge I/O with the MBD-X12STN-L-B

The MBD-X12STN-L-B is a 3.5" SBC embedded server motherboard designed around an Intel onboard SoC platform for compact, low-power x86 deployments that still require enterprise-class I/O. With Core i3-class capability at a 28W TDP and integrated Intel UHD Graphics, the MBD-X12STN-L-B supports graphics-assisted control, HMI, and edge workloads where deterministic footprint and thermals matter more than socketed CPU flexibility.

For memory architecture, the MBD-X12STN-L-B uses 2x DDR4 SO-DIMM slots up to 64GB at up to 3200 MT/s, enabling right-sized consolidation for light virtualisation and multi-service gateways. Expansion and storage are optimized for NVMe-first designs: an M.2 M-Key slot provides PCIe 4.0 x4 for high-throughput SSDs, complemented by an M.2 B-Key supporting SATA or PCIe 3.0 x1 and a dedicated SATA III port for simple mirrored or boot-media layouts. Dual Intel I225-IT 2.5GbE interfaces deliver reliable east-west connectivity for edge clusters and industrial networks without excess power draw.

Why Choose the MBD-X12STN-L-B?

The MBD-X12STN-L-B prioritizes density-to-performance by combining a modern SoC compute domain with storage and networking paths that match real edge bandwidth requirements. It is well-suited for scalable rollouts where consistent BOM control, industrial operating temperatures, and predictable I/O mapping reduce qualification time and simplify lifecycle management across distributed sites.

Supermicro engineering focuses on platform stability, validated component ecosystems, and practical integration with modern data centre and industrial standards. The design emphasis on robust connectivity, TPM header support, and broad peripheral I/O enables controlled deployments in security-conscious and automation-heavy environments.

Key Applications:

Industrial edge gateways
Control and automation platforms
HMI and graphics-assisted controllers
Light virtualisation nodes
Remote telemetry and IoT aggregation

At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout quantities and technical requirements, plus an extended warranty option up to 6 years to secure long lifecycle deployments of the MBD-X12STN-L-B.

Technical details of MBD-X12STN-L-B

CPU Socket: FCBGA1449

Onboard Memory: No

RAID Support: No

CPU Manufacturer: Intel

CPU Supported Type: Core i3

Form Factor: 3.5" SBC

Chipset: System-on-Chip (SoC)

RAM Maximum Capacity: 64GB

Max RAM Frequency : 3200MHz

RAM Slots: 2 SO-DIMM DDR4

M.2 Slots: 1 CNVi/PCIe 3.0 x1/USB 2.0 M.2 2230 E-Key, 1 PCIe 4.0 x4 M.2 2242, M.2 2280 M-Key, 1 USB 3.0/USB 2.0/SATA/PCIe 3.0 x1 M.2 2242, M.2 3042, M.2 2280 B-Key

Network Ports: 2 RJ45 2.5 Gbps

ECC Support: Non-ECC

Onboard Network: Ethernet

Suitability: Server

Onboard CPU: Yes

RAID Support: No

Onboard Graphic: Yes

Video Output: 1x DisplayPort, 1x LVDS, 2x HDMI

USB Ports: 8x USB

Other Ports: 1x 8-bit GPIO header, 1x HD Audio header, 1x SMBus Header, 1x speaker out header, 1x System Fan, 1x TPM Header, 4x COM Port

Trusted Platform Module (TPM): Yes

BIOS: AMI UEFI

Wi-Fi Support: None

Embedded: Yes

GPIO Pins: 8

Card Reader: No

How long is the Warranty and how you can get technical support for MBD-X12STN-L-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
