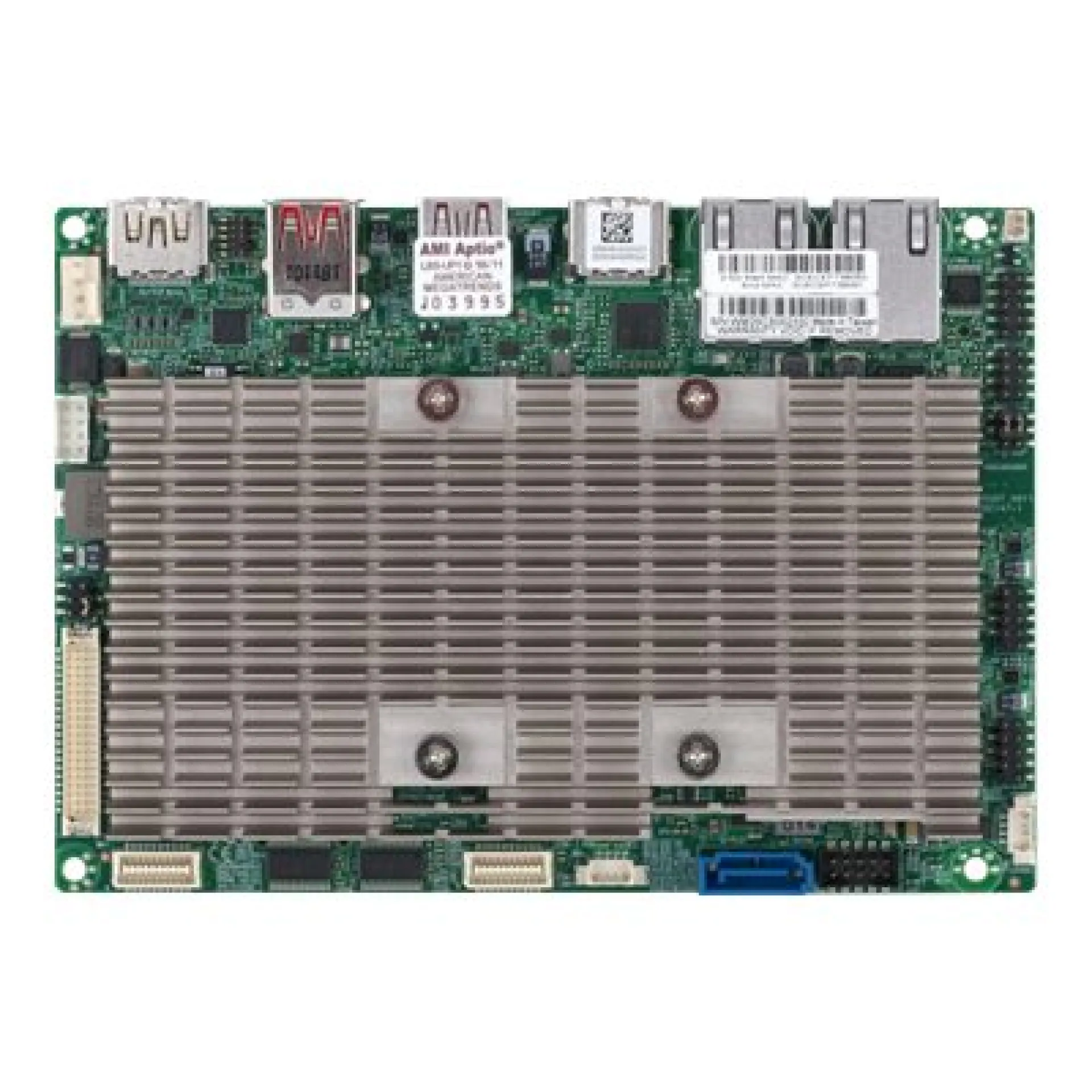

MBD-X12STN-H-B Supermicro 3.5" SBC Single FCBGA1449 2 SO-DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X12STN-H-B and save cash:

Quantity	Unit price
To 4	€913.00
To 9	€886.00 €913.00 (2.96% saved)
To 19	€868.00 €913.00 (4.93% saved)
From 20	€850.00 €913.00 (6.9% saved)

Product line:

X12

See all Motherboards

See other Supermicro products

€913.00

Out of stock

Not available

Happyware Article Number:

SH3M5635-553856

Manufacturer Number:

MBD-X12STN-H-B

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X12STN-H-B

High-Density 3.5" Embedded Server Motherboard with PCIe 4.0 NVMe and Intel SoC using the MBD-X12STN-H-B

The MBD-X12STN-H-B is a Supermicro 3.5" embedded SBC designed for edge servers and compact appliances that require deterministic compute in a low-power envelope. Based on the onboard Intel Core i7-1185GRE embedded SoC, the platform targets industrial automation, branch virtualization, and on-prem services where CPU efficiency, integrated graphics, and long-life deployment profiles are primary design constraints.

With 2 DDR4-3200 SO-DIMM slots supporting up to 64GB, MBD-X12STN-H-B balances memory capacity with footprint for containerized workloads and lightweight VMs. The storage architecture combines a SATA port for resilient boot media with an M.2 M-Key slot providing PCIe 4.0 x4 bandwidth for NVMe SSDs, enabling fast local telemetry buffering, caching, or AI inference datasets. Expansion is optimized through additional M.2 B-Key and E-Key interfaces for WWAN or Wi-Fi modules, while dual Intel I225-IT 2.5GbE ports support segmented networking and appliance-style throughput without external NIC complexity.

Why Choose the MBD-X12STN-H-B?

MBD-X12STN-H-B delivers a strong density-to-performance ratio for space-constrained enclosures by integrating compute, graphics, and high-speed NVMe on a 3.5" form factor. The design prioritizes enterprise reliability features such as TPM 2.0 readiness, AMI UEFI with watchdog support, and a scalable I/O profile that reduces add-in cards and simplifies fleet standardization across edge sites.

Supermicro engineering emphasizes platform stability, validated component interoperability, and predictable lifecycle management aligned with modern data centre and edge deployment standards. This approach supports repeatable builds, controlled firmware practices, and dependable operation in industrial and distributed environments.

Key Applications:

Industrial control and automation nodes
Edge virtualization and on-prem services
Compact firewall and secure routing appliances
Telemetry aggregation and local buffering
Digital signage and multi-display edge systems

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your MBD-X12STN-H-B deployment scope, with the option to extend the warranty up to 6 years to protect long-lived edge and industrial rollouts.

Technical details of MBD-X12STN-H-B

CPU Socket:

FCBGA1449

Onboard Memory:

CPU Manufacturer:

Intel

CPU Supported Type:

Core

Form Factor:

3.5" SBC

Chipset:

System-on-Chip (SoC)

RAM Maximum Capacity:

64GB

Max RAM Frequency :

3200MHz

RAM Slots:

2 SO-DIMM DDR4

M.2 Slots:

1 CNVi/PCIe 3.0 x1/USB 2.0 M.2 2230 E-Key 1 PCIe 4.0 x4 M.2 2242, M.2 2280 M-Key 1 USB 3.0/USB 2.0/SATA/PCIe 3.0 x1 M.2 2242, M.2 3042, M.2 2280 B-Key

Network Ports:

2 RJ45 2.5 Gbps

ECC Support:

Non-ECC

Onboard Network:

Ethernet

Suitability:

Server

Onboard CPU:

Yes

Onboard Graphic:

Yes

Video Output:

1x LVDS 1x DisplayPort 2x HDMI

Other Ports:

4x COM Port

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

None

Onboard Audio Chipset:

Realtek ALC888S

Embedded:

Yes

GPIO Pins:

Card Reader:

How long is the Warranty and how you can get technical support for MBD-X12STN-H-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
