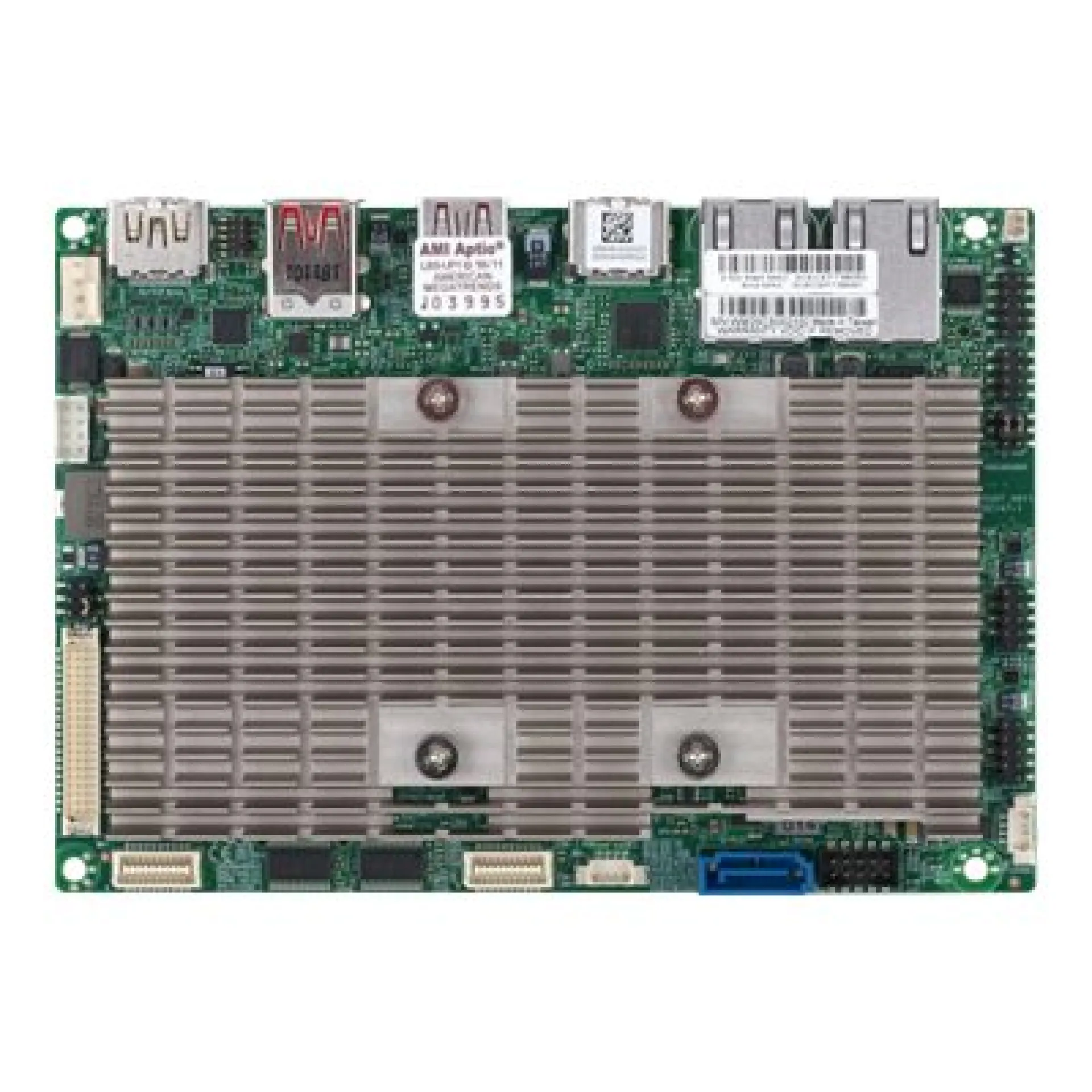

MBD-X12STN-E-O Supermicro 3.5" SBC Single FCBGA1449 2 SO-DIMM Slots Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X12STN-E-O and save cash:

Quantity	Unit price
To 4	€746.00
To 9	€724.00 €746.00 (2.95% saved)
To 19	€709.00 €746.00 (4.96% saved)
From 20	€695.00 €746.00 (6.84% saved)

Product line:

X13

See all Motherboards

See other Supermicro products

€746.00

In stock

Happyware Article Number:

SH1M2559-341943

Manufacturer Number:

MBD-X12STN-E-O

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X12STN-E-O

High-Density 3.5" Embedded SBC Motherboard for edge compute and networking with the MBD-X12STN-E-O

The MBD-X12STN-E-O is a Supermicro 3.5" SBC engineered around an onboard Intel SoC platform for compact deployments that still require modern I/O and deterministic operation. With an Intel Core i5 class SoC at 28W TDP and integrated graphics, the MBD-X12STN-E-O supports edge compute designs where thermal headroom, cable reduction, and long-life platform stability are primary architectural constraints.

For memory bandwidth efficiency in small footprints, the MBD-X12STN-E-O provides 2 DDR4 SO-DIMM slots in dual-channel up to 64GB at 3200 MT/s, enabling lightweight virtualization, HMI stacks, and packet processing without oversubscribing memory. Expansion is optimized via M.2: an M-Key PCIe 4.0 x4 slot for high-throughput NVMe storage, plus additional B-Key and E-Key options for mixed SATA/PCIe/USB connectivity and wireless modules. Storage topology is complemented by SATA III for industrial SSDs. Dual Intel I225-IT 2.5GbE interfaces align the MBD-X12STN-E-O with branch gateway and secure appliance roles, while multiple USB 3.2 Gen2 ports and rich display outputs (HDMI, DisplayPort, LVDS) simplify kiosk and control-panel integration.

Why Choose the MBD-X12STN-E-O?

The MBD-X12STN-E-O balances compute density and I/O versatility in a serviceable embedded form factor, enabling consistent performance per watt for edge nodes that must be replicated at scale. TPM 2.0 support, watchdog functionality, and UEFI management help the MBD-X12STN-E-O fit enterprise reliability expectations in unattended environments, from industrial floors to distributed retail sites.

Supermicro designs embedded platforms with a focus on validated component selection, lifecycle continuity, and integration-friendly layouts that map cleanly to modern data centre and edge standards. This approach supports predictable deployment outcomes across fleets where operational uniformity matters.

Key Applications:

Industrial automation controllers
Kiosk and digital signage systems
SD-WAN and branch security gateways
IoT sensor aggregation
Lightweight virtualization at the edge

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your needs and an extended warranty up to 6 years, helping you standardize the MBD-X12STN-E-O across projects with controlled risk and long-term service coverage.

Technical details of MBD-X12STN-E-O

CPU Socket:

FCBGA1449

Onboard Memory:

RAID Support:

CPU Manufacturer:

Intel

CPU Supported Type:

Core i5

Form Factor:

3.5" SBC

Chipset:

System-on-Chip (SoC)

RAM Maximum Capacity:

64GB

Max RAM Frequency :

3200MHz

RAM Slots:

2 SO-DIMM DDR4

RAM Channels:

Dual-Channel

M.2 Slots:

1 CNVi/PCIe 3.0 x1/USB2 M.2 2230 E-Key 1 PCIe 4.0 x4 M.2 2242/2280 M-Key 1 USB3.0/2.0, SATA Gen3/PCIe Gen3 x1 M.2 2242/3042/2280 B-Key

Network Ports:

2 RJ45 2.5 Gbps

ECC Support:

Non-ECC

Onboard Network:

Ethernet

Onboard CPU:

Yes

RAID Support:

Onboard Graphic:

Yes

Video Output:

1x LVDS 1x DisplayPort 2x HDMI

USB Ports:

1x USB 3.2 Gen 2 Type-C 4x USB 2.0 Type-A 3x USB 3.2 Gen 2 Type-A

Other Ports:

1x HD Audio header 1x GPIO - header 1x SMBus Header 4x serial Header

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

None

Onboard Audio Chipset:

Realtek ALC888S

Embedded:

Yes

GPIO Pins:

Card Reader:

How long is the Warranty and how you can get technical support for MBD-X12STN-E-O

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
