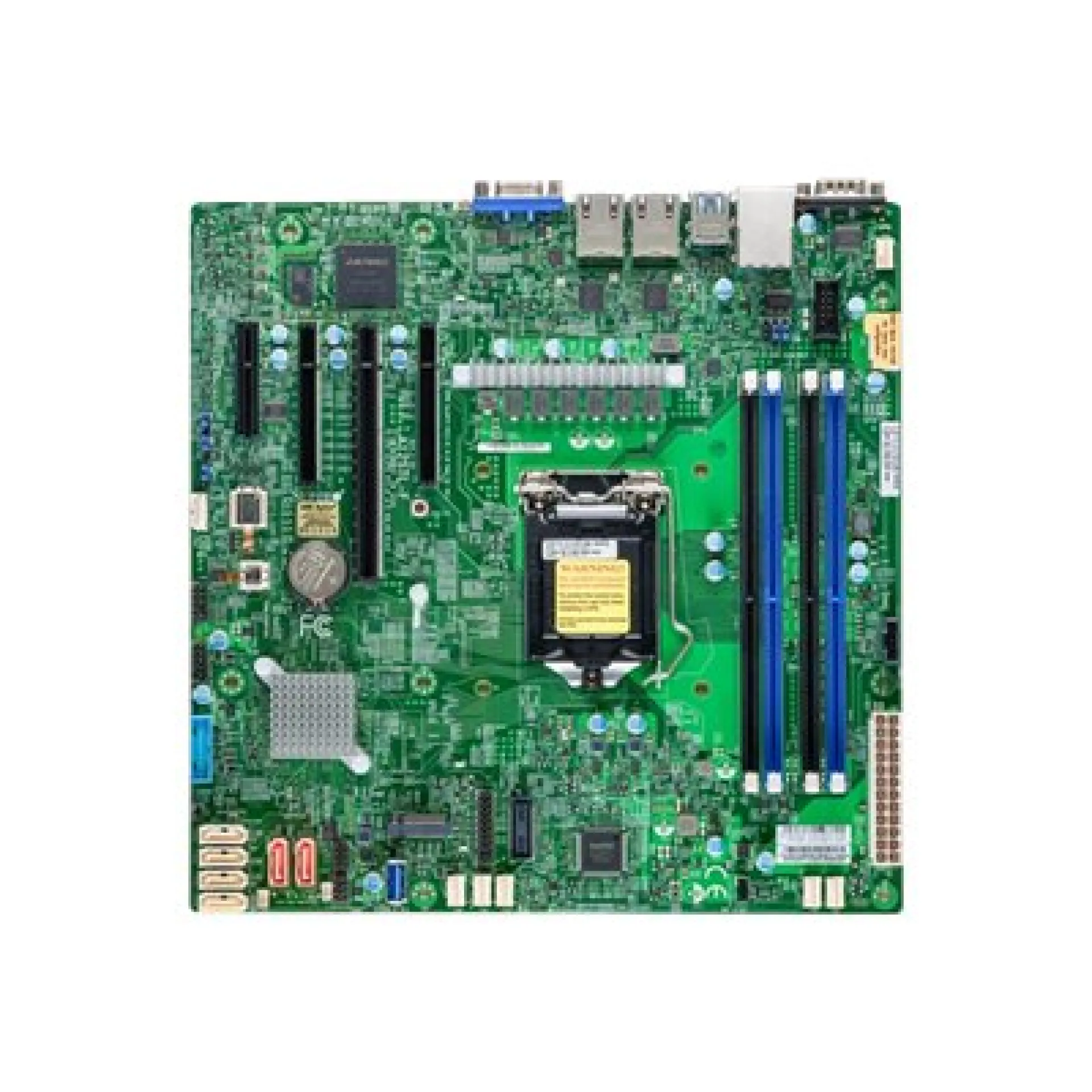

MBD-X12STL-F-B Supermicro Micro-ATX Single H5 (LGA 1200) 4 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X12STL-F-B and save cash:

Quantity	Unit price
To 9	€341.00
To 19	€325.00 €341.00 (4.69% saved)
To 49	€318.00 €341.00 (6.74% saved)
From 50	€308.00 €341.00 (9.68% saved)

Product line:

X13

See all Intel Xeon Motherboard

See other Supermicro products

€341.00

Out of stock

Not available

Happyware Article Number:

SH1M2597-518892

Manufacturer Number:

MBD-X12STL-F-B

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X12STL-F-B

High-Performance Micro-ATX Server Motherboard featuring Intel Xeon E scalability with the MBD-X12STL-F-B

The MBD-X12STL-F-B is a compact Supermicro Micro-ATX server motherboard designed for Intel LGA1200 platforms, enabling efficient edge and branch deployments with Xeon E or Pentium processors up to 95W TDP. With the Intel C252 chipset and integrated IPMI/BMC, the MBD-X12STL-F-B targets remotely managed infrastructure where predictable thermals, low platform overhead, and secure lifecycle operations are required.

Memory architecture is optimized for cost-controlled reliability, supporting dual-channel DDR4 UDIMM across 4 DIMM slots up to 128GB with ECC and non-ECC options at up to 3200 MT/s. For I/O, the MBD-X12STL-F-B provides a practical PCIe topology with PCIe 4.0 slots for modern NICs, HBAs, or accelerators, plus an additional PCIe 3.0 slot for legacy expansion. Storage design balances capacity and boot efficiency via 6x SATA III for RAID-capable arrays (controller-dependent) and an M.2 PCIe 3.0 x4 socket for NVMe boot or cache, aligning the MBD-X12STL-F-B with entry backup nodes and lightweight virtualization hosts.

Why Choose the MBD-X12STL-F-B?

The MBD-X12STL-F-B delivers a strong density-to-performance profile for short-depth chassis and space-constrained racks, combining PCIe 4.0 expansion, dual Intel 1GbE, and dedicated management networking in a serviceable Micro-ATX footprint. Its integrated BMC reduces onsite dependency, while the platform’s balanced memory and storage lanes support scalable rollouts from single-node branch servers to standardized SMB clusters.

Supermicro engineering emphasizes long-run reliability, controlled component qualification, and data-center-aligned manageability, with UEFI BIOS, chassis intrusion detection, and TPM header support to integrate with enterprise security and provisioning workflows.

Key Applications:

Edge and branch AD/DNS and file/print services
SMB firewall and network virtualization appliances
Remote monitoring and management nodes
Entry-level backup and archival storage
Lightweight virtualization hosts

At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment plan for the MBD-X12STL-F-B and the option to extend the warranty up to 6 years to secure long-term operation in distributed environments.

Technical details of MBD-X12STL-F-B

CPU Socket: H5 (LGA 1200)

Onboard Memory: No

RAID Support: Yes

CPU Manufacturer: Intel

CPU Supported Type: Xeon E, Pentium

Form Factor: Micro-ATX

Chipset: Intel C252

RAM Maximum Capacity: 128GB

Max RAM Frequency : 3200MHz

RAM Slots: 4 DIMM DDR4

RAM Channels: Dual-Channel

PCIe Slots: 1 PCIe 3.0 x4, 1 PCIe 4.0 x8, 1 PCIe 4.0 x16

M.2 Slots: 1 PCIe 3.0 x4 M.2 22110, M.2 2280 M-Key

Network Ports: 2 RJ45 1 Gbps

ECC Support: ECC, Non-ECC

Onboard Network: Ethernet

Suitability: Server

Onboard CPU: No

RAID Support: Yes

Onboard Graphic: Yes

Video Output: 1x VGA

USB Ports: 1x USB 3.2 Gen 1 Type-A, 2x USB 2.0 header, 2x USB 2.0 ports, 2x USB 3.2 Gen 1 Header, 2x USB 3.2 Gen 1 ports

Other Ports: 1x IPMI Management Port, 1x Serial Port, 1x VGA Port, 2x RJ-45 LAN Port, 2x USB 2.0 ports, 2x USB 3.2 Gen 1 ports

Trusted Platform Module (TPM): Yes

BIOS: AMI UEFI

Wi-Fi Support: None

Onboard Audio Chipset: No

Card Reader: No

How long is the Warranty and how you can get technical support for MBD-X12STL-F-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
