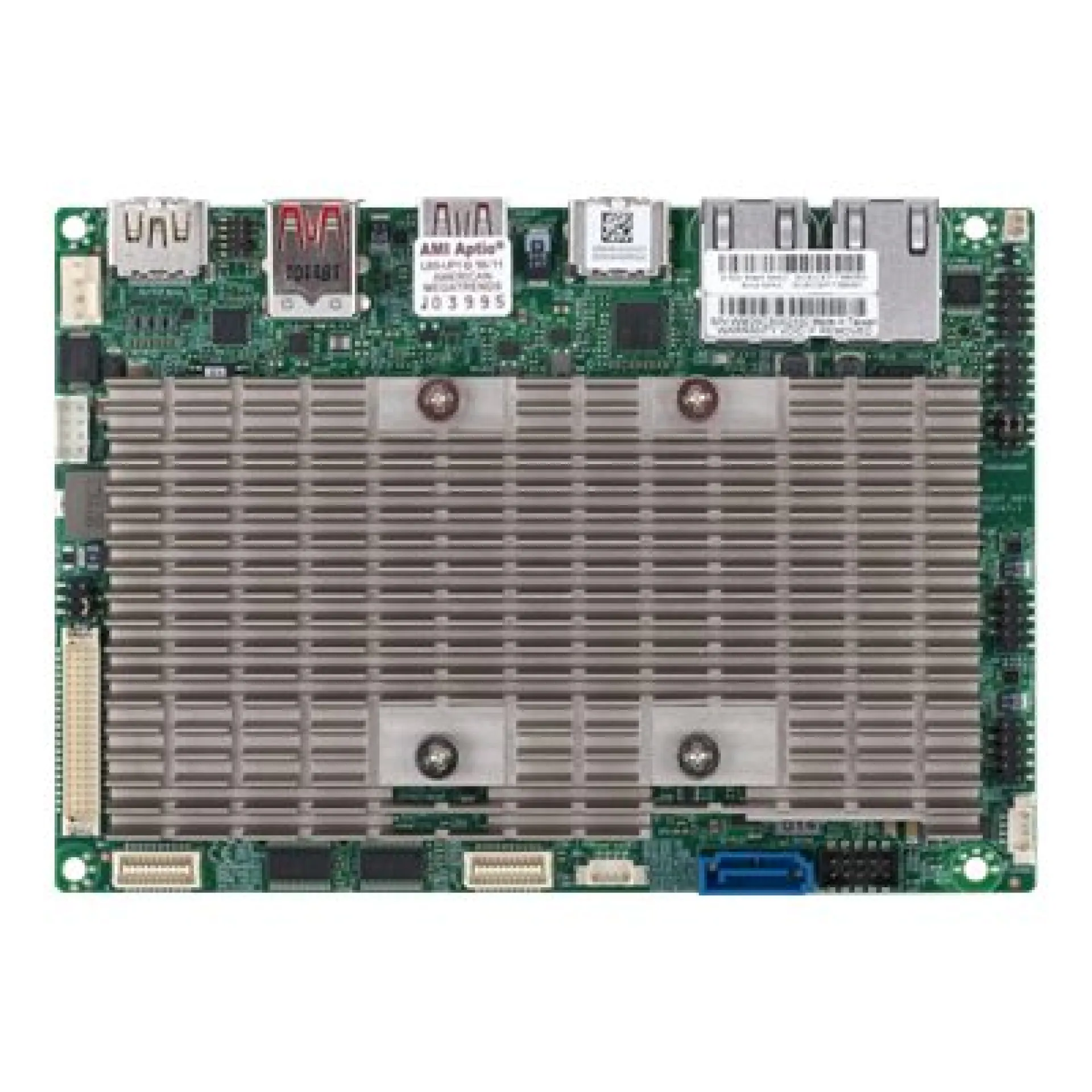

MBD-X12STN-E-B Supermicro 3.5" SBC Single FCBGA1449 2 SO-DIMM Slots Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X12STN-E-B and save cash:

Quantity	Unit price
To 4	€750.00
To 9	€728.00 €750.00 (2.93% saved)
To 19	€713.00 €750.00 (4.93% saved)
From 20	€698.00 €750.00 (6.93% saved)

Product line:

X13

See other Supermicro products

€750.00

Out of stock

Not available

Happyware Article Number:

SH5M4937-541014

Manufacturer Number:

MBD-X12STN-E-B

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X12STN-E-B

High-Performance 3.5" SBC Embedded Motherboard featuring Intel SoC edge compute with the MBD-X12STN-E-B

The MBD-X12STN-E-B is a compact 3.5" SBC designed for deployed edge systems that require consistent compute, graphics, and I/O density in a low-power footprint. With an onboard Intel SoC (28W TDP) and Intel UHD graphics, the MBD-X12STN-E-B supports fanless or constrained-airflow designs while maintaining predictable performance for HMI, gateway, and control workloads.

For memory architecture, the MBD-X12STN-E-B implements dual-channel DDR4 SO-DIMM up to 64GB at up to 3200 MT/s, enabling balanced bandwidth for mixed real-time I/O and visual pipelines. Expansion and storage are optimized through a PCIe 4.0 x4 M.2 M-Key slot for high-throughput NVMe, complemented by a SATA III port and additional M.2 B-Key and E-Key options to integrate SSDs, cellular/Wi-Fi modules, or I/O add-ons. Dual Intel I225-IT 2.5GbE ports provide deterministic network connectivity for aggregation and appliance roles, while HDMI, DisplayPort, and LVDS support multi-display and panel integration.

Why Choose the MBD-X12STN-E-B?

The MBD-X12STN-E-B delivers an efficient density-to-performance ratio by combining compute, graphics, and high-speed I/O on a space-constrained board for embedded enclosures. The MBD-X12STN-E-B supports scalable deployment patterns across fleets by standardizing on M.2-based modularity, dual 2.5GbE, and robust platform controls such as TPM 2.0 support, AMI UEFI, and a watchdog timer for resilient unattended operation.

Supermicro engineering emphasizes platform longevity, validation discipline, and integration flexibility aligned with modern edge and data center operational practices, enabling consistent build standards across industrial and enterprise environments.

Key Applications:

Industrial robotics and automation controllers
HMI and panel PC systems
Edge gateways and IoT aggregation
Network security appliances
Digital signage and kiosks

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment requirements and the option to extend the warranty up to 6 years for added investment security when standardizing the MBD-X12STN-E-B across distributed edge installations.

Technical details of MBD-X12STN-E-B

CPU Socket: FCBGA1449

Onboard Memory: No

RAID Support: No

CPU Manufacturer: Intel

CPU Supported Type: Core i5

Form Factor: 3.5" SBC

Chipset: System-on-Chip (SoC)

RAM Maximum Capacity: 64GB

Max RAM Frequency : 3200MHz

RAM Slots: 2 SO-DIMM DDR4

RAM Channels: Dual-Channel

M.2 Slots: 1 CNVi/PCIe 3.0 x1/USB 2.0 M.2 2230 E-Key, 1 PCIe 4.0 x4 M.2 2242, M.2 2280 M-Key, 1 USB 3.0/USB 2.0/SATA/PCIe 3.0 x1 M.2 2242, M.2 3042, M.2 2280 B-Key

Network Ports: 2 RJ45 2.5 Gbps

ECC Support: Non-ECC

Onboard Network: Ethernet

Onboard CPU: Yes

RAID Support: No

Onboard Graphic: Yes

Video Output: 1x DisplayPort, 1x LVDS, 2x HDMI

USB Ports: 1x USB 3.2 Gen 2 Type-C, 3x USB 3.2 Gen 2 Type-A, 4x USB 2.0 header

Other Ports: 1x audio - header, 1x GPIO - header, 1x HD Audio header, 1x LVDS - header, 1x SMBus Header, 1x speaker out header, 1x System Fan, 4x COM Port, 4x USB 2.0 header

Trusted Platform Module (TPM): Yes

BIOS: AMI UEFI

Wi-Fi Support: None

Onboard Audio Chipset: Realtek ALC888S

Embedded: Yes

GPIO Pins: 8

Card Reader: No

How long is the Warranty and how you can get technical support for MBD-X12STN-E-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
