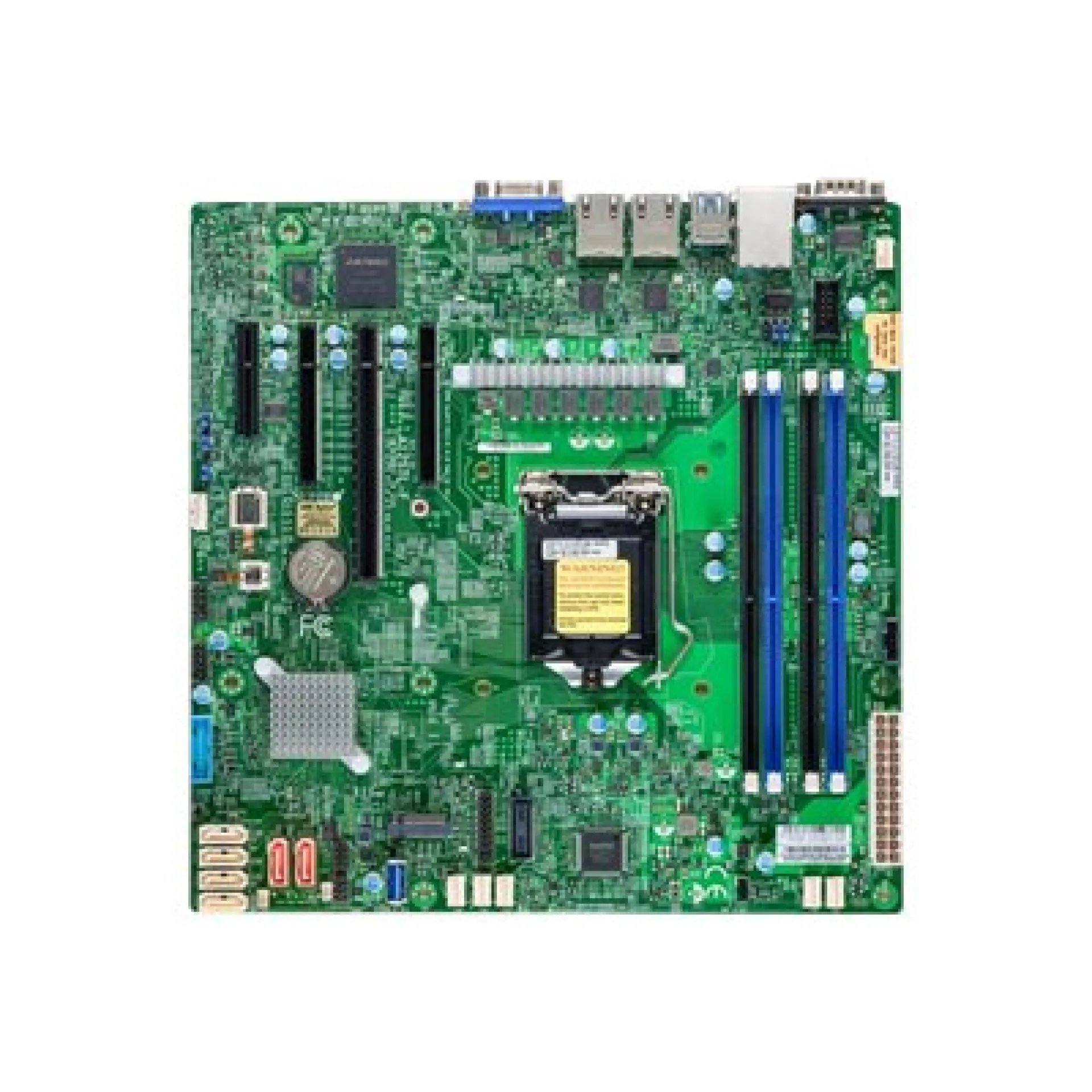

MBD-X12STL-F-O Supermicro Micro-ATX Single H5 (LGA 1200) 4 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X12STL-F-O and save cash:

Quantity	Unit price
To 9	€322.00
To 19	€307.00 €322.00 (4.66% saved)
To 49	€300.00 €322.00 (6.83% saved)
From 50	€291.00 €322.00 (9.63% saved)

Product line:

X12

See all ECC RAM Supported Motherboard

See other Supermicro products

€322.00

Out of stock

Not available

Happyware Article Number:

SH1M9606-365460

Manufacturer Number:

MBD-X12STL-F-O

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X12STL-F-O

Micro-ATX Intel C252 Server Motherboard with Remote Management using the MBD-X12STL-F-O

The MBD-X12STL-F-O is a Micro-ATX single-socket platform for Intel Xeon E-2300 or Pentium on the Intel C252 chipset, engineered for compact edge and branch servers that still require datacentre-class control. With a 95W CPU envelope and a server-grade power and firmware stack, the board targets reliable consolidation of core services such as AD/DNS, file/print, and lightweight virtualization.

For memory integrity, the MBD-X12STL-F-O implements dual-channel DDR4 ECC UDIMM across 4 DIMM slots, supporting up to 128GB at 3200 MT/s to protect small databases and infrastructure roles from silent corruption. Expansion is optimised for mixed I/O: three PCIe 4.0 full-height full-length slots and an additional PCIe 3.0 slot enable high-throughput NICs, storage HBAs, or accelerator-class add-ins where lane budgeting matters. Storage design balances capacity and latency with 6x SATA III ports for RAID-backed arrays and an M.2 (M-Key) PCIe 3.0 x4 NVMe path for fast boot, cache, or log volumes.

Why Choose the MBD-X12STL-F-O?

The MBD-X12STL-F-O delivers a pragmatic density-to-performance profile for distributed deployments by combining modern PCIe 4.0 expansion with ECC memory and integrated IPMI, reducing on-site intervention and standardising remote operations. Its scalable I/O layout supports phased growth from basic services to more demanding network or storage topologies while maintaining enterprise reliability controls.

Supermicro designs platforms around serviceability and long lifecycle consistency, aligning the board’s UEFI firmware, TPM support, chassis intrusion, and RAID-ready storage connectivity with contemporary security and manageability expectations in professional server rooms and edge racks.

Key Applications:

Edge and branch infrastructure servers
Firewall and routing appliances
Monitoring and telemetry nodes
Backup targets and archival storage
SMB web and application hosting

At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment scope for the MBD-X12STL-F-O, plus an extended warranty option up to 6 years to secure long-term operation across distributed sites.

Technical details of MBD-X12STL-F-O

CPU Socket:

H5 (LGA 1200)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Pentium Xeon

Form Factor:

Micro-ATX

Chipset:

Intel C252

RAM Maximum Capacity:

128GB

Max RAM Frequency :

3200MHz

RAM Slots:

4 DIMM DDR4

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 3.0 x4 1 PCIe 4.0 x8 1 PCIe 4.0 x16

M.2 Slots:

1 PCIe 3.0 x4/NVME M.2 2280, M.2 22110 M-Key

Network Ports:

2 RJ45 1 Gbps

ECC Support:

ECC

Onboard Network:

Ethernet

Suitability:

Server

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Aspeed AST2600

Video Output:

1x VGA

USB Ports:

1x USB 3.2 Gen 1 Type-A 2x USB 3.2 Gen 1

Other Ports:

2x COM Port 2x SuperDOM (Disk on Module) ports

Trusted Platform Module (TPM):

Yes

BIOS:

256MB UEFI

Onboard Audio Chipset:

Embedded:

How long is the Warranty and how you can get technical support for MBD-X12STL-F-O

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
