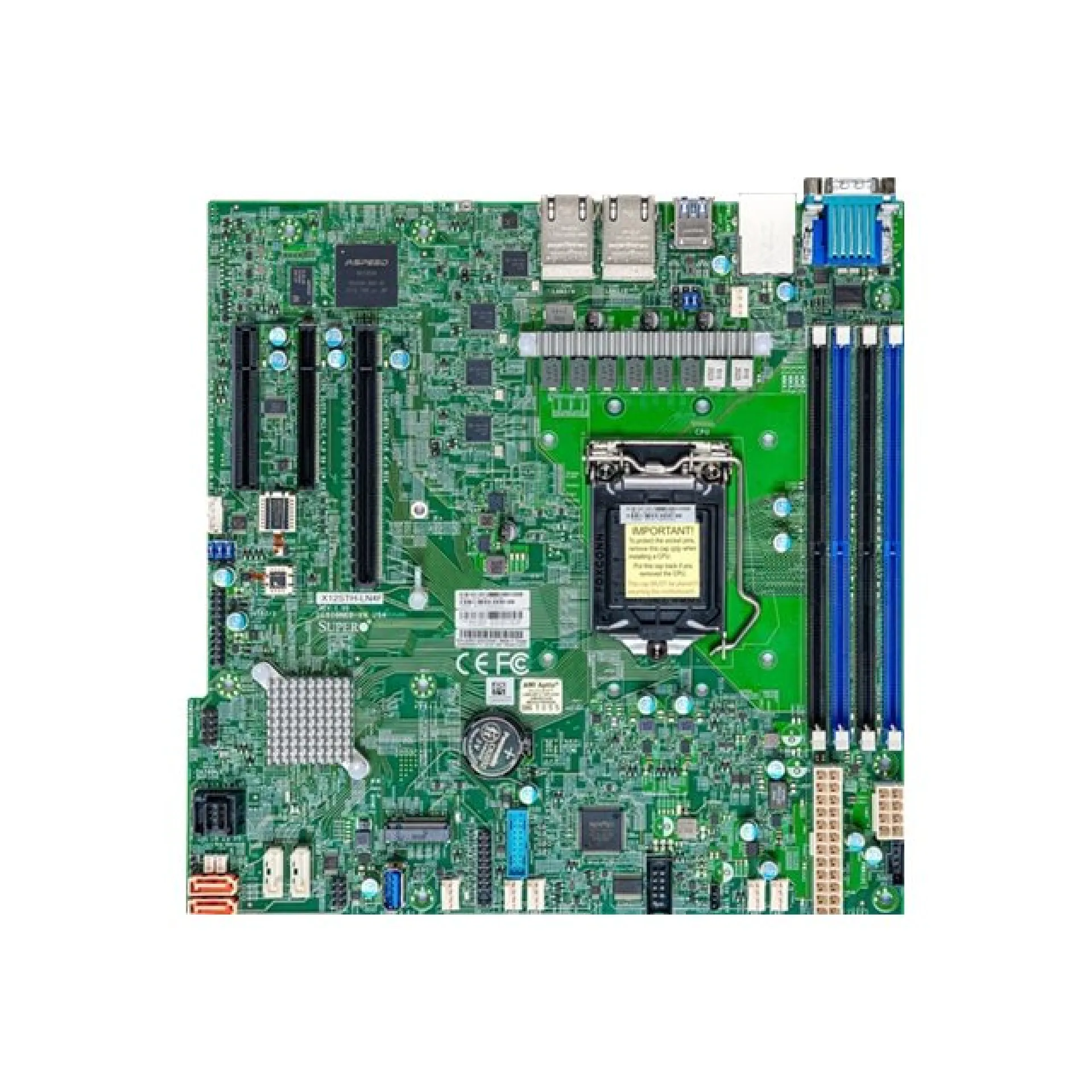

MBD-X12STH-LN4F-B Supermicro Micro-ATX Single H5 (LGA 1200) 4 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X12STH-LN4F-B and save cash:

Quantity	Unit price
To 9	€415.00
To 19	€395.00 €415.00 (4.82% saved)
To 49	€387.00 €415.00 (6.75% saved)
From 50	€374.00 €415.00 (9.88% saved)

Product line:

X13

See all GPU Compatible Motherboard

See other Supermicro products

€415.00

Out of stock

Not available

Happyware Article Number:

SH9M2170-452132

Manufacturer Number:

MBD-X12STH-LN4F-B

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X12STH-LN4F-B

Micro-ATX Server Motherboard for Edge and Storage Deployments with the MBD-X12STH-LN4F-B

The MBD-X12STH-LN4F-B is a Micro-ATX server motherboard built on the Supermicro X12STH-LN4F platform with the Intel C256 chipset, designed for single-socket LGA1200 processors including Intel Xeon E and Pentium options up to the 95W class. This architecture targets branch and edge servers where predictable x86 performance, remote operability, and controlled power envelopes are required.

With 4 DDR4 DIMM slots supporting ECC DDR4-3200 up to 128GB, the MBD-X12STH-LN4F-B provides a memory topology suited to lightweight virtualization, directory services, and industrial control workloads that benefit from integrity checking. PCIe expansion is balanced for mixed I/O: a PCIe 4.0 x16 slot for high-throughput adapters, plus additional PCIe 4.0 and PCIe 3.0 lanes for RAID/HBA or specialized NICs. Storage connectivity emphasizes SATA density with 8 x SATA III ports, SATA DOM support, and an M.2 (M-Key) PCIe 3.0 x4 option for efficient boot or cache. Integrated networking includes 4 x 1GbE RJ45 (Intel I210-AT), complemented by a dedicated management port for out-of-band access.

Why Choose the MBD-X12STH-LN4F-B?

The MBD-X12STH-LN4F-B combines compact Micro-ATX density with enterprise manageability, enabling standardized deployments across remote sites without sacrificing expansion or storage connectivity. Its PCIe 4.0 capability supports bandwidth-sensitive add-in cards, while ECC memory support and platform RAID options help maintain service continuity in always-on environments.

Supermicro engineering focuses on datacenter-aligned reliability, validated component selection, and long-lifecycle platform consistency. With integrated IPMI/BMC (ASPEED AST2600), VGA, and TPM support, the design aligns with modern operational requirements for secure provisioning, remote diagnostics, and controlled firmware management.

Key Applications:

Edge and branch virtualization
AD/DNS and small-office infrastructure services
SATA NAS and backup nodes
Industrial and embedded x86 servers
Remote-managed infrastructure appliances

At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment requirements for the MBD-X12STH-LN4F-B, enabling accurate platform planning and procurement alignment, and you can extend the warranty up to 6 years to protect long-lived edge and storage installations.

Technical details of MBD-X12STH-LN4F-B

CPU Socket: H5 (LGA 1200)

Onboard Memory: No

RAID Support: Yes

CPU Manufacturer: Intel

CPU Supported Type: Xeon E, Pentium

Form Factor: Micro-ATX

Chipset: Intel C256

RAM Maximum Capacity: 128GB

Max RAM Frequency : 3200MHz

RAM Slots: 4 DIMM DDR4

PCIe Slots: 1 PCIe 3.0 x8, 1 PCIe 4.0 x8, 1 PCIe 4.0 x16

M.2 Slots: 1 PCIe 3.0 x4 M.2 22110, M.2 2280 M-Key

Network Ports: 4 RJ45 1 Gbps

ECC Support: ECC

Onboard Network: Ethernet

Suitability: Server

Onboard CPU: No

RAID Support: Yes

Onboard Graphic: Yes

Video Output: 1x VGA

USB Ports: 1x USB 3.2 Gen 1 Type-A, 2x USB 2.0, 2x USB 3.2 Gen 1 ports, 4x USB 2.0

Other Ports: 1x IPMI Management Port, 2x COM Port, 2x SATA DOM (Disk on Module)

Trusted Platform Module (TPM): Yes

BIOS: 256MB UEFI

Wi-Fi Support: None

Bluetooth integrated: None

Onboard Audio Chipset: No

Embedded: No

Card Reader: No

How long is the Warranty and how you can get technical support for MBD-X12STH-LN4F-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
