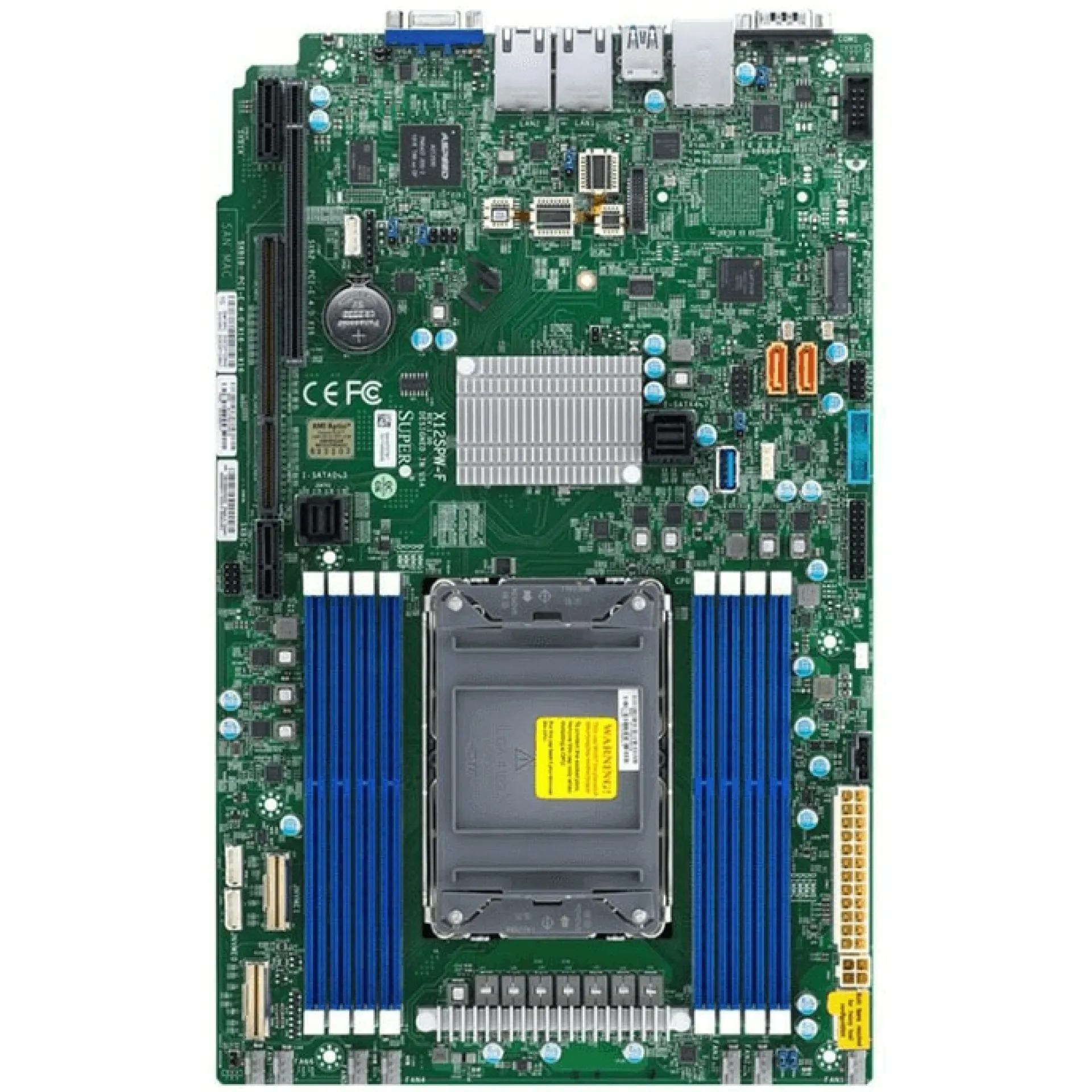

MBD-X12SPW-F Supermicro Proprietary WIO 8 DIMM Slots Mainboard

*Picture may not be exactly the same as the product

See all Intel Xeon Motherboard

See other Supermicro products

This product is currently not priced. Request a personalized quote now.

Out of stock

Not available

Happyware Article Number:

SE1M9010-380206

Manufacturer Number:

MBD-X12SPW-F

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X12SPW-F

High-Performance WIO Server Motherboard featuring 3rd Gen Xeon Scalability with the MBD-X12SPW-F

The MBD-X12SPW-F is a Supermicro WIO server motherboard built for single-socket Intel Xeon Scalable (3rd Gen, LGA4189) platforms, targeting dense 1U/2U compute nodes that need balanced core throughput and I/O efficiency. It supports up to 270W CPUs and pairs the Intel C621A chipset with enterprise-grade manageability for standardized rack deployments.

With 8 DDR4-3200 ECC RDIMM/LRDIMM slots, the MBD-X12SPW-F enables high-capacity memory footprints up to 2TB for virtualization consolidation and memory-intensive services. Expansion is designed around PCIe 4.0 capability from the CPU and a practical storage topology: 10 SATA 6Gb/s ports for high device-count configurations plus an M.2 (M-Key 2280/22110) slot supporting PCIe 3.0 x4 or SATA for OS or cache tiers. Integrated dual 1GbE (Intel I210) provides predictable network behavior in management or east-west traffic profiles, while ASPEED AST2600 BMC with IPMI delivers out-of-band control aligned to lights-out operations.

Why Choose the MBD-X12SPW-F?

The MBD-X12SPW-F is engineered for reliable performance density in WIO-based 1U/2U systems, combining a modern Xeon platform with a storage-forward SATA layout and consistent remote management. Its single-socket scalability profile simplifies procurement and validation, while ECC memory support and enterprise management reduce operational risk across fleet deployments.

Supermicro designs the platform to meet data center expectations for serviceability, long lifecycle support, and interoperability within standardized chassis ecosystems, enabling repeatable builds with controlled firmware and management workflows.

Key Applications:

Virtualization hosts
General-purpose compute nodes
High SATA-count storage servers
Infrastructure services and monitoring

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your needs for the MBD-X12SPW-F, helping you align platform selection with chassis, storage, and lifecycle requirements, and you can extend the warranty up to 6 years for additional security on long-term deployments.

Technical details of MBD-X12SPW-F

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Xeon Scalable

Form Factor:

Proprietary WIO

Chipset:

Intel C621A

RAM Maximum Capacity:

2000GB

Max RAM Frequency :

3200MHz

RAM Slots:

8 DIMM DDR4

M.2 Slots:

1 PCIe 3.0 x4; SATA M.2 2280/22110 M-Key

Network Ports:

2 RJ45 1 Gigabit Ethernet

ECC Support:

ECC

Onboard Network:

Ethernet

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x VGA

USB Ports:

2x USB 2.0 - header 2x USB 2.0 ports 2x USB 3.2 Gen 1 ports 1x USB 3.2 Gen 1 ports

Other Ports:

2x USB 2.0 - header 1x USB 3.2 Gen 1 Type-A 2x USB 2.0 ports 1x COM Port 2x RJ-45 LAN Port 1x TPM Header 2x USB 3.2 Gen 1 Header 2x USB 3.2 Gen 1 ports

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

How long is the Warranty and how you can get technical support for MBD-X12SPW-F

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
