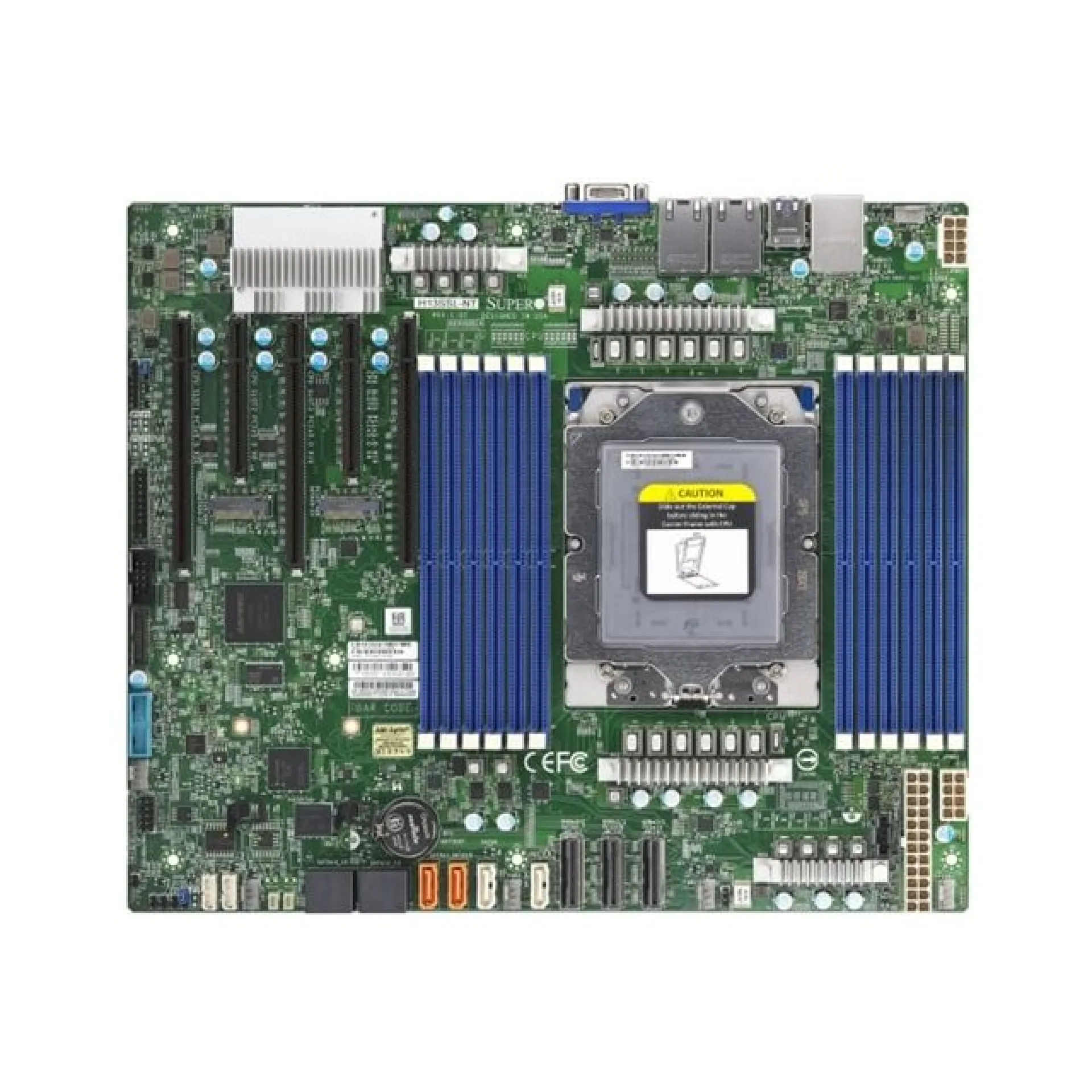

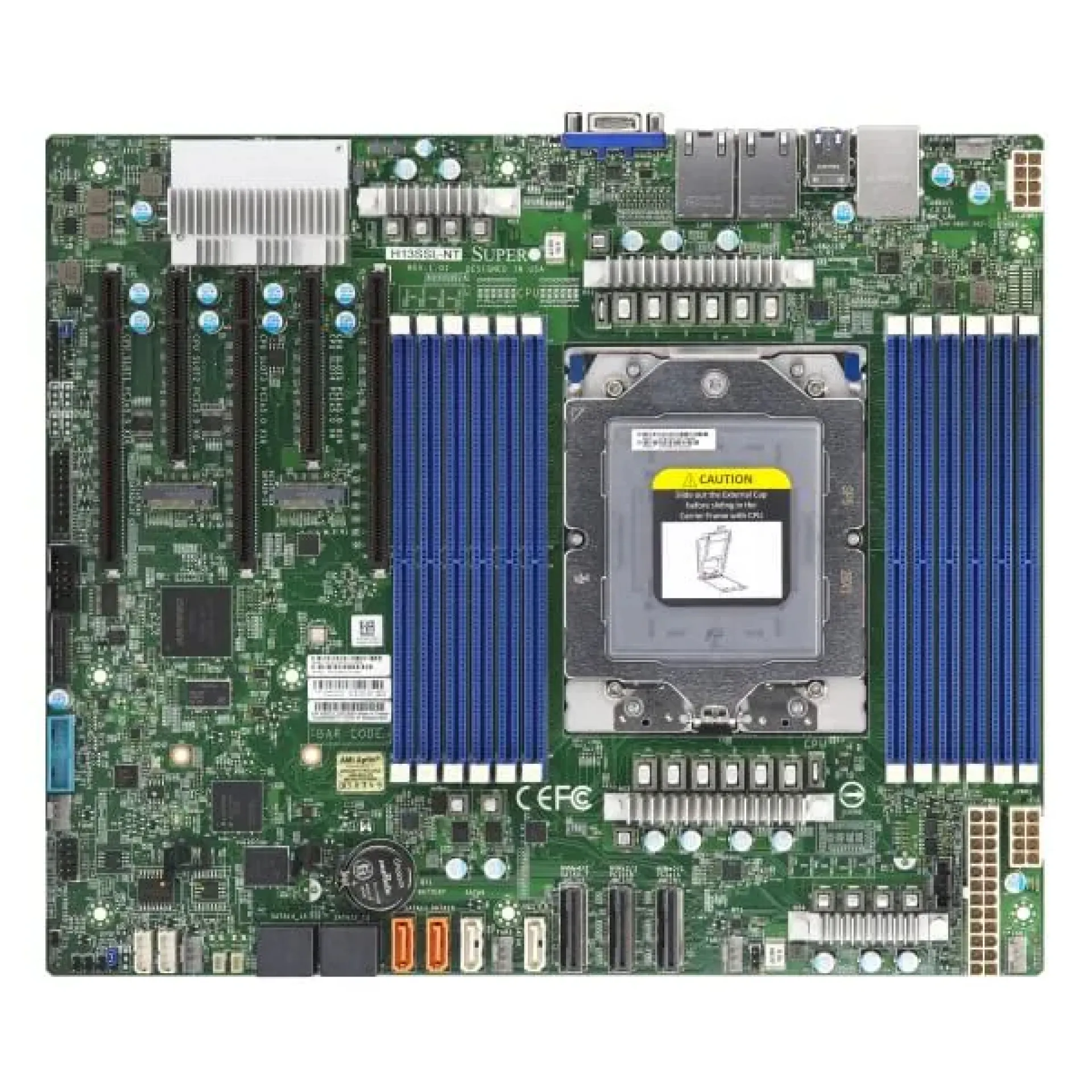

MBD-H13SSL-NT-B Supermicro ATX Single SP5 (LGA 6096) 12 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-H13SSL-NT-B and save cash:

Quantity	Unit price
To 4	€972.00
To 9	€944.00 €972.00 (2.88% saved)
To 19	€924.00 €972.00 (4.94% saved)
From 20	€905.00 €972.00 (6.89% saved)

Product line:

H13 Series

See all GPU Compatible Motherboard

See other Supermicro products

€972.00

Out of stock

Not available

Happyware Article Number:

SH3M6685-362047

Manufacturer Number:

MBD-H13SSL-NT-B

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-H13SSL-NT-B

High-Performance ATX Server Motherboard featuring AMD EPYC SP5 scalability with the MBD-H13SSL-NT-B

The MBD-H13SSL-NT-B is an ATX server motherboard engineered around the single-socket AMD EPYC 9004/9005-series SP5 platform, targeting dense virtualization and scale-up CPU compute where per-node throughput and I/O bandwidth must remain balanced. With support for up to 400W CPUs, the design prioritizes sustained all-core performance while keeping platform integration straightforward for enterprise rack deployments.

Memory architecture on the MBD-H13SSL-NT-B is optimized for high-capacity, ECC-protected DDR5 via 12 DIMM slots, enabling large in-memory footprints for consolidation and data services. PCIe 5.0 expansion is central to the board’s topology, providing multiple high-bandwidth slots and MCIO connectivity for modern add-in accelerators, high-speed NICs, and storage fabrics. Storage options align with mixed boot and data requirements: dual PCIe 5.0 x4 M.2 for NVMe boot or caching, plus 8x SATA III for backplane-attached capacity tiers. Integrated dual-port 10GbE supports low-latency east-west traffic without consuming PCIe lanes.

Why Choose the MBD-H13SSL-NT-B?

The MBD-H13SSL-NT-B delivers a pragmatic density-to-performance profile by combining EPYC SP5 compute scalability, DDR5 capacity, and PCIe 5.0 lane utility in a standardized ATX footprint. It is well suited for repeatable platform builds where predictable expansion, stable management, and reliable I/O mapping reduce validation effort across clusters and multi-site rollouts.

Supermicro designs the MBD-H13SSL-NT-B with data centre operational requirements in mind, pairing server-grade power and signal integrity with integrated IPMI/BMC management for lights-out control. The platform also supports modern security expectations through RoT capabilities and TPM header support, enabling policy-aligned provisioning in enterprise environments.

Key Applications:

Virtualization hosts
Scale-up CPU compute nodes
NVMe boot and cache tiers
SATA backplane storage servers
Edge-to-core infrastructure builds

At Happyware - Server Hardware you benefit from non-binding offers tailored to your MBD-H13SSL-NT-B deployment plan and an extended warranty of up to 6 years to protect long-lifecycle server platforms.

Technical details of MBD-H13SSL-NT-B

CPU Socket: SP5 (LGA 6096)

Onboard Memory: No

RAID Support: No

CPU Manufacturer: AMD

CPU Supported Type: EPYC

Form Factor: ATX

Chipset: System-on-Chip (SoC)

RAM Maximum Capacity: 3000GB

Max RAM Frequency : 6000MHz

RAM Slots: 12 DIMM DDR5

PCIe Slots: 2 PCIe 5.0 x8, 3 PCIe 5.0 x16

M.2 Slots: 2 PCIe 5.0 x4/NVME/SATA M.2 22110, M.2 2280 M-Key

Network Ports: 2 RJ45 10 Gbps

ECC Support: ECC

Onboard Network: Ethernet

Suitability: Server

Onboard CPU: No

RAID Support: No

Onboard Graphic: Yes

Video Output: 1x VGA

USB Ports: 2x USB 3.0, 4x USB 3.0

Other Ports: 1x COM Port, 2x SuperDOM (Disk on Module) ports

Trusted Platform Module (TPM): Yes

BIOS: AMI 32MB SPI Flash EEPROM

Wi-Fi Support: None

Onboard Audio Chipset: No

Embedded: No

Card Reader: No

How long is the Warranty and how you can get technical support for MBD-H13SSL-NT-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
