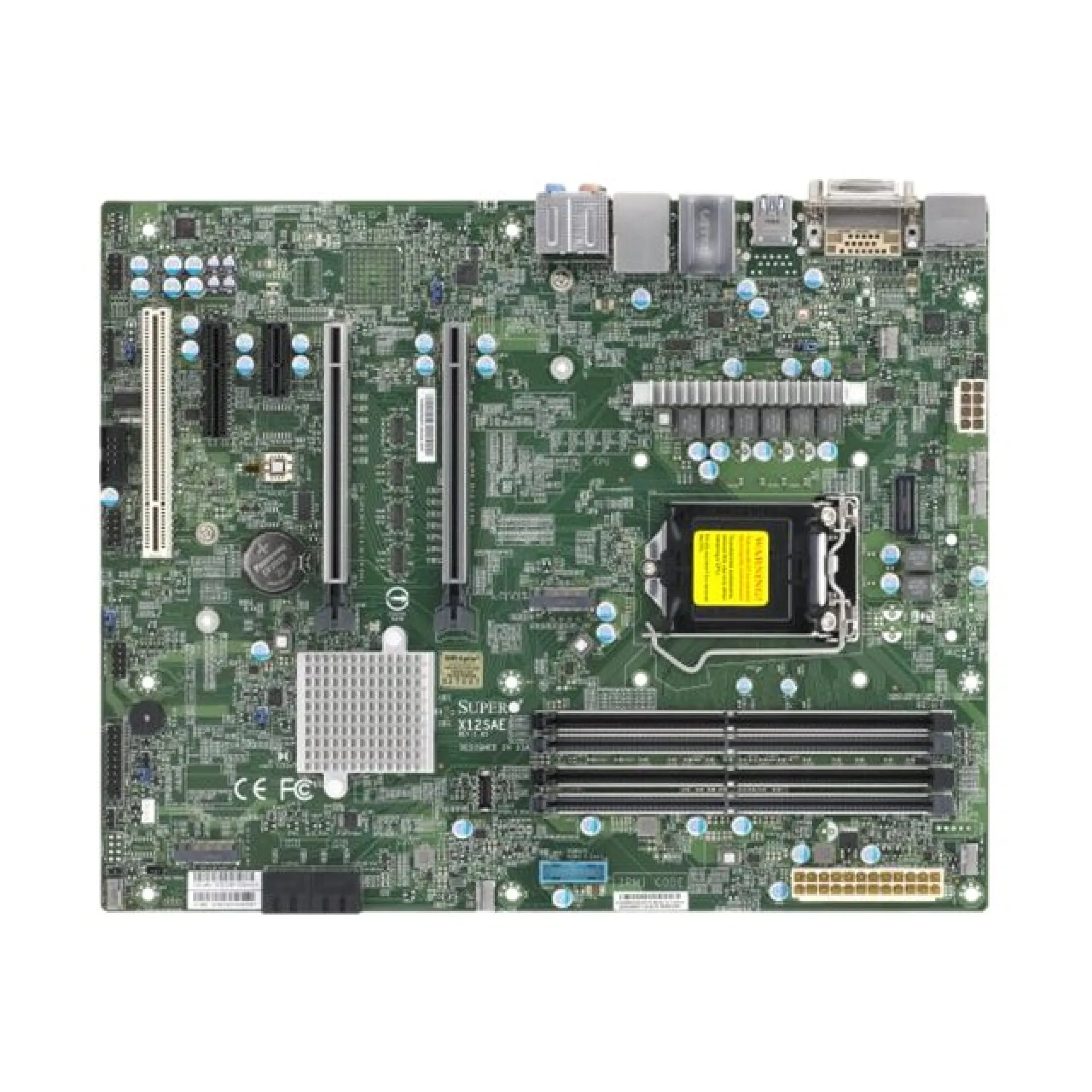

MBD-X12SAE-B Supermicro ATX Single H5 (LGA 1200) 4 DIMM Slots Workstation Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X12SAE-B and save cash:

Quantity	Unit price
To 9	€382.00
To 19	€364.00 €382.00 (4.71% saved)
To 49	€356.00 €382.00 (6.81% saved)
From 50	€345.00 €382.00 (9.69% saved)

Product version:

MBD-X12SAE

Product line:

X13

See all Intel Xeon Motherboard

See other Supermicro products

€382.00

Out of stock

Not available

Happyware Article Number:

SH0M5317-152401

Manufacturer Number:

MBD-X12SAE-B

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X12SAE-B

Enterprise ATX Workstation Motherboard featuring Intel W480 Platform Flexibility with the MBD-X12SAE-B

The MBD-X12SAE-B is an ATX motherboard built on the Supermicro X12SAE platform with the Intel W480 chipset, engineered for dependable workstation and edge deployments on Intel LGA1200 processors. It supports Xeon W and Core i3–i9 CPUs up to 125W, enabling a balanced configuration for CAD/CAE, content creation, and infrastructure services where deterministic CPU performance and validated platform behavior matter.

With 4 DDR4 DIMM slots, the MBD-X12SAE-B enables ECC memory operation up to 128GB, aligning memory integrity with professional workloads and long-running services. Expansion is optimized for add-in flexibility through PCIe 3.0 connectivity, including dual x16 slots for GPU acceleration or high-bandwidth NIC/HBA cards, plus additional lanes for capture, storage, or security modules. Storage architecture combines 2 NVMe M.2 (M-Key) sockets for low-latency scratch or VM datastores with 4 SATA III ports for cost-effective capacity tiers, allowing clear separation of performance and bulk storage domains.

Why Choose the MBD-X12SAE-B?

The MBD-X12SAE-B delivers an enterprise-oriented density-to-performance profile for single-socket builds, pairing ECC capability, multi-slot PCIe expansion, and dual-speed Ethernet to scale from professional desktops to compact edge nodes. Integrated IPMI/BMC with a dedicated management port supports remote provisioning and lifecycle operations, reducing on-site intervention while maintaining consistent fleet management practices.

Supermicro designs the platform with a focus on component validation, long-life availability, and operational predictability in modern data centre and lab environments, integrating features such as TPM support, RAID options, and structured I/O for repeatable deployments.

Key Applications:

Professional CAD/CAE workstations
Content creation and rendering nodes
Edge infrastructure and light virtualization
Lab and development prototyping systems
PCIe add-in validation and storage testing

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your MBD-X12SAE-B configuration requirements and an extended warranty up to 6 years to protect long-term workstation and edge rollouts.

Technical details of MBD-X12SAE-B

CPU Socket: H5 (LGA 1200)

Onboard Memory: No

RAID Support: Yes

CPU Manufacturer: Intel

CPU Supported Type: Core i9, Core i7, Core i5, Core i3, Xeon W, Pentium, Celeron

Form Factor: ATX

Chipset: Intel W480

RAM Maximum Capacity: 128GB

Max RAM Frequency : 2933MHz

RAM Slots: 4 DIMM DDR4

PCIe Slots: 1 PCIe 3.0 x1, 1 PCIe 3.0 x4, 2 PCIe 3.0 x16

M.2 Slots: 2 NVME M.2 22110, M.2 2280 M-Key

Network Ports: 1 RJ45 1 Gbps, 1 RJ45 2.5 Gbps

ECC Support: ECC

Onboard Network: Ethernet

Suitability: Workstation

Onboard CPU: No

RAID Support: Yes

Video Output: 1x DisplayPort, 1x DVI-D, 1x HDMI

USB Ports: 2x USB 3.2 Gen 1 Type-A

Other Ports: 1x COM Port, 1x IPMI Management Port

Trusted Platform Module (TPM): Yes

BIOS: 256MB SPI Flash with AMI BIOS

Wi-Fi Support: None

Bluetooth integrated: None

Embedded: No

GPIO Pins: 0

Card Reader: No

How long is the Warranty and how you can get technical support for MBD-X12SAE-B

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
