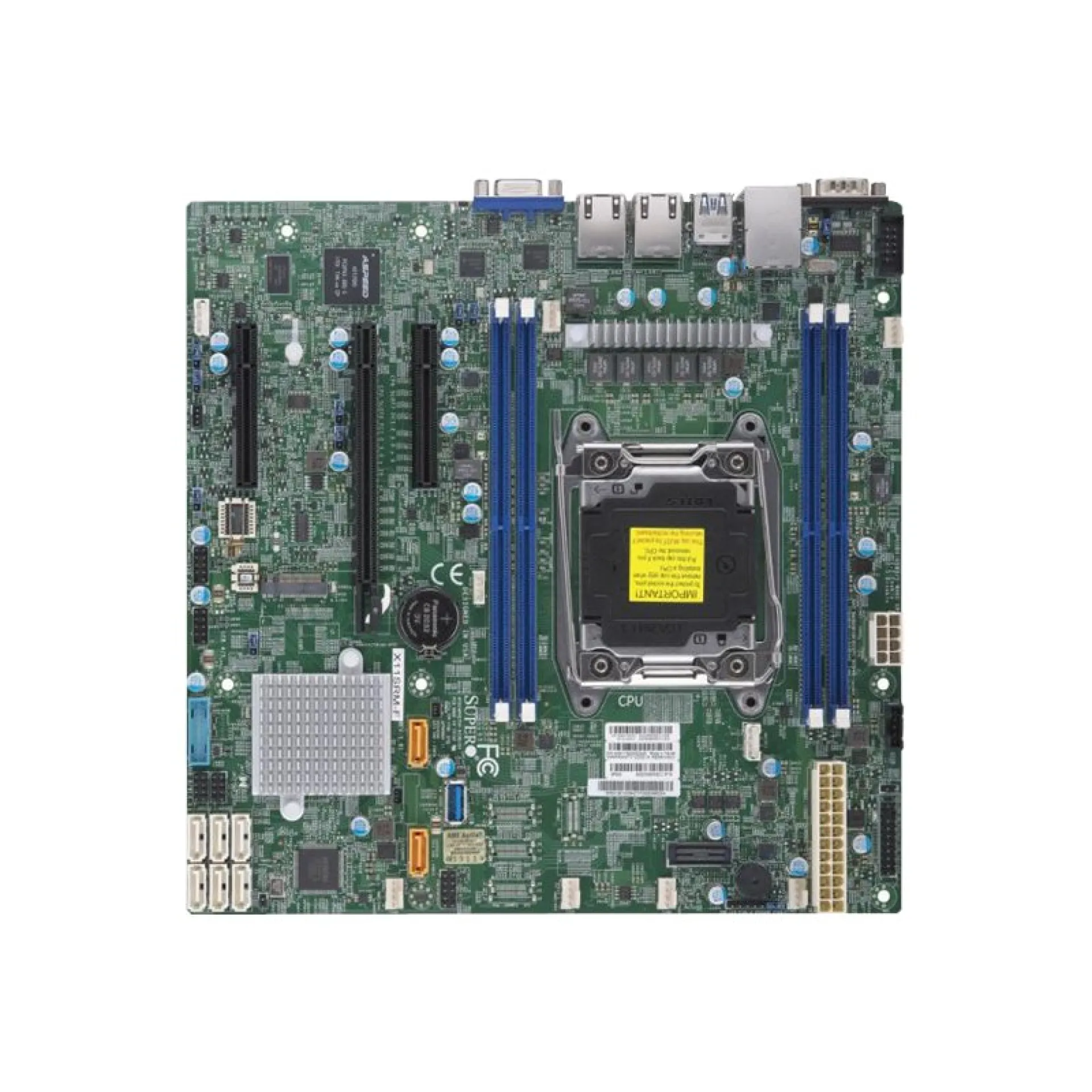

MBD-X11SRM-F-O Supermicro Micro-ATX Single R4 (LGA 2066) 4 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X11SRM-F-O and save cash:

Quantity	Unit price
To 9	€375.00
To 19	€357.00 €375.00 (4.8% saved)
To 49	€349.00 €375.00 (6.93% saved)
From 50	€338.00 €375.00 (9.87% saved)

Product line:

X11

See all GPU Compatible Motherboard

See other Supermicro products

€375.00

Out of stock

Not available

Happyware Article Number:

SH6M7223-155483

Manufacturer Number:

MBD-X11SRM-F-O

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X11SRM-F-O

High-Density Micro-ATX Server Motherboard featuring Xeon W Platform Management with the MBD-X11SRM-F-O

The MBD-X11SRM-F-O is a Micro-ATX server motherboard engineered around the Intel C422 chipset and single-socket LGA2066 to support Intel Xeon W processors for compact edge and branch deployments. With up to 165W CPU TDP capability, the platform targets predictable throughput for infrastructure services while preserving board-level thermals and power delivery suitable for continuous operation.

Memory architecture on the MBD-X11SRM-F-O provides 4 DDR4 DIMM slots with ECC support, enabling up to 512GB and up to 2933 MT/s to balance capacity and bandwidth for light virtualization, directory services, and small databases. PCIe 3.0 expansion is optimized for practical I/O: one x16 slot and two x8 mechanical slots support NICs, HBAs, or accelerators that fit branch constraints. For storage, the MBD-X11SRM-F-O integrates 8 SATA III ports plus an M.2 2280 (PCIe 3.0 x4) option for OS or cache, enabling clean separation between boot and bulk capacity while maintaining straightforward serviceability.

Why Choose the MBD-X11SRM-F-O?

The MBD-X11SRM-F-O delivers an efficient density-to-performance profile by combining workstation-class Xeon W compute with enterprise management and balanced I/O in a Micro-ATX footprint. It supports scalable configurations for remote sites, standard rackmount short-depth systems, and dedicated appliance builds, while maintaining reliability through ECC memory, platform RAID options, and out-of-band control for consistent operations.

Supermicro designs platforms with a focus on validated server engineering, long-life component sourcing, and alignment with modern data centre and edge standards. Integrated IPMI/BMC management and AMI UEFI BIOS on the MBD-X11SRM-F-O support controlled provisioning, secure lifecycle maintenance, and predictable behavior across distributed fleets.

Key Applications:

Edge and branch servers
Light virtualization
Infrastructure services (AD/DNS, monitoring)
Small databases
Storage and backup nodes

At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment requirements for the MBD-X11SRM-F-O and the option to extend the warranty up to 6 years to protect long-term rollouts and standardized fleet operation.

Technical details of MBD-X11SRM-F-O

CPU Socket: R4 (LGA 2066)

RAID Support: Yes

CPU Manufacturer: Intel

CPU Supported Type: Xeon W

Form Factor: Micro-ATX

Chipset: Intel C422

RAM Maximum Capacity: 512GB

Max RAM Frequency : 2933MHz

RAM Slots: 4 DIMM DDR4

PCIe Slots: 1 PCIe 3.0 x16, 2 PCIe 3.0 x8

M.2 Slots: 1 PCIe 3.0 x4 M.2 2280 M-Key

Network Ports: 2 RJ45 1 Gbps

ECC Support: ECC

Onboard Network: Ethernet

Suitability: Server

Onboard CPU: No

RAID Support: Yes

Onboard Graphic: Yes

Video Output: 1x VGA

Other Ports: 1x IPMI Management Port, 1x TPM Header, 2x COM Port, 2x SATA DOM (Disk on Module)

Trusted Platform Module (TPM): Yes

BIOS: AMI UEFI

Wi-Fi Support: None

Bluetooth integrated: None

Embedded: No

Card Reader: No

How long is the Warranty and how you can get technical support for MBD-X11SRM-F-O

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
