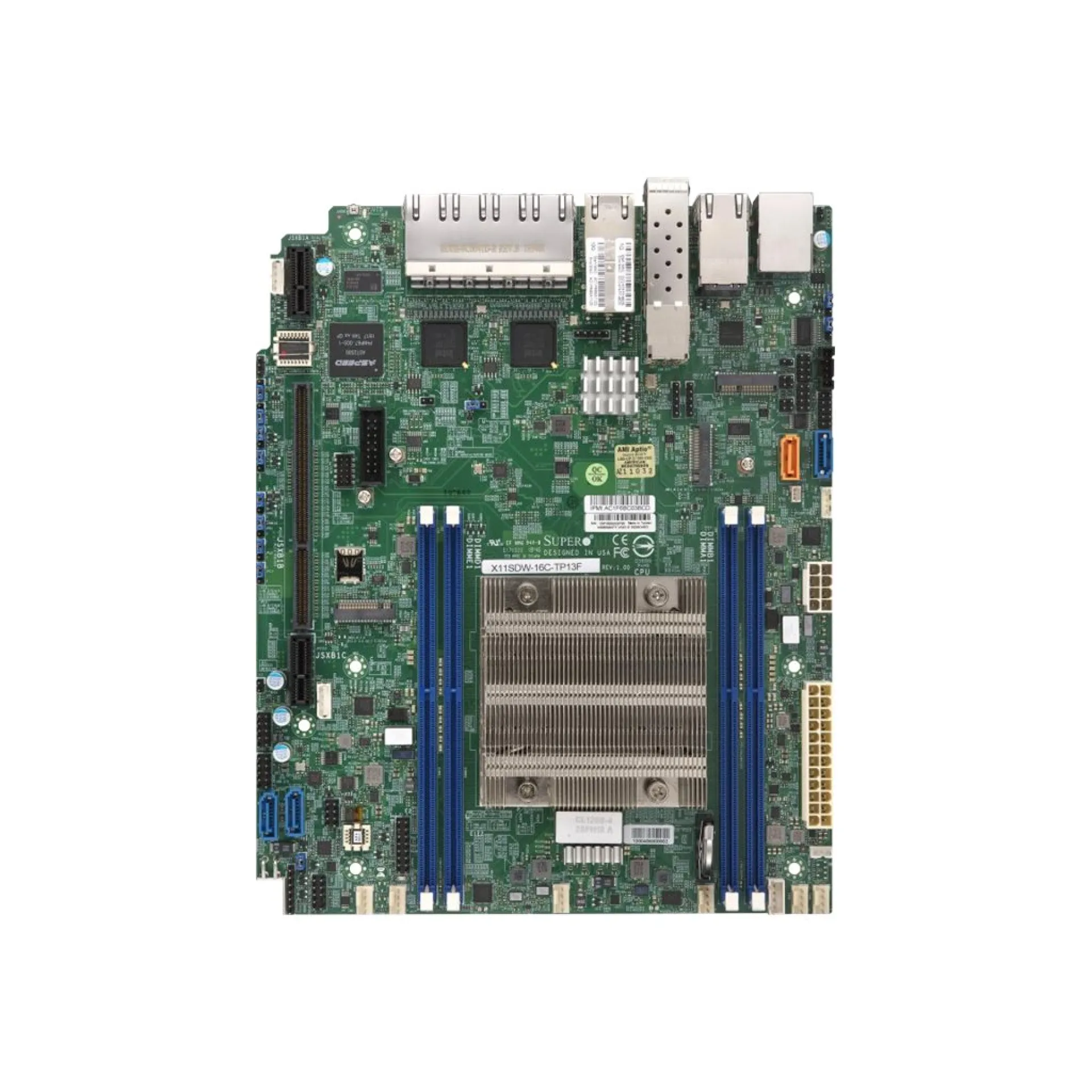

MBD-X11SDW-8C-TP13F-O Supermicro Proprietary Single FCBGA2518 4 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-X11SDW-8C-TP13F-O and save cash:

Quantity	Unit price
To 4	€1,525.00
To 9	€1,480.00 €1,525.00 (2.95% saved)
To 19	€1,450.00 €1,525.00 (4.92% saved)
From 20	€1,420.00 €1,525.00 (6.89% saved)

Product line:

X11

See all ECC RAM Supported Motherboard

See other Supermicro products

€1,525.00

In stock

Happyware Article Number:

SH5M1319-275187

Manufacturer Number:

MBD-X11SDW-8C-TP13F-O

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-X11SDW-8C-TP13F-O

High-Density Edge Server Motherboard featuring Intel Xeon D SoC connectivity with the MBD-X11SDW-8C-TP13F-O

The MBD-X11SDW-8C-TP13F-O is a proprietary-form-factor embedded server motherboard built around an onboard Intel Xeon D SoC platform, targeting compact virtualization clusters, network appliances, and edge compute nodes where deterministic throughput and low operational complexity are required. The single-socket SoC design consolidates compute, I/O, and platform control into an 80W envelope, supporting predictable performance per node in space-constrained deployments.

Memory architecture on the MBD-X11SDW-8C-TP13F-O uses 4x DDR4 ECC DIMM slots up to 512GB, enabling higher VM density, in-memory routing tables, and packet inspection workloads while maintaining data integrity. PCIe 3.0 expansion is delivered through 2x x16 physical slots via riser for NIC, accelerator, or storage HBA integration, and the storage layout combines 4x SATA III with a flexible M.2 topology (M-Key, B-Key, and E-Key) to separate OS, cache, and service storage. Integrated networking is designed for port-dense designs, pairing 2x 10GbE SFP+ and 2x 10GBase-T with multiple 1GbE interfaces, while dedicated IPMI management LAN enables out-of-band operations without consuming production ports.

Why Choose the MBD-X11SDW-8C-TP13F-O?

The MBD-X11SDW-8C-TP13F-O delivers a balanced density-to-performance profile by combining Xeon D compute with multi-10GbE networking and enterprise manageability on a single embedded platform. It scales cleanly across edge racks and distributed sites, reduces integration risk through integrated BMC/IPMI, and supports secure deployment patterns with TPM and UEFI for controlled provisioning.

Supermicro engineers platforms to sustain continuous operation in enterprise environments, emphasizing validated component ecosystems, management consistency, and long-term availability aligned with modern data centre standards and remote-site lifecycle requirements.

Key Applications:

Edge virtualization nodes
SD-WAN and routing platforms
Network security gateways
Embedded storage appliances
NFV and service chaining

At Happyware - Server Hardware you benefit from non-binding offers tailored to your MBD-X11SDW-8C-TP13F-O deployment plan and an extended warranty of up to 6 years to secure long-lived edge and appliance rollouts.

Technical details of MBD-X11SDW-8C-TP13F-O

CPU Socket:

FCBGA2518

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Xeon D

Form Factor:

Proprietary

Chipset:

System-on-Chip (SoC)

RAM Maximum Capacity:

512GB

Max RAM Frequency :

2133MHz

RAM Slots:

4 DIMM DDR4

PCIe Slots:

2 PCIe 3.0 x16

M.2 Slots:

1 PCIe 3.0 x1 M.2 2230 E-Key 1 PCIe 3.0 x2/SATA/USB 3.0 M.2 2242, M.2 3042 B-Key 1 PCIe 3.0 x4/SATA M.2 22110, M.2 2280 M-Key

Network Ports:

1 RJ45 1 Gbps 2 RJ45 10 Gbps 2 SFP+ 10 Gbps 4 RJ45 1 Gbps

ECC Support:

ECC

Onboard Network:

Ethernet

Suitability:

Server

Onboard CPU:

Yes

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x VGA

Other Ports:

1x IPMI Management Port 2x COM Port 1x SuperDOM (Disk on Module) ports 1x TPM Header

Trusted Platform Module (TPM):

Yes

BIOS:

256MB UEFI

Wi-Fi Support:

None

Onboard Audio Chipset:

Embedded:

Yes

Card Reader:

How long is the Warranty and how you can get technical support for MBD-X11SDW-8C-TP13F-O

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
