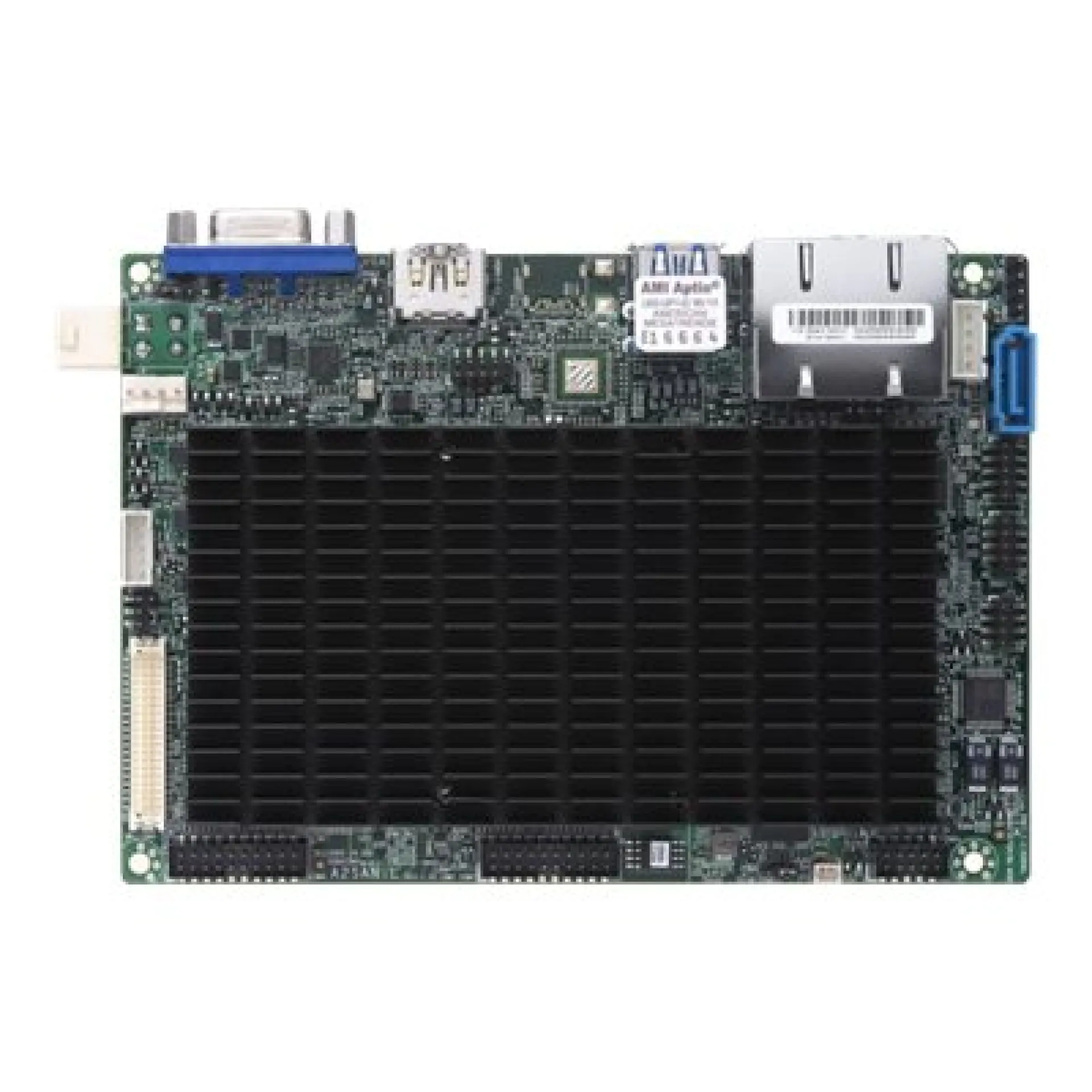

MBD-A2SAN-L-O Supermicro 3.5" SBC Single FCBGA1296 1 SO-DIMM Slots Embedded Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for MBD-A2SAN-L-O and save cash:

Quantity	Unit price
To 9	€248.00
To 19	€236.00 €248.00 (4.84% saved)
To 49	€231.00 €248.00 (6.85% saved)
From 50	€224.00 €248.00 (9.68% saved)

See all Motherboards

See other Supermicro products

€248.00

In stock

Happyware Article Number:

SH5M5005-496285

Manufacturer Number:

MBD-A2SAN-L-O

Brand:

Supermicro

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MBD-A2SAN-L-O

Industrial-Grade 3.5" Embedded SBC Motherboard featuring Intel Atom SoC efficiency with the MBD-A2SAN-L-O

The MBD-A2SAN-L-O is a compact 3.5" SBC engineered for low-power embedded compute where deterministic I/O and long-life availability matter more than raw core counts. Built on an onboard Intel Atom SoC with integrated Intel HD Graphics, the platform targets fanless edge deployments that require stable operation under constrained thermal envelopes and direct display connectivity for HMI use.

System memory is delivered through a single DDR3L SO-DIMM channel up to 8GB, aligning the MBD-A2SAN-L-O with lightweight control-plane services, protocol gateways, and serial device aggregation rather than heavy virtualization. PCIe Gen2 expansion is provided via M.2 2280 B-Key (PCIe 2.0 x1/SATA/USB 2.0) and a full-size Mini-PCIe slot, enabling modular addition of fieldbus adapters, cellular modems, or specialty I/O. Storage architecture supports SATA III for reliable local boot media alongside M.2 flexibility for compact SSDs, while dual Intel I210-IT 1GbE ports deliver enterprise-class network controllers suited to routing, firewalling, and segmented OT/IT bridging.

Why Choose the MBD-A2SAN-L-O?

The MBD-A2SAN-L-O balances edge density and operational stability by combining low TDP compute, passive cooling design, and industrial operating temperature capability for cabinet and vehicle installations. Its deployment logic favors scalable rollouts of standardized nodes where serial connectivity, dual Ethernet, and multiple display paths reduce external converters and simplify validation across sites.

Supermicro designs embedded platforms with an engineering focus on component traceability, conservative power delivery, and firmware maturity aligned to modern data centre and industrial integration practices, helping standardize lifecycle management even without BMC-class out-of-band features.

Key Applications:

Industrial automation controllers
HMI and edge gateways
Lightweight routing and firewall appliances
Remote access and telemetry nodes
Serial I/O aggregation for legacy instrumentation

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your MBD-A2SAN-L-O deployment scope, plus an extended warranty of up to 6 years to secure long-running embedded rollouts and site-standard spares.

Technical details of MBD-A2SAN-L-O

CPU Socket:

FCBGA1296

Onboard Memory:

RAID Support:

CPU Manufacturer:

Intel

CPU Supported Type:

Atom

Form Factor:

3.5" SBC

Chipset:

System-on-Chip (SoC)

RAM Maximum Capacity:

8GB

Max RAM Frequency :

1866MHz

RAM Slots:

1 SO-DIMM DDR3L

M.2 Slots:

1 PCIe 2.0 x1/SATA/USB 2.0 M.2 2280 B-Key

Network Ports:

2 RJ45 1 Gbps

ECC Support:

Non-ECC

Onboard Network:

Ethernet

Suitability:

Embedded

Onboard CPU:

Yes

RAID Support:

Onboard Graphic:

Yes

Video Output:

1x LVDS 1x HDMI 1x VGA

USB Ports:

2x USB 3.0 4x USB 2.0

Other Ports:

4x COM Port

Trusted Platform Module (TPM):

BIOS:

AMI UEFI

Wi-Fi Support:

None

Embedded:

Yes

GPIO Pins:

Card Reader:

How long is the Warranty and how you can get technical support for MBD-A2SAN-L-O

Warranty:	12 months (part) 36 months (labor)
Advanced replacement:	yes
RMA Url:	https://www.supermicro.com/en/support/rma/
Description:	120 days Advance Cross-Ship
