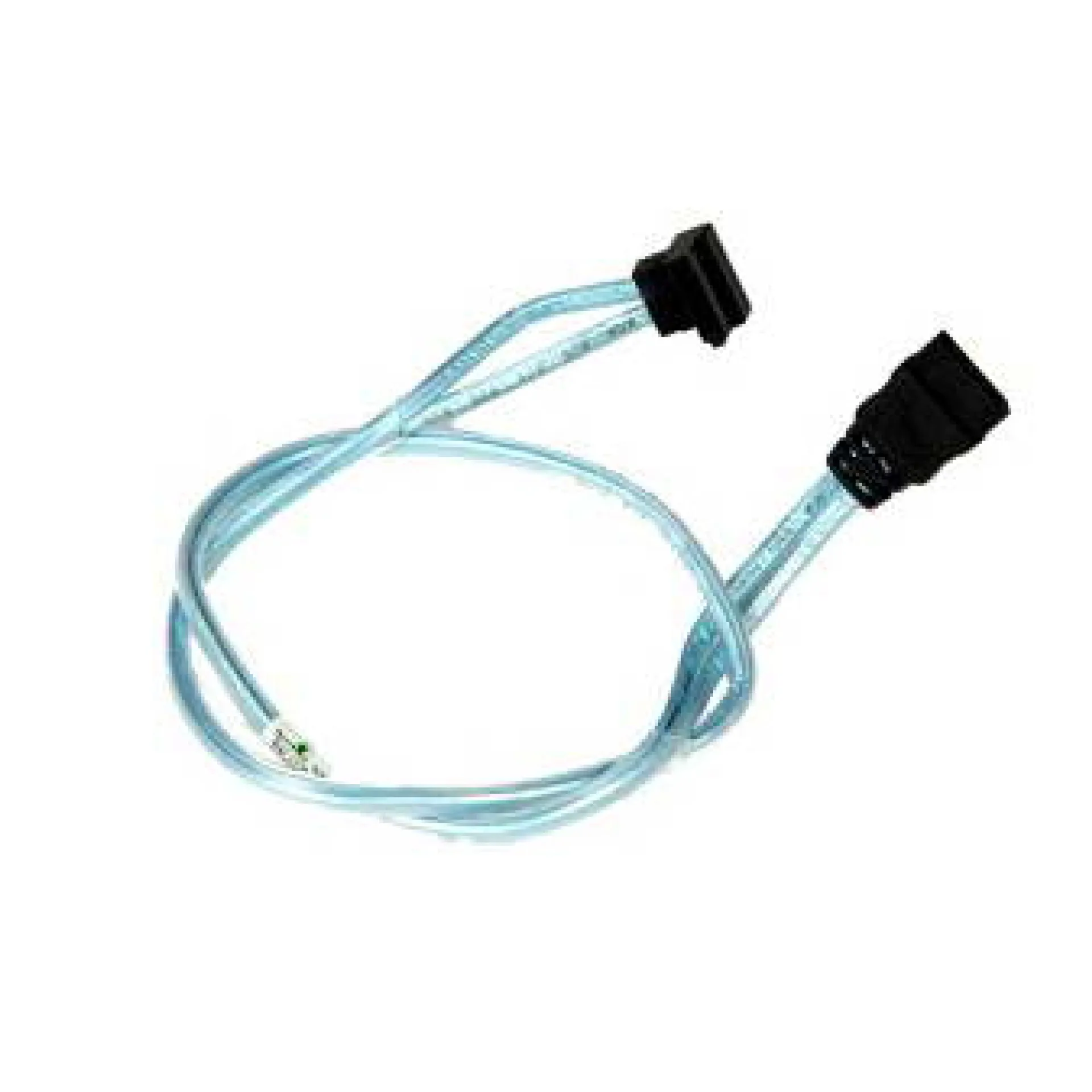

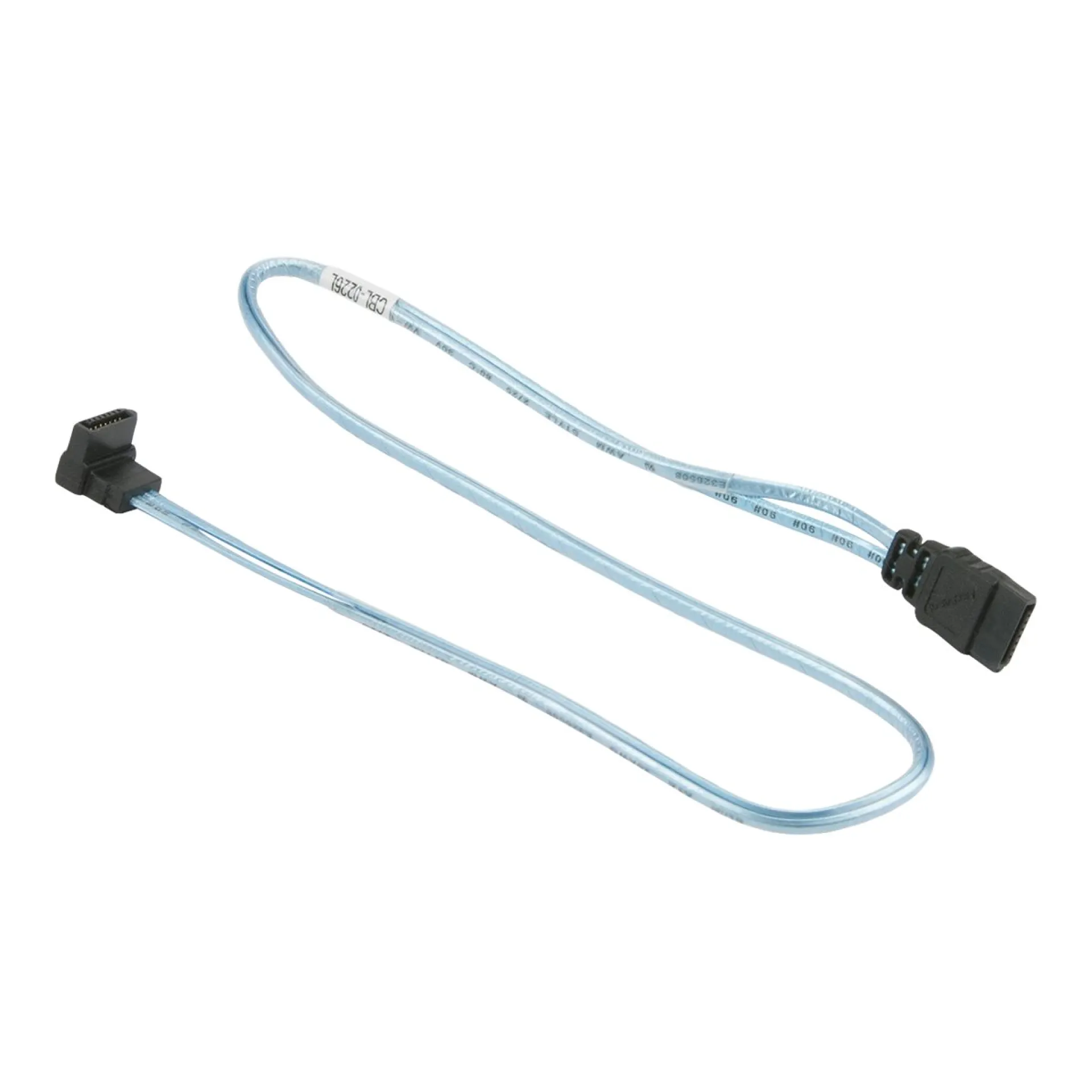

CBL-0226L Supermicro 43cm Cable

Enterprise Internal SATA Connectivity Cable Assembly for Backplane-to-Host Links with the CBL-0226L

The CBL-0226L is a Supermicro internal SATA cable assembly engineered for consistent SATA backplane to motherboard or HBA connectivity in rack servers where controlled routing and repeatable service procedures matter. As a 43 cm internal run, it supports clean chassis cable management, reduces strain at connectors, and helps maintain predictable airflow paths in dense 1U/2U platforms.

In modern server architectures, SATA lanes are often used for boot SSDs, SATA HDD tiers, or auxiliary storage alongside NVMe. The CBL-0226L provides a direct SATA-to-SATA link with 2 x SATA female connectors on a single lane, aligning with basic device attachment and backplane interconnect requirements. When expanding PCIe storage via HBAs or standardizing mixed storage topologies, the CBL-0226L helps maintain consistent internal wiring practices without introducing unnecessary adapters or nonstandard pinouts.

Why Choose the CBL-0226L?

Choosing the CBL-0226L supports operational standardization across Supermicro chassis fleets by keeping internal SATA connectivity uniform for replacements, spares, and staged deployments. The 43 cm length is suited to common chassis routing distances, enabling dependable seating and service access while minimizing cable slack that can interfere with fans, risers, or hot-swap backplanes.

Supermicro designs infrastructure components to integrate cleanly with its server mechanicals and platform reference designs, prioritizing predictable fit, maintainability, and long-term datacenter operability. This approach helps reduce variance in field service outcomes and supports controlled lifecycle management of internal cabling.

Key Applications:

• SATA backplane to motherboard connectivity
• SATA backplane to HBA connectivity
• Boot SSD cabling in rack servers
• Chassis cable replacement and standardization

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment and spare-part planning for the CBL-0226L, and 24/7 customer service to support urgent maintenance windows and rapid order execution.
