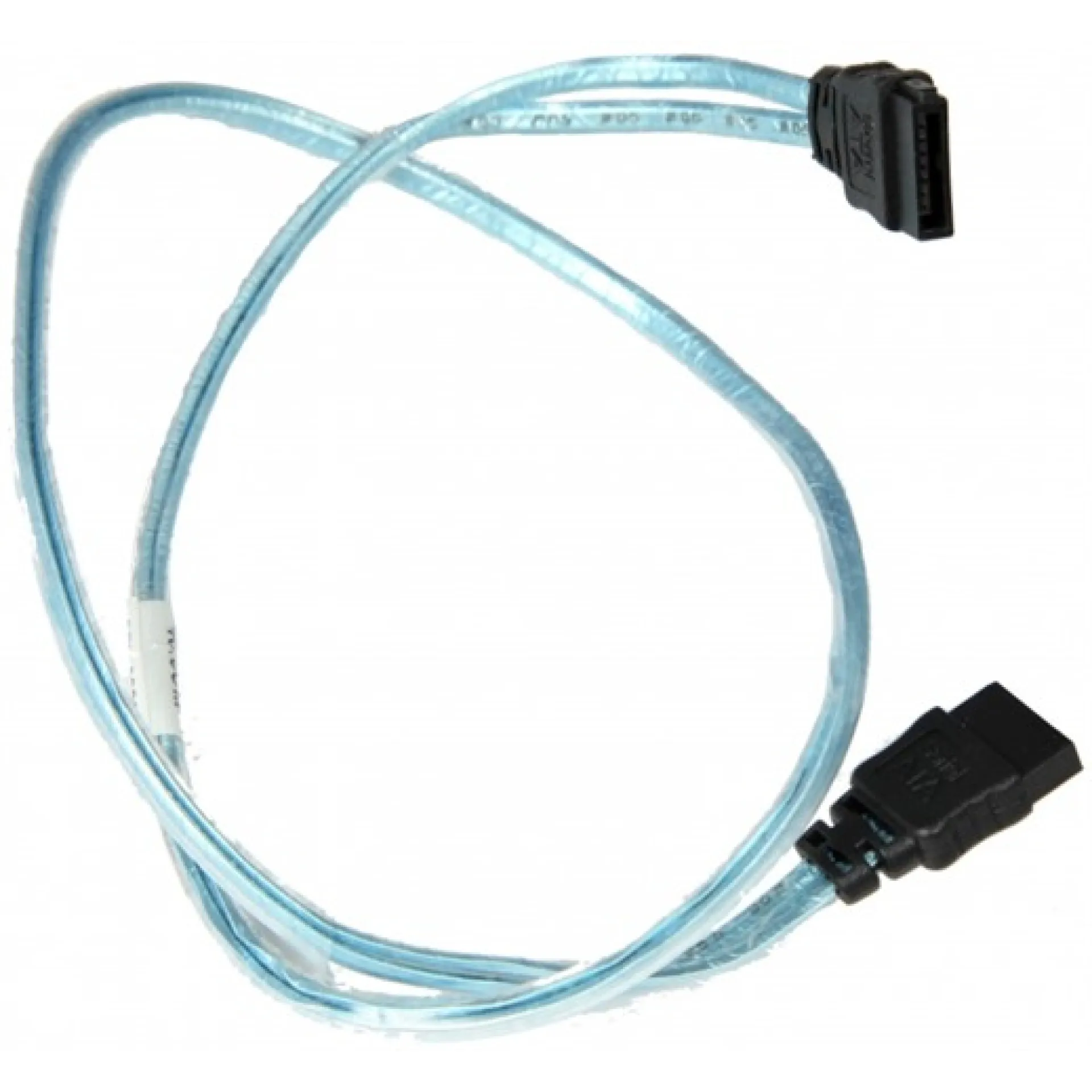

CBL-0206L Supermicro 48cm Cable

High-Density Internal SATA Interconnect Cabling for Server Storage Paths with the CBL-0206L

The CBL-0206L is a Supermicro internal SATA cable assembly designed to preserve signal integrity and serviceability between a server storage backplane and the motherboard or drive cage in enterprise chassis. By providing a controlled, single-lane SATA signal path per connection, the CBL-0206L supports predictable drive enumeration and stable link training for SATA SSD and HDD deployments in mixed-use racks.

In modern x86 server platforms where CPU and GPU resources are provisioned through PCIe expansion while storage remains cost-effective on SATA, the cabling layer is a critical dependency for consistent I/O behavior. The CBL-0206L uses straight SATA male-to-male connectors and a 48 cm reach to accommodate common midplane, backplane, and cage routing without excessive bend radius or unnecessary slack. This makes the CBL-0206L suitable for chassis builds, node refreshes, and field repairs where repeatable internal cable management directly impacts airflow, maintenance time, and fault isolation.

Why Choose the CBL-0206L?

The CBL-0206L delivers an enterprise-aligned replacement and integration option that simplifies standardization across service inventories while maintaining clean internal routing. For dense systems, the 48 cm length supports practical cable paths from backplane to host headers, reducing strain on ports and enabling faster component swaps during scheduled maintenance windows. Selecting the CBL-0206L helps keep storage connectivity consistent across configurations, improving operational reliability in scale-out environments.

Supermicro designs service parts with platform compatibility and data center operability in mind, emphasizing durable assemblies that support structured cabling practices inside performance-optimized chassis and align with common maintenance and lifecycle management requirements.

Key Applications:

• Server chassis build and system integration
• Storage backplane to motherboard SATA interconnect
• Spare parts for field service and repairs
• SATA SSD/HDD connectivity in rack servers

At Happyware - Server Hardware you benefit from non-binding offers tailored to your chassis and service-part requirements, helping you standardize on the CBL-0206L for planned rollouts or repair stock. For larger deployments, bulk order discount options support efficient procurement for multi-system builds using the CBL-0206L.
