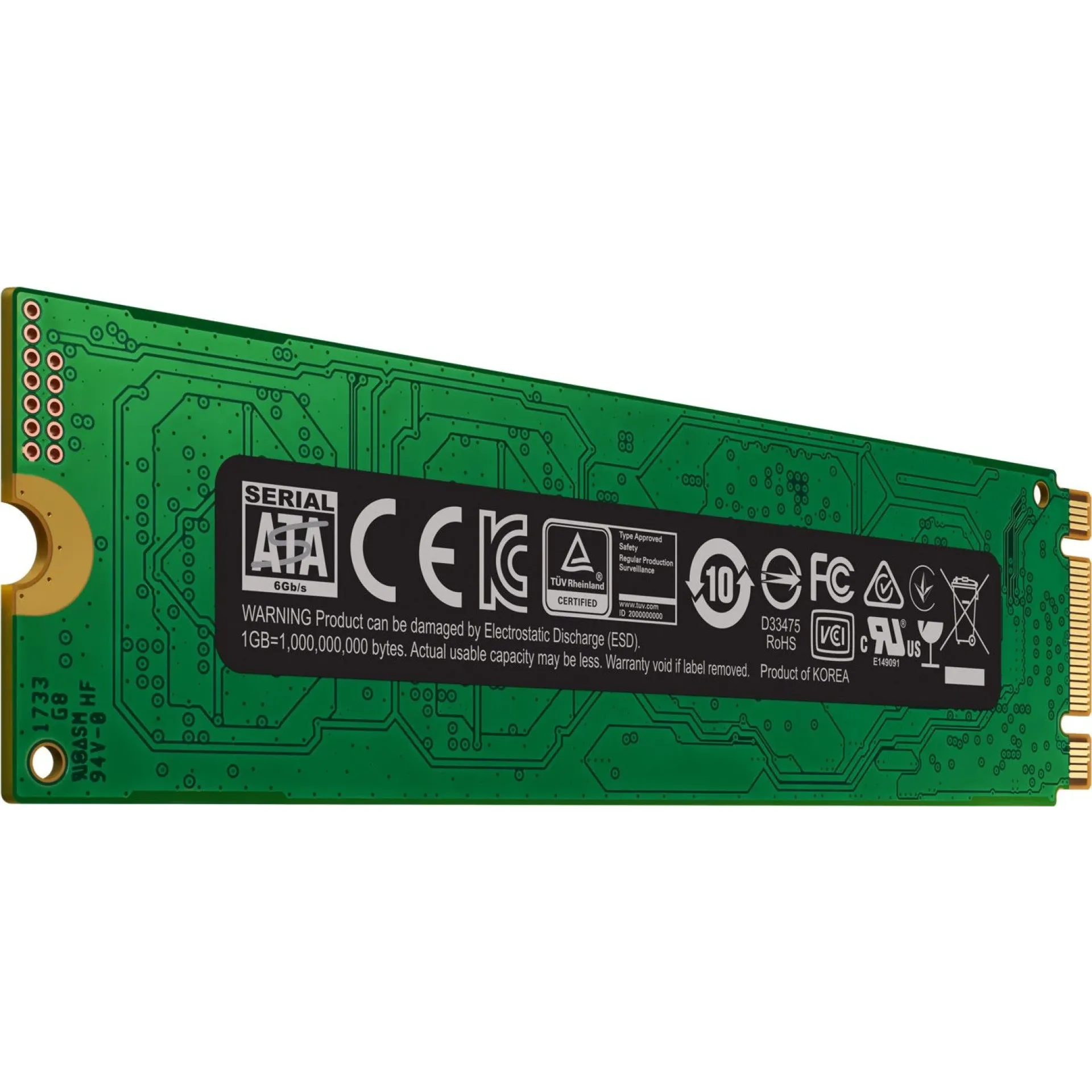

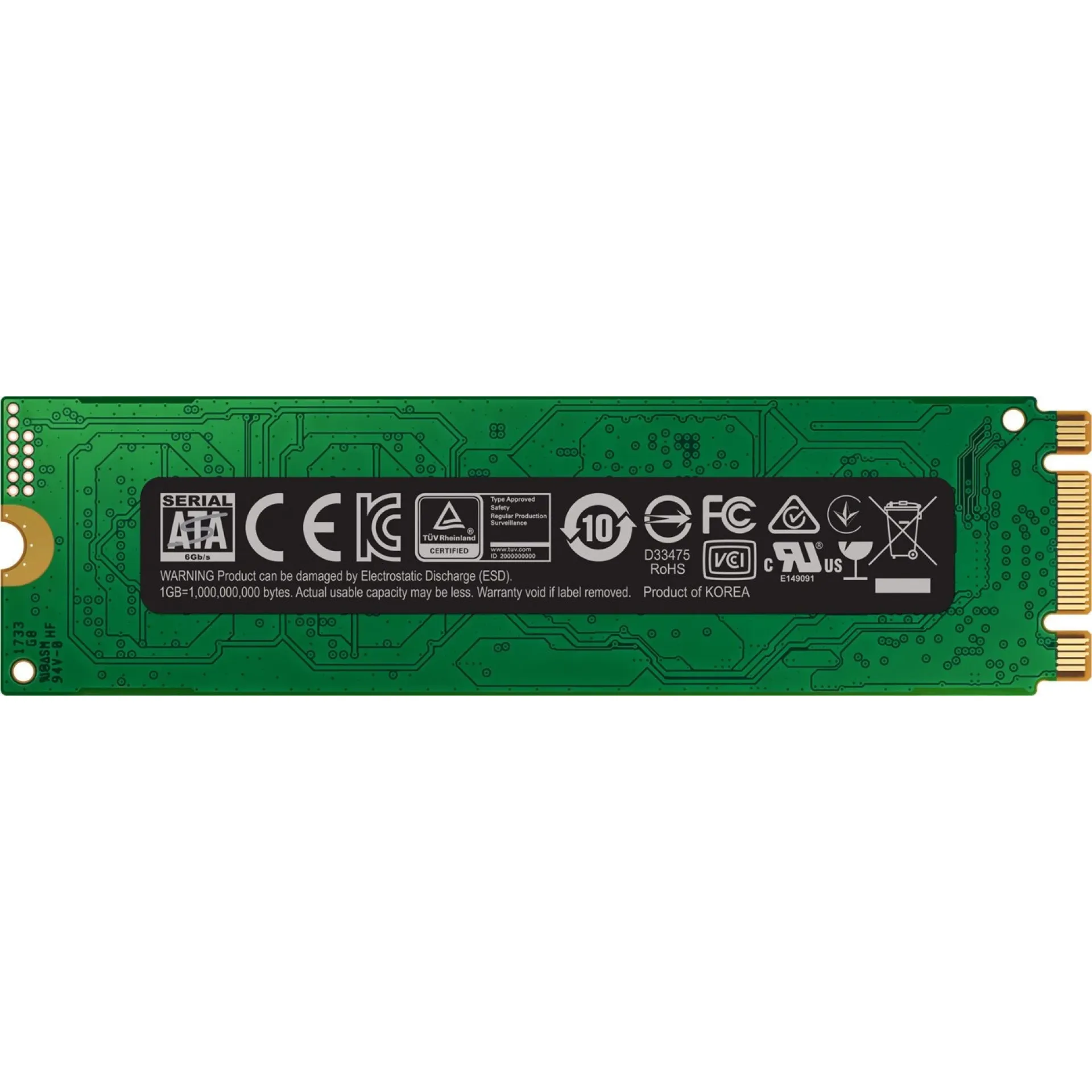

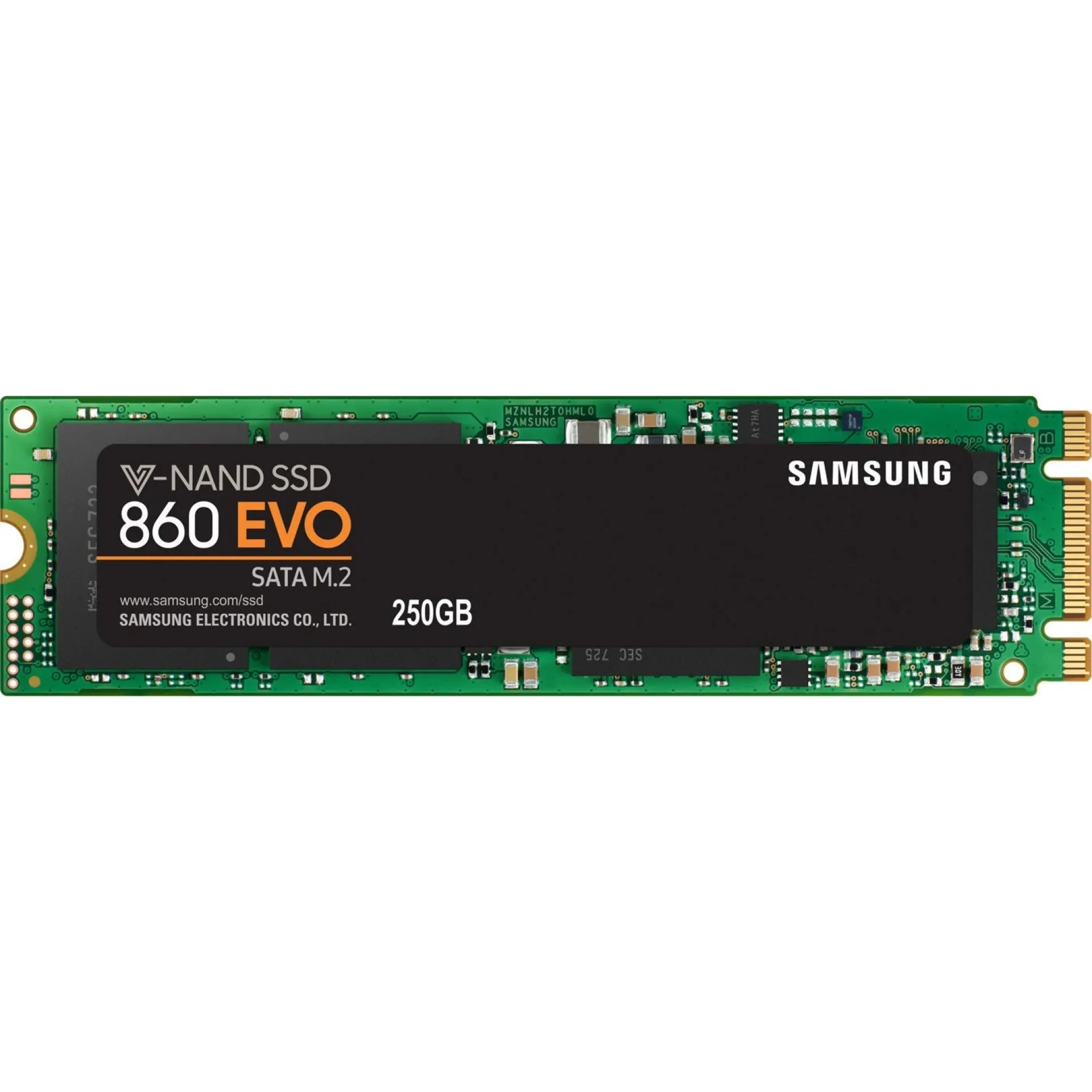

MZ-N6E250BW Samsung 250GB SATA M.2 2280 Consumer SSD

Enterprise M.2 2280 SATA Internal SSD featuring encrypted TLC NAND and DRAM caching with the MZ-N6E250BW

The Samsung MZ-N6E250BW is a 250GB M.2 2280 SATA SSD designed for client platforms and edge appliances where a compact boot and application tier must remain predictable under mixed I/O. As a SATA 6Gb/s device with a B+M Key interface, the MZ-N6E250BW fits broadly across desktop, laptop, and embedded boards, prioritising compatibility over PCIe lane consumption and leaving PCIe resources available for NICs, accelerators, or additional controllers.

Architecturally, the MZ-N6E250BW combines TLC NAND with a 512MB DRAM cache and Dynamic SLC caching to stabilise write behaviour and reduce latency spikes common in metadata-heavy OS activity. Sequential throughput up to 550MB/s read and 520MB/s write aligns with the practical ceiling of SATA, while up to 98K/90K 4K IOPS supports responsive boot, patching, and light workstation pipelines. With 150TBW endurance, 0.329 DWPD over 5 years, and a 1.5M-hour MTBF rating, the MZ-N6E250BW is engineered for sustained endpoint duty cycles. Integrated SED with 256-bit AES and TCG Opal 2.0 enables data-at-rest protection without relying exclusively on host-side controls.

Why Choose the MZ-N6E250BW?

The MZ-N6E250BW delivers a balanced density-to-performance profile for fleets that standardise on SATA M.2 while requiring enterprise-grade manageability and security. By combining DRAM-backed caching, defined endurance limits, and hardware encryption, the MZ-N6E250BW supports consistent deployment outcomes across heterogeneous client and edge hardware, simplifying image management and refresh cycles.

Samsung designs storage with a focus on controller/firmware maturity, NAND qualification discipline, and operational reliability aligned to modern data centre and distributed-compute standards, enabling predictable behaviour across large endpoint populations.

Key Applications:

• Client OS boot and application storage
• Encrypted endpoint data-at-rest protection
• Edge gateways and appliances with SATA M.2
• Light workstation scratch and project storage

At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout requirements for the MZ-N6E250BW, and you can secure cost efficiency through bulk order discount options for standardised fleet deployments.
