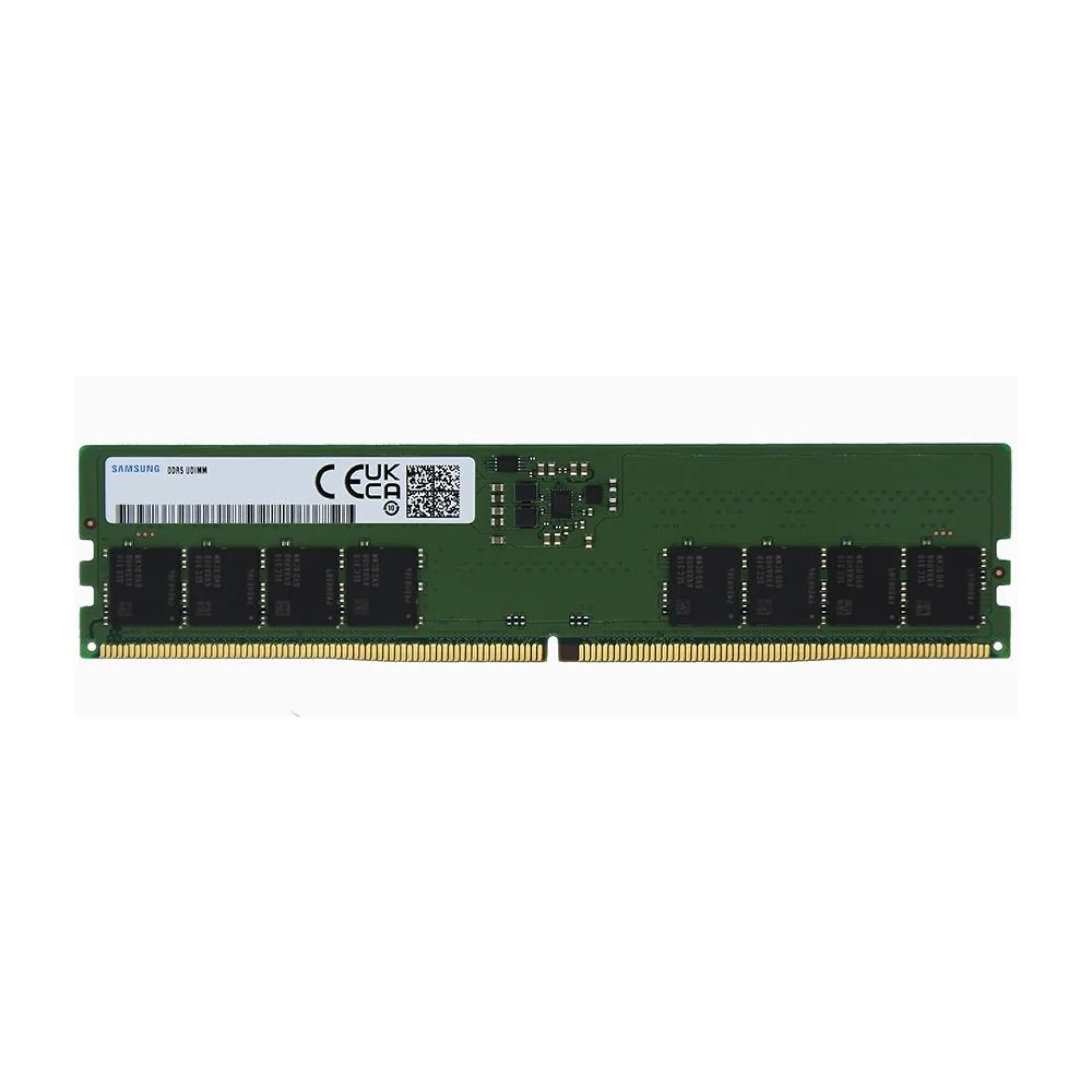

M324R2GA3DB0-CWM Samsung 1x16GB DDR5 DIMM ECC RAM

Enterprise DDR5 ECC UDIMM server memory for reliable node population with the M324R2GA3DB0-CWM

The M324R2GA3DB0-CWM is a Samsung DDR5 ECC UDIMM designed to standardize memory population in modern server nodes where deterministic behavior and JEDEC compliance are mandatory. With 16GB capacity at 5600MT/s in a 288-pin, 1.1V profile, it supports higher bandwidth per DIMM to feed current CPU platforms while maintaining the signal integrity and latency predictability expected in enterprise change-controlled environments.

As an unbuffered ECC module, the M324R2GA3DB0-CWM is aligned with server platforms that specify UDIMM support for targeted compute, edge, and OEM/ODM builds where simplicity, cost control, and validated configurations matter. The single-rank x8 organization with 72-bit (ECC) data width enables error detection and correction at the memory channel, helping reduce soft-error impact in virtualized and always-on services. Non-XMP/Non-EXPO JEDEC timings (CL52-52-52-103) keep boot behavior consistent across firmware revisions, and the DDR5 architecture improves bank-level parallelism to better utilize CPU memory controllers and PCIe-attached I/O paths during mixed workloads.

Why Choose the M324R2GA3DB0-CWM?

The M324R2GA3DB0-CWM provides a practical density-to-bandwidth balance for scale-out nodes that need ECC protection without the complexity of registered DIMMs. It supports repeatable qualification for fleet rollouts, predictable performance under consolidation, and straightforward spares management when expanding memory in identical server builds.

Samsung engineers this class of DDR5 ECC UDIMM for sustained datacenter duty cycles, focusing on JEDEC-aligned electrical characteristics, validated component sourcing, and manufacturing controls that fit modern platform certification and lifecycle requirements.

Key Applications:

• Server node memory population
• General-purpose compute hosts
• Virtualization and VDI
• Edge infrastructure with ECC requirements
• OEM/ODM server builds

At Happyware - Server Hardware you benefit from non-binding offers tailored to your configuration plan for the M324R2GA3DB0-CWM, enabling accurate BOM alignment for rollouts and spares. For multi-node projects, bulk order discount options help optimize procurement across standardized memory populations.
