V530-060R MSI Nvidia GeForce RTX 5090 32GB GDDR7 2452MHz 1792GT/s Gaming GPU

Product line:

RTX 50 series

See all CAD/3D-Modelling GPUs

See other MSI products

This product is currently not priced. Request a personalized quote now.

Out of stock

Happyware Article Number:

SH7G1933-314515

Manufacturer Number:

V530-060R

Brand:

MSI

Are you a reseller?

Do you have questions about this product V530-060R?

Our team of server experts will be happy to help you to ensure you purchase the right product.

Description Technical details Warranty & Technical Support Reviews Bulk Deals

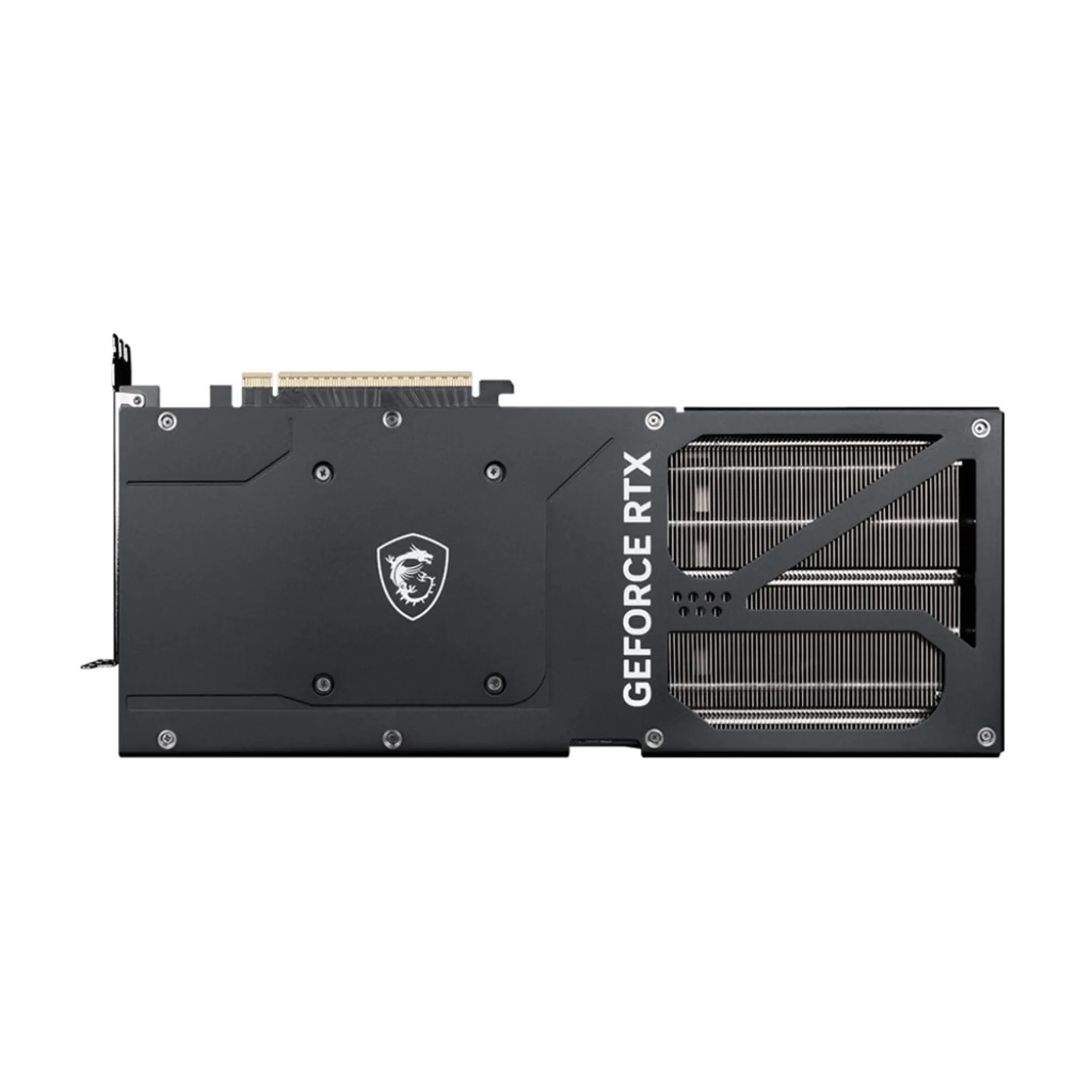

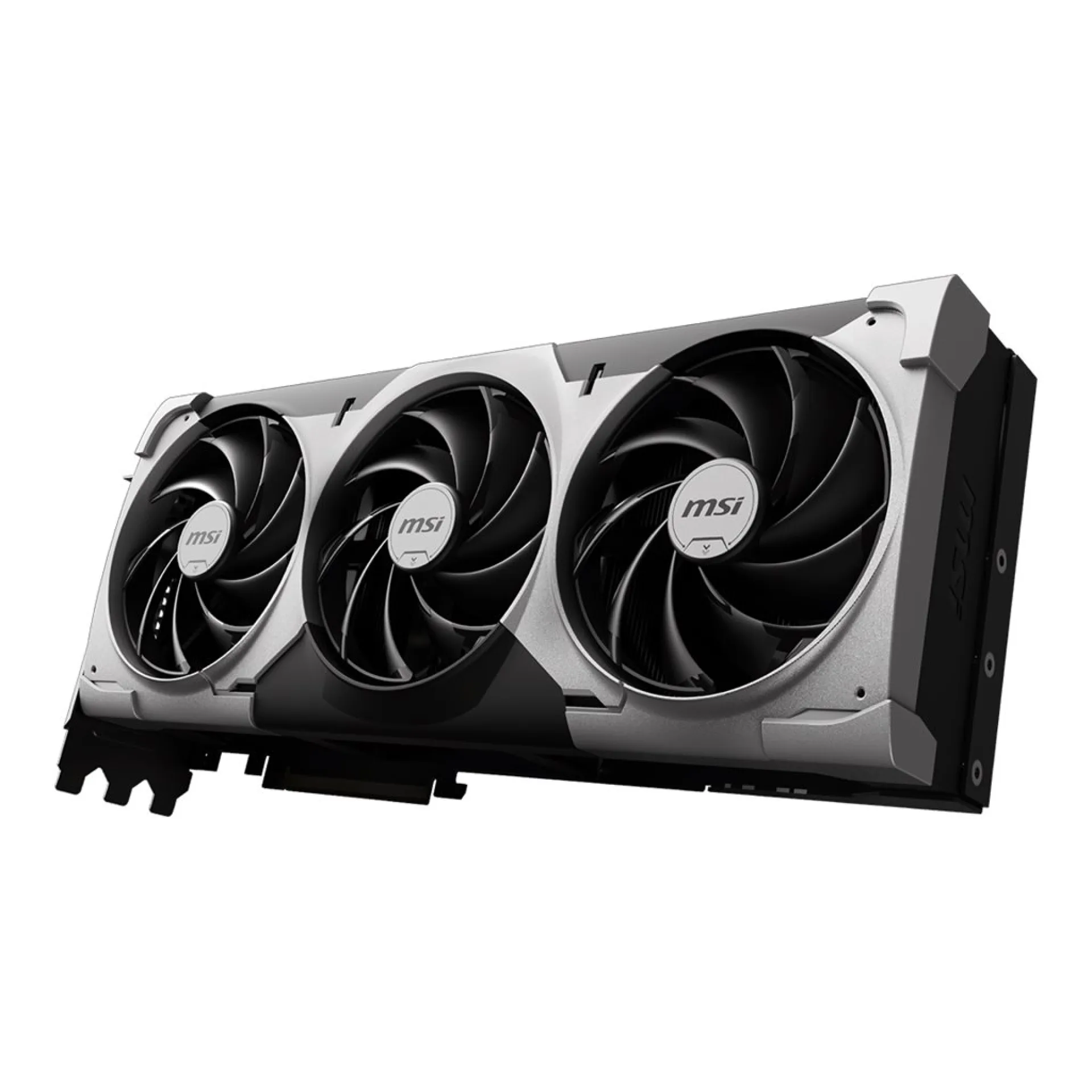

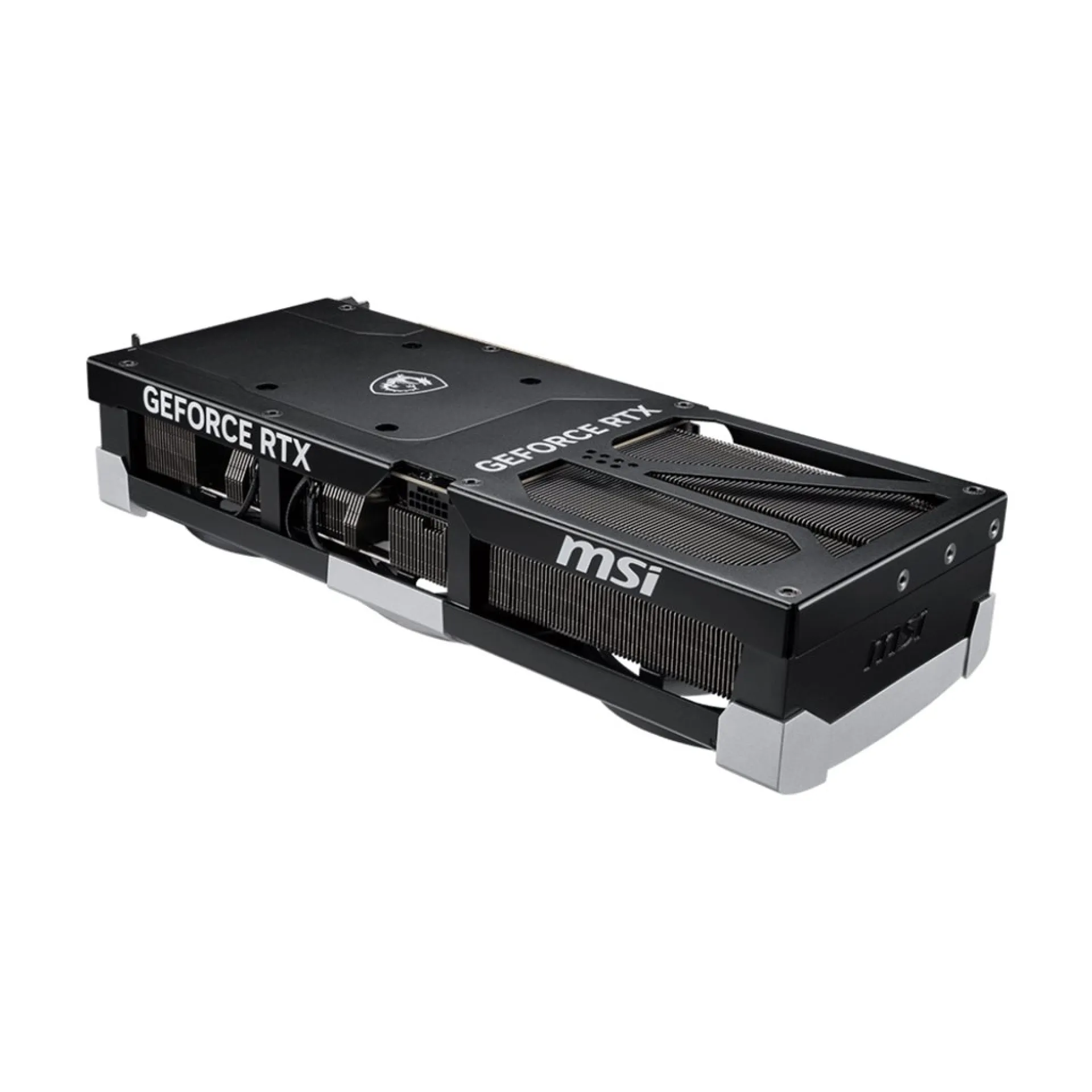

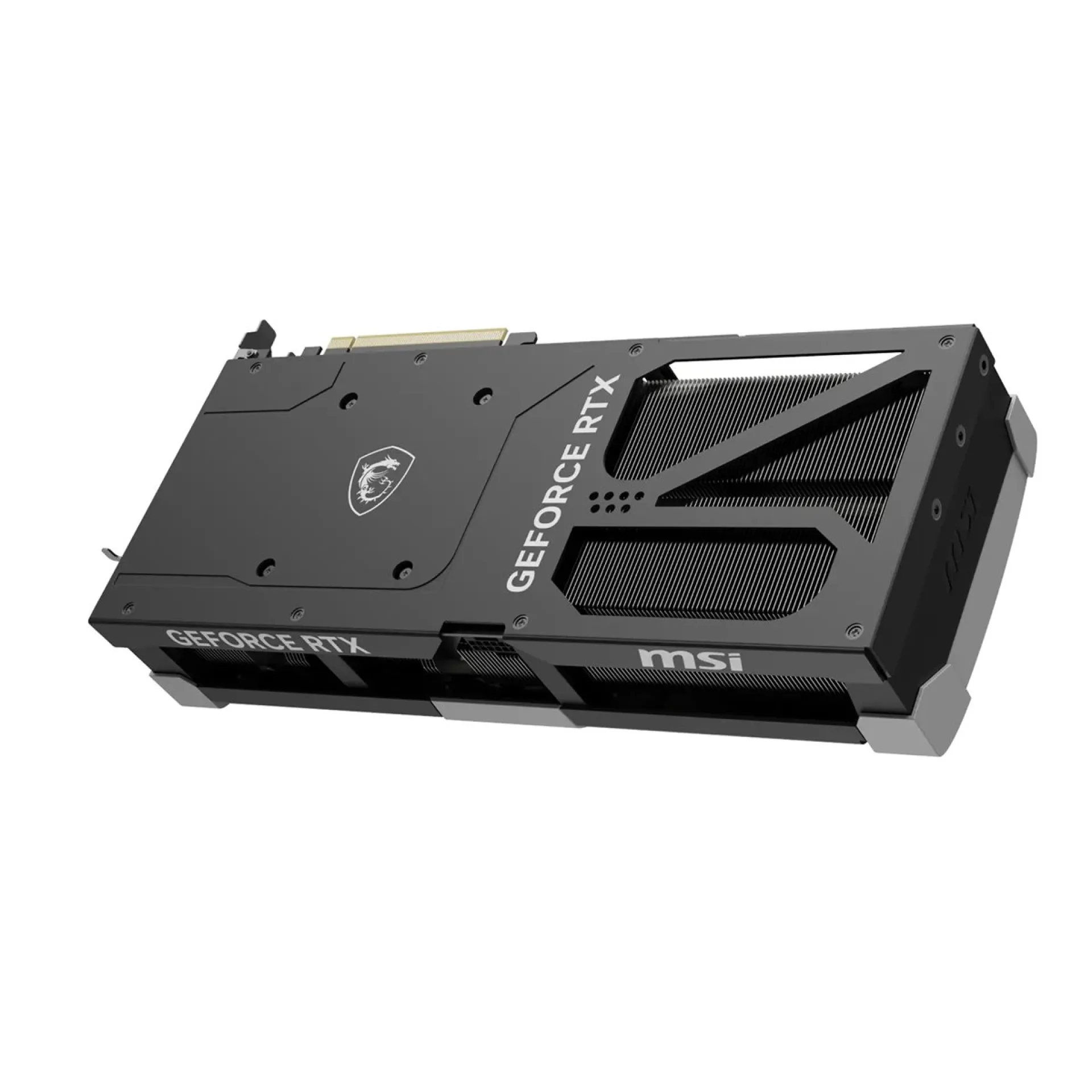

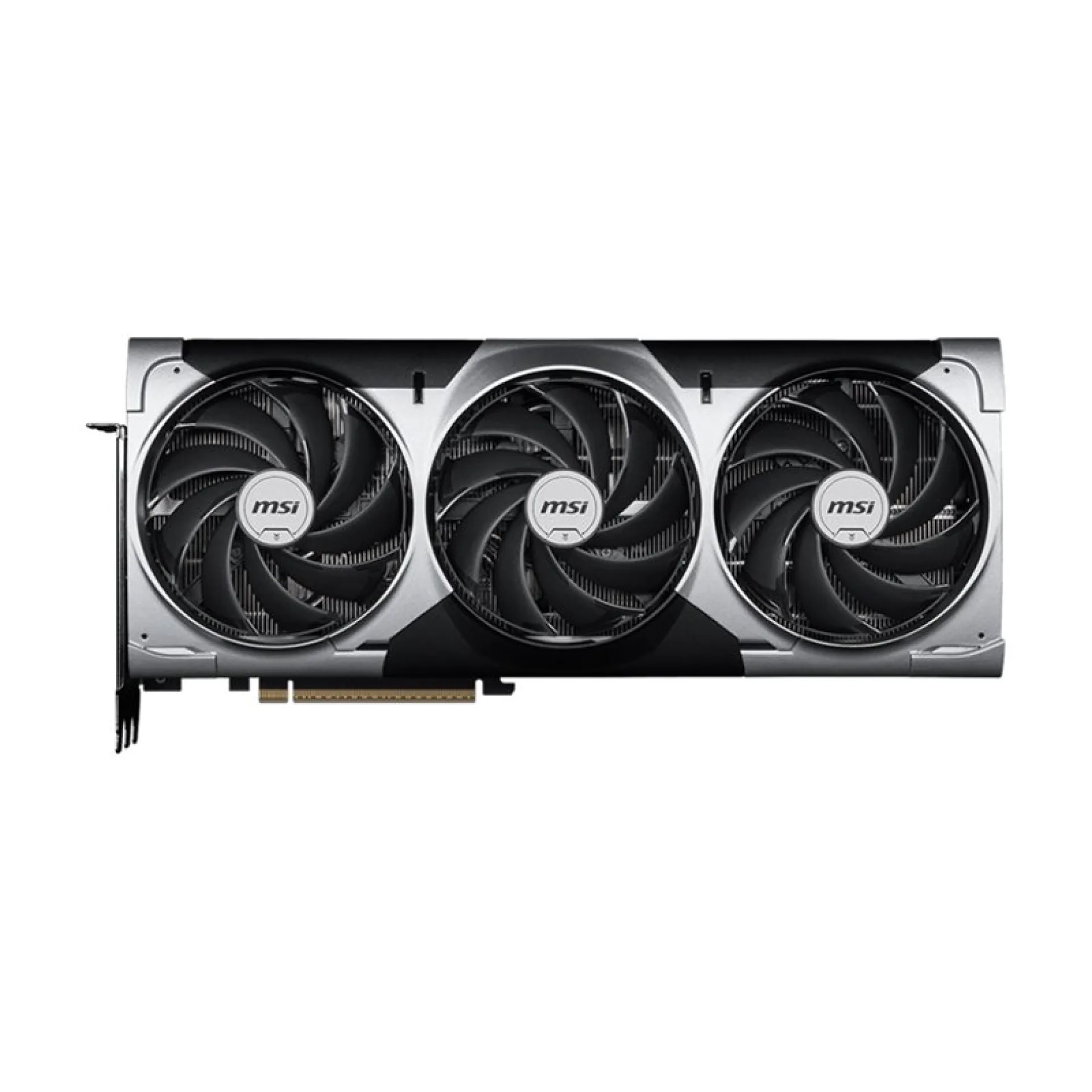

V530-060R

High-Performance PCIe 5.0 GPU Accelerator Card for AI and Visualization with the V530-060R

The V530-060R integrates an MSI GeForce RTX 5090 (NVIDIA Blackwell) GPU into PCIe Gen5 server and workstation platforms, delivering a high-density accelerator path for inference, development, and graphics-heavy pipelines. With 21,760 CUDA cores plus 5th Gen Tensor cores and 4th Gen RT cores, the V530-060R is engineered for mixed workloads where AI throughput and real-time rendering must coexist on a single node.

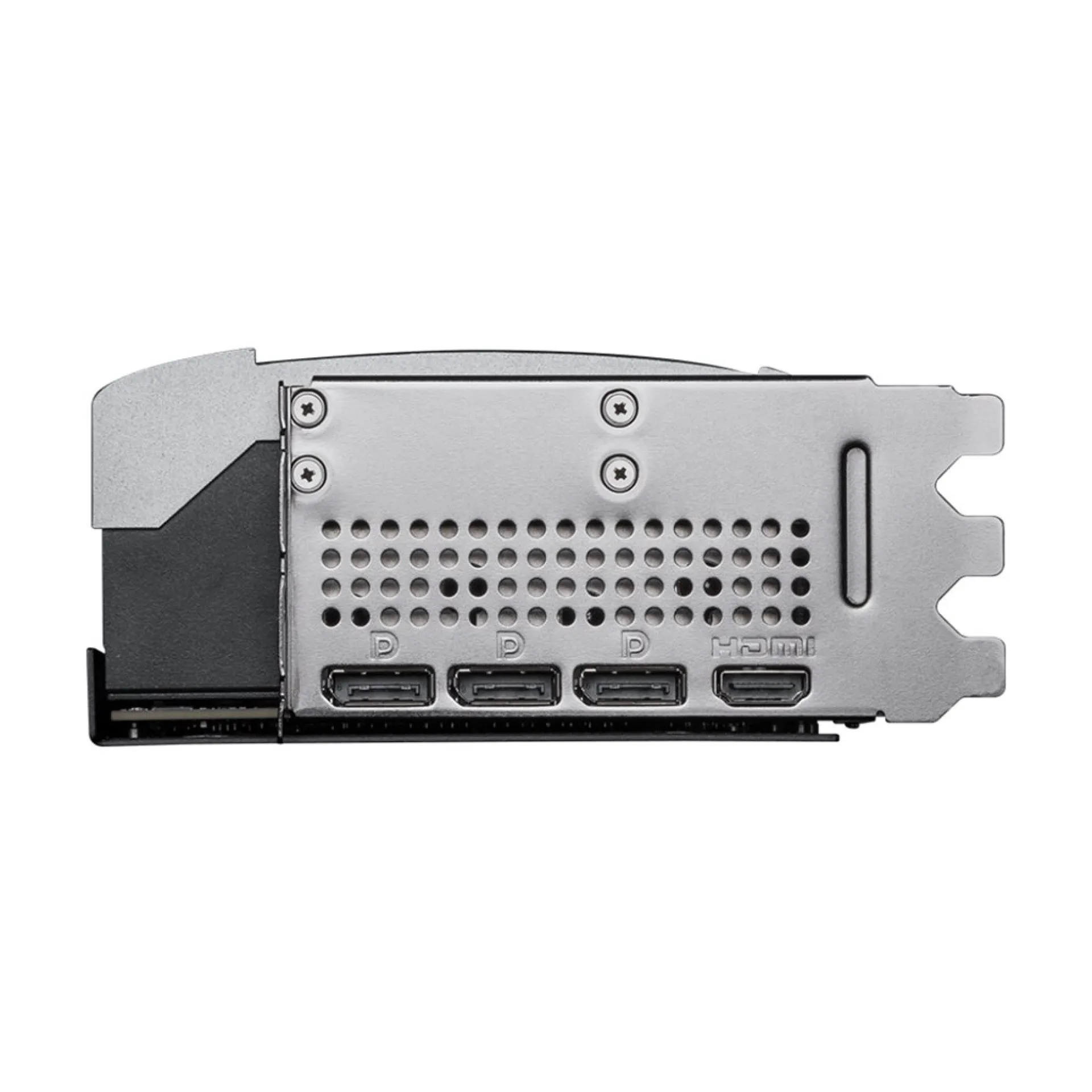

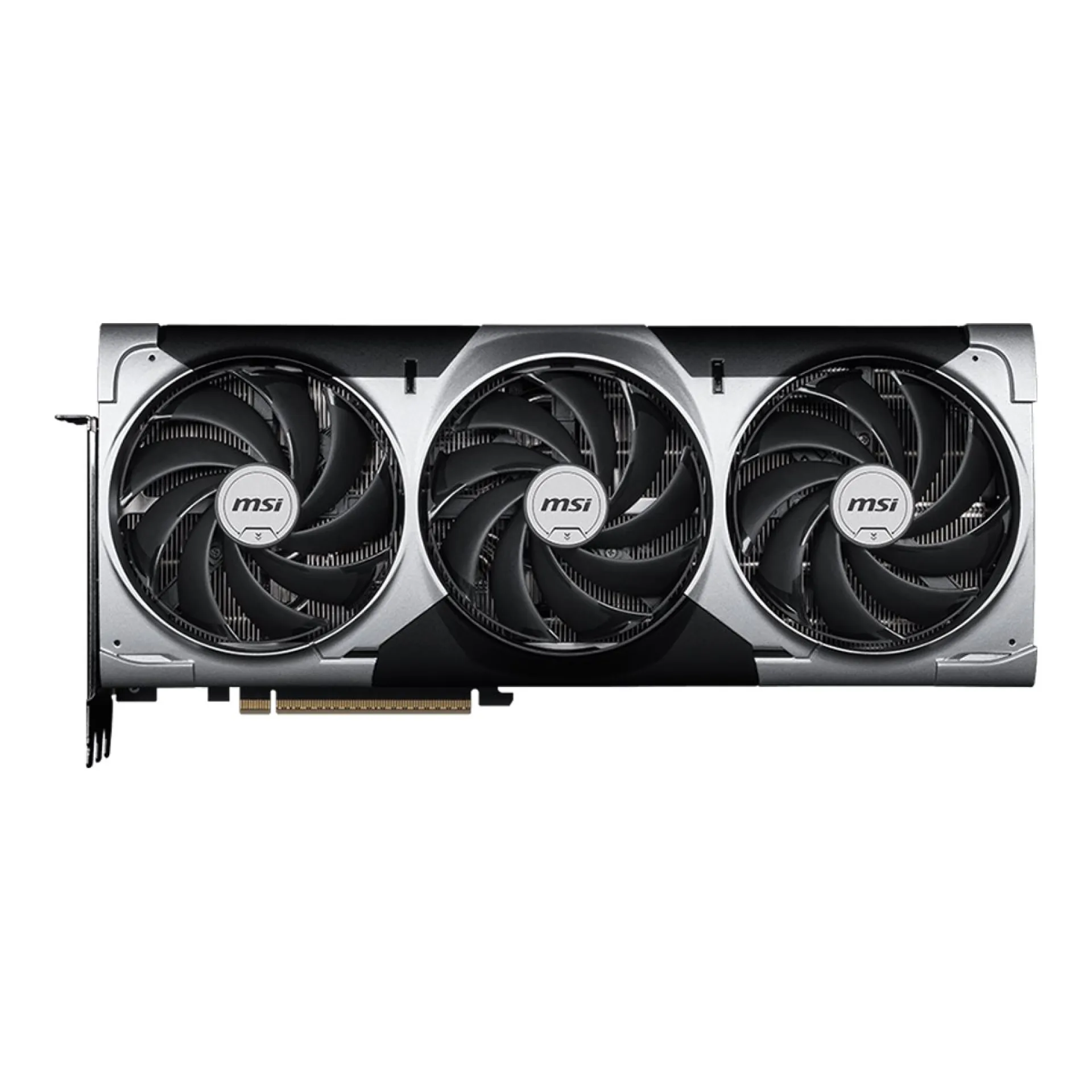

Its 32GB GDDR7 memory on a 512-bit interface enables 1,792 GB/s bandwidth, reducing device-memory pressure in transformer inference, complex scenes, and large textures compared with lower-bandwidth designs. The PCIe 5.0 x16 host interface aligns with modern CPU platforms and high-lane-count backplanes, while the full-height, triple-slot FHFL mechanical profile and 325 mm length require chassis clearance planning for adjacent slots, front-to-back airflow, and service access. Display I/O (3x DisplayPort 2.1b and 1x HDMI 2.1b) supports up to 4 concurrent 8K outputs for multi-display visualization nodes. Power and thermal integration should account for the 575W TDP and 12V-2x6 auxiliary connector, supported by a triple-fan axial heatsink design.

Why Choose the V530-060R?

The V530-060R provides a pragmatic density-to-performance profile for edge servers, workstation racks, and lab clusters that need Blackwell-class Tensor acceleration without moving to SXM-based systems. The V530-060R is suited to scale-out deployments where PCIe Gen5 standardization, predictable mechanical integration, and repeatable node builds are essential for uptime and lifecycle management.

MSI focuses on robust board engineering, thermal stability, and compliance with current platform standards, enabling the V530-060R to integrate cleanly into enterprise-qualified chassis, power delivery designs, and validated driver stacks.

Key Applications:

AI inference and model development
CUDA-accelerated compute workflows
Real-time rendering and ray tracing
Multi-display 8K visualization
Vulkan/OpenGL workstation virtualization

At Happyware - Server Hardware you benefit from non-binding offers tailored to your V530-060R deployment and an extended warranty up to 6 years to protect long lifecycle build plans.

Technical details of V530-060R

Series:

RTX 50 series

Memory Size:

32GB

Stream/CUDA Processors:

21760

Suitability:

Gaming Desktop

Memory Type:

GDDR7

Memory Bandwidth:

1792GT/s

Base Clock:

2017MHz

Boost Clock:

2452MHz

FLOPS:

106.71 TFLOPS (FP16), 106.71 TFLOPS (FP32), 1.67 TFLOPS (FP64)

Architecture:

Blackwell

Form Factor:

Full-Height

Performance Class:

High-End

Resolution:

7680 x 4320

Memory Interface:

512-bit

Chipset Manufacturer:

NVIDIA

Manufacturing Process:

4nm

How long is the Warranty and how you can get technical support for V530-060R

RMA through customer:	yes
RMA Url:	https://account.msi.com/en/services/warranty-book
Description:	In some cases Warranty Period depents on when an where the Hardware is bought more info: https://www.msi.com/page/warranty/desktop. RMA-Number Required, Items must be returned first before any replacements or refunds.This warranty does not apply to products intended for OEM/ODM or refurbished products. Depends on place of purchase.
