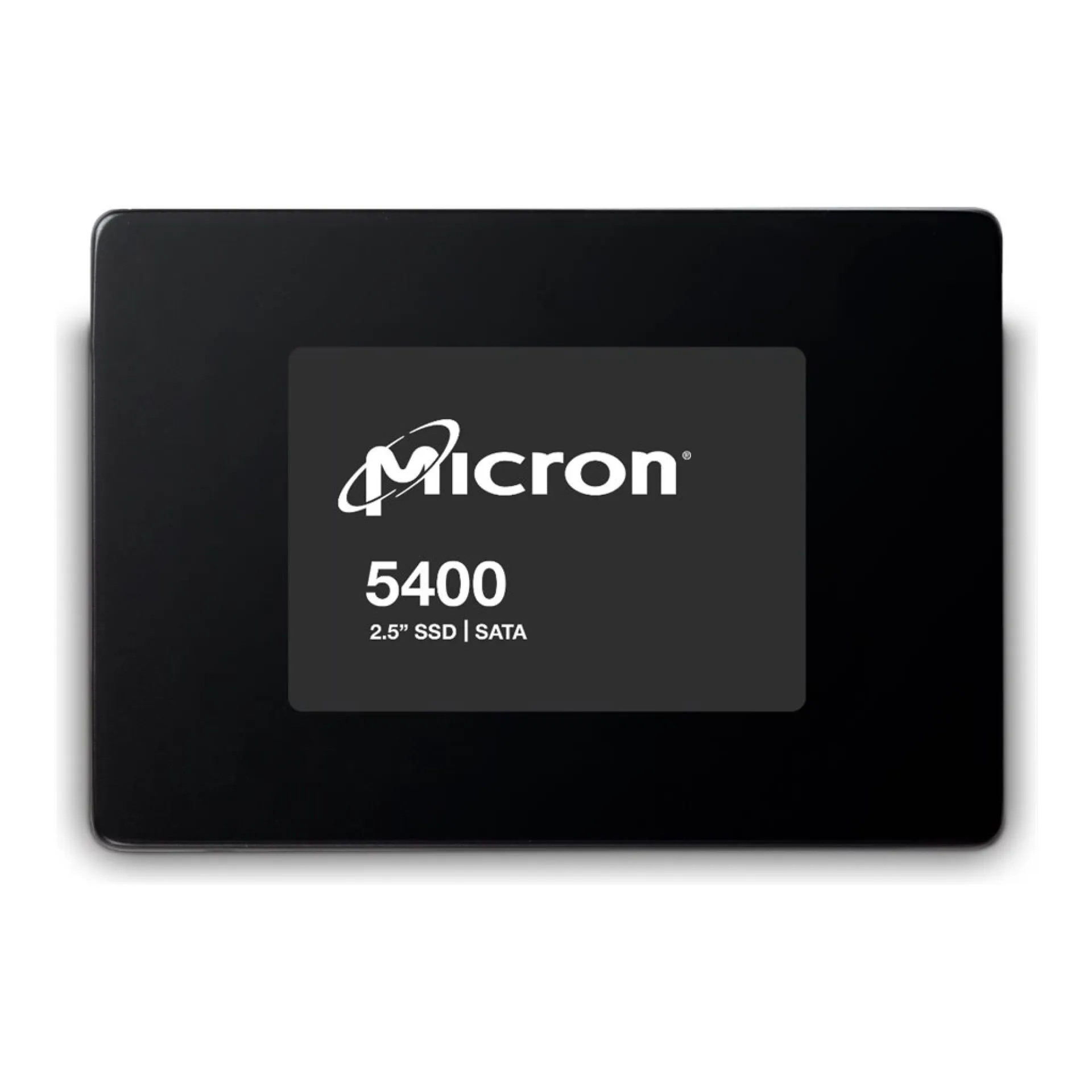

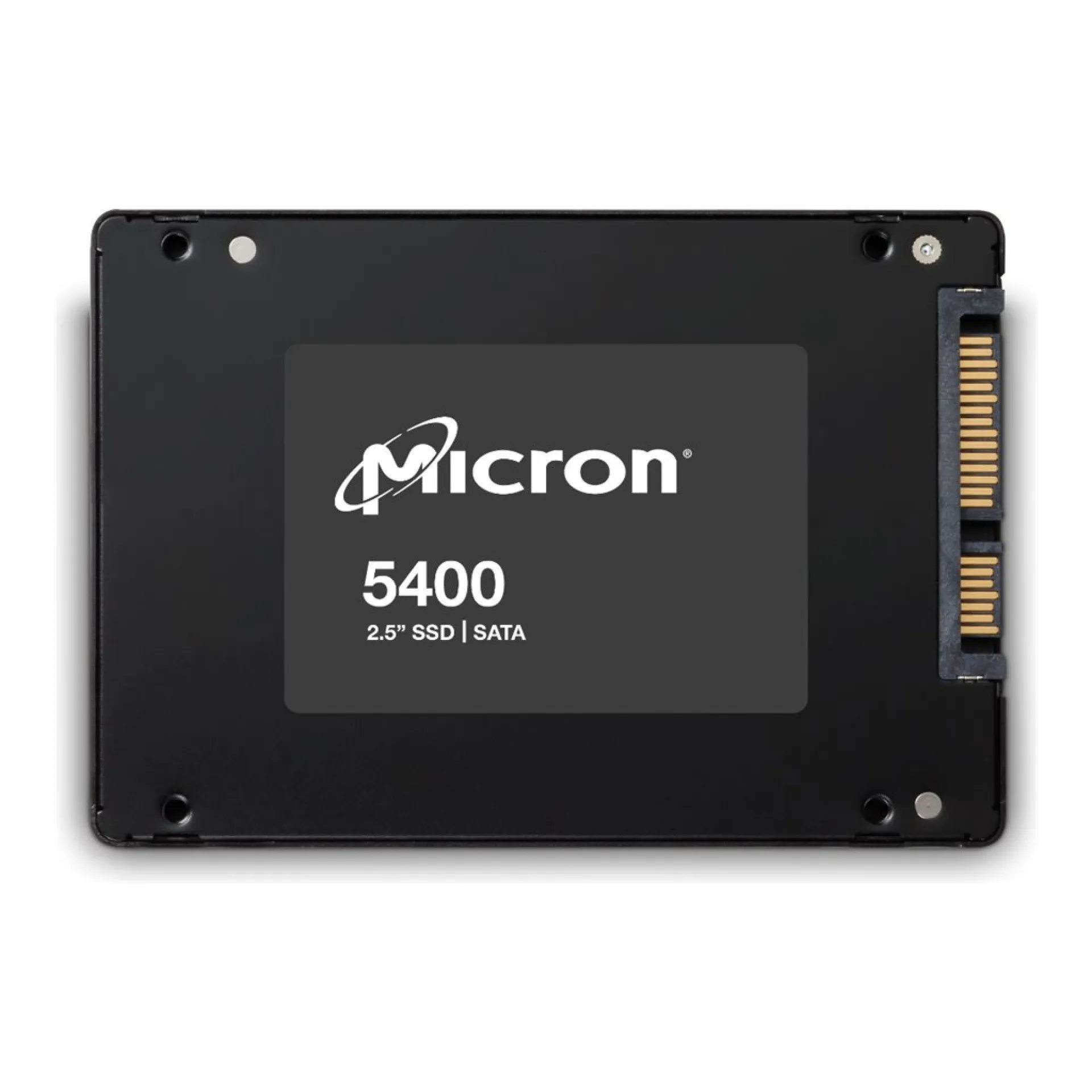

MTFDDAK7T6TGA-1BC1ZABYYT Micron 5400 PRO 7680GB SATA 2.5" Server SSD

High-Density 2.5in Enterprise SATA SSD for Boot and Read-Optimized Volumes with the MTFDDAK7T6TGA-1BC1ZABYYT

MTFDDAK7T6TGA-1BC1ZABYYT is a Micron 5400 PRO Series 7.68TB 2.5in 7mm SATA SSD designed for server boot/OS tiers and read-optimized application volumes in legacy SATA drive bays. By leveraging 176-layer 3D TLC NAND with a DRAM-less controller architecture, MTFDDAK7T6TGA-1BC1ZABYYT prioritizes predictable latency behavior, simplified qualification, and capacity density where SATA remains the operational standard.

With SATA throughput up to 540MB/s read and 520MB/s write, MTFDDAK7T6TGA-1BC1ZABYYT aligns well to OS images, service partitions, content repositories, and steady-state read-focused datasets. Hot-swap/hot-plug capability supports operational replacement without extended maintenance windows, while random performance up to 93K read IOPS and 10.5K write IOPS (4K) fits mixed boot storms and metadata-heavy services. Endurance is specified at 0.6 DWPD over 5 years (9100 TBW) for controlled write profiles in enterprise fleets.

Why Choose the MTFDDAK7T6TGA-1BC1ZABYYT?

MTFDDAK7T6TGA-1BC1ZABYYT delivers a pragmatic density-to-performance ratio for SATA-based infrastructures, enabling large OS and application footprints per bay while maintaining enterprise reliability targets. Its 3,000,000-hour MTBF/MTTF profile, power-loss protection, and RAIN data protection technology support scalable deployment in clustered servers and storage nodes where consistent serviceability and predictable behavior matter more than peak NVMe bandwidth.

Micron engineering focuses on controlled component selection, firmware validation, and long-life NAND management for enterprise duty cycles. The platform is built to integrate cleanly with standard 2.5in hot-swap carriers and modern security policies, including SED functionality with TCG Opal 2.0 and AES-256 hardware encryption for data-at-rest protection.

Key Applications:

• Server boot and OS volumes
• Read-optimized application data stores
• Content repositories and static datasets
• Secure data-at-rest storage in legacy SATA bays

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your project scope for MTFDDAK7T6TGA-1BC1ZABYYT deployments, and you can extend the warranty up to 6 years to align lifecycle coverage with enterprise refresh plans.
