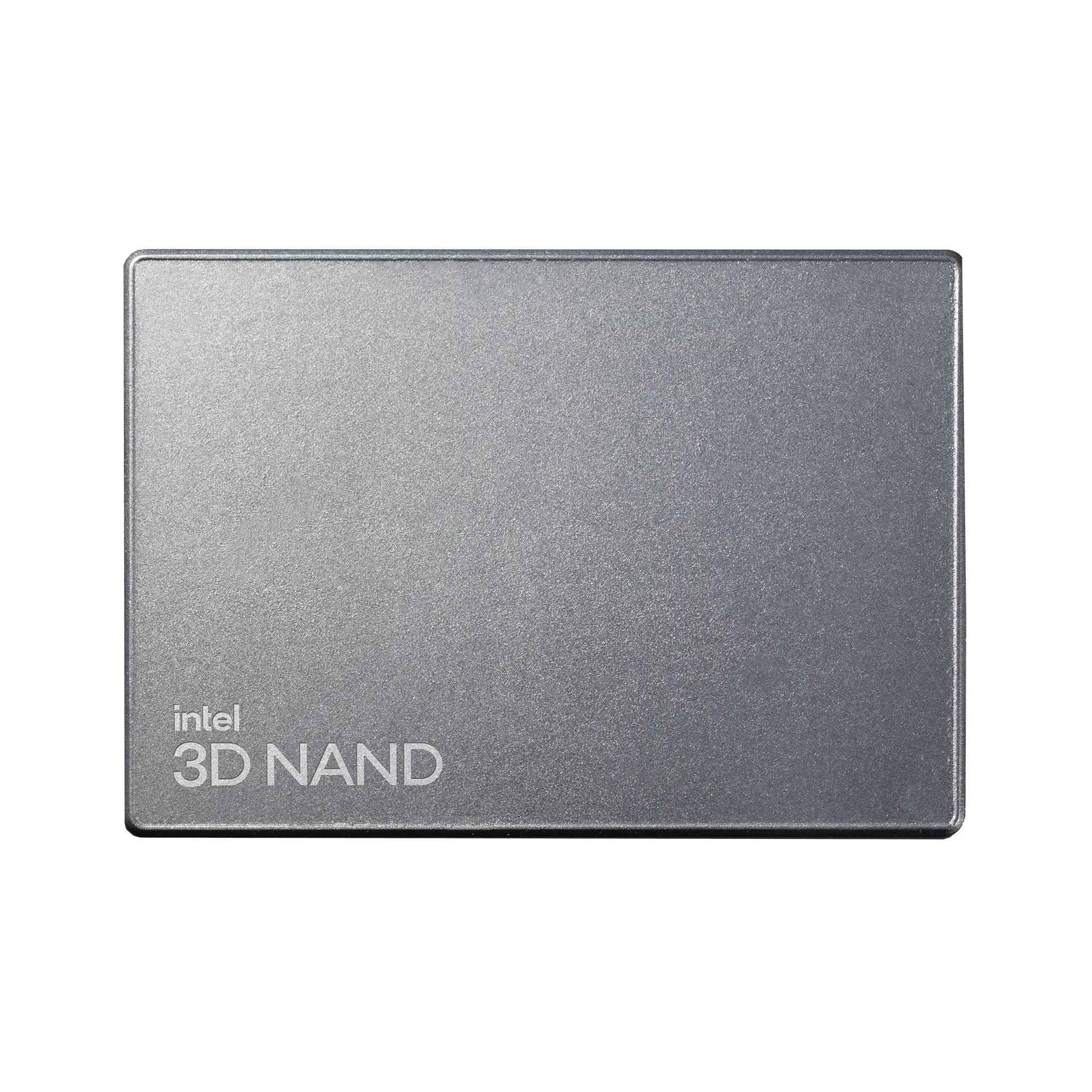

SSDPF2KX038T1N1 Intel D7 Series D7-P5520 3.84TB PCIe Gen 4 2.5" Server SSD

*Picture may not be exactly the same as the product

Product line:

D7 Series

See all Enterprise SSDs

See other Intel products

This product is currently not priced. Request a personalized quote now.

Out of stock

Happyware Article Number:

SH821670-115707

Manufacturer Number:

SSDPF2KX038T1N1

Brand:

Intel

Are you a reseller?

Do you have questions about this product SSDPF2KX038T1N1?

Our team of server experts will be happy to help you to ensure you purchase the right product.

Description Technical details Warranty & Technical Support Reviews Bulk Deals

SSDPF2KX038T1N1

High-Performance U.2 NVMe Data Center SSD featuring PCIe Gen4 throughput with the SSDPF2KX038T1N1

The SSDPF2KX038T1N1 is a 3.84TB U.2 2.5in (15mm) PCIe Gen4 NVMe data center SSD designed to remove storage latency from modern CPU-dense platforms where core counts and memory bandwidth demand fast, predictable local I/O. In dual-socket rack servers and edge nodes, SSDPF2KX038T1N1 supports high queue-depth NVMe access paths and keeps application tiers responsive during bursty read-heavy phases.

Built on 144-layer 3D TLC NAND, SSDPF2KX038T1N1 targets balanced performance and endurance for OS, cache, and node-local datastore roles, with up to 6700 MB/s sequential read and up to 1,000,000 4K read IOPS. The PCIe Gen4 interface maximizes available lanes for GPU, NIC, and accelerator expansion, while the U.2 form factor integrates cleanly into hot-swap backplanes for serviceable, high-density NVMe architectures.

Why Choose the SSDPF2KX038T1N1?

SSDPF2KX038T1N1 delivers an enterprise-appropriate density-to-performance profile for read-intensive tiers where predictable latency and operational continuity matter more than maximum write endurance. With 1 DWPD over 5 years, power loss protection, and 2.0M hours MTBF, SSDPF2KX038T1N1 supports scalable rollouts across clustered nodes and enables consistent behavior under virtualization, caching, and metadata-heavy storage services.

Intel engineering for data center SSDs emphasizes validated firmware behavior, platform interoperability, and long-life reliability aligned with modern NVMe server standards. SSDPF2KX038T1N1 extends that approach with hardware-based security controls suitable for regulated environments and automated fleet operations.

Key Applications:

Server boot and application tier caching
Virtualization and high-density VM datastores
Cloud node-local NVMe for containers
Ceph/vSAN NVMe tier and metadata acceleration
Object storage metadata and indexing

At Happyware - Server Hardware you benefit from 24/7 Customer Service to support planned deployments and urgent replacement needs, and you can request Non-Binding Offers to standardize SSDPF2KX038T1N1 across your server configurations with procurement-ready documentation.

Technical details of SSDPF2KX038T1N1

Capacity:

3.84TB

Form Factor:

2.5"

Interface:

PCIe Gen 4

Speed Reading:

6700MB/s

Speed Writing:

3600MB/s

Total Bytes Written (TBW):

7000TB

Drive Writes Per Day (DWPD):

Suitability:

Server

Encryption:

Yes

Mean Time Between Failures (MTBF):

2000000

Special features:

144-layer NAND Power Loss Protection (PLP)

Power Consumption Operation:

15W

Recording Process:

3D-NAND TLC

Height:

15mm

How long is the Warranty and how you can get technical support for SSDPF2KX038T1N1

Warranty:	12 months (part)
RMA Url:	https://supporttickets.intel.com/s/warrantyinfo?language=en_US
Description:	Items must be returned first before a replacement is sent. Intel does not offer on-site service as standard.
