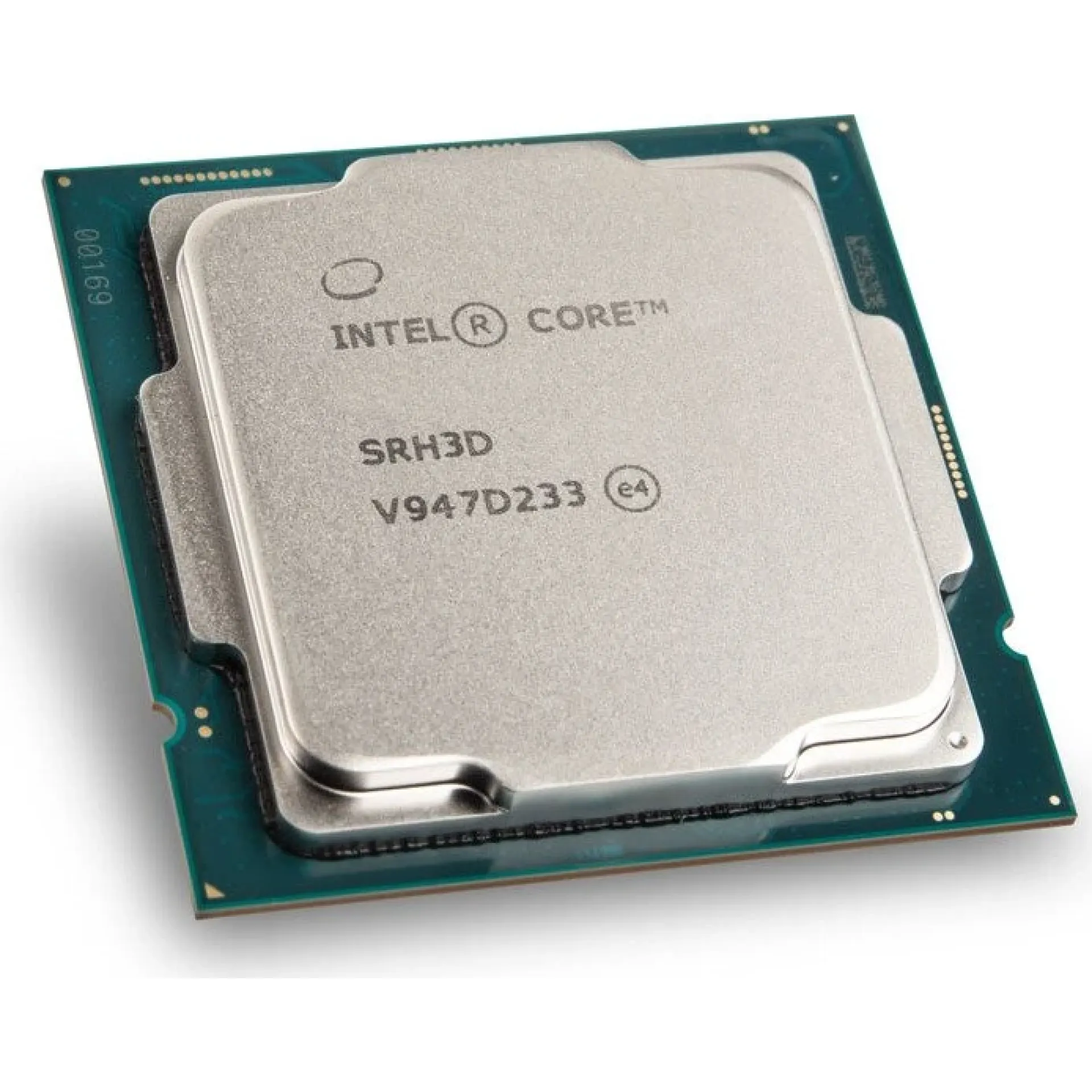

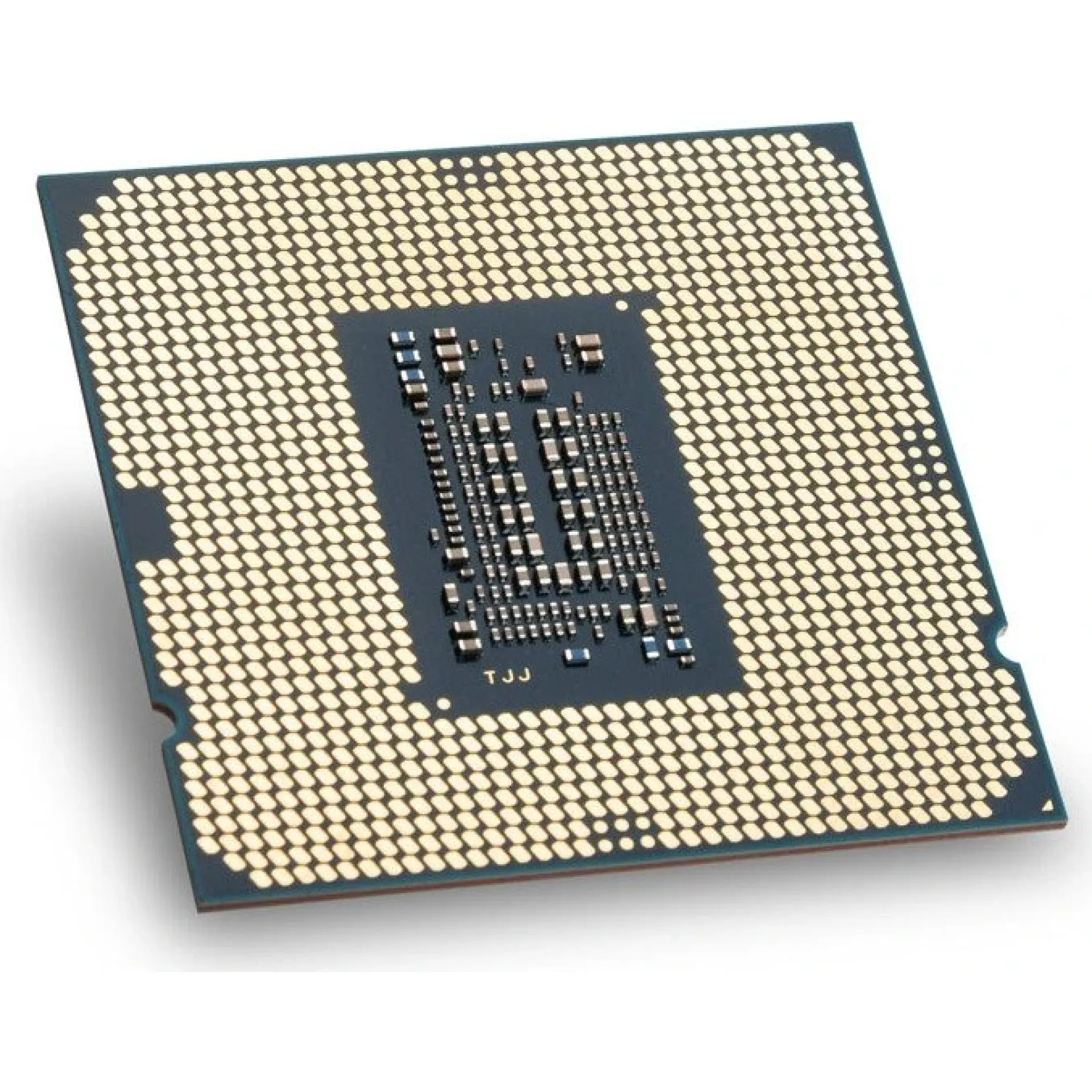

Intel Xeon W-1290E 10 Cores 20 Threads 4.8GHz H5 (LGA 1200) CM8070104420510 Embedded CPU

High-Performance Workstation and Edge CPU platform built around the Intel Xeon W-1290E for LGA1200 1S deployments

The Intel Xeon W-1290E is a 10th Gen Comet Lake-S processor designed for single-socket LGA1200 systems where deterministic compute, ECC-protected memory, and compact platform economics are priorities. With 10 cores and 20 threads, the Intel Xeon W-1290E supports workstation-class frequency behavior for interactive CAD/EDA and content pipelines, while maintaining enterprise manageability expectations for always-on edge and entry server roles.

For memory architecture, the Intel Xeon W-1290E enables up to 128GB DDR4 ECC at up to 2933MT/s, aligning the platform with reliability requirements in industrial control and local analytics where data integrity matters. Expansion is delivered through PCIe 3.0 with up to 16 CPU lanes, typically optimized for a primary GPU or high-value I/O card selection rather than wide multi-device fan-out. Storage design is therefore commonly chipset-driven on W480 systems, supporting balanced NVMe/SATA configurations for small virtualization stacks, file/print services, and infrastructure appliances. Integrated Intel UHD Graphics 630 can reduce dependency on discrete GPUs for headless management or multi-display operator stations.

Why Choose the Intel Xeon W-1290E?

The Intel Xeon W-1290E targets organizations needing a disciplined density-to-performance profile in compact towers, short-depth racks, and embedded enclosures, without sacrificing ECC memory protection. The Intel Xeon W-1290E also fits controlled 1-socket scalability models where qualification effort, spares strategy, and long-lived platform stability outweigh multi-socket complexity.

Intel designs this workstation/embedded Xeon family around validated platform interoperability, consistent firmware ecosystems, and predictable lifecycle planning, supporting enterprise deployment standards across edge sites and departmental compute clusters.

Key Applications:

• CAD/EDA workstations
• Content creation and rendering
• Industrial control compute
• Local analytics at the edge
• Small virtualization and infrastructure services

At Happyware - Server Hardware you benefit from non-binding offers tailored to your Intel Xeon W-1290E platform build and an extended warranty of up to 6 years to secure long-term operation in production environments.
