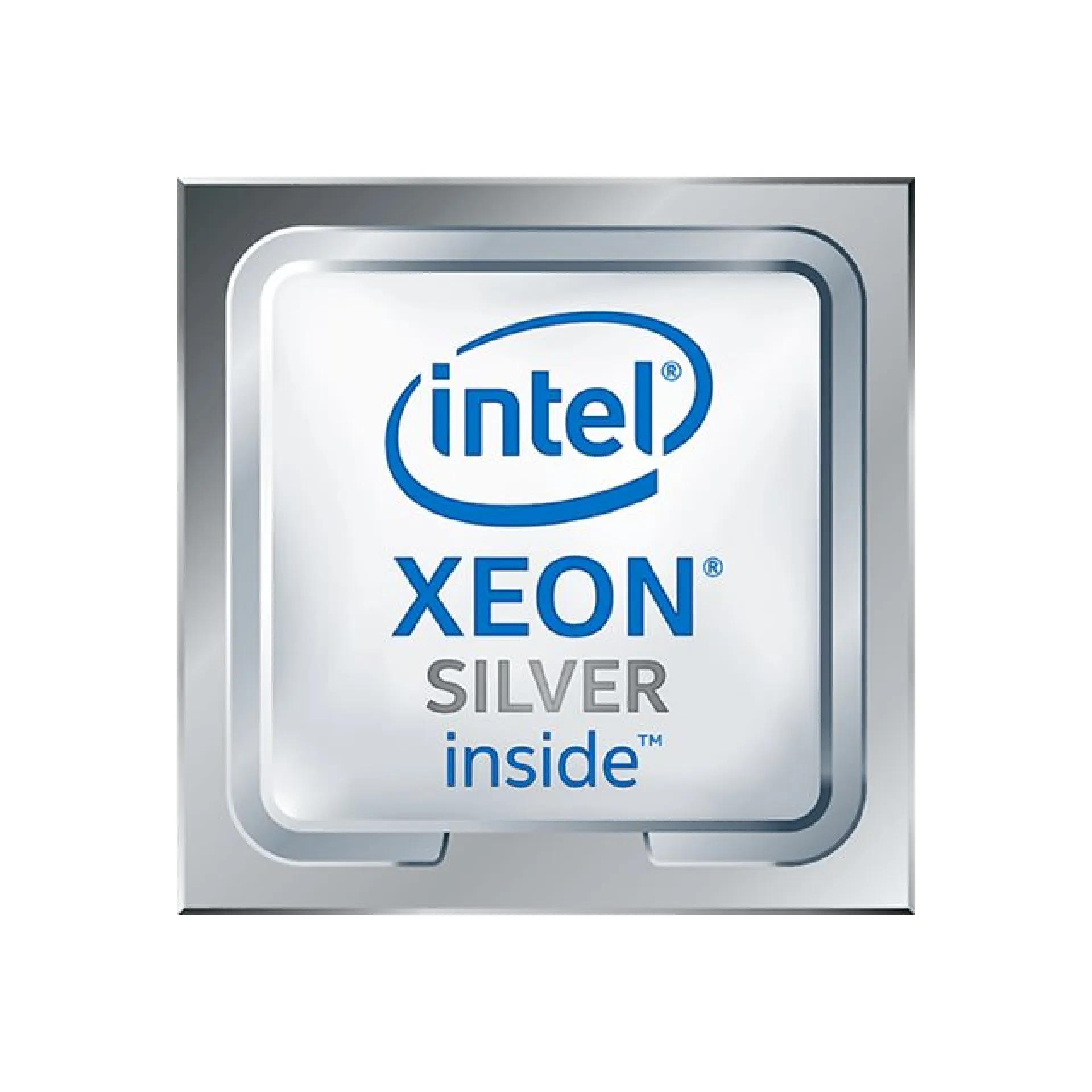

Intel Xeon Silver 4316

Data Center Socketed Server CPU Optimised for PCIe 4.0 I/O and Scale-Out Compute with Intel Xeon Silver 4316

The Intel Xeon Silver 4316 is a 3rd Gen Intel Xeon Scalable (Ice Lake) processor designed for LGA4189 platforms where predictable throughput, modern I/O, and validated enterprise feature sets matter. With 20 cores and 40 threads, the Intel Xeon Silver 4316 targets 1S and 2S server architectures that need balanced compute density for virtualization hosts, domain and application servers, and mid-tier services without overprovisioning power.

In 1U/2U designs, the Intel Xeon Silver 4316 enables a PCIe 4.0 platform with up to 64 lanes for high-bandwidth NICs, NVMe storage backplanes, and accelerators, supporting clean expansion planning across scale-out clusters. DDR4 memory up to 2667 MT/s with ECC support aligns the platform to reliable multi-VM consolidation and consistent latency, while Intel VMD improves NVMe manageability and serviceability. Security and isolation capabilities such as VT-x/VT-d, TXT, SGX, Total Memory Encryption, and AES-NI support hardened deployments, and AVX2/AVX-512 with Intel DL Boost provides acceleration for analytics and inference-adjacent pipelines where vector performance is beneficial.

Why Choose the Intel Xeon Silver 4316?

The Intel Xeon Silver 4316 delivers a pragmatic density-to-performance profile for general-purpose data center nodes, pairing 2-socket scalability via UPI with PCIe Gen4 connectivity for I/O-heavy designs. It is suited to standardized server fleets where predictable thermals, validated platform stability, and straightforward capacity scaling are key engineering requirements.

Intel engineers the Xeon Scalable platform around long-life enterprise validation, robust RAS capabilities, and a security-first instruction set roadmap, enabling consistent integration into modern data center standards for virtualization, storage, and network-centric architectures.

Key Applications:

Virtualization and consolidation hosts
Domain and application servers
Web services and microservices
Mid-tier compute clusters
NVMe-centric storage nodes

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your configuration goals and an extended warranty of up to 6 years, supporting long-term platform planning for Intel Xeon Silver 4316 deployments.

Technical details of Intel Xeon Silver 4316

L3 Cache:

30MB

Socket:

P+ (LGA 4189)

Threads:

Family:

Xeon

Code Name:

Ice Lake

Generation:

3rd

Cores:

Base Clock Speed:

2.3GHz

Boost Frequency:

3.4GHz

Max Supported Memory Speed:

2667 MHz

Memory Channels:

6-Channel

TDP (Thermal Design Power):

150W

ECC:

Yes

Suitability:

Server Data Center

Intergrated Graphics (iGPU):

No iGPU

Cooler:

Boxed / Tray:

Boxed

Supported Chipset:

C621A C627A C629A

Hyper Threading:

Yes

64-Bit Support:

Yes

Serie:

Xeon Silver

UPI Links [Intel]:

L2 Cache:

25MB

How long is the Warranty and how you can get technical support for Intel Xeon Silver 4316

Warranty:	36 months (part)
RMA Url:	https://supporttickets.intel.com/s/warrantyinfo?language=en_US
Description:	Items must be returned first before a replacement is sent. Intel does not offer on-site service as standard. Only for Boxed Processors.
