6E3Y8AA HP Intel A40 6GB GDDR6 1700MHz 192GT/s Desktop GPU

Single-Slot PCIe Gen4 Workstation GPU for CAD and Multi-Display Visualization with the 6E3Y8AA

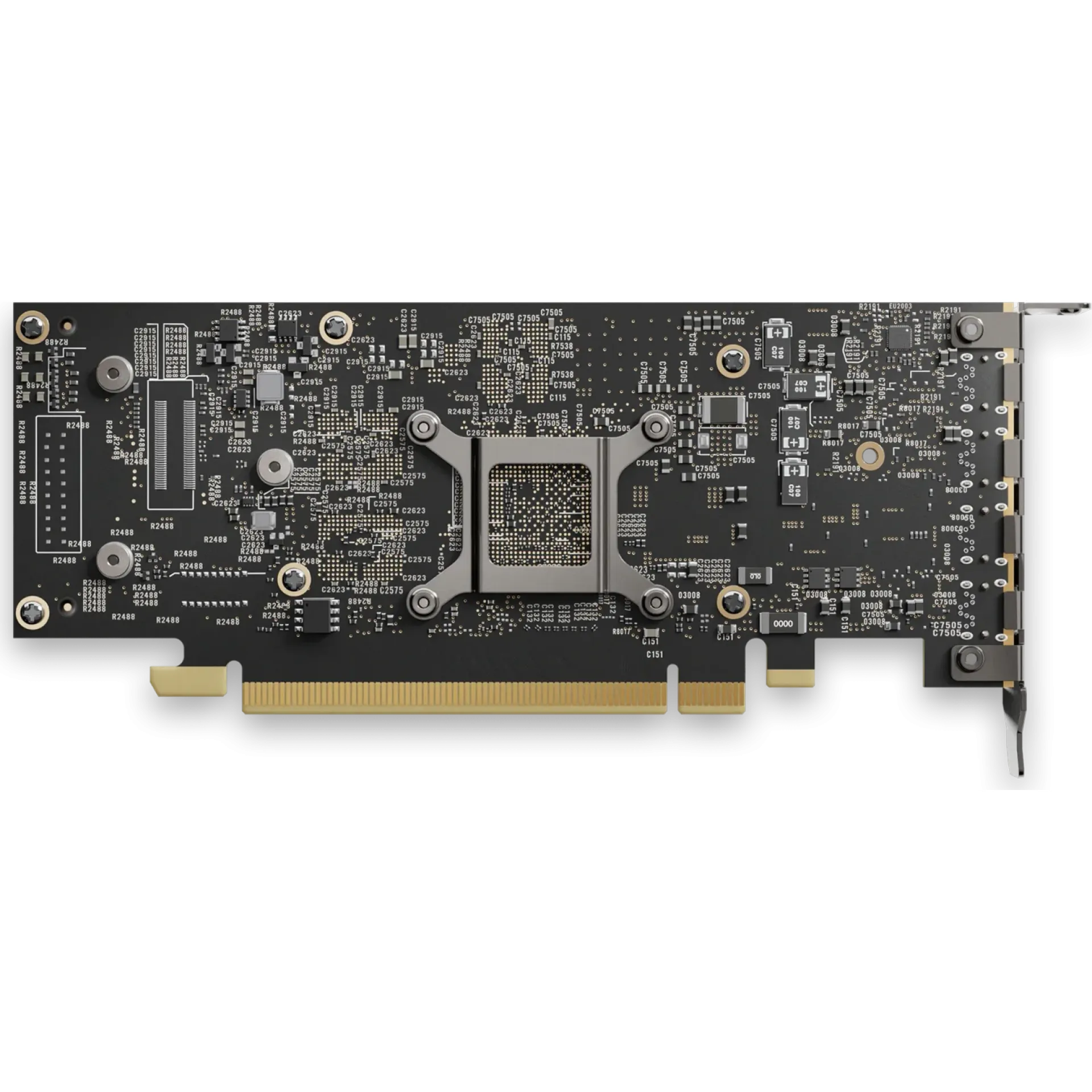

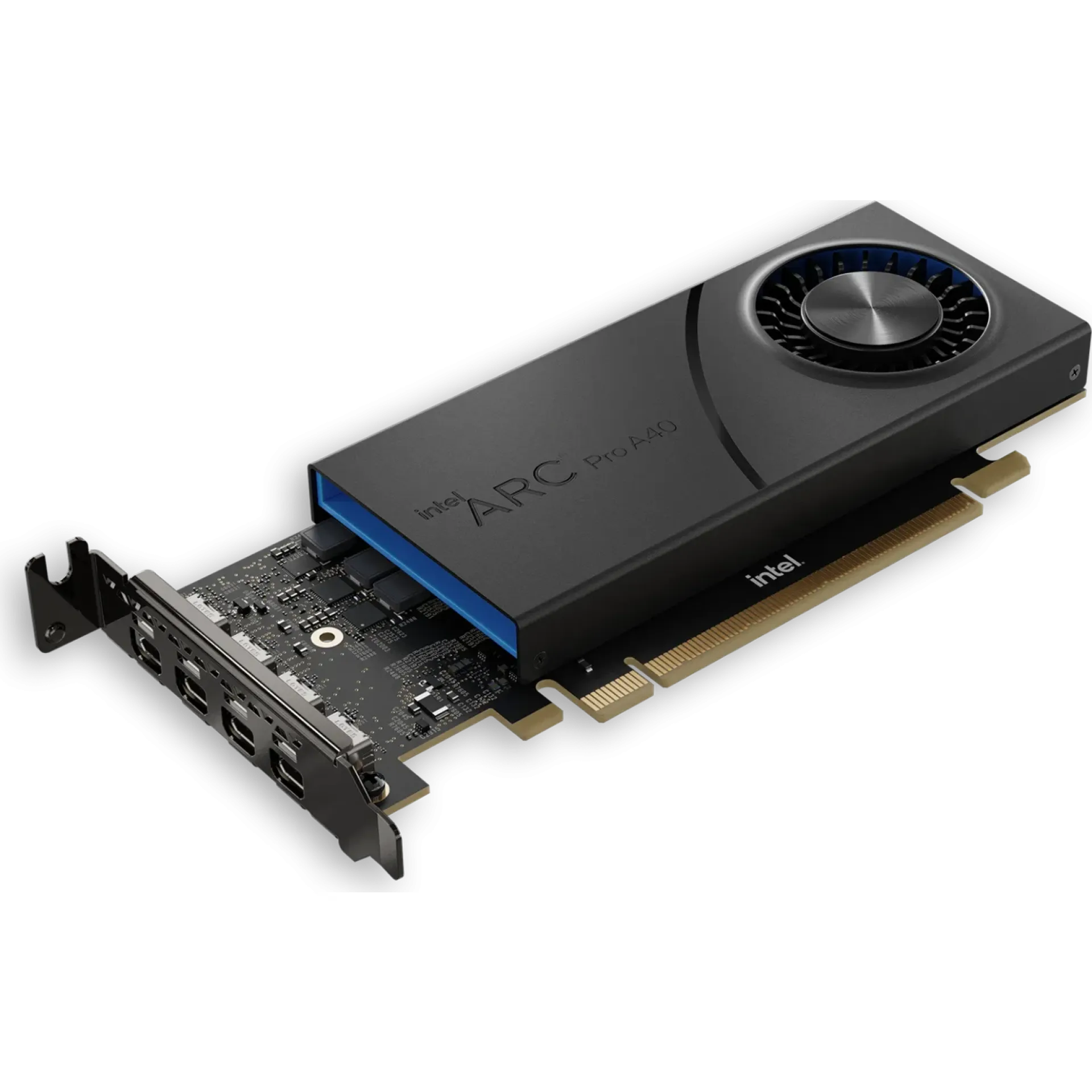

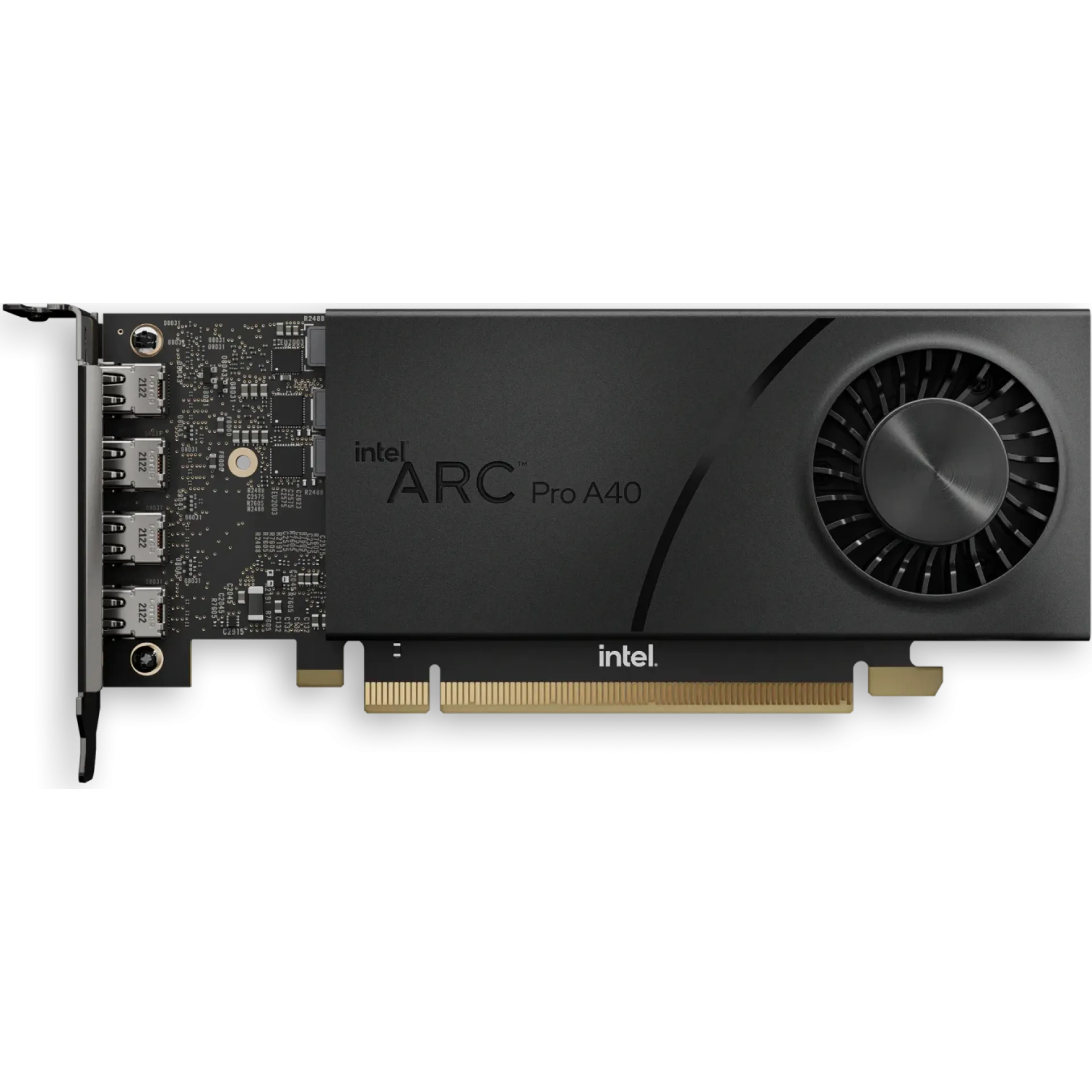

The 6E3Y8AA is a discrete PCIe workstation graphics card built on the Intel Arc Pro A40 (Xe-HPG) platform, designed for space-efficient deployment in enterprise workstations and compact rackmount visualization nodes. By combining a 6nm GPU architecture with 6GB GDDR6 memory, the 6E3Y8AA targets consistent viewport performance and predictable output behavior for CAD/BIM and 3D modeling workflows.

With a PCIe 4.0 x8 electrical interface in a x16 mechanical slot, the 6E3Y8AA aligns well to modern CPU platforms where PCIe lane budgeting and expansion density matter. The 96-bit memory bus and 192 GB/s bandwidth support responsive scene interaction, while the 50W TDP enables integration in thermally constrained chassis without compromising system-level reliability. Storage and compute pipelines benefit from supported APIs including DirectX 12 Ultimate, Vulkan 1.3, OpenGL 4.6, and OpenCL 3.0, enabling a broad set of professional applications and light FP16/FP32 acceleration where supported.

Why Choose the 6E3Y8AA?

The 6E3Y8AA delivers a balanced density-to-performance profile for enterprises standardizing on professional visualization across mixed hardware fleets. Its single-slot form factor preserves adjacent PCIe capacity for NICs, HBAs, or NVMe expansion, while PCIe Gen4 connectivity supports scalable deployment logic from deskside workstations to lab and engineering pods requiring predictable graphics behavior and multi-display output.

HP engineering focuses on integration stability, firmware consistency, and lifecycle alignment with modern data centre and workstation standards, supporting long-term platform governance and controlled change management in enterprise environments.

Key Applications:

• CAD/BIM and technical drafting
• 3D modeling and viewport visualization
• Multi-monitor 4K engineering desktops
• AV1 decode media workflows
• Light GPU compute acceleration

At Happyware - Server Hardware you benefit from non-binding offers tailored to your workstation or visualization node rollout, and can extend the warranty up to 6 years to protect long lifecycle deployments of the 6E3Y8AA across distributed engineering teams.
