R283-Z90-AAV2 Gigabyte Dual EPYC 9005 2U 6NR283Z90DR000ACV2 Server Barebone
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
Rev-3.x
Product line:Gigabyte R Series
Not available
Do you have questions about this product 6NR283Z90DR000ACV2?
R283-Z90-AAV2 Gigabyte

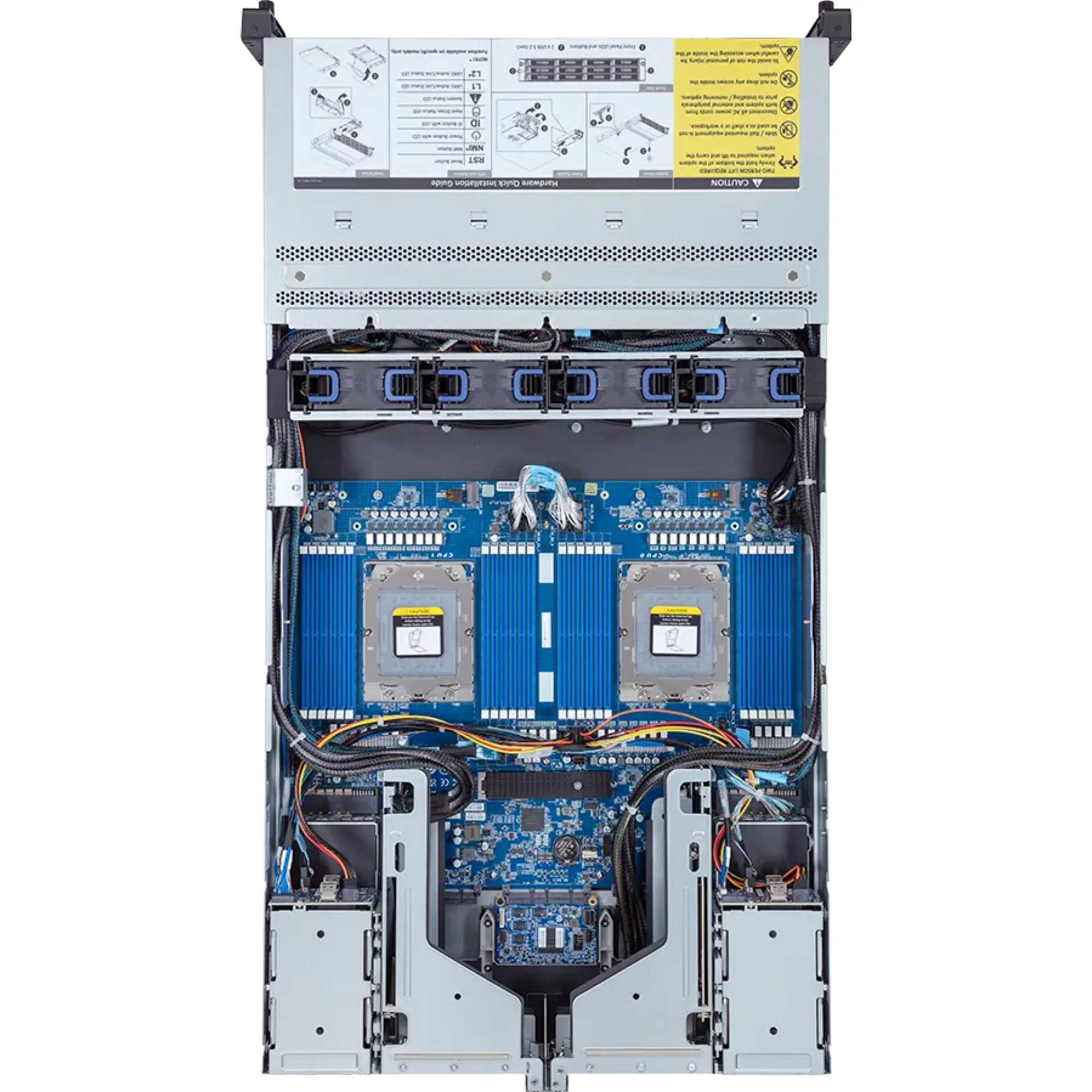

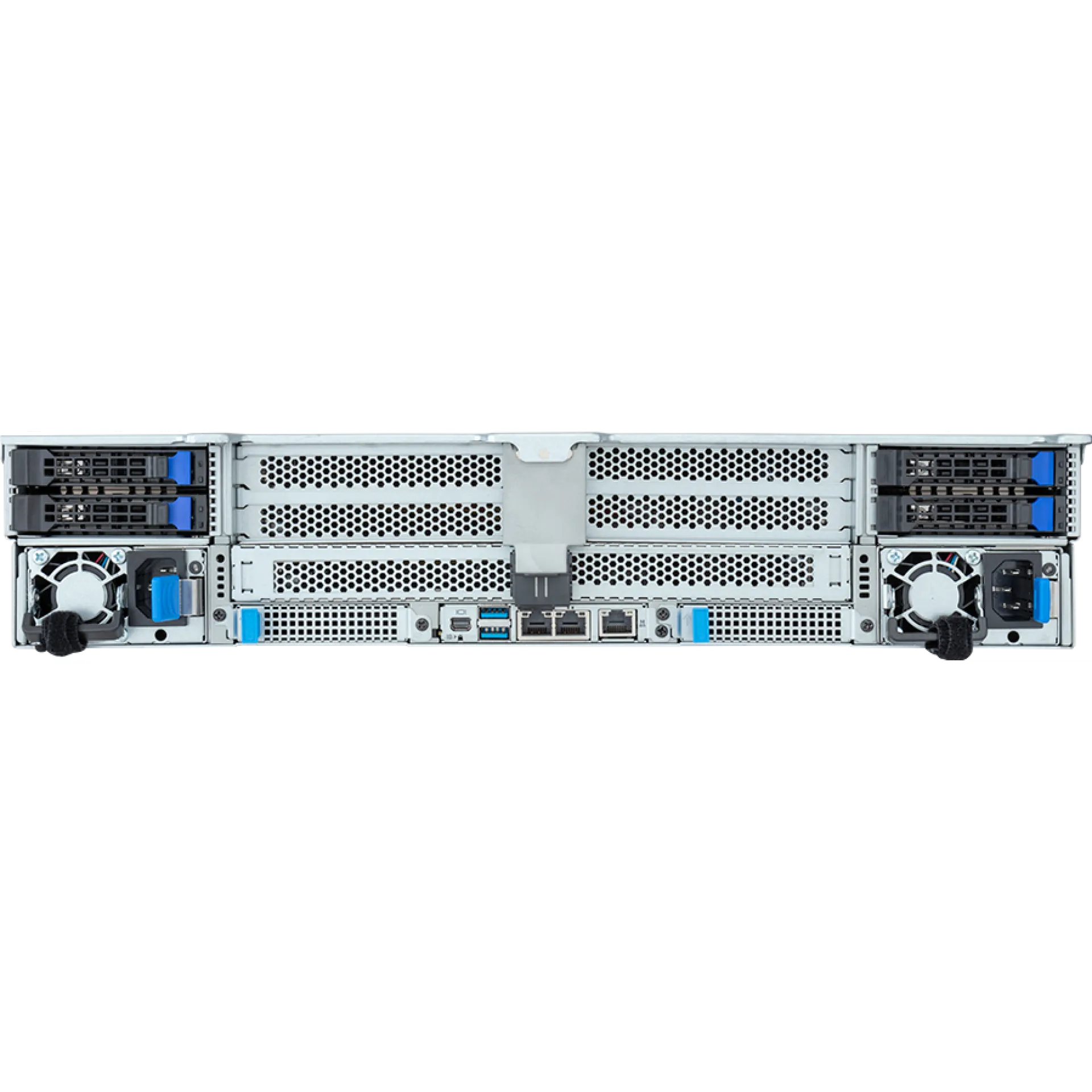

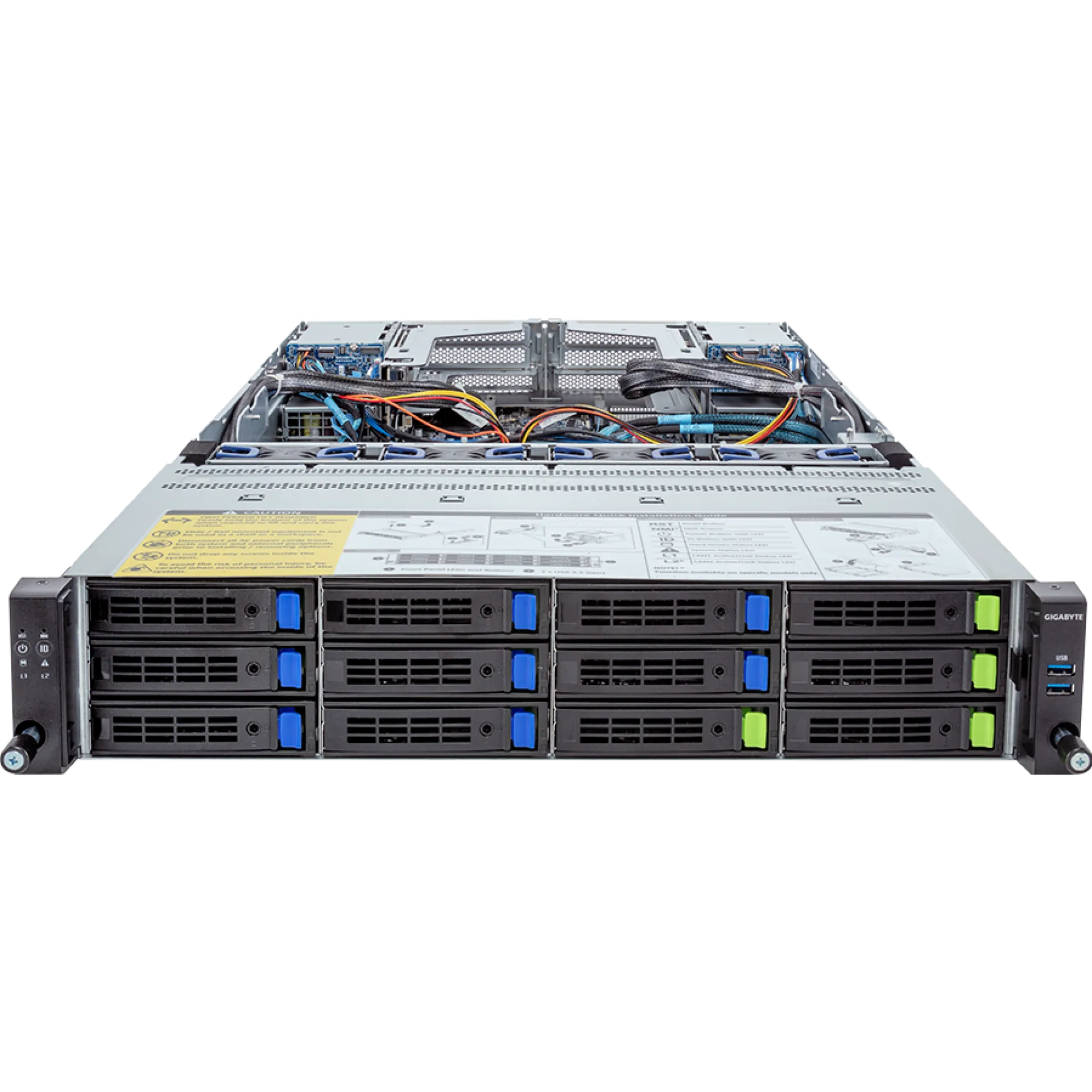

High-Density 2U Dual-Socket SP5 Rack Server Barebone for virtualisation and tiered storage with the R283-Z90-AAV2 Gigabyte
The R283-Z90-AAV2 Gigabyte is a 2U rack server barebone built around the AMD EPYC 9005/9004 SP5 platform, engineered for consolidation-focused virtualisation hosts and balanced storage services. With support for 2 processors up to 400W TDP and up to 192 cores total, it aligns with cluster nodes that need predictable per-socket scaling, high core density, and consistent memory bandwidth under mixed VM and infrastructure workloads.
R283-Z90-AAV2 Gigabyte uses DDR5 RDIMM ECC across 24 DIMM slots with 12 channels per CPU, enabling up to 6TB capacity and high throughput for memory-intensive scheduling, in-memory databases, and NFV data paths. PCIe 5.0 expansion via 4 x16 FHHL slots and 2 OCP NIC 3.0 bays supports modern accelerators, storage HBAs, and high-speed networking, while maintaining serviceability in standard 19in racks. Storage is architected for tiering: 12 front hot-swap bays mix NVMe with SAS/SATA, complemented by 4 rear 2.5in SAS/SATA and 3 internal M.2 NVMe for boot or cache; SAS requires an add-in HBA/RAID, and optional NVMe RAID can be implemented via supported controllers.
Why Choose the R283-Z90-AAV2 Gigabyte?
R283-Z90-AAV2 Gigabyte delivers an efficient density-to-performance profile by combining high core counts, DDR5 channel bandwidth, and PCIe 5.0 I/O in a 2U serviceable chassis, making it well-suited for repeatable node designs in VMware, Hyper-V, or KVM clusters. Redundant 1600W 80 PLUS Titanium power and hot-swap storage simplify uptime planning, while modular OCP NIC 3.0 enables scalable network standardisation across deployments.
Gigabyte designs server platforms with a focus on validated subsystem interoperability, remote lifecycle control, and data centre operational consistency. The integrated ASPEED AST2600 BMC with IPMI and HTML5 KVM, plus dedicated management LAN support, enables secure out-of-band administration aligned with enterprise monitoring and provisioning practices.
Key Applications:
- Virtualisation clusters and consolidation nodes
- Tiered storage for databases and file services
- NFV routing, firewall, and network services
- Infrastructure appliances and management stacks
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your R283-Z90-AAV2 Gigabyte configuration and rollout scope, helping procurement and engineering align BOMs and delivery planning. For fleet deployments, bulk order discount options support consistent node standardisation across racks and sites.
Technical details of R283-Z90-AAV2 Gigabyte
How long is the Warranty and how you can get technical support for R283-Z90-AAV2 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
