H263-S62-LAN1 Gigabyte Dual Xeon Scalable 4th Gen 2U 6NH263S62DR000LBN1 Server Barebone
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
Gigabyte H Series
Do you have questions about this product 6NH263S62DR000LBN1?
H263-S62-LAN1 Gigabyte

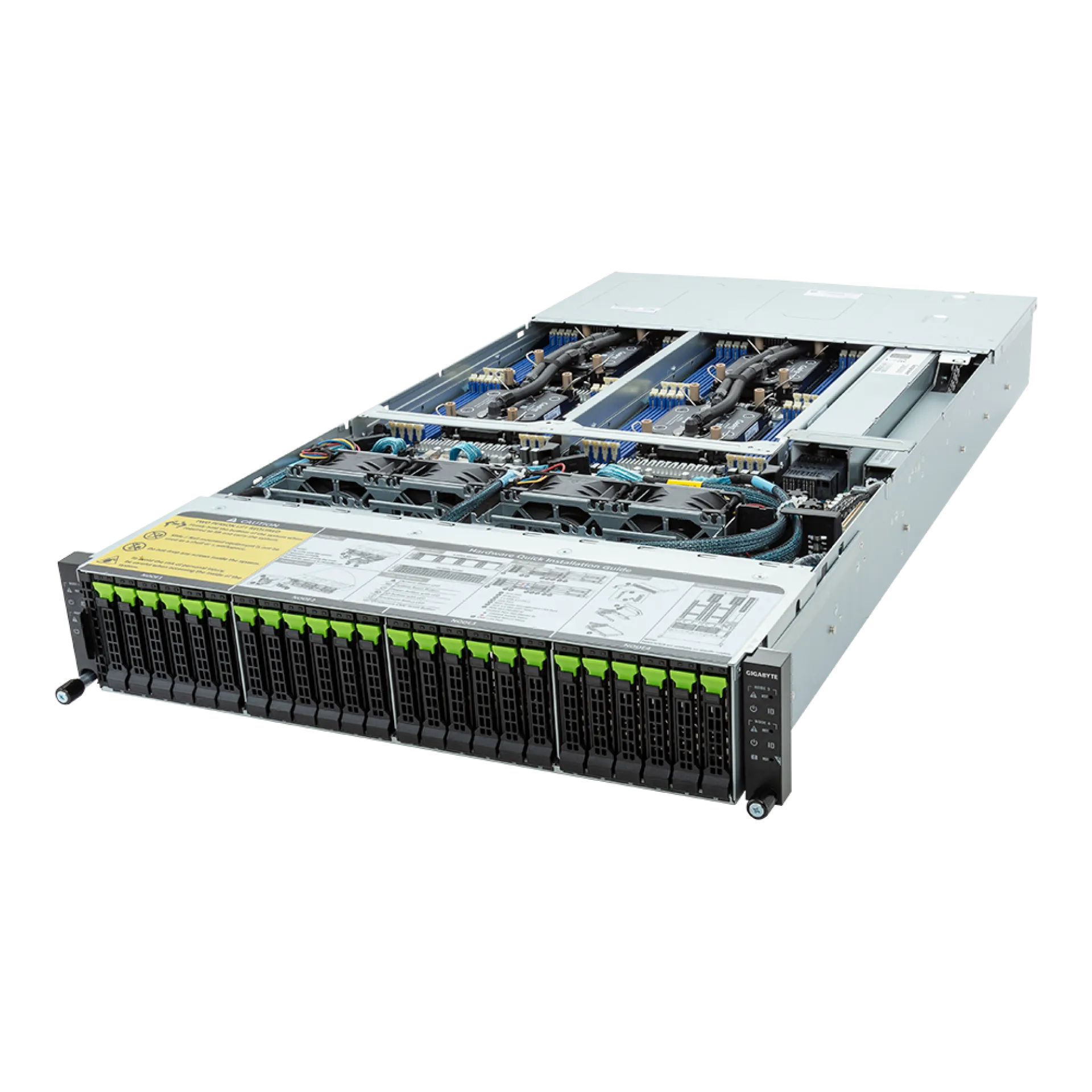

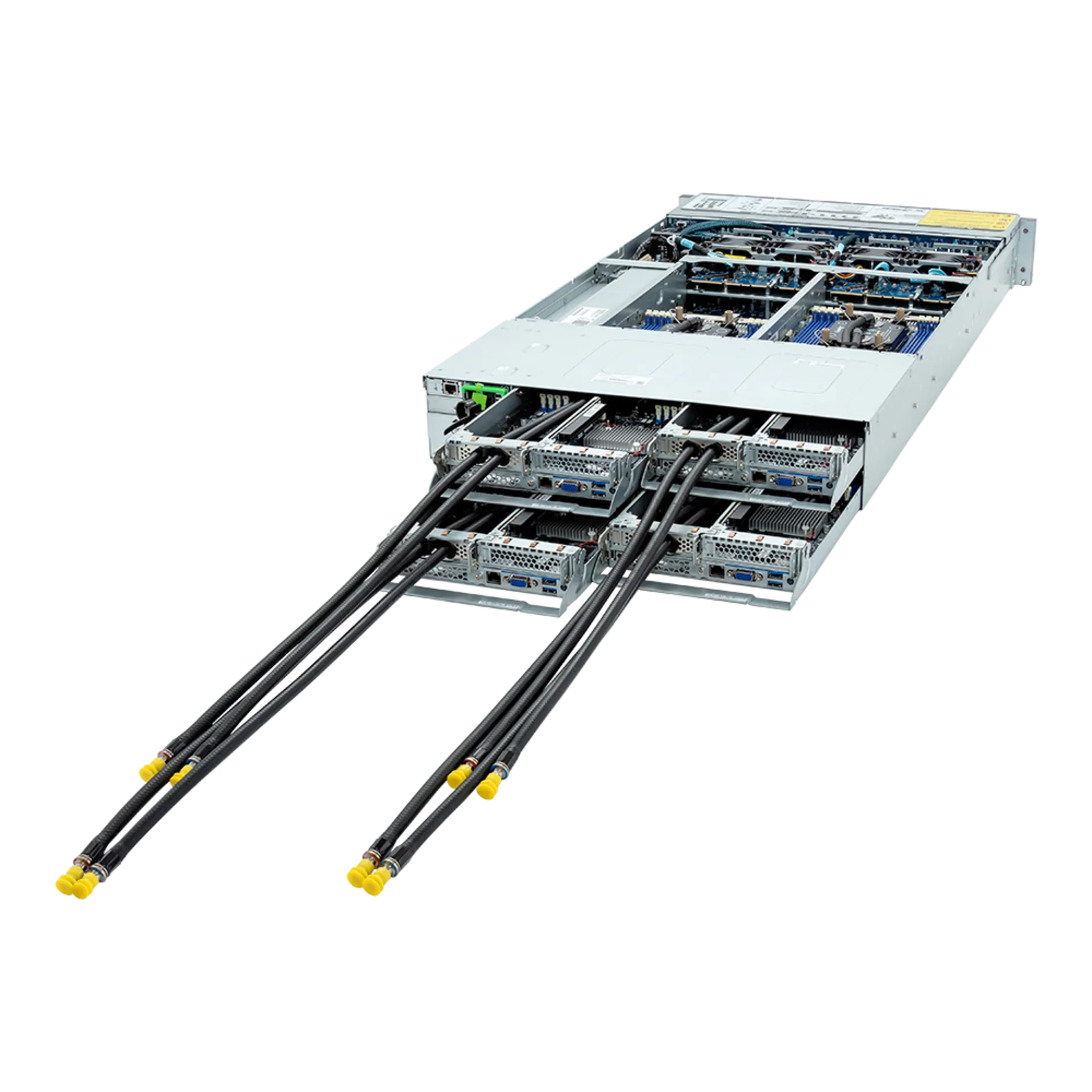

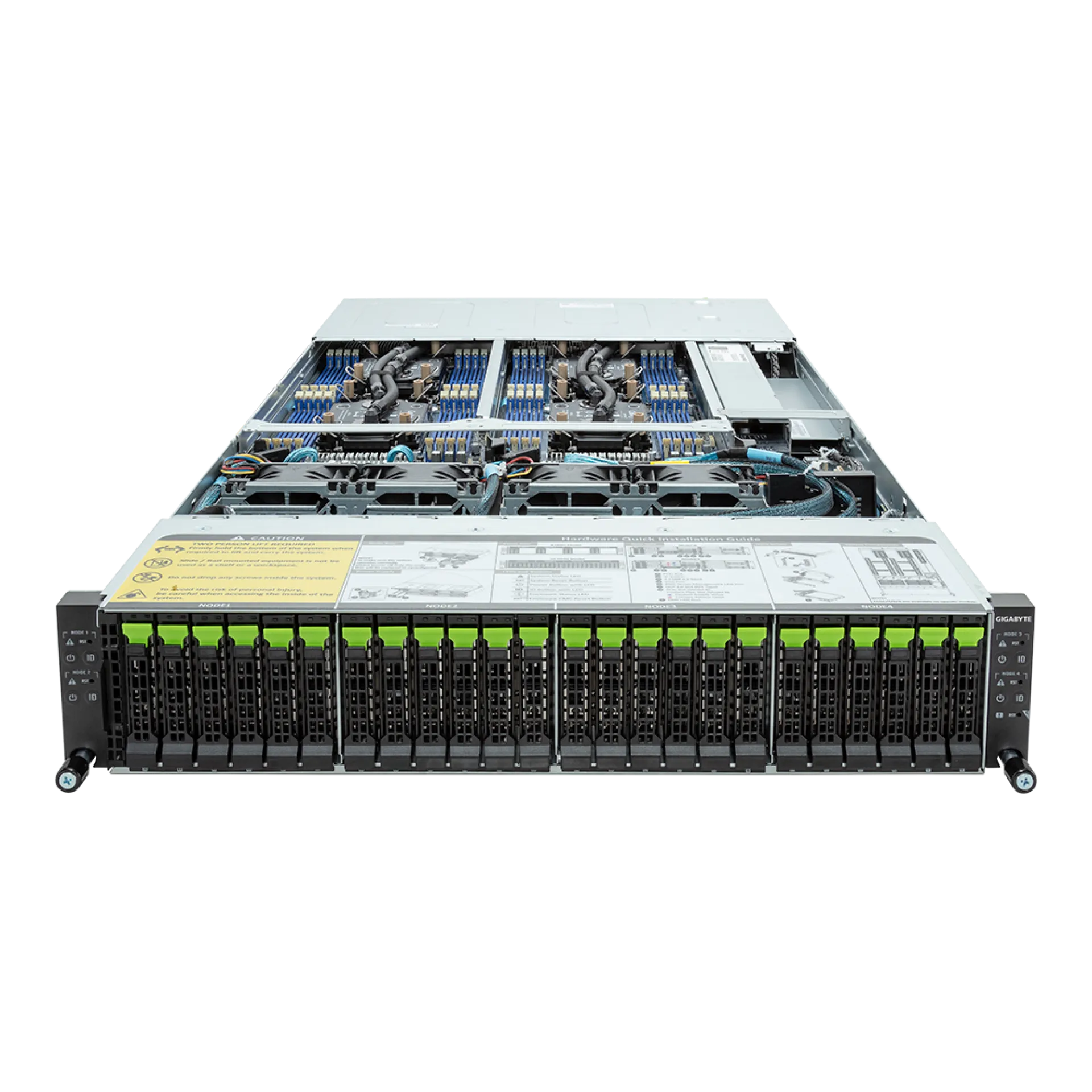

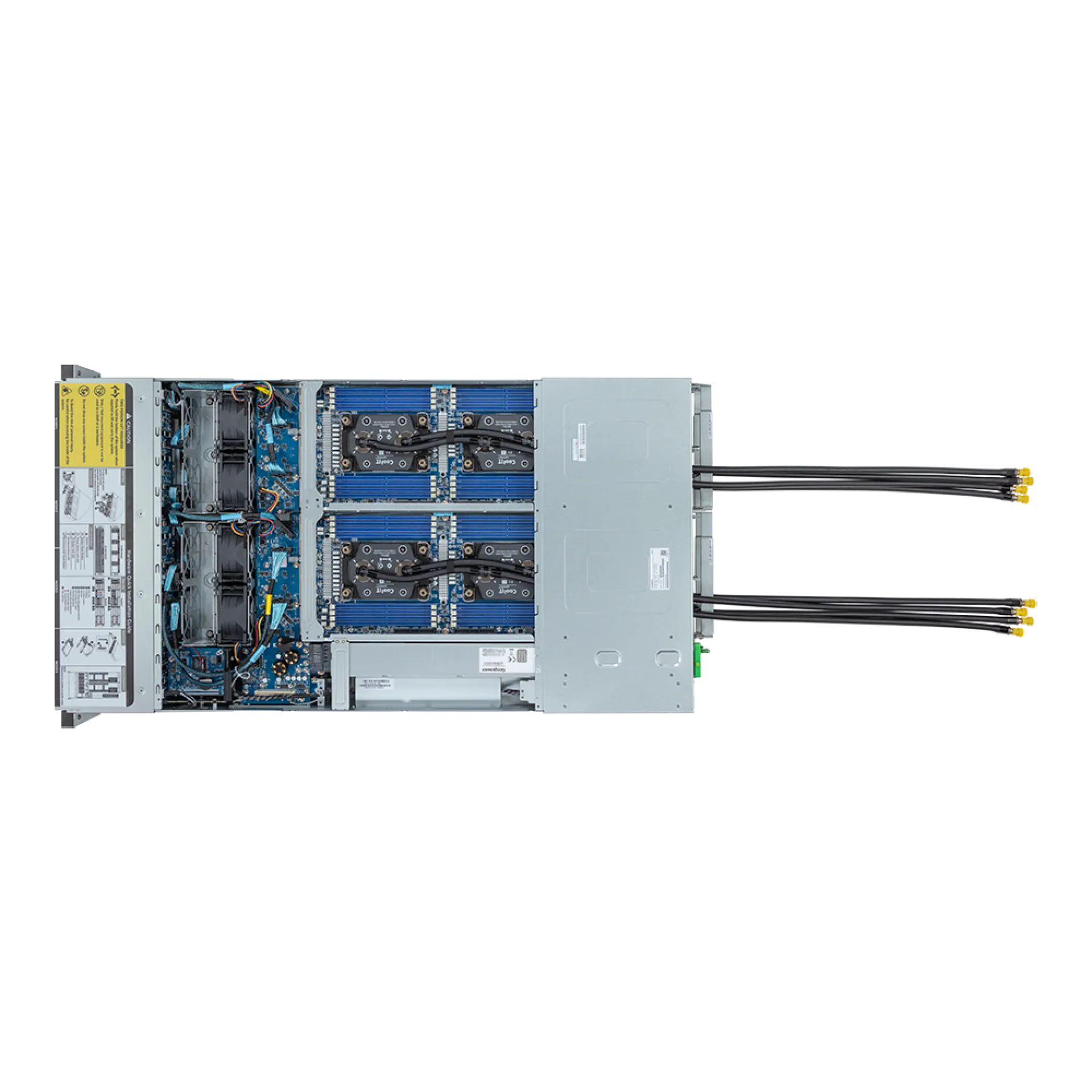

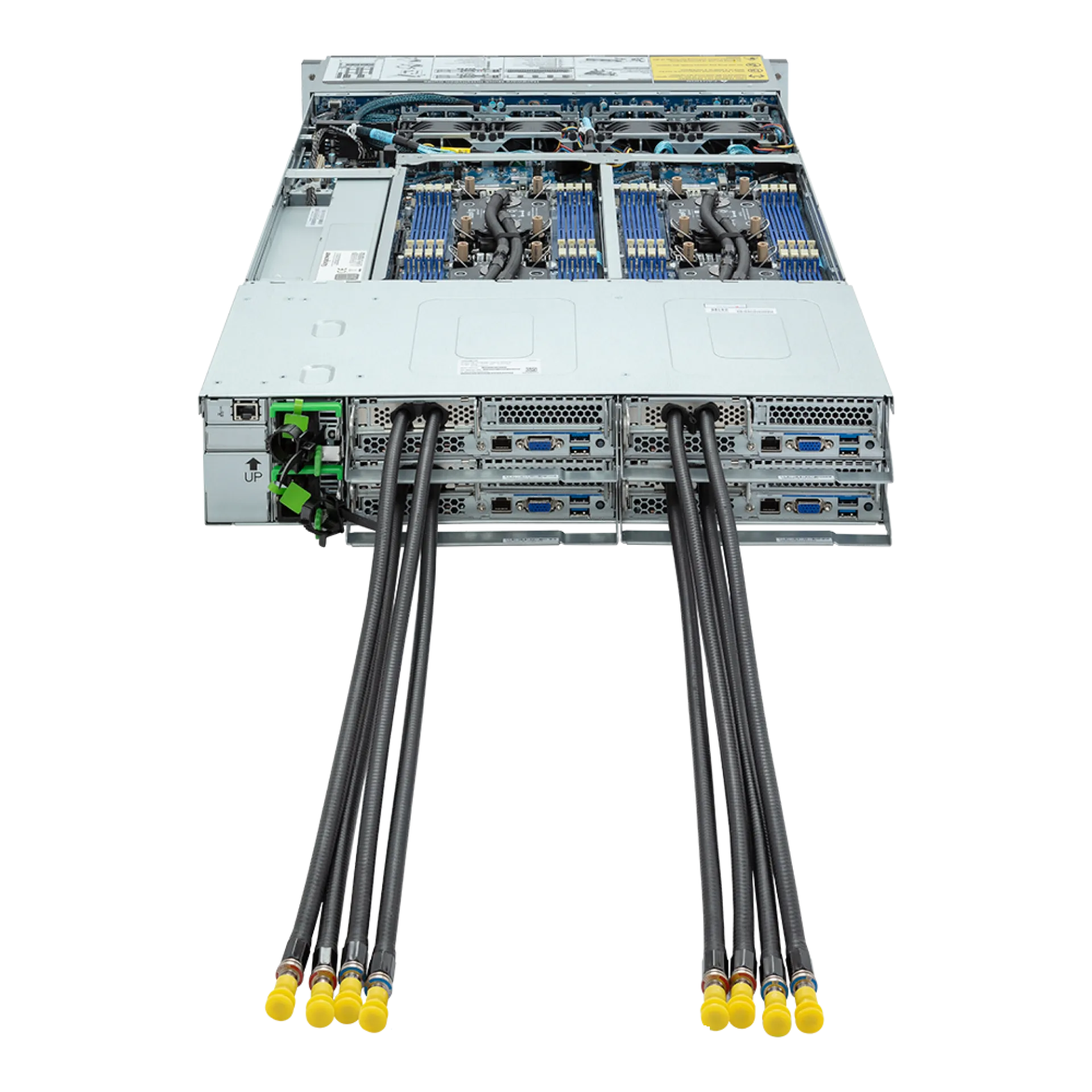

High-Density 2U 4-Node Direct Liquid-Cooled Barebone Platform with H263-S62-LAN1 Gigabyte
The H263-S62-LAN1 Gigabyte barebone is a 2U, 4-node direct liquid-cooled platform engineered for compute-dense clusters where per-rack performance and thermal stability must scale together. Each node is built on Intel Xeon Scalable 5th/4th Gen processors (LGA4677, Intel C741), enabling high core counts and sustained TDP operation while keeping node-level service boundaries intact inside a shared power and management chassis.
For memory-intensive HPC and virtualized workloads, H263-S62-LAN1 Gigabyte provides per-node 16 DDR5 ECC RDIMM slots with 8-channel memory per CPU, aligning bandwidth with dual-socket compute throughput. I/O is designed for modern fabrics and accelerators: per node, PCIe Gen5 delivers a low-profile x16 slot plus an OCP NIC 3.0 SFF PCIe Gen5 x16 interface for high-throughput networking. Storage tiers are optimized for scale-out: the chassis offers 24 hot-swap 2.5in bays (6 per node) supporting NVMe Gen4 x4 or SATA 6Gb/s, with optional SAS 12Gb/s via add-in/backplane, complemented by a per-node M.2 PCIe Gen4 NVMe boot device.
Why Choose the H263-S62-LAN1 Gigabyte?
H263-S62-LAN1 Gigabyte combines 4 independent server nodes with shared 2x 2600W 80 PLUS Titanium redundant PSUs and centralized chassis management, delivering a strong density-to-performance ratio without sacrificing operational control. Direct liquid cooling supports sustained workloads, while per-node PCIe Gen5 and modular OCP networking simplify scaling and standardization across racks.
Gigabyte focuses on serviceable enterprise platforms with consistent remote management and component interoperability. With ASPEED AST2600 BMC IPMI/HTML5 KVM, AST2520 CMC, and Gigabyte Management Console, H263-S62-LAN1 Gigabyte aligns with modern data centre automation and lifecycle processes.
Key Applications:
- HPC and technical compute clusters
- Scale-out virtualization
- Hyperconverged infrastructure
- Mixed NVMe/SATA/SAS storage tiers
- High-density enterprise compute consolidation
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment plan for H263-S62-LAN1 Gigabyte, helping you validate node, network, and storage configurations quickly. For standardization projects, bulk order discount options support efficient rollouts across multiple racks or sites.
Technical details of H263-S62-LAN1 Gigabyte
How long is the Warranty and how you can get technical support for H263-S62-LAN1 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
