H273-Z81-LAW1 Gigabyte Dual EPYC 9004 2U 6NH273Z81DR000LCW1 Server Barebone

Product version:

Rev-3.x

Product line:

Gigabyte H Series

See all Rackmount Servers 2U

See other Gigabyte products

This product is currently not priced. Request a personalized quote now.

Out of stock

Not available

Happyware Article Number:

SE9B4011-737228

Manufacturer Number:

6NH273Z81DR000LCW1

Brand:

Gigabyte

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

H273-Z81-LAW1 Gigabyte

High-Density 2U 4-Node Rack Server Barebone architecture for scale-out compute with the H273-Z81-LAW1 Gigabyte

The H273-Z81-LAW1 Gigabyte is a 2U rear-access, 4-node high-density rack server barebone designed for scale-out infrastructure where consistent per-node performance and serviceability drive cluster efficiency. Each node supports dual-socket AMD EPYC 9005/9004 (SP5) CPUs up to 400W TDP, enabling high core density for virtualization, cloud control planes, and database-heavy enterprise applications without oversizing the footprint.

Per node, the H273-Z81-LAW1 Gigabyte implements a 12-channel DDR5 ECC RDIMM memory architecture with 24 DIMM slots to sustain bandwidth-intensive consolidation and in-memory services. Expansion is optimized for modern I/O: a PCIe Gen5 x16 low-profile slot and an OCP NIC 3.0 SFF mezzanine (PCIe Gen5 x16) support high-throughput fabrics, while storage is balanced between flexibility and density with up to 8 x 2.5in hot-swap bays for NVMe (PCIe Gen4) and SATA; SAS is enabled via optional HBA. A dedicated M.2 NVMe (PCIe Gen4) boot slot isolates OS media from data tiers, and IPMI/BMC management with HTML5 KVM streamlines remote operations at scale.

Why Choose the H273-Z81-LAW1 Gigabyte?

The H273-Z81-LAW1 Gigabyte delivers an efficient density-to-performance ratio by concentrating 4 independent EPYC nodes in 2U while preserving per-node isolation for failure domains and rolling maintenance. Redundant 80 PLUS Titanium power, hot-swap components, and chassis-level management reduce operational risk, and the platform scales cleanly as repeatable building blocks for private/hybrid cloud and software-defined infrastructure.

Gigabyte engineering emphasizes data center alignment through modular node design, standardized service access, and management telemetry suitable for automated provisioning, monitoring, and lifecycle control across large clusters.

Key Applications:

Virtualization clusters
Private and hybrid cloud nodes
Hyperconverged infrastructure
Software-defined storage
Scale-out databases

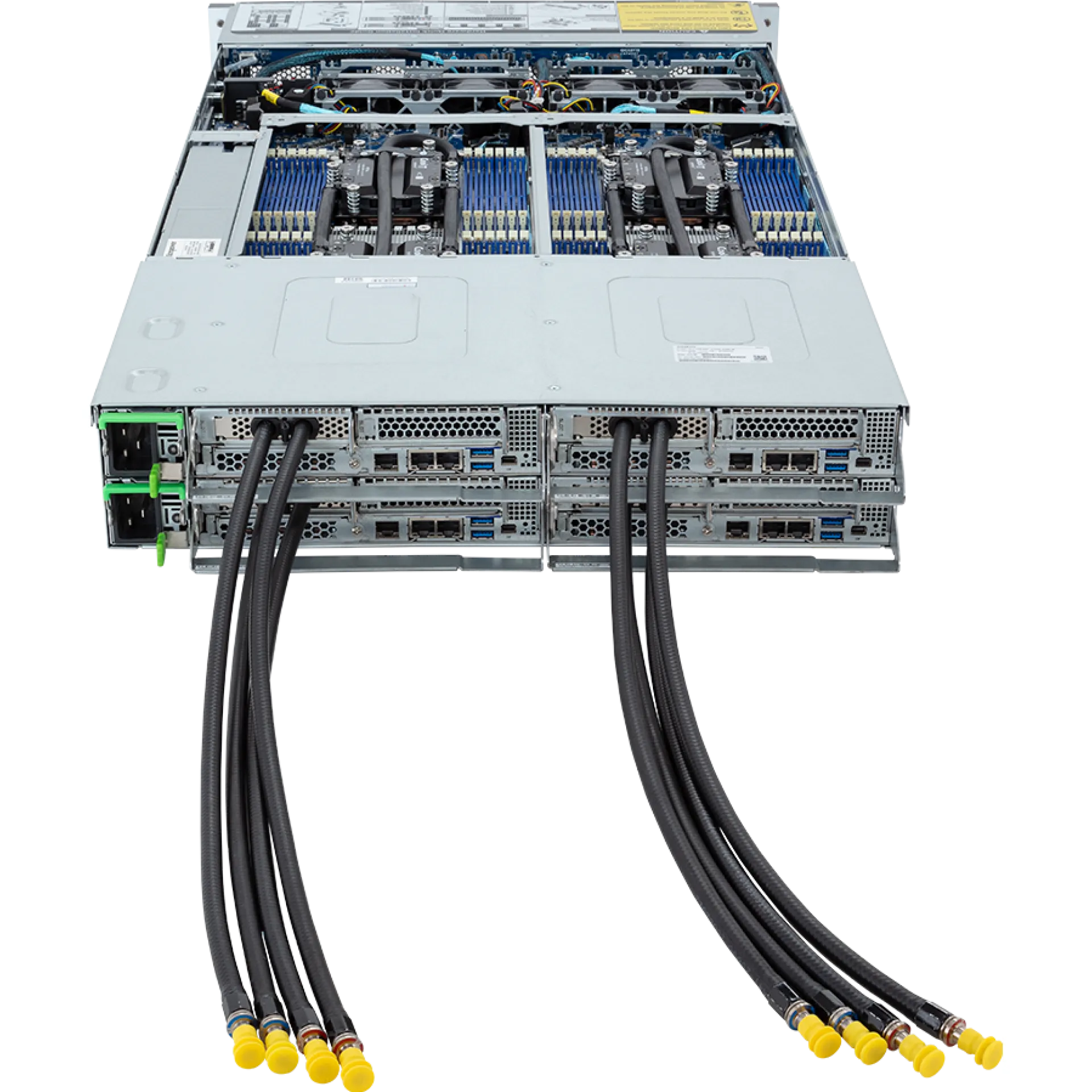

High-density compute with liquid-cooled CPU option

At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment plan for the H273-Z81-LAW1 Gigabyte, and from an extended warranty up to 6 years to secure long-term operation in enterprise data centers.

Technical details of H273-Z81-LAW1 Gigabyte

Type: Rack

Suitability: Server

CPU Socket: SP5 (LGA 6096)

CPU Family: EPYC

Supported CPU Manufacturer: AMD

Supported CPU Type: EPYC 9004, EPYC 9005

Supported CPU Generation: 4th, 5th

Supported CPU Codename: Genoa, Turin

Nodes: 4

RAM Type: RDIMM

RAM Max. Total: 6TB

RAM Slots Total: 24

ECC Support: ECC

Bays: 2x 2.5" HotSwap NVMe, SATA, SAS

Hot-Swap: Yes

RAID Support: Yes

PCIe: 1x PCIe 5.0 x16 (x16 mode)

Expansion Slots: 1x PCIe 5.0 x16 Low-Profile

Onboard Network LAN: 2x RJ45 1 Gbps

Onboard Network LAN Speed: 1 Gbps

Front I/O Ports: LED Indicators

IPMI / BMC integrated: Yes

Chipset: System-on-Chip (SoC)

Power Supply Wattage: 3000W

Redundant Power Supply: Yes

Number of Power Supplies: 2

80 Plus Certificate: 80 Plus Titanium

Quantity of Cooler: 4

Performance Class: High-End

TDP (Thermal Design Power): 400W

Applications: Big Data, Cloud Computing, Data Center Optimized, Database, High Availability Storage, High End Enterprise Server, Hyperconverged Storage, Hyperconverged Infrastructure (HCI), Mission Critical, Enterprise

Onboard CPU: No

Onboard Graphic: Yes

Graphics Manufacturer: ASpeed

Certificates: 80 Plus Titanium

Chassis Intrusion: No

OS: Citrix Hypervisor (formerly XenServer), Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, VMware ESXi, Windows Server

How long is the Warranty and how you can get technical support for H273-Z81-LAW1 Gigabyte

Warranty:	36 months (part)
RMA Url:	https://www.gigabyte.com/Support/Consumer/Warranty
Description:	Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard.
