H263-V60-AAW1 Gigabyte

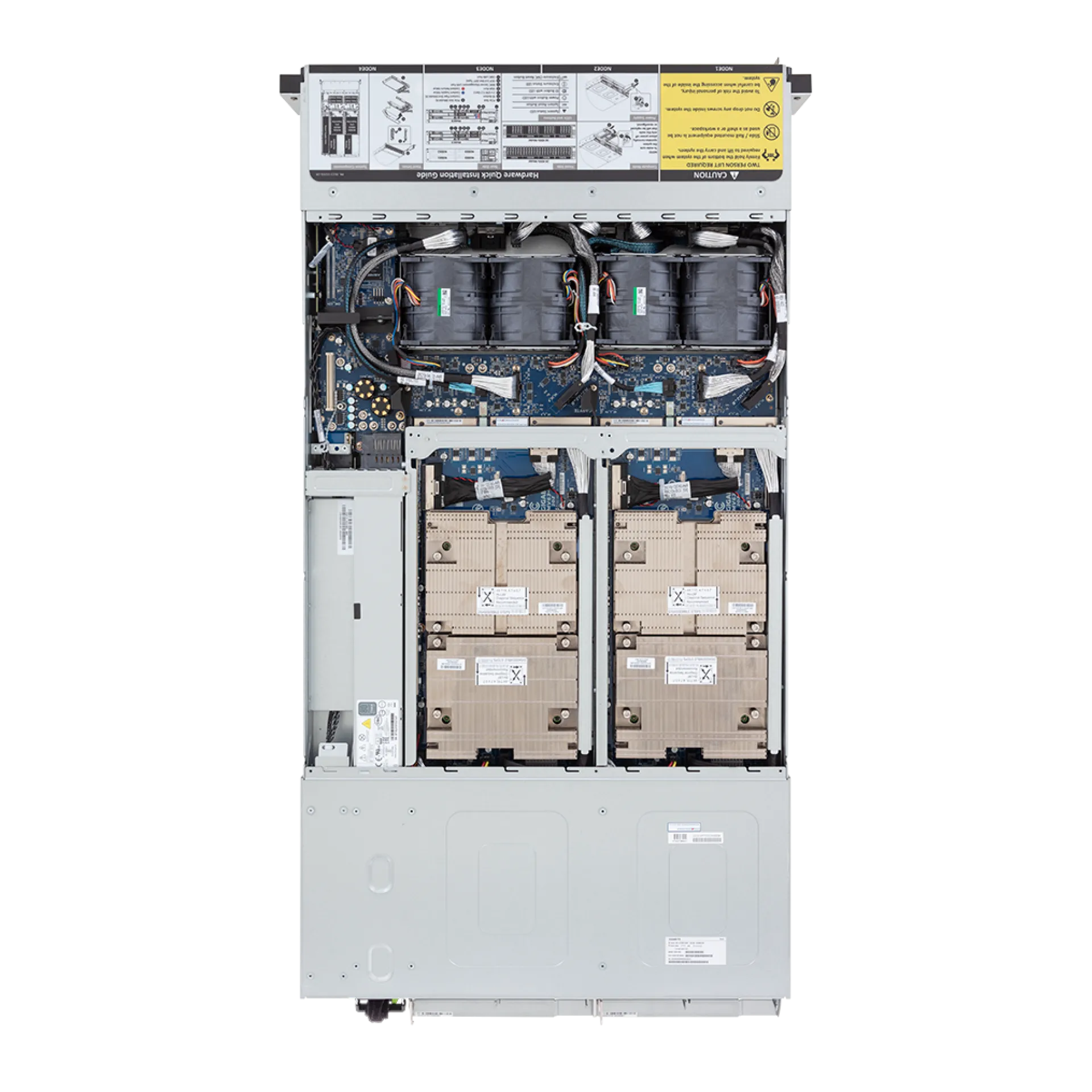

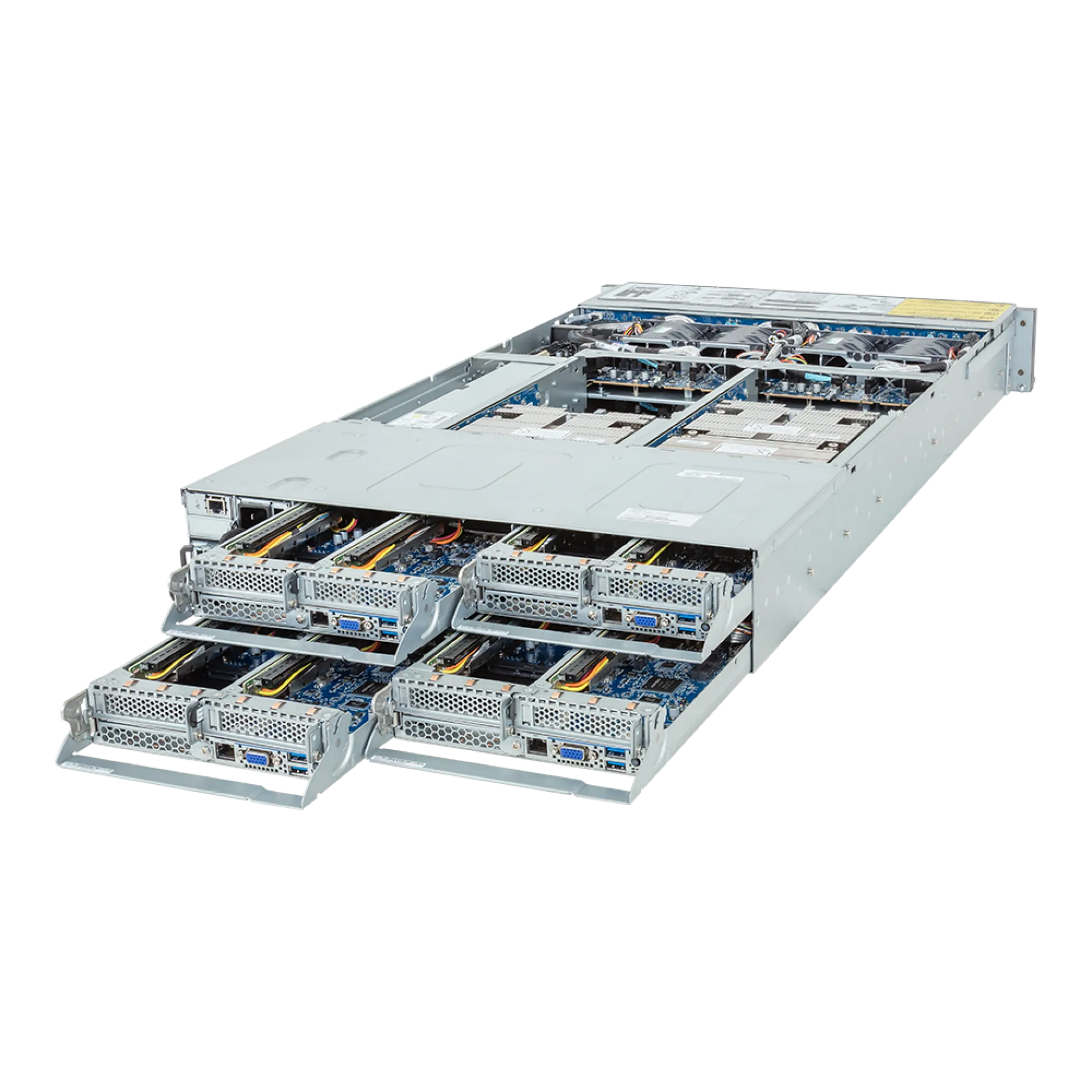

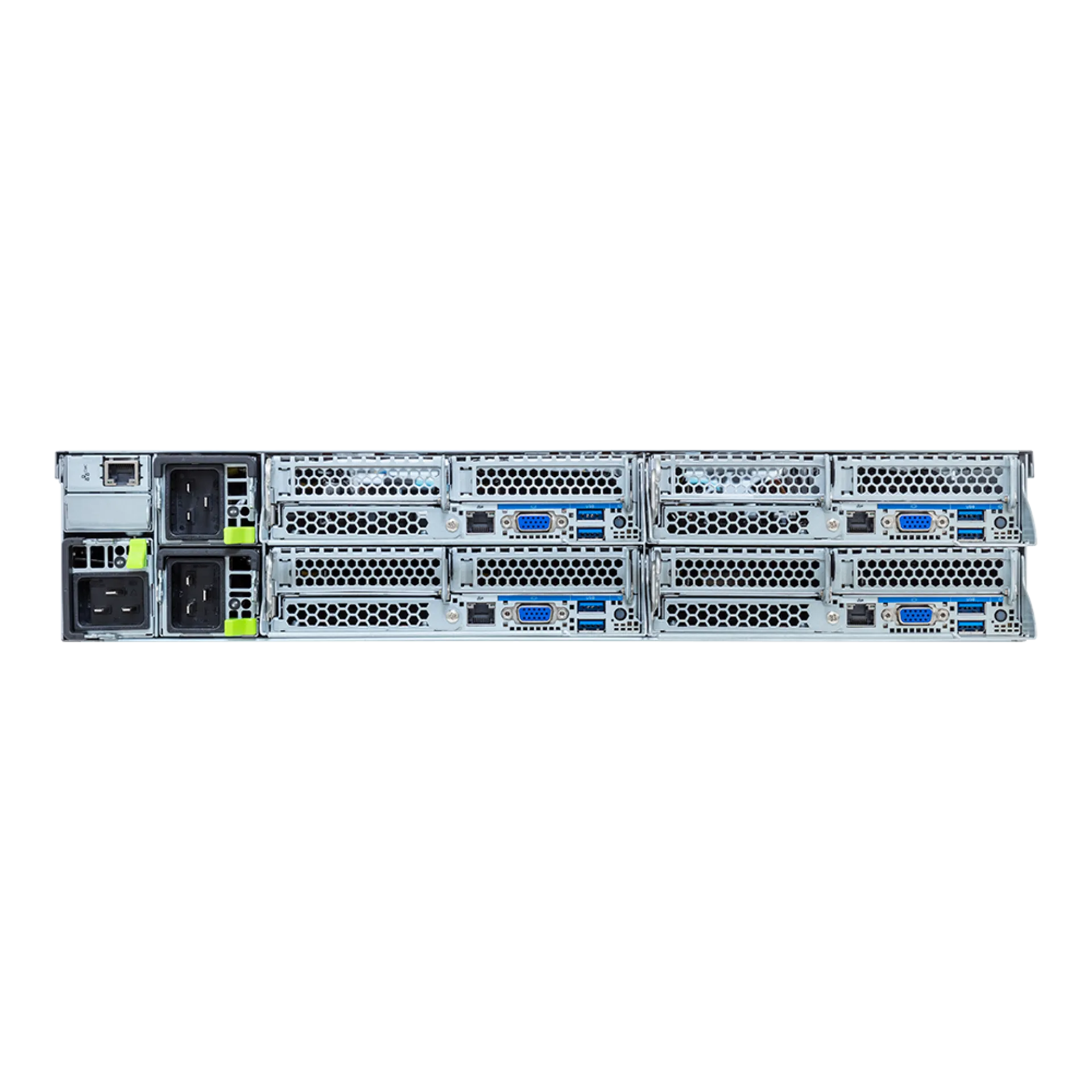

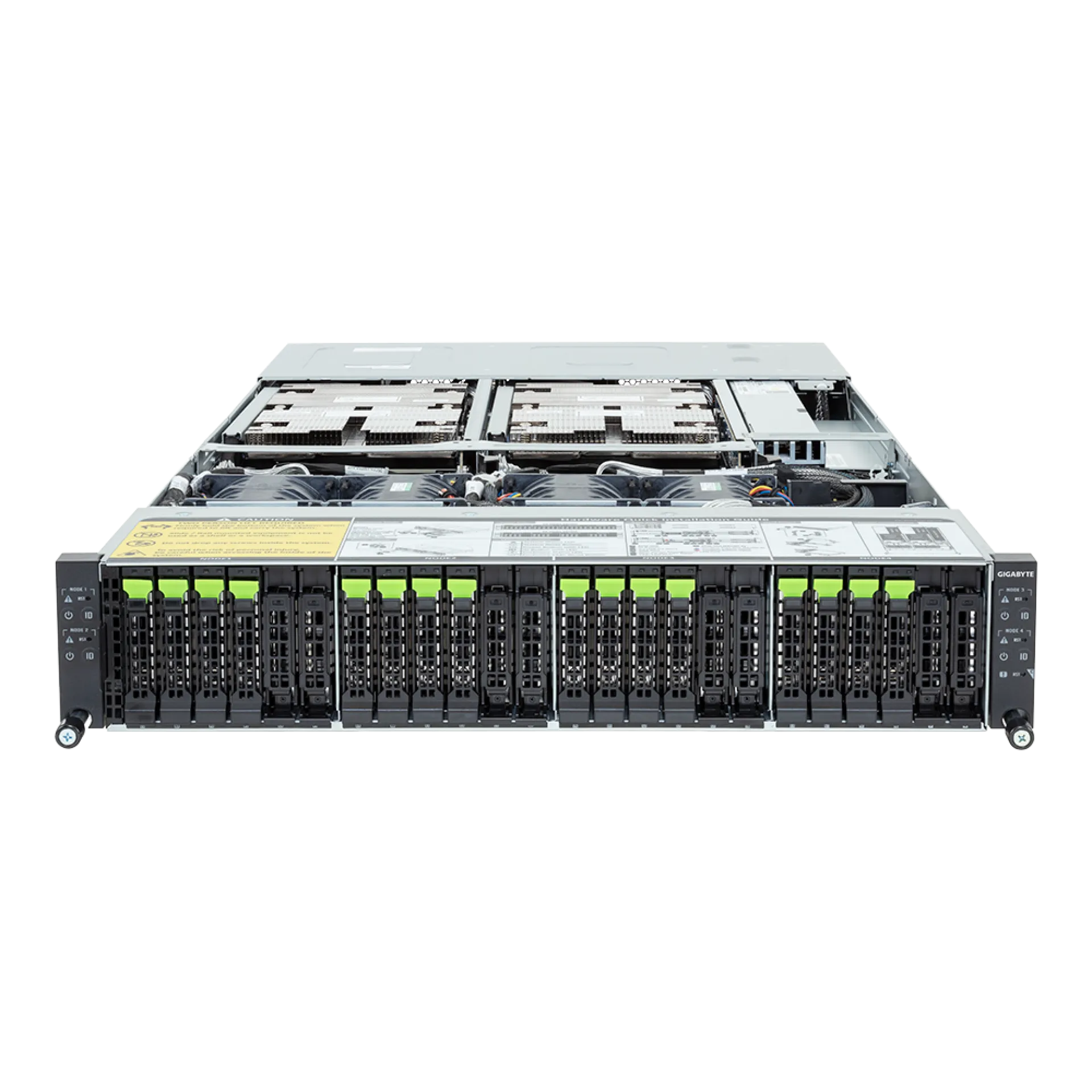

High-Density 2U 4-Node Rack Server Barebone featuring NVIDIA Grace Arm compute with the H263-V60-AAW1 Gigabyte
The H263-V60-AAW1 Gigabyte is a 2U, 4-node rack server barebone engineered for scale-out HPC and cloud-native infrastructure where node-level serviceability and predictable performance per rack unit are primary design constraints. Each node is built around the NVIDIA Grace CPU Superchip (Grace S1) dual-Grace module via NVLink-C2C, enabling up to 144 Arm Neoverse V2 cores per node and supporting CPU TDP profiles up to 500W for sustained throughput in distributed compute fabrics.
Memory architecture is CPU-attached LPDDR5X ECC, optimized for bandwidth and latency-sensitive workloads; the platform supports up to 1920GB maximum system memory and is suited to in-memory analytics, microservice consolidation, and tightly coupled MPI domains. The H263-V60-AAW1 Gigabyte exposes PCIe Gen5 paths for both storage and expansion, with per-node NVMe designed for high IOPS and low tail latency: 1 x 2.5" U.2 NVMe hot-swap bay plus 1 x M.2 NVMe, and a PCIe 5.0 x16 low-profile slot alongside an OCP NIC 3.0 SFF PCIe 5.0 x16 interface at chassis level. Integrated management includes per-node ASPEED AST2600 BMC with a chassis controller, enabling consistent out-of-band operations at cluster scale.
Why Choose the H263-V60-AAW1 Gigabyte?
The H263-V60-AAW1 Gigabyte delivers a high node-density-to-performance ratio by combining Grace Superchip compute, Gen5 I/O, and NVMe-first storage in a 4-node 2U footprint, reducing rack, power, and cabling overhead in scale-out deployments. Redundant hot-swap power, node-isolated management, and standardized expansion paths support repeatable cluster builds and efficient lifecycle operations across private cloud and HPC environments.
Gigabyte applies data-center-oriented engineering with validated mechanical design, remote management consistency, and component selection aligned to modern power and serviceability standards for enterprise racks.
Key Applications:
- HPC clusters and distributed compute
- Hyperconverged infrastructure nodes
- Private and hybrid cloud scale-out
- NVMe-heavy data services
- Scale-out storage-compute platforms
At Happyware - Server Hardware you benefit from non-binding offers tailored to your project requirements for the H263-V60-AAW1 Gigabyte, and an extended warranty of up to 6 years to secure long-term operation in production clusters.
Technical details of H263-V60-AAW1 Gigabyte
How long is the Warranty and how you can get technical support for H263-V60-AAW1 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
