SSG-229J-5BU24JBF Supermicro Rack 2U JBOF Chassis

High-Density 2U 2-Node NVMe-oF All-Flash Storage Platform featuring BlueField-3 DPU Architecture with the SSG-229J-5BU24JBF

The SSG-229J-5BU24JBF is a 2U, 2-node all-flash storage platform engineered for NVMe over Fabrics and disaggregated storage designs where latency, deterministic throughput, and network offload are primary requirements. Its NVIDIA BlueField-3 DPU-based architecture enables high-speed data path processing at the node edge, aligning the system for SDS control planes, AI/LLM storage backends, and low-latency data pipelines without relying on platform RAID.

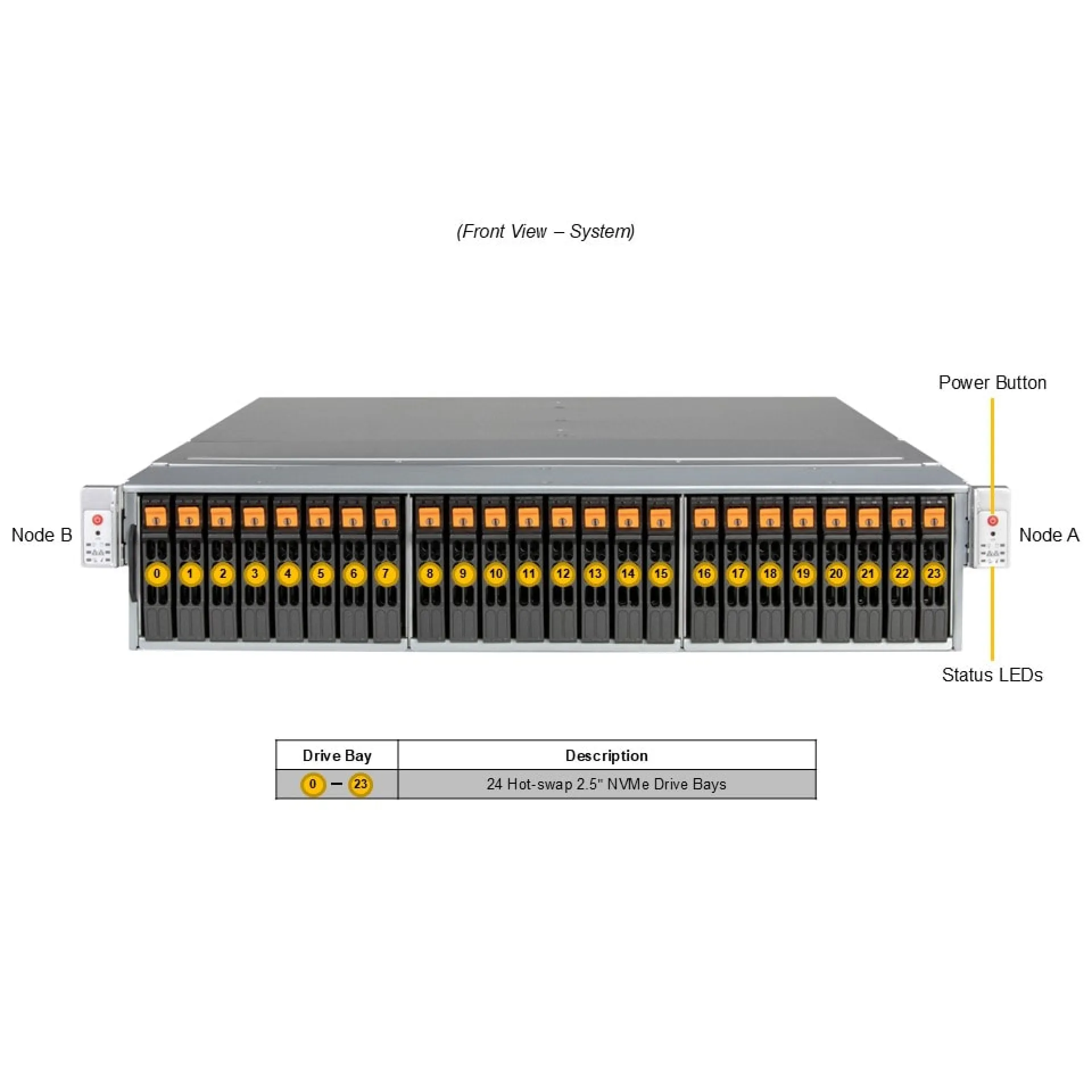

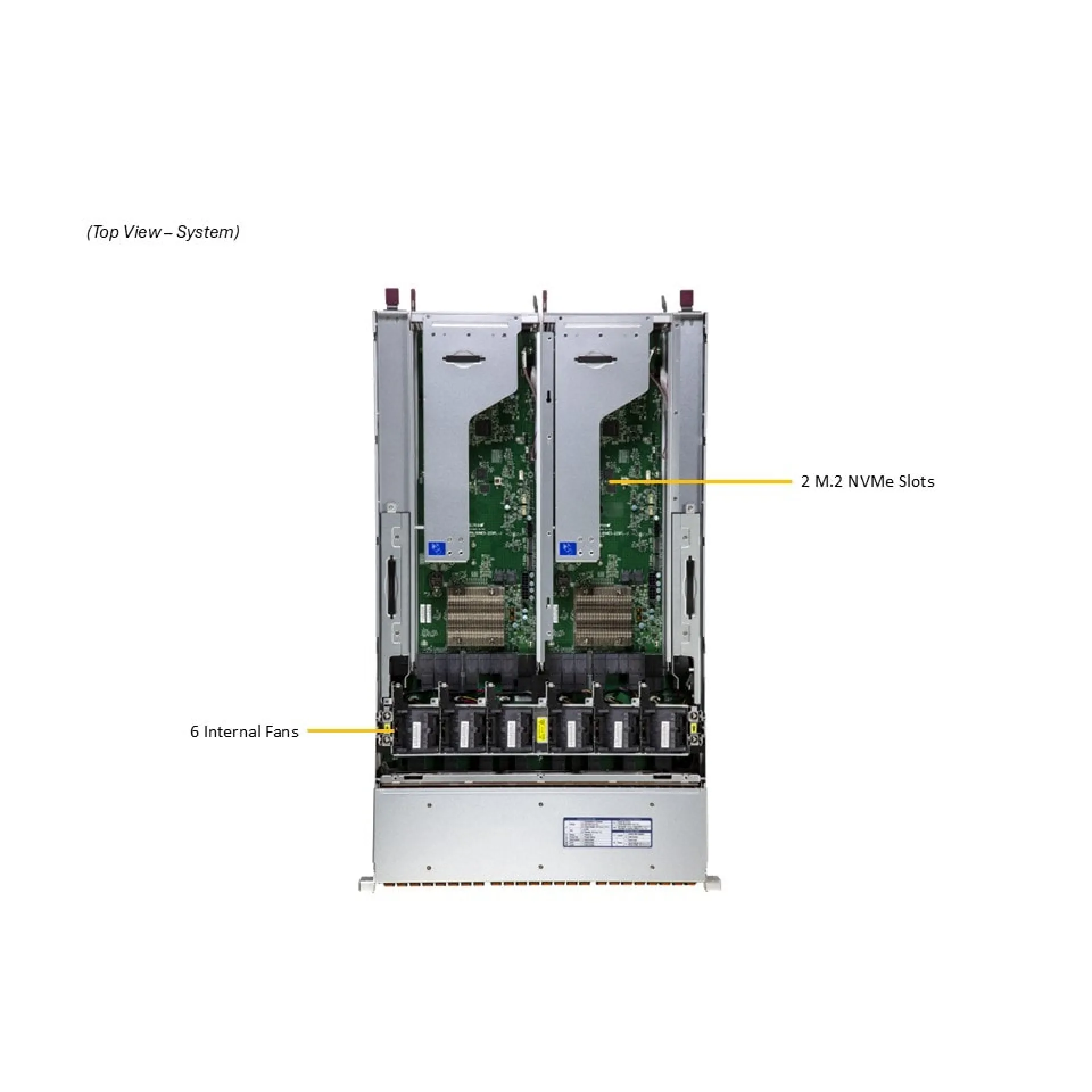

For flash density and serviceability, the SSG-229J-5BU24JBF provides 24 front-access 2.5" U.2 NVMe hot-swap bays per system, enabling scalable all-flash tiers with streamlined drive replacement workflows. Each node supports PCIe Gen5 boot via dual M.2 NVMe (M-Key 22110/2280) and exposes three PCIe 5.0 x16 FHFL slots for high-bandwidth expansion, including GPU-capable mechanical support and guidance for up to 2 DPUs plus 1 GPU per node. Integrated management is addressed through IPMI/BMC with a dedicated management LAN, while production connectivity is delivered via dual 200Gbps QSFP+ per node through BlueField-3, complemented by 1GbE RJ45 for ancillary access.

Why Choose the SSG-229J-5BU24JBF?

The SSG-229J-5BU24JBF is built to maximize performance per rack unit by pairing dense U.2 NVMe capacity with PCIe Gen5 expansion and DPU acceleration, enabling predictable scaling for multi-tenant NVMe-oF fabrics. Redundant 1600W Titanium PSUs, hot-swap service points, and heavy-duty cooling support enterprise uptime targets in high-IOPS tiers and scratch environments.

Supermicro designs platforms with a focus on modular serviceability, open standards adoption, and data centre operational consistency, aligning the SSG-229J-5BU24JBF with modern rack power, remote management, and high-speed fabric requirements.

Key Applications:

• NVMe over Fabrics storage nodes for SDS
• Disaggregated storage infrastructure
• AI/LLM storage backend tiers
• Low-latency data pipelines
• HPC scratch and high-IOPS analytics

At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment targets for the SSG-229J-5BU24JBF and the option to extend the warranty up to 6 years to protect long-life storage infrastructure investments.
