G893-ZD1-AAX3 Gigabyte Dual EPYC 9004 8U 6NG893ZD1DR000ACX3 Server Barebone

Product line:

Gigabyte G Series

See all Rackmount Servers 5U+

See other Gigabyte products

This product is currently not priced. Request a personalized quote now.

Out of stock

Happyware Article Number:

SH6B2484-567516

Manufacturer Number:

6NG893ZD1DR000ACX3

Brand:

Gigabyte

Are you a reseller?

Do you have questions about this product 6NG893ZD1DR000ACX3?

Our team of server experts will be happy to help you to ensure you purchase the right product.

Description Technical details Warranty & Technical Support Reviews Bulk Deals

G893-ZD1-AAX3 Gigabyte

High-Density 8U HGX GPU Server platform for AI and HPC featuring NVLink/NVSwitch fabric with the G893-ZD1-AAX3 Gigabyte

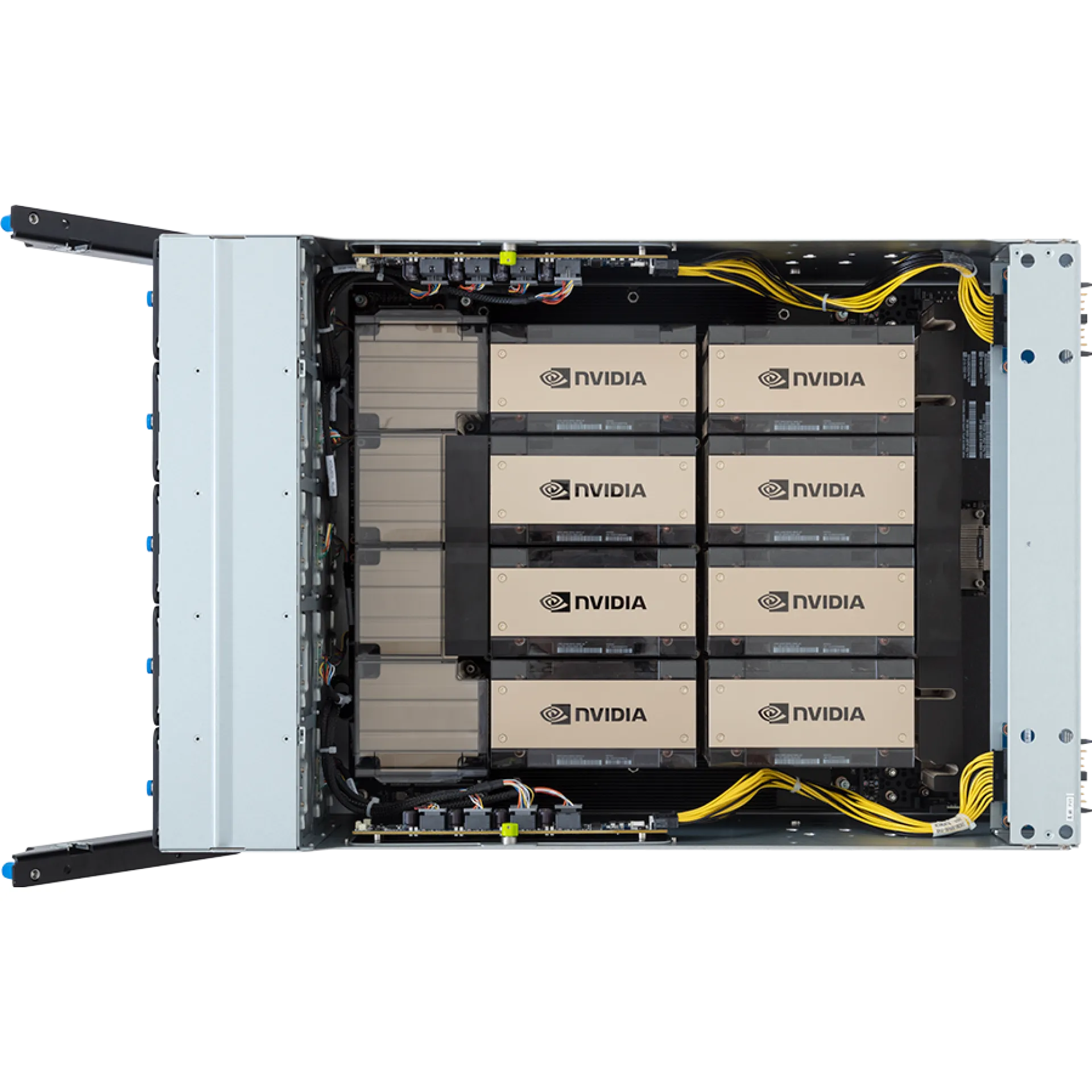

The G893-ZD1-AAX3 Gigabyte is an 8U rack-scale HGX platform engineered for GPU-centric AI training and accelerated HPC, pairing 8x NVIDIA HGX H200 GPUs on a unified baseboard with a dual-socket AMD EPYC SP5 CPU foundation (9005/9004 generations). This architecture is designed to keep large model pipelines fed, using high core density and high TDP headroom to sustain data preparation, orchestration, and CPU-bound preprocessing without constraining GPU utilization.

To support large-batch training and high-throughput inference, the G893-ZD1-AAX3 Gigabyte integrates a 24-slot DDR5 ECC RDIMM memory topology (up to 6TB) for high-capacity host memory and stable long-duration runs. PCIe 5.0 expansion enables scalable I/O and accelerator-adjacent connectivity, while 8x hot-swap 2.5" NVMe bays provide low-latency local datasets and checkpoint targets; dual M.2 boot options isolate the OS from high-IOPS data volumes. Integrated 2x 10GbE and an AST2600 BMC with IPMI remote management simplify provisioning, fleet monitoring, and service workflows in production clusters.

Why Choose the G893-ZD1-AAX3 Gigabyte?

The G893-ZD1-AAX3 Gigabyte delivers a pragmatic density-to-performance profile by consolidating 8x HGX H200 with NVLink/NVSwitch into a serviceable 8U envelope, reducing node count, cabling complexity, and inter-node latency for scale-up workloads. Dual SP5 CPUs, PCIe 5.0 lanes, and redundant hot-swap power are aligned for enterprise availability, predictable scaling, and repeatable deployment patterns across AI and HPC racks.

Gigabyte designs this platform around datacenter-operational requirements: remote lifecycle control, component serviceability, and power delivery tuned for sustained accelerator loads, supporting modern rack standards and thermal practices.

Key Applications:

Large language model training
Multimodal foundation model training
High-throughput batch inference
GPU-accelerated simulation and computational science
Visualization and rendering
GPU-accelerated VDI and virtualization consolidation

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your AI cluster requirements for the G893-ZD1-AAX3 Gigabyte, with an extended warranty option up to 6 years to protect long-lived infrastructure investments.

Technical details of G893-ZD1-AAX3 Gigabyte

Type:

Rack

Suitability:

Server

CPU Socket:

SP5 (LGA 6096)

CPU Family:

EPYC

Supported CPU Manufacturer:

AMD

Supported CPU Type:

EPYC 9004 EPYC 9005

Supported CPU Generation:

4th 5th

Supported CPU Codename:

Genoa Turin

Nodes:

RAM Type:

RDIMM

RAM Max. Total:

6TB

RAM Slots Total:

ECC Support:

ECC

Bays:

8x 2.5" HotSwap NVMe

Hot-Swap:

Yes

RAID Support:

PCIe:

8x PCIe 5.0 x16 (x16 mode) 4x PCIe 5.0 x16 (x16 mode)

Expansion Slots:

4x PCIe 5.0 x16 Full-Height Half-Length 8x PCIe 5.0 x16 Full-Height Half-Length

Onboard Network LAN:

2x RJ45 10 Gbps Intel X710-AT2

Onboard Network LAN Speed:

10 Gbps

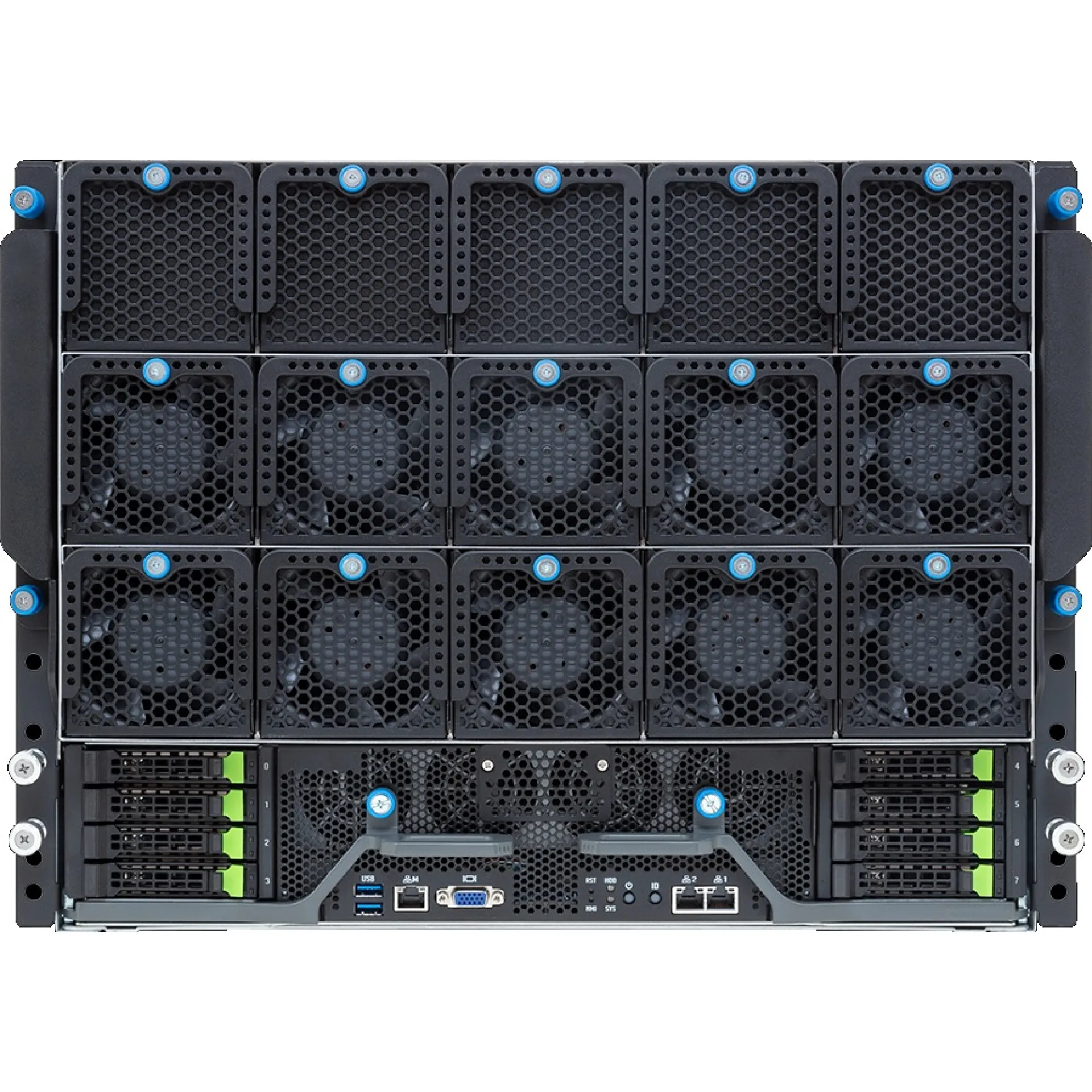

Front I/O Ports:

VGA NMI button System status LED Storage Activity LED MLAN Power button with LED System Reset button USB UID button with LED

IPMI / BMC integrated:

Yes

Chipset:

System-on-Chip (SoC)

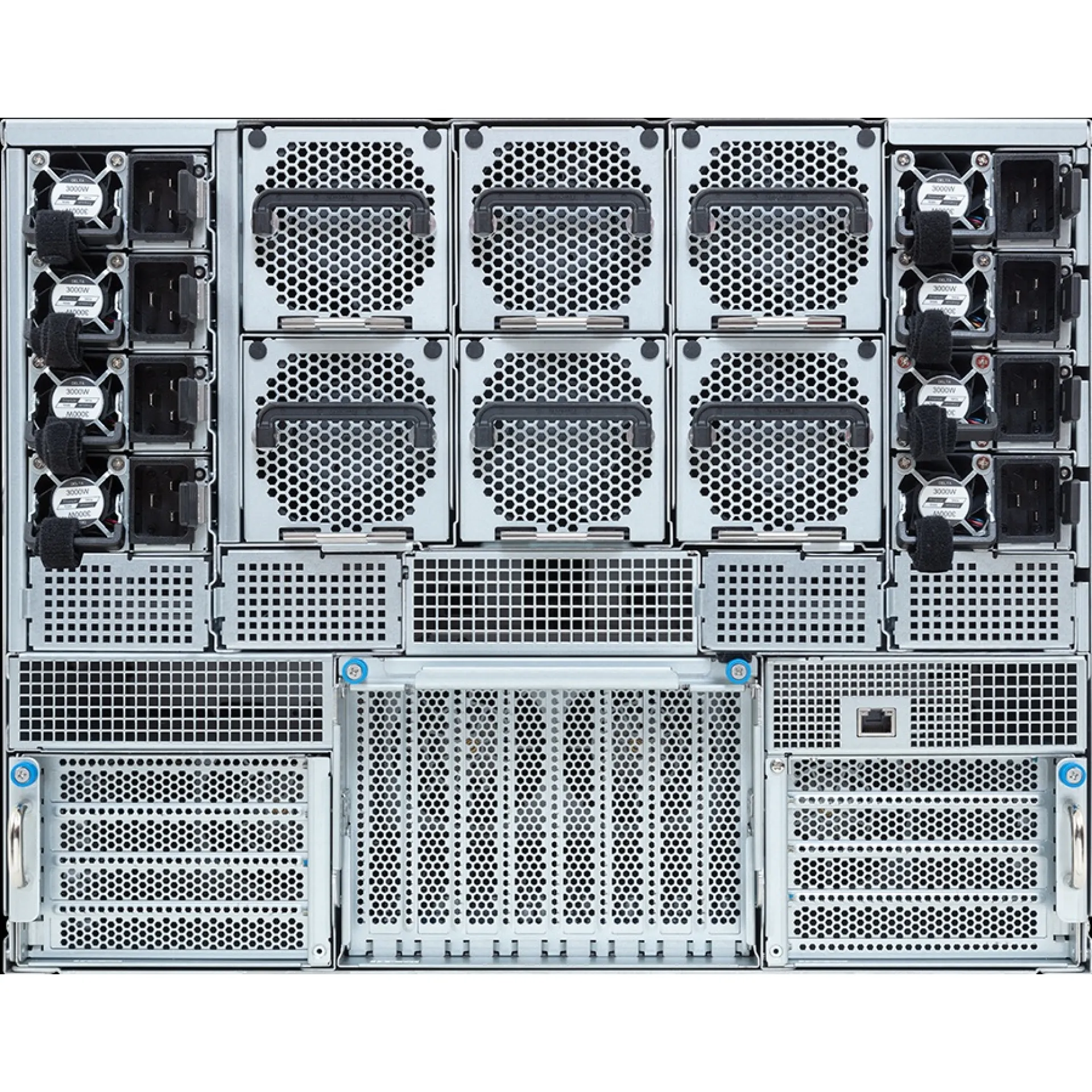

Power Supply Wattage:

3000W

Redundant Power Supply:

Yes

Number of Power Supplies:

80 Plus Certificate:

80 Plus Titanium

Quantity of Cooler:

Performance Class:

Enterprise-Class

TDP (Thermal Design Power):

500W

Applications:

AI/Deep Learning AI Inference High End Enterprise Server Virtualization GPU Server Machine Learning (ML) High-Performance Computing (HPC) Enterprise

Onboard CPU:

Onboard Graphic:

Aspeed AST2600

Graphics Manufacturer:

Nvidia

Pre-installed Software:

ASPEED AST2600 Baseboard Management Controller (BMC) GIGABYTE Management Console web interface

Certificates:

80 Plus Titanium

Chassis Intrusion:

OS:

Citrix Hypervisor (formerly XenServer) Red Hat Enterprise Linux SUSE Linux Enterprise Server Ubuntu VMware ESXi Windows Server

Operating Temperature:

10°C to 30°C

Non Operating Temperature:

-40°C to 60°C

Operating Relative Humidity:

8°C to 80°C

Non-operating Relative Humidity:

20°C to 95°C

How long is the Warranty and how you can get technical support for G893-ZD1-AAX3 Gigabyte

Warranty:	36 months (part)
RMA Url:	https://www.gigabyte.com/Support/Consumer/Warranty
Description:	Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard.
