90MB1J80-M0EAY0 ASUS Micro-ATX Single V1 (LGA 1851) 4 DIMM Slots Mainboard

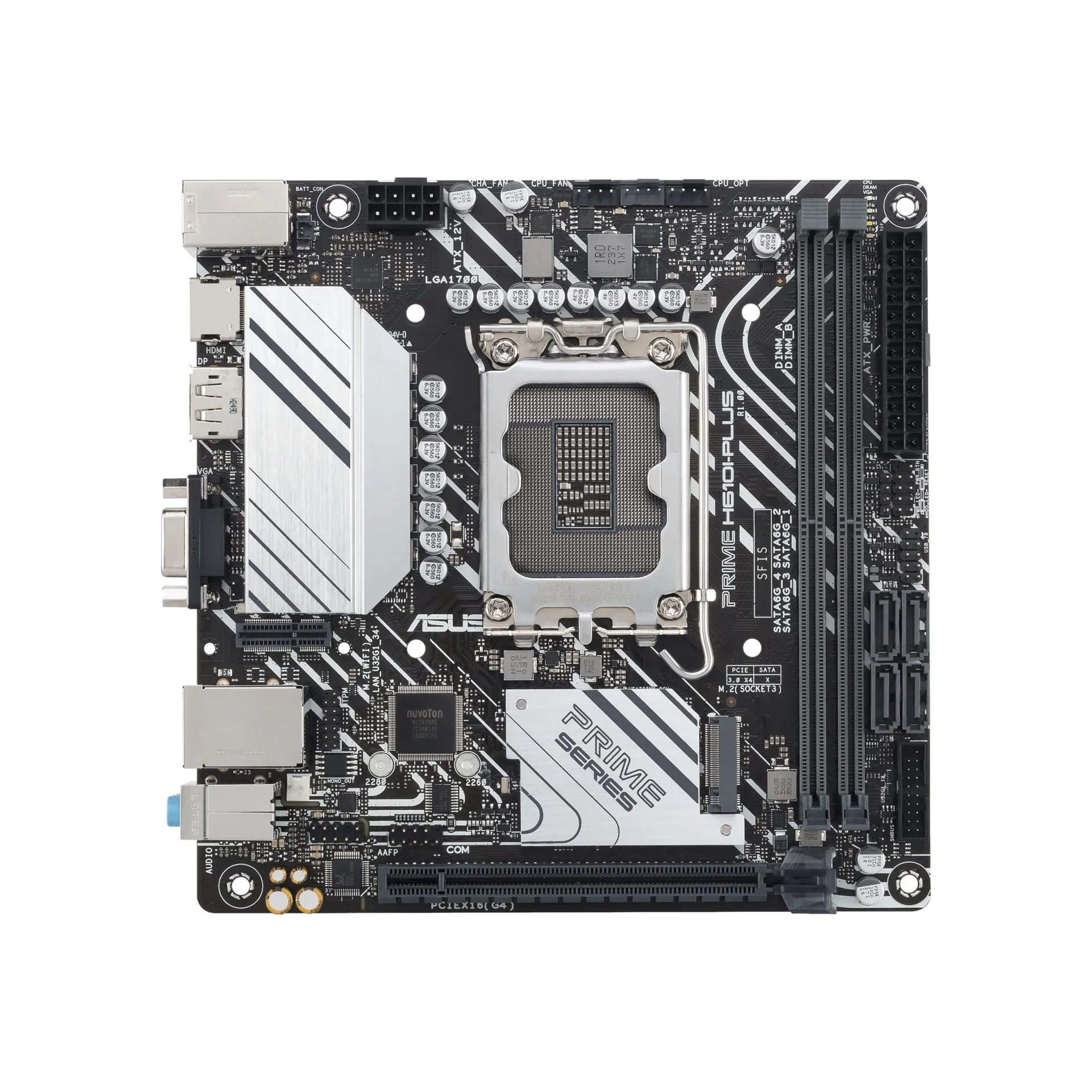

*Picture may not be exactly the same as the product

Get extra volume discount for 90MB1J80-M0EAY0 and save cash:

Quantity	Unit price
To 9	€231.00
To 19	€220.00 €231.00 (4.76% saved)
To 49	€215.00 €231.00 (6.93% saved)
From 50	€208.00 €231.00 (9.96% saved)

Product line:

Prime

See all ASUS

See other ASUS products

€231.00

In stock

Happyware Article Number:

SH5M5223-239138

Manufacturer Number:

90MB1J80-M0EAY0

Brand:

ASUS

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

90MB1J80-M0EAY0

High-Density Micro-ATX Intel Z890 Desktop Motherboard with PCIe 5.0 Expansion and Wi‑Fi 7 using the 90MB1J80-M0EAY0

The 90MB1J80-M0EAY0 is a Micro-ATX ASUS Prime platform designed for Intel LGA1851 Core Ultra and Core Ultra 200S builds where compact chassis constraints must not limit I/O bandwidth. Its Intel Z890 foundation targets creator workstations and SMB desktops that rely on discrete GPU acceleration while preserving robust peripheral connectivity and predictable deployment behavior.

With 4x DDR5 DIMM slots in dual-channel, the 90MB1J80-M0EAY0 supports up to 256GB non-ECC capacity to sustain large project datasets, virtualization labs, and memory-resident compilation workloads. Expansion is engineered around a PCIe 5.0 x16 full-height slot for modern GPUs, complemented by PCIe 4.0 lanes for capture cards, high-speed NICs, or storage controllers. Storage architecture is balanced for tiering: 1x M.2 PCIe Gen5 for primary low-latency NVMe, 2x M.2 PCIe Gen4 for scratch or secondary volumes, and 6x SATA 6Gb/s for cost-efficient bulk capacity and backup rotation.

Why Choose the 90MB1J80-M0EAY0?

The 90MB1J80-M0EAY0 delivers a strong density-to-performance profile by combining PCIe Gen5 GPU readiness, multi-M.2 NVMe expansion, and integrated Wi‑Fi 7 plus 2.5GbE in a Micro-ATX footprint. It fits standardized desktop and edge deployments where scalable storage and expansion flexibility are required without moving to larger ATX platforms, while maintaining enterprise-friendly features such as TPM header, RAID support, and USB BIOS Flashback for controlled lifecycle management.

ASUS engineering emphasizes signal integrity, validated component selection, and firmware maturity aligned with modern DDR5 and PCIe 5.0 interoperability. The design supports current data centre and office standards for secure boot chains, reliable networking, and consistent platform bring-up across fleet deployments, even without out-of-band BMC management.

Key Applications:

Creator workstation builds with discrete GPU
Compact SMB office desktops
High-speed NVMe local storage tiers
Edge systems requiring Wi‑Fi 7 and 2.5GbE
Lab virtualization and test benches

At Happyware - Server Hardware you benefit from Non-Binding Offers tailored to the 90MB1J80-M0EAY0 integration scope and delivery targets, enabling procurement-ready configurations without commitment. For fleet rollouts, Bulk Order Discount supports cost-efficient standardization across multiple identical builds.

Technical details of 90MB1J80-M0EAY0

CPU Socket:

V1 (LGA 1851)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Core Ultra Core Ultra 200S

Form Factor:

Micro-ATX

Chipset:

Intel Z890

RAM Maximum Capacity:

256GB

Max RAM Frequency :

8666MHz

RAM Slots:

4 DIMM DDR5

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 4.0 x4 1 PCIe 5.0 x16 2 PCIe 4.0 x1

M.2 Slots:

1 PCIe Gen 5 M.2 2280 M-Key 1 WiFi+BT-Modul M.2 2230 E-Key 2 PCIe Gen 4 M.2 2280 M-Key

Network Ports:

1 RJ45 2.5 Gbps

ECC Support:

Non-ECC

Onboard Network:

Ethernet

Performance Class:

High performance

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x USB-C 3.2 Gen2 with DisplayPort 1.4 1x HDMI 2.1 1x DisplayPort 1.4

USB Ports:

2x USB 3.2 Gen 1 Header 1x USB-C 3.2 Gen 2x2 4x USB 3.2 Gen 1 Type-A 4x USB 2.0 header 1x USB 3.2 Gen 2 Type-A 1x USB-C 3.2 Gen 1 Header 2x USB 2.0 Type-A

Other Ports:

3x 3.5mm Klinke (Realtek ALC897) 2x Antennenanschluss Quick Connect 1x RJ-45 LAN Port

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

Wi-Fi 7

Bluetooth integrated:

5.4

Onboard Audio Chipset:

Realtek ALC897

Embedded:

GPIO Pins:

Card Reader:

How long is the Warranty and how you can get technical support for 90MB1J80-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
