90MB18N0-M0EAY0

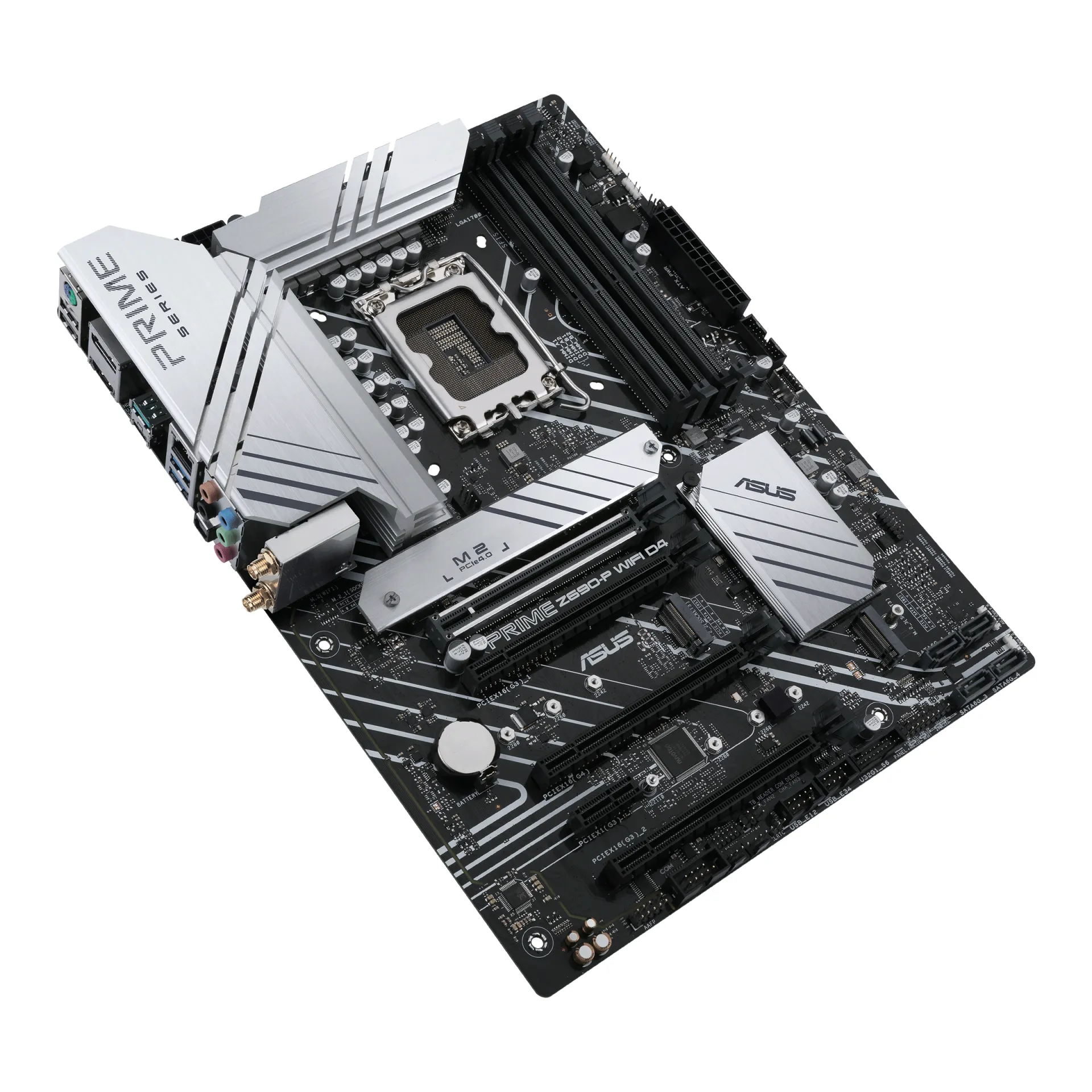

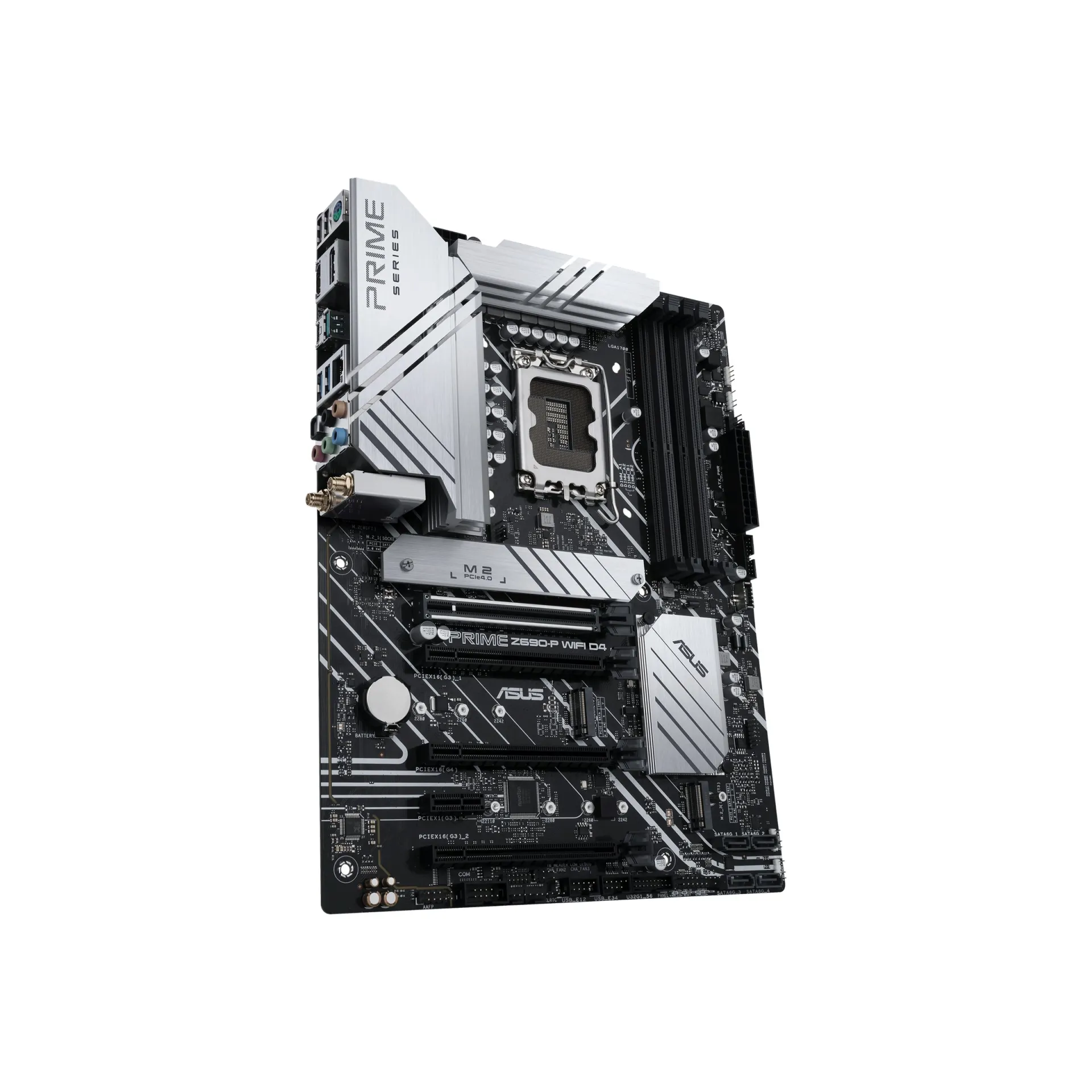

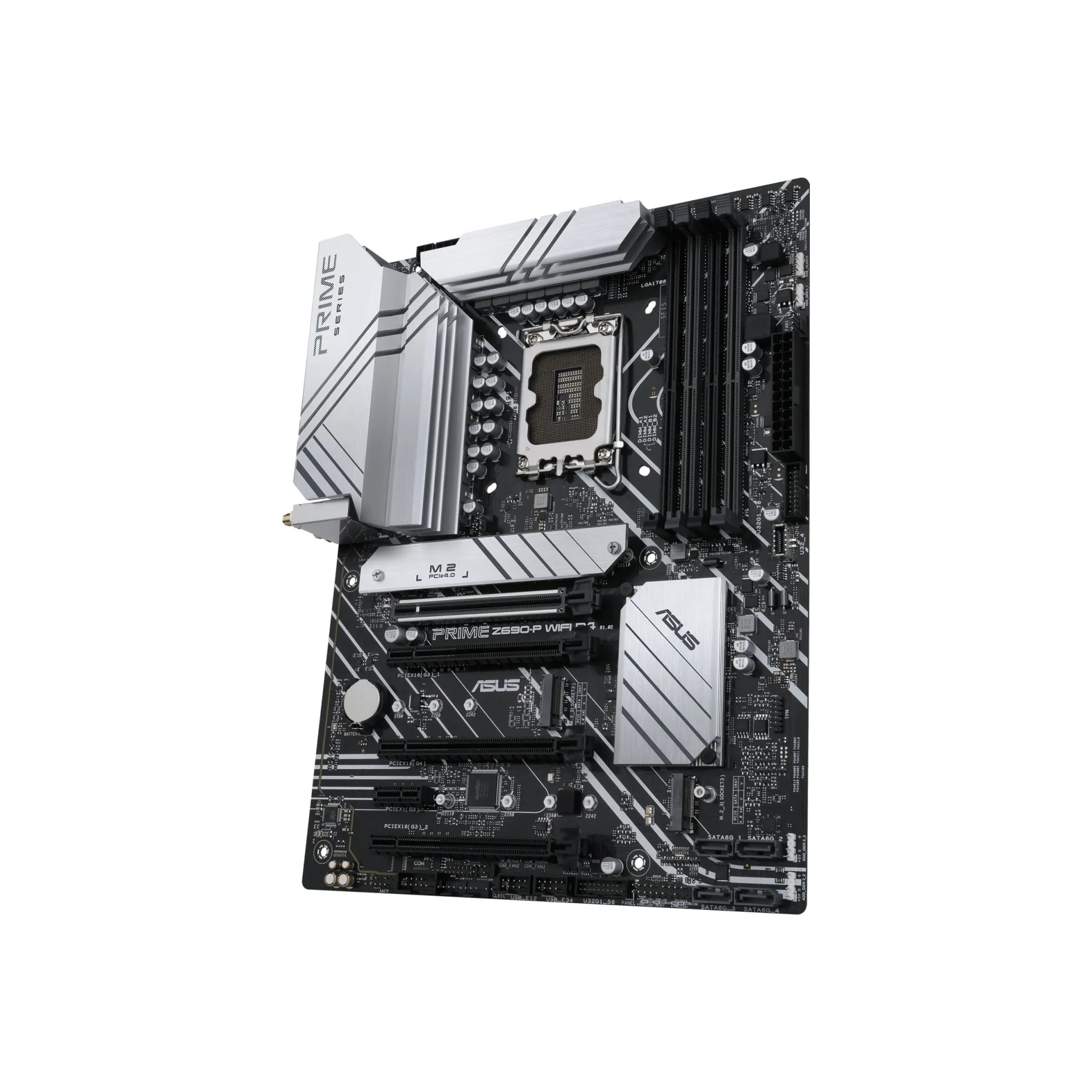

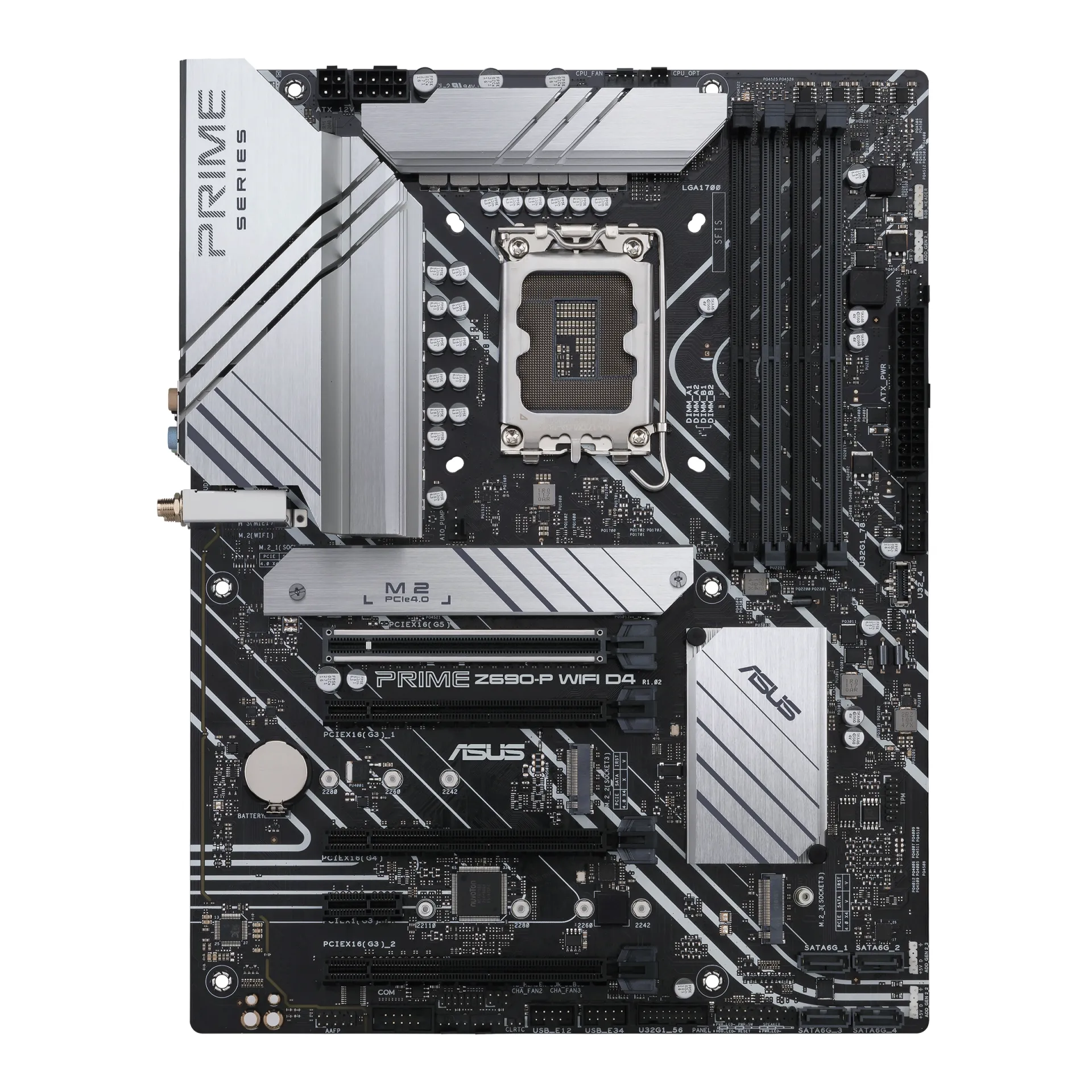

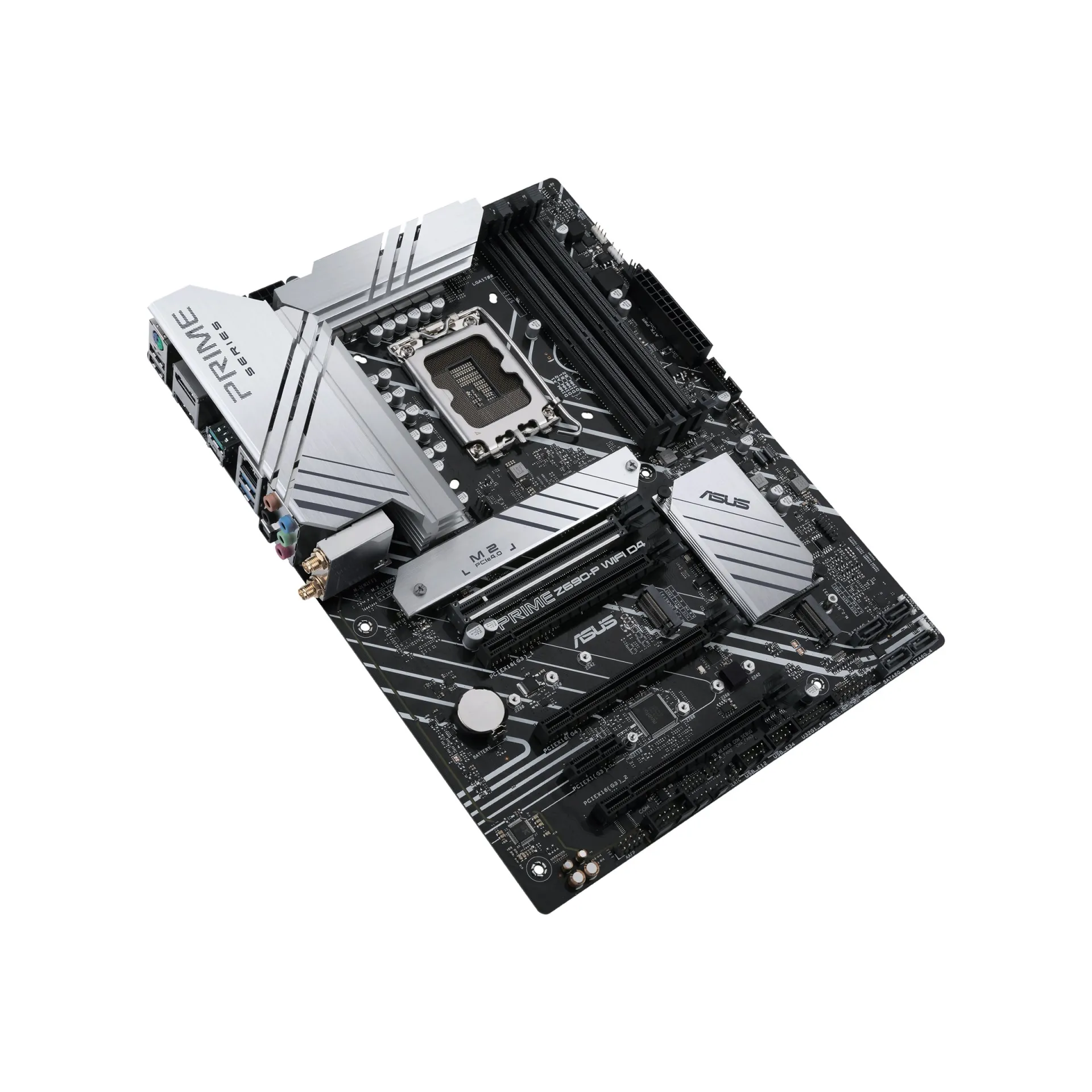

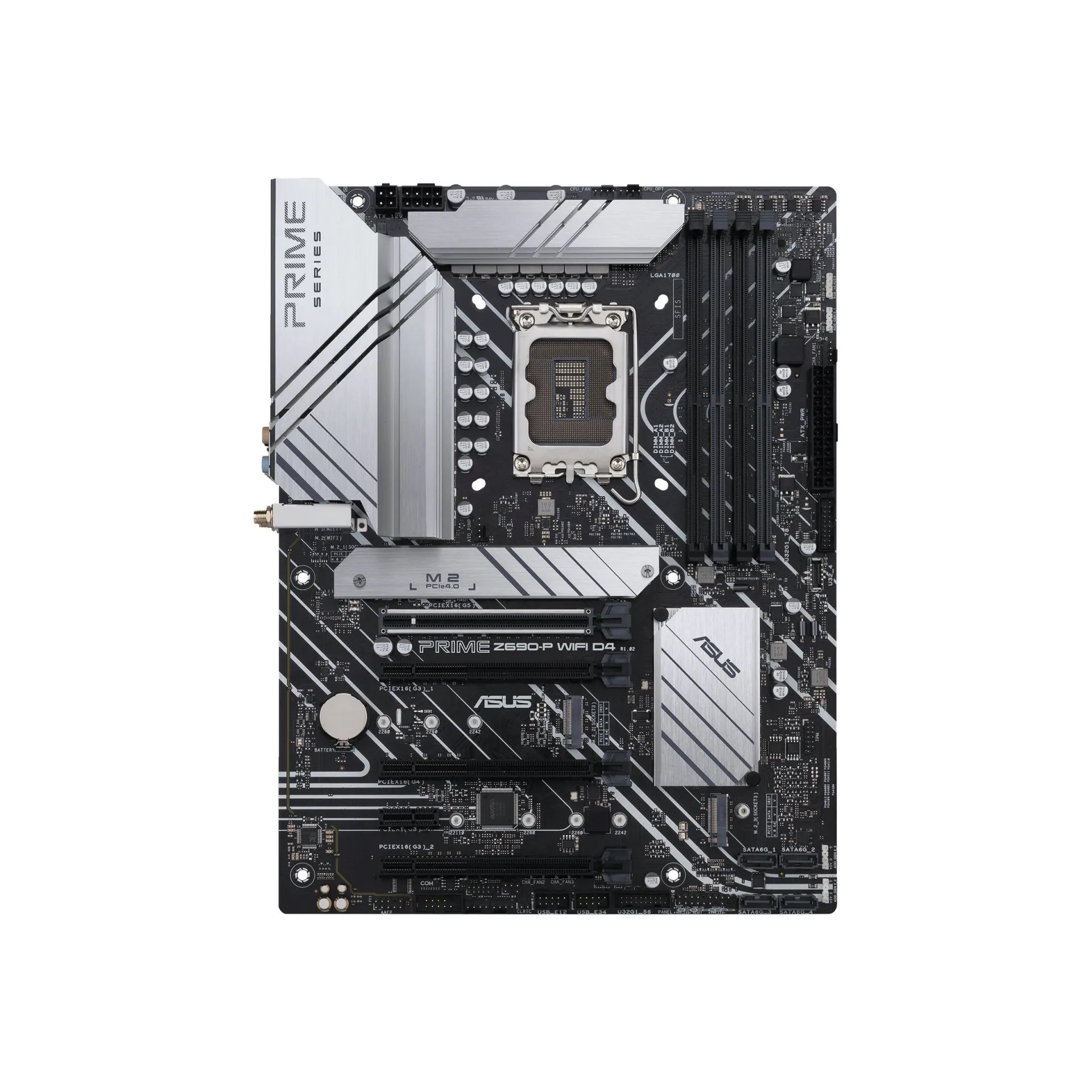

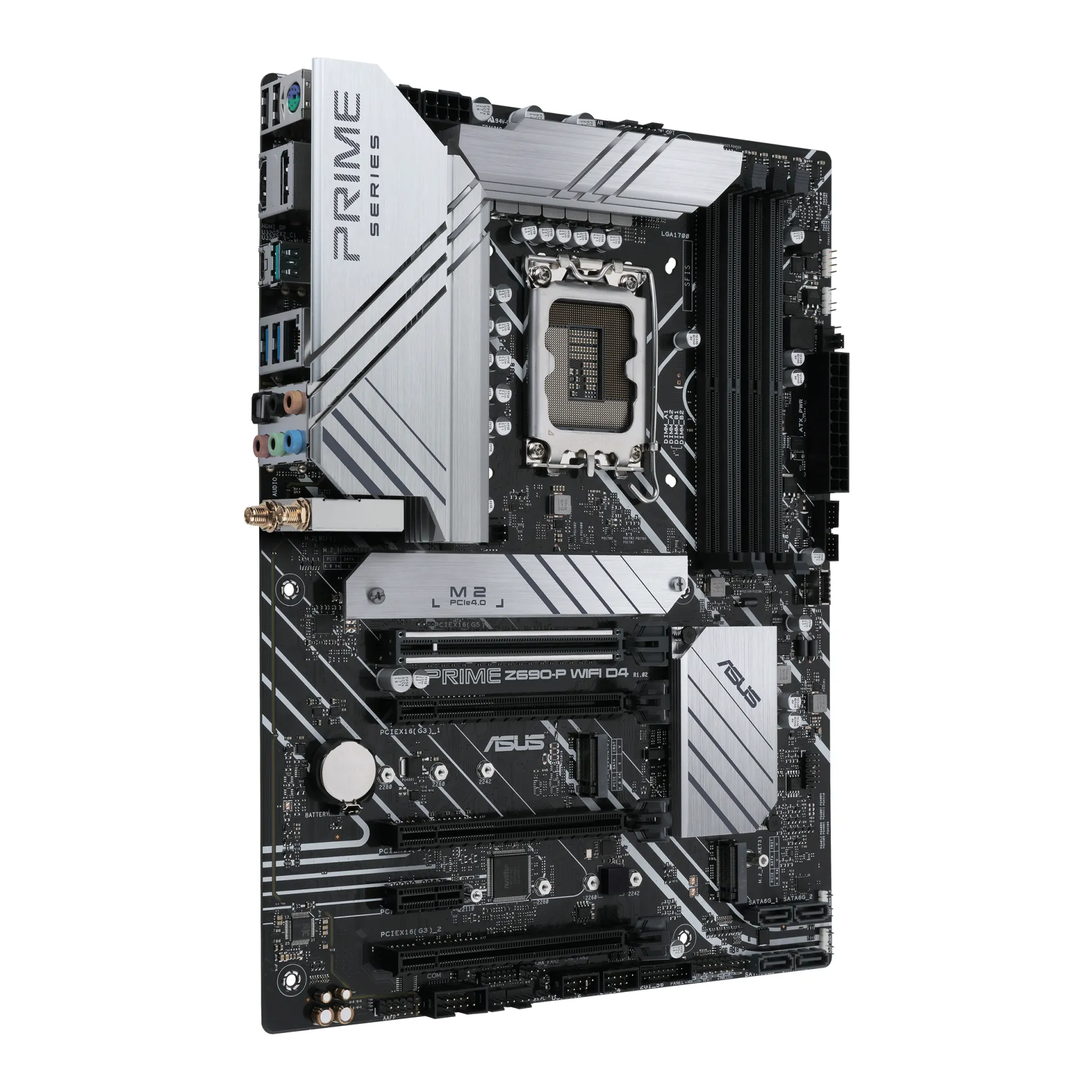

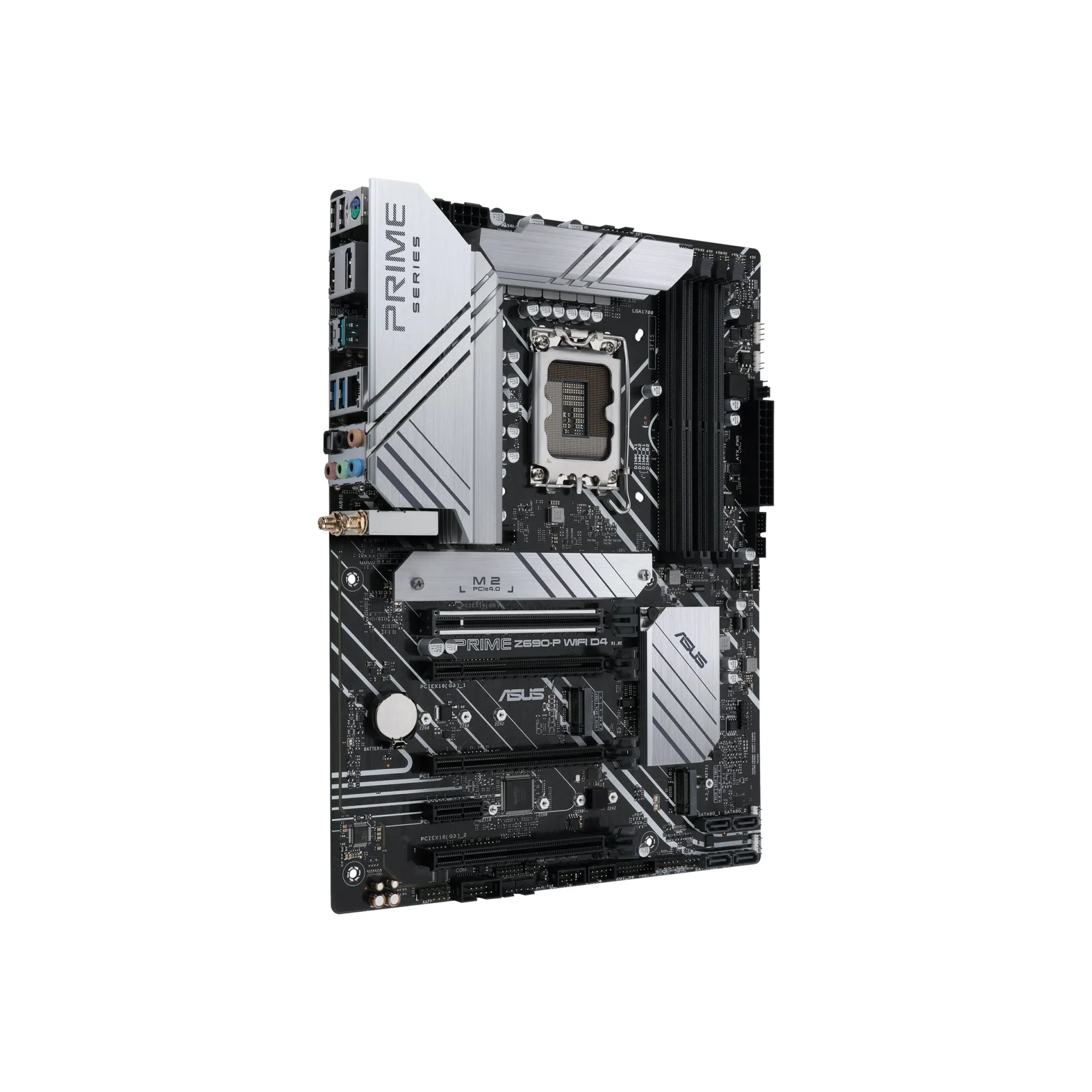

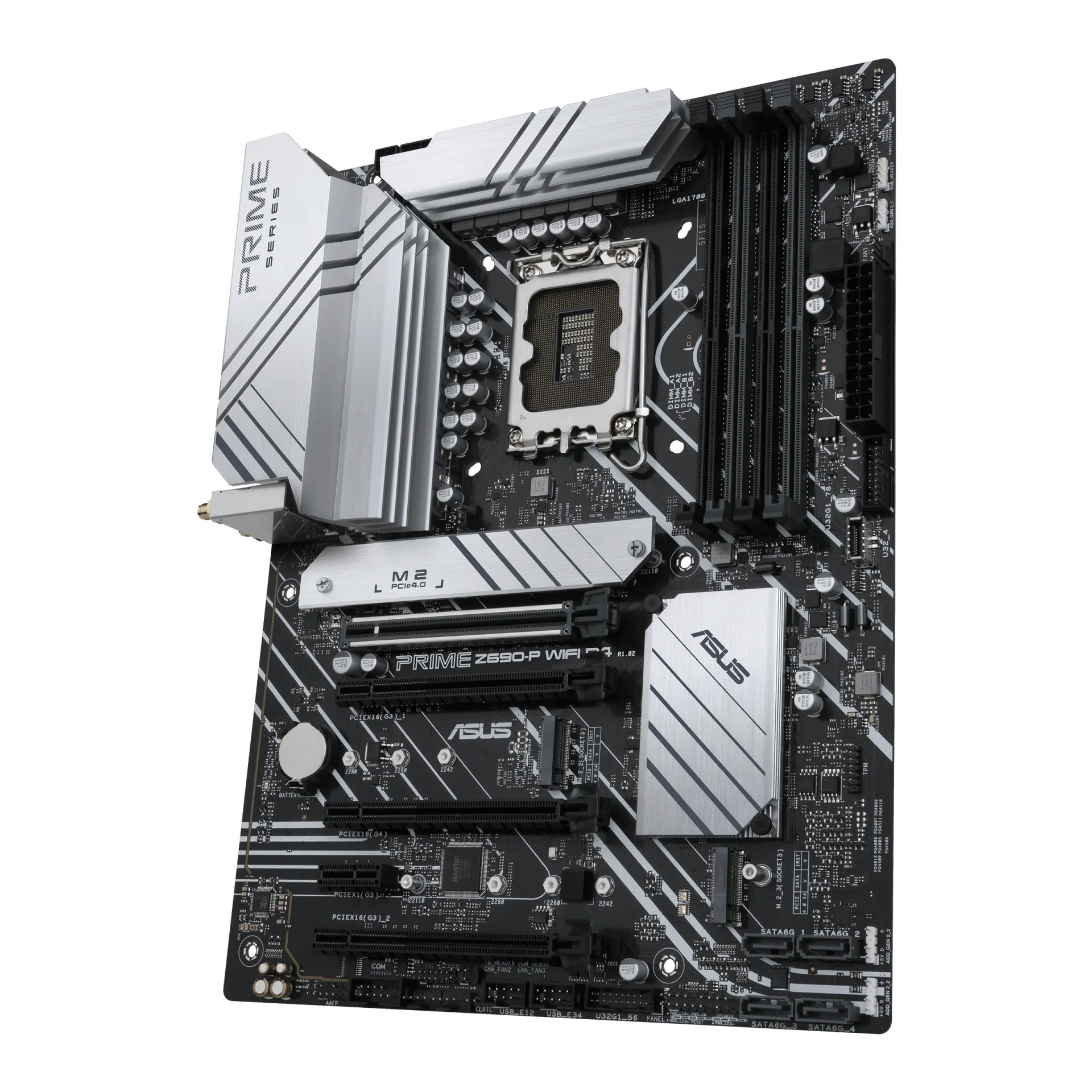

ATX Intel Z690 LGA1700 Workstation Motherboard featuring PCIe 5.0 Expansion with the 90MB18N0-M0EAY0

The 90MB18N0-M0EAY0 is an ASUS ATX motherboard built on the Intel Z690 LGA1700 platform to support 12th Gen Intel Core processors for dependable workstation, lab, and edge deployments. Its DDR4 memory architecture provides 4 DIMM slots up to 128GB non-ECC, balancing capacity and cost efficiency for general productivity, content creation, and lightweight virtualization where stable memory tuning and broad module compatibility are priorities.

For I/O scalability, the 90MB18N0-M0EAY0 delivers a PCIe 5.0 x16 primary slot for a single-GPU workstation build, complemented by additional PCIe slots for high-speed NICs, capture cards, and storage controllers. Storage design combines 3 M.2 sockets (PCIe 4.0 x4, with one supporting PCIe 4.0 x4 or SATA) plus 4 SATA 6Gb/s ports, enabling tiered NVMe/SATA layouts and platform RAID 0/1/5/10 for flexible performance and resiliency profiles.

Why Choose the 90MB18N0-M0EAY0?

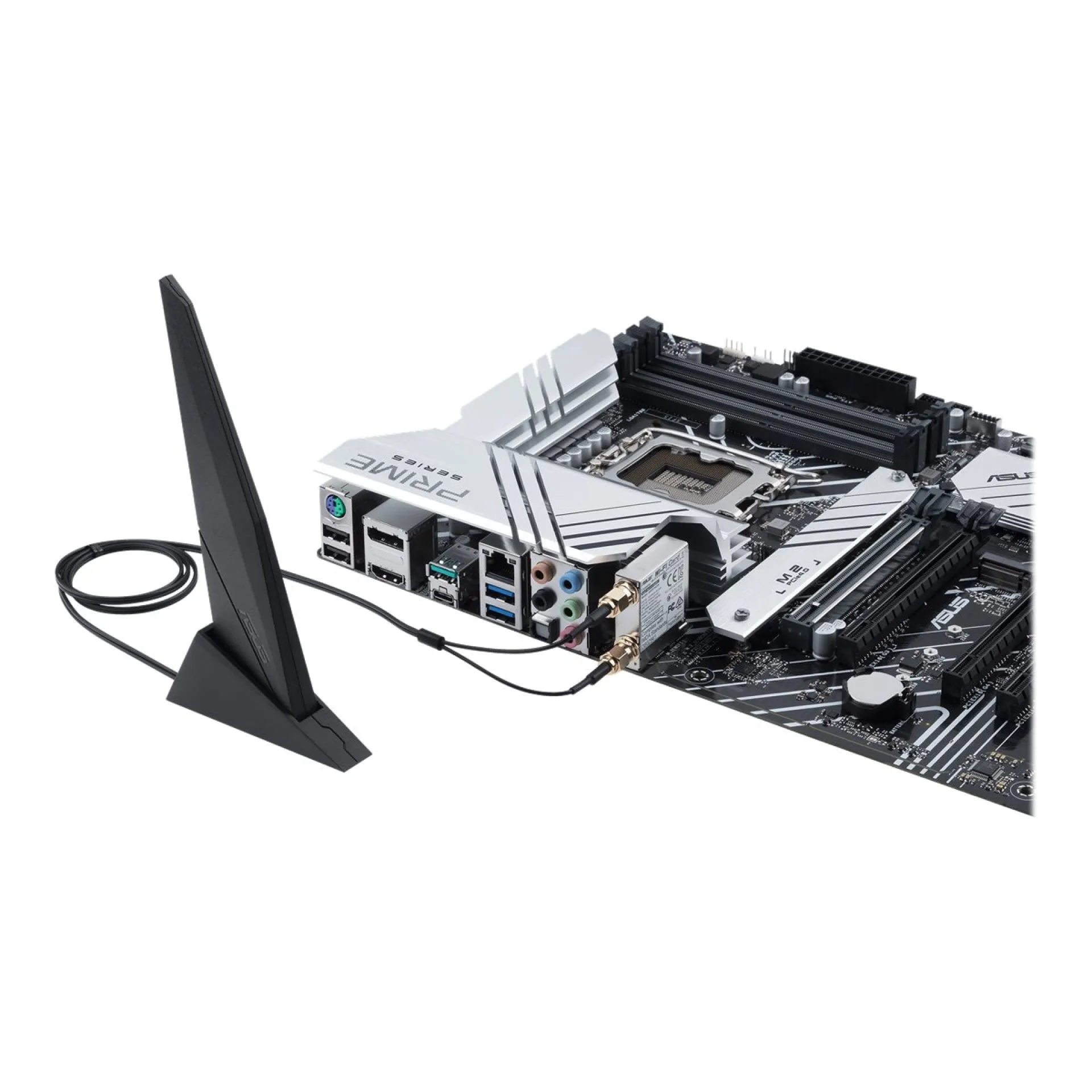

The 90MB18N0-M0EAY0 is engineered for a high density-to-capability ratio in standard ATX builds, pairing next-generation PCIe bandwidth with pragmatic DDR4 capacity and diverse storage lanes. It supports scalable expansion for evolving test/dev or creator workloads while maintaining enterprise-ready connectivity, including 2.5GbE and integrated Wi‑Fi 6/Bluetooth 5.2 for mixed wired and wireless deployment models.

ASUS focuses on power delivery stability, validated component selection, and firmware maturity to align the platform with modern data centre and lab standards. The 90MB18N0-M0EAY0 also includes TPM support for security baselines and predictable lifecycle management in controlled IT environments.

Key Applications:

General productivity workstations
Content creation and media editing
Single-GPU engineering desktops
Test/dev and lab virtualization nodes
Edge systems with mixed wired/wireless networking

At Happyware - Server Hardware you benefit from non-binding offers tailored to your exact 90MB18N0-M0EAY0 build requirements and an extended warranty up to 6 years to protect long-lived workstation and lab deployments.

Technical details of 90MB18N0-M0EAY0

CPU Socket:

V (LGA 1700)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Pentium Gold Celeron Core

Form Factor:

ATX

Chipset:

Intel Z690

RAM Maximum Capacity:

128GB

Max RAM Frequency :

5333MHz

RAM Slots:

4 DIMM DDR4

PCIe Slots:

1 PCIe 3.0 x1 1 PCIe 4.0 x16 1 PCIe 5.0 x16 2 PCIe 3.0 x16

M.2 Slots:

1 PCIe 4.0 x4 M.2 2280/2260/2242 M-Key 1 PCIe 4.0 x4 M.2 22110/2280/2260/2242 M-Key 1 PCIe 4.0 x4; SATA M.2 22110/2280/2260/2242 M-Key 1 WiFi+BT-Modul M.2 2230 E-Key

Network Ports:

1 RJ45 2.5 Gbps

ECC Support:

Non-ECC

Onboard Network:

Ethernet

Suitability:

Gaming Desktop

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x HDMI 2.1 1x DisplayPort 1.4

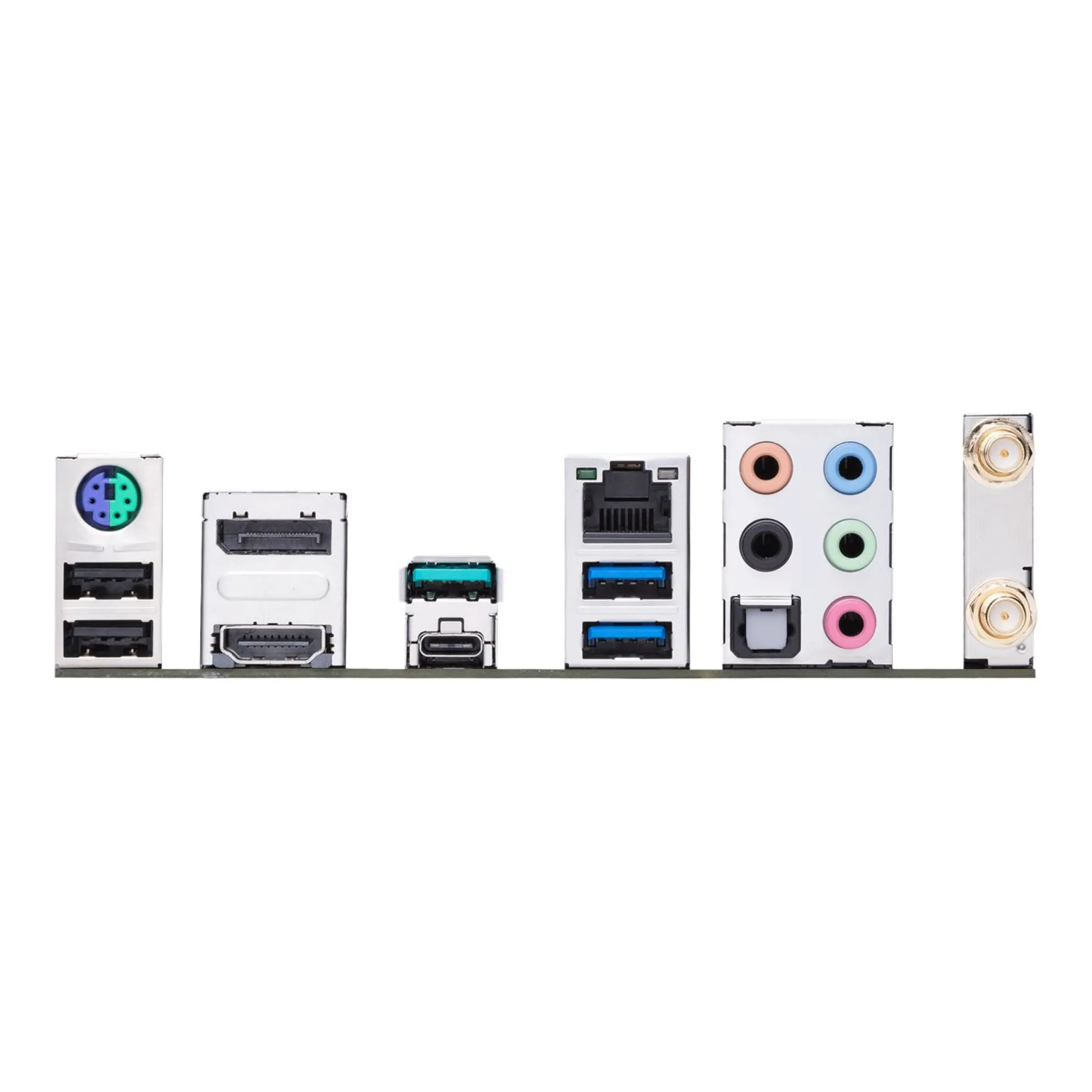

USB Ports:

4x USB 2.0 Type-A 2x USB 3.0 Type-A 1x USB 3.1 Type-A 1x USB 3.2 Type-C 2x USB 2.0 Type-A 4x USB 3.0 Type-A 1x USB 3.0 Type-C

Other Ports:

1x Serial Port

Trusted Platform Module (TPM):

Yes

Wi-Fi Support:

Wi-Fi 6 (802.11ax)

Bluetooth integrated:

5.2

Embedded:

How long is the Warranty and how you can get technical support for 90MB18N0-M0EAY0

Warranty:	36 months (part)
On site service:	yes
RMA Url:	https://www.asus.com/support/warranty-status-inquiry
Description:	In the event of an RMA, the item must be returned first. ASUS typically offers a replacement or repair service depending on the product and warranty terms. On-site service may be available for specific products such as Barbone/Full System. Carry-in.
