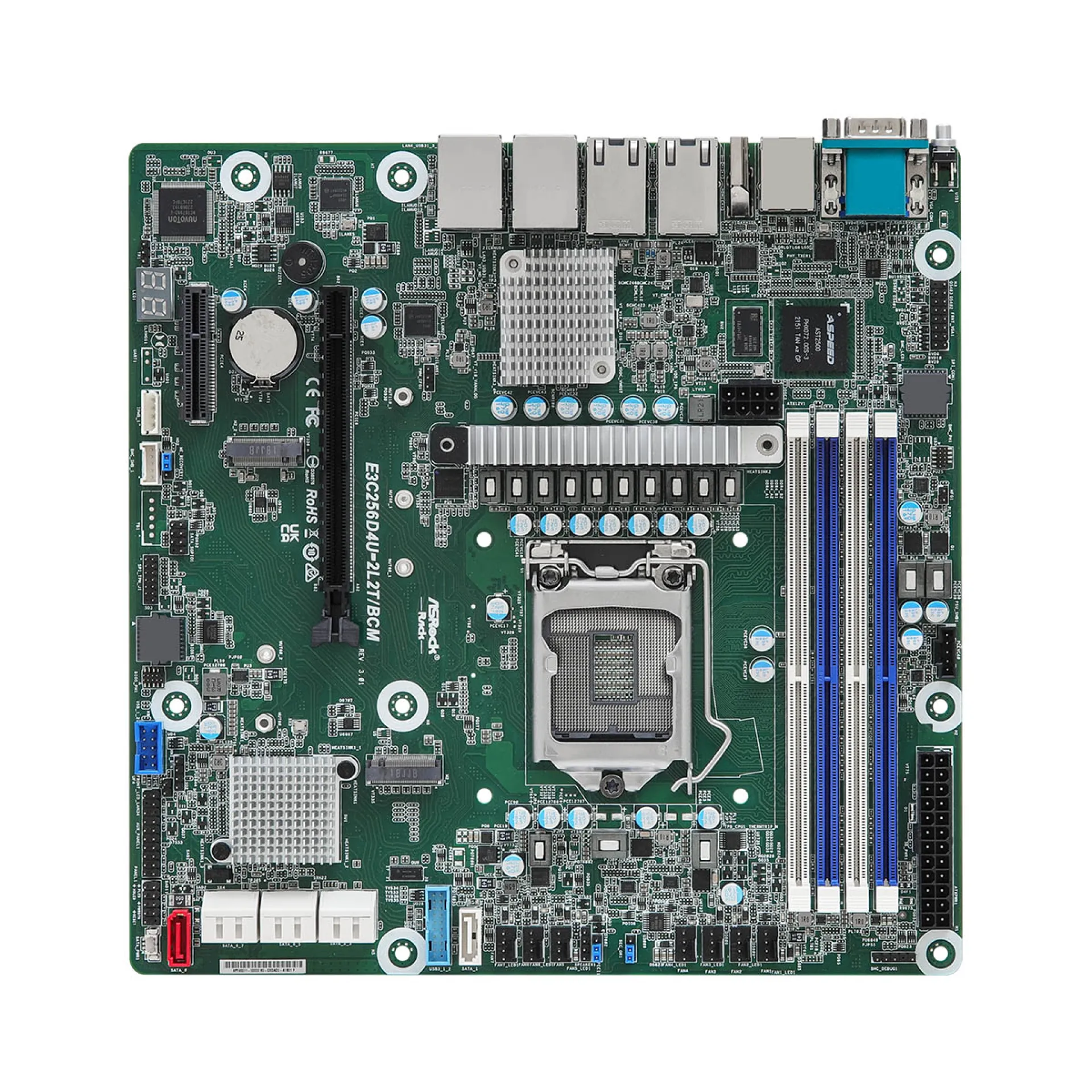

E3C256D4U-2L2T/BCM ASRock Micro-ATX Single H5 (LGA 1200) 4 DIMM Slots Server Mainboard

*Picture may not be exactly the same as the product

See all GPU Compatible Motherboard

See other ASRock products

€595.00

In stock

Happyware Article Number:

SE0M3092-453025

Manufacturer Number:

E3C256D4U-2L2T/BCM

Brand:

ASRock

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

E3C256D4U-2L2T/BCM

High-Density Micro-ATX Server Motherboard featuring Intel C256 and multi-rate networking with the E3C256D4U-2L2T/BCM

The E3C256D4U-2L2T/BCM is a Micro-ATX server motherboard built on the Intel C256 platform for single-socket LGA1200 Intel Xeon E processors, targeting edge compute and compact server chassis where predictable thermals and I/O density matter. Its dual-channel DDR4 architecture supports ECC and non-ECC UDIMMs across 4 DIMM slots, enabling resilient memory configurations for small VM hosts and branch consolidation.

For expansion, the E3C256D4U-2L2T/BCM provides PCIe 4.0 connectivity via one x16 slot and an additional PCIe 4.0 x4 slot, aligning with accelerator, NIC, or high-throughput HBA requirements without oversubscribing the platform. Storage is optimized for SATA-heavy builds with 8 SATA ports plus a SATA DOM header, complemented by dual M.2 M-Key sockets (PCIe 3.0 x4, with one supporting SATA) to separate OS, cache, and application tiers. Integrated IPMI/BMC management with ASPEED AST2500 and TPM support enable secure remote operations for unattended sites.

Why Choose the E3C256D4U-2L2T/BCM?

The E3C256D4U-2L2T/BCM is engineered to deliver a strong density-to-performance ratio by combining Xeon E compute, ECC-capable memory, and high port-count storage in a compact board footprint. With 2x 10GbE (Broadcom BCM57416) plus 2x 1GbE (Intel I210), it scales cleanly from single-node edge deployments to standardized multi-site rollouts while maintaining enterprise manageability through out-of-band control.

ASRock designs platforms like the E3C256D4U-2L2T/BCM around serviceability, validated controller selections, and data-centre-aligned interfaces, supporting reliable operation under 24/7 duty cycles and streamlined integration into existing monitoring and provisioning workflows.

Key Applications:

SMB and edge virtualization hosts
Firewall, VPN, and routing appliances
IDS/IPS and security gateways
SATA-dense NAS and backup nodes
Remote-managed branch servers

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment requirements for the E3C256D4U-2L2T/BCM, helping you standardize configurations across sites with clear procurement planning. Extended Warranty options up to 6 years further protect long-life edge and infrastructure builds.

Technical details of E3C256D4U-2L2T/BCM

CPU Socket: H5 (LGA 1200)

Onboard Memory: No

RAID Support: Yes

CPU Manufacturer: Intel

CPU Supported Type: Xeon

Form Factor: Micro-ATX

Chipset: Intel C256

Max RAM Frequency : 3200MHz

RAM Slots: 4 DIMM DDR4

RAM Channels: Dual-Channel

PCIe Slots: 1 PCIe 4.0 x4, 1 PCIe 4.0 x16

M.2 Slots: 1 PCIe 3.0 x4 M.2 2260, M.2 2280 M-Key, 1 PCIe 3.0 x4/SATA M.2 22110, M.2 2260, M.2 2280 M-Key

Network Ports: 2 RJ45 1 Gbps, 2 RJ45 10 Gbps

ECC Support: ECC, Non-ECC

Suitability: Server

Onboard CPU: No

RAID Support: Yes

Onboard Graphic: Yes

Video Output: 1x HDMI, 1x VGA

USB Ports: 4x USB 3.2 Gen 1 Type-A

Other Ports: 1x COM Port, 1x SATA DOM (Disk on Module)

Trusted Platform Module (TPM): Yes

BIOS: AMI 256Mb SPI Flash ROM

Embedded: No

How long is the Warranty and how you can get technical support for E3C256D4U-2L2T/BCM

Warranty:	12 months (part)
RMA Url:	https://www.asrock.com/support/?cat=RMA
Description:	Items must be returned first for RMA processing. No advanced replacements.
