90-GA5AZZ-00UANF ASRock Intel A750 8GB GDDR6 2200MHz 512GT/s Desktop GPU

High-Performance PCIe 4.0 Workstation GPU featuring Intel Xe-HPG acceleration with the 90-GA5AZZ-00UANF

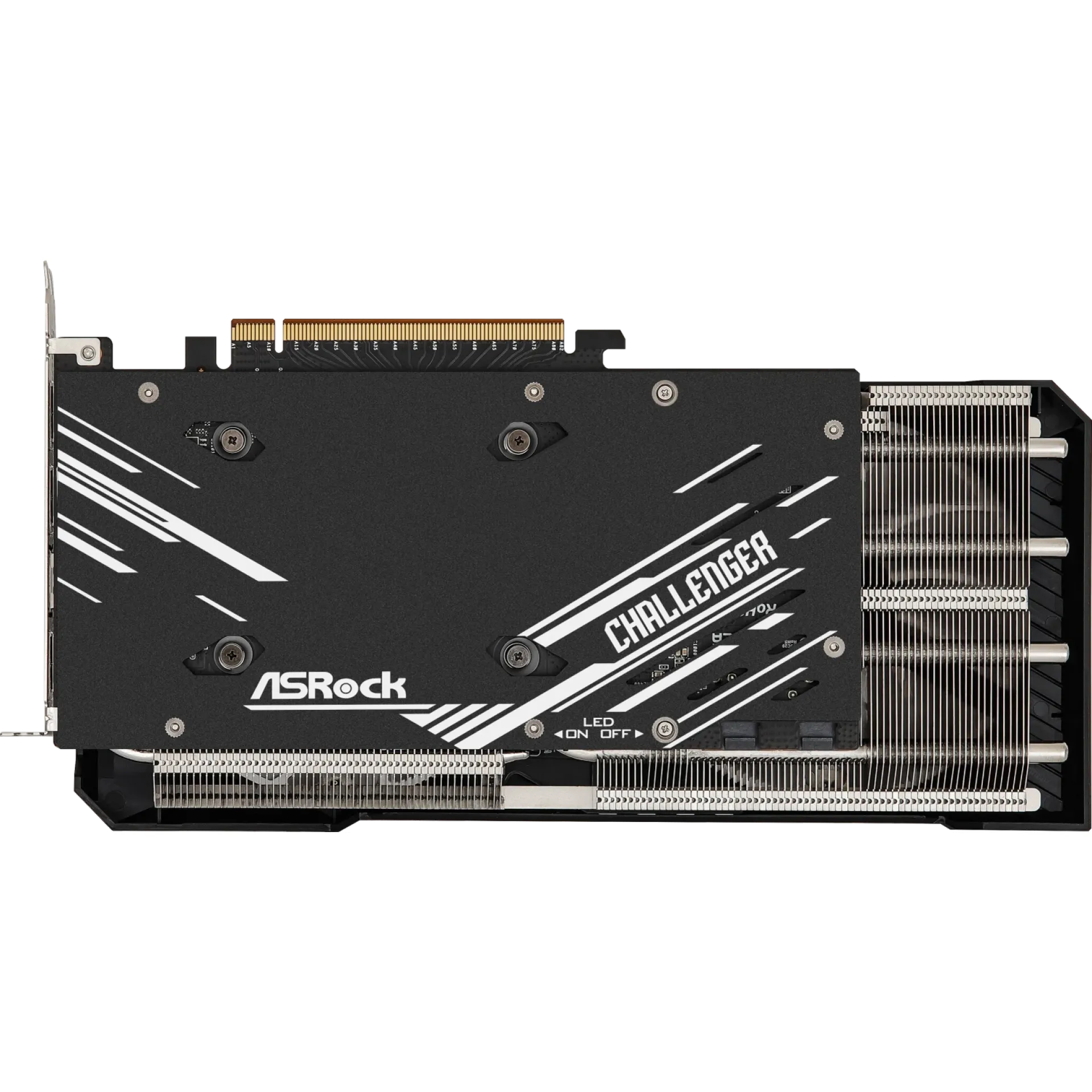

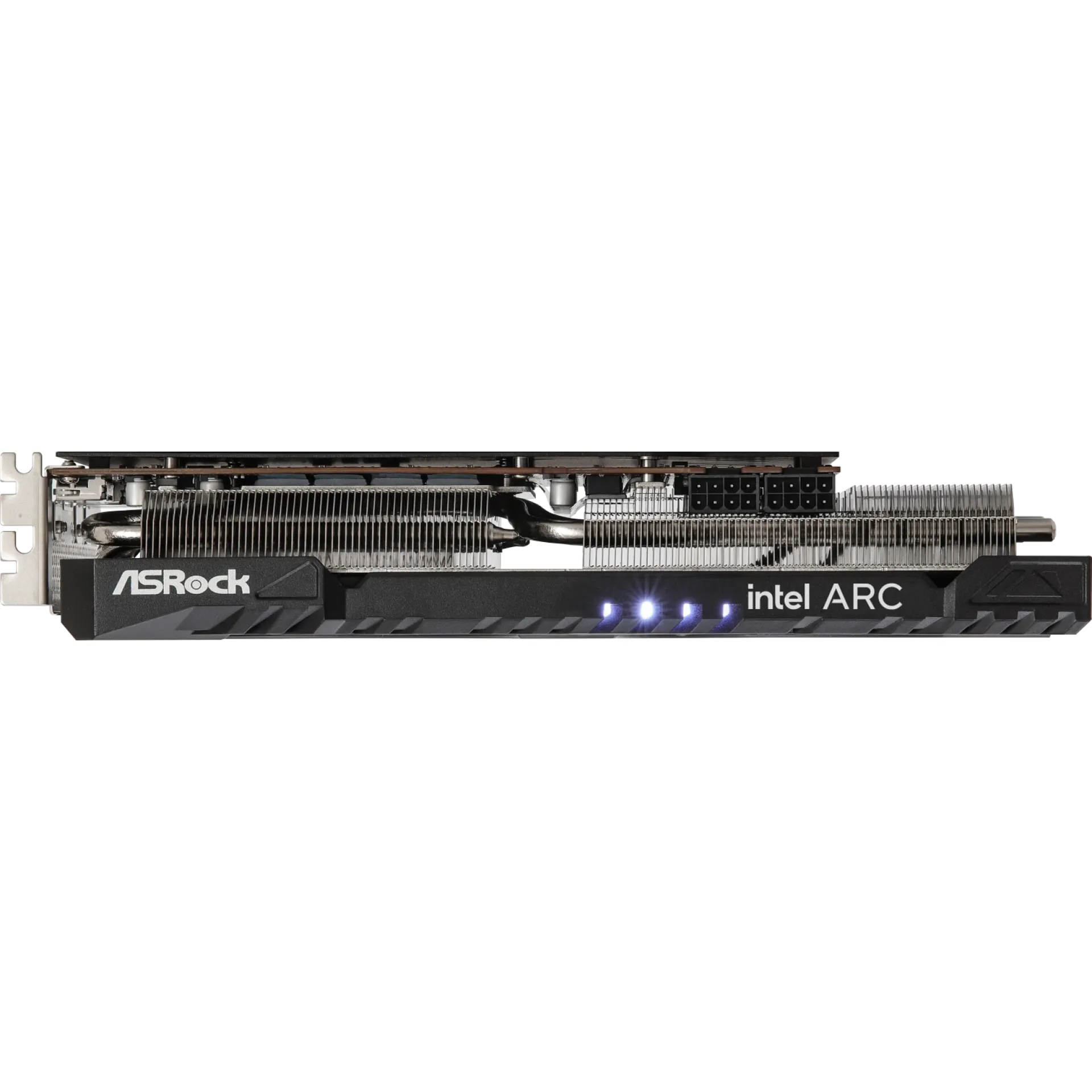

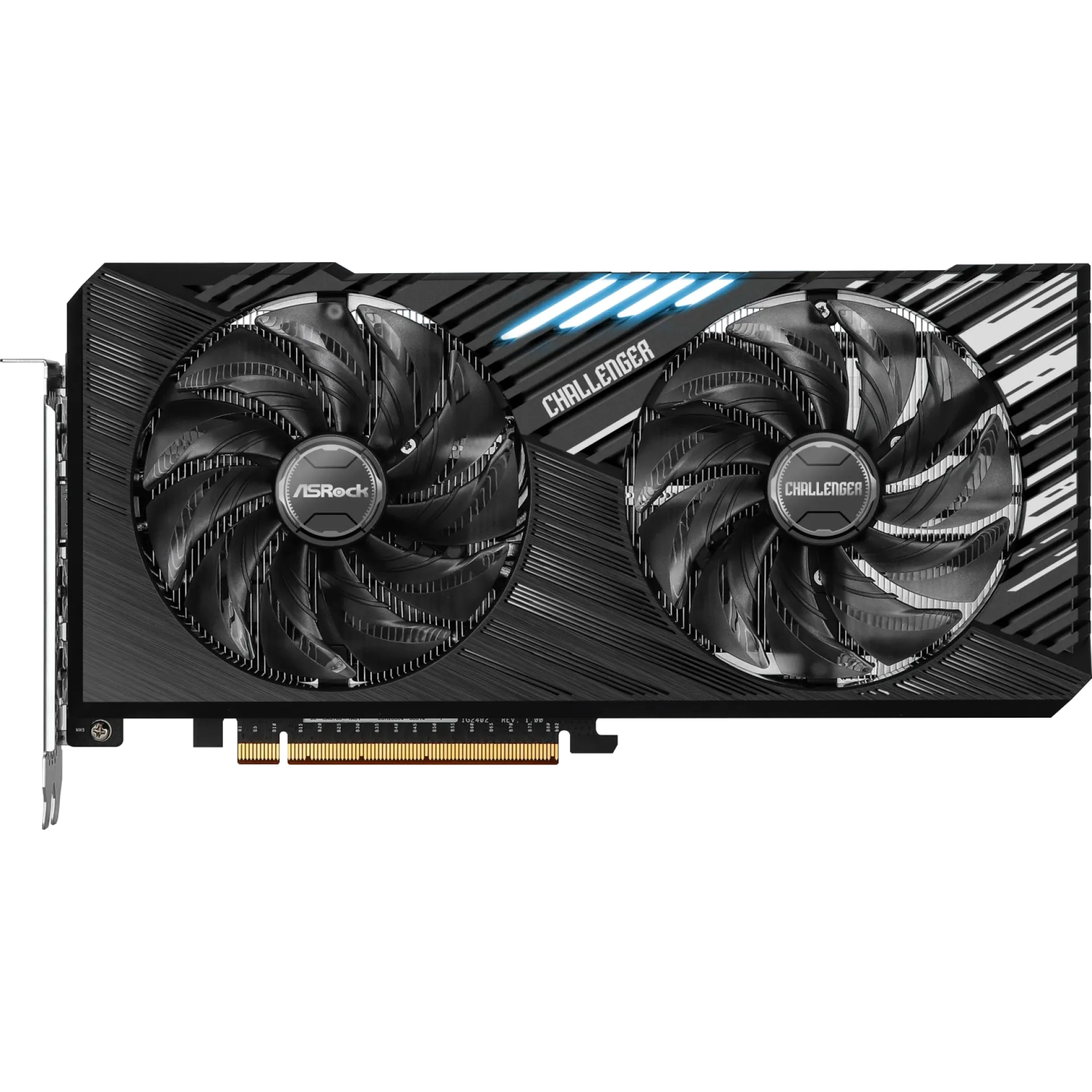

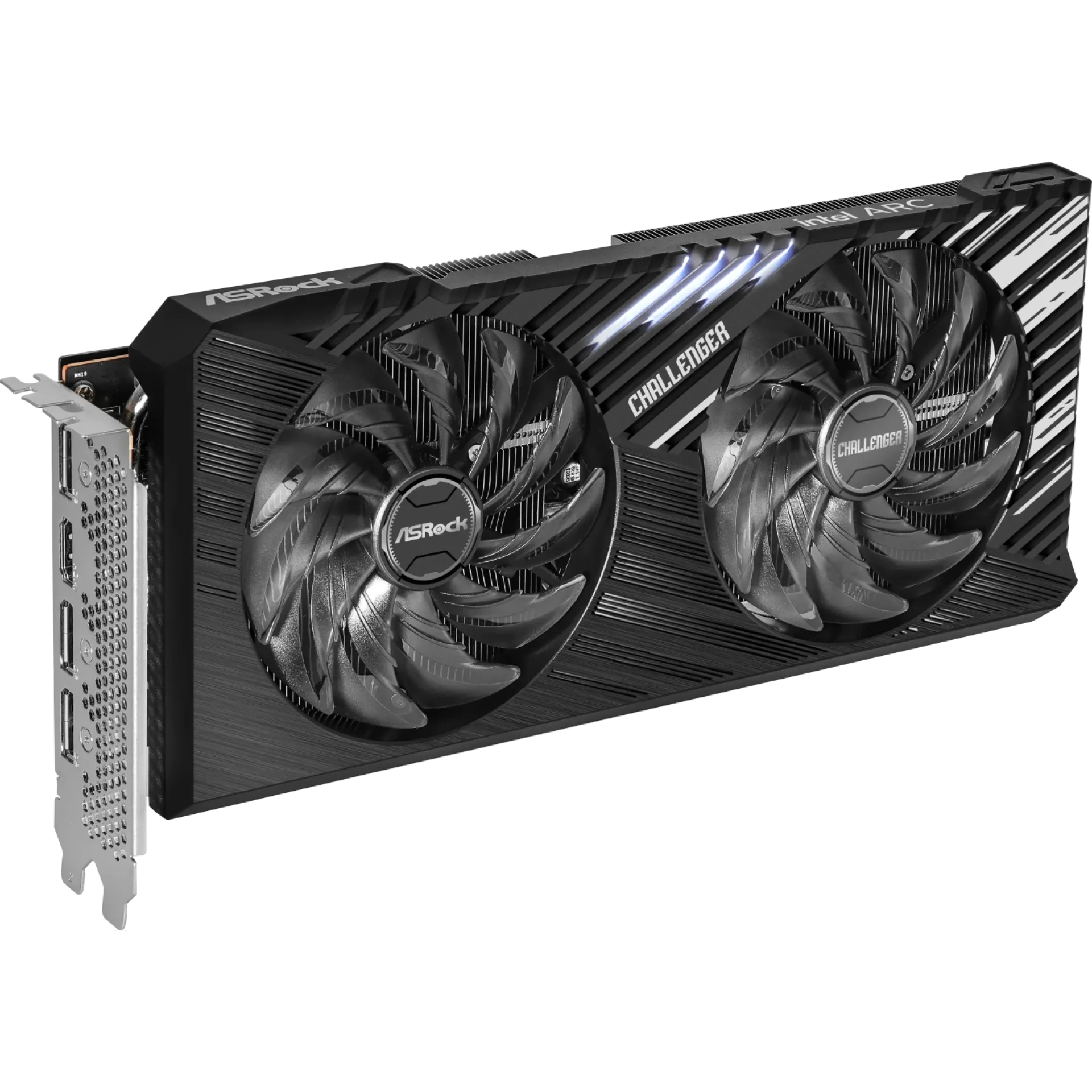

The 90-GA5AZZ-00UANF is a discrete PCIe add-in workstation graphics card based on Intel Arc A750 (Xe-HPG, 6nm), engineered for predictable interactive performance in CAD/visualization and GPU-accelerated media pipelines. Its 3584 shader design and boost clocks up to 2.2GHz target strong FP32 and FP16 throughput for render previews, encode workloads, and entry compute where FP64 is not required.

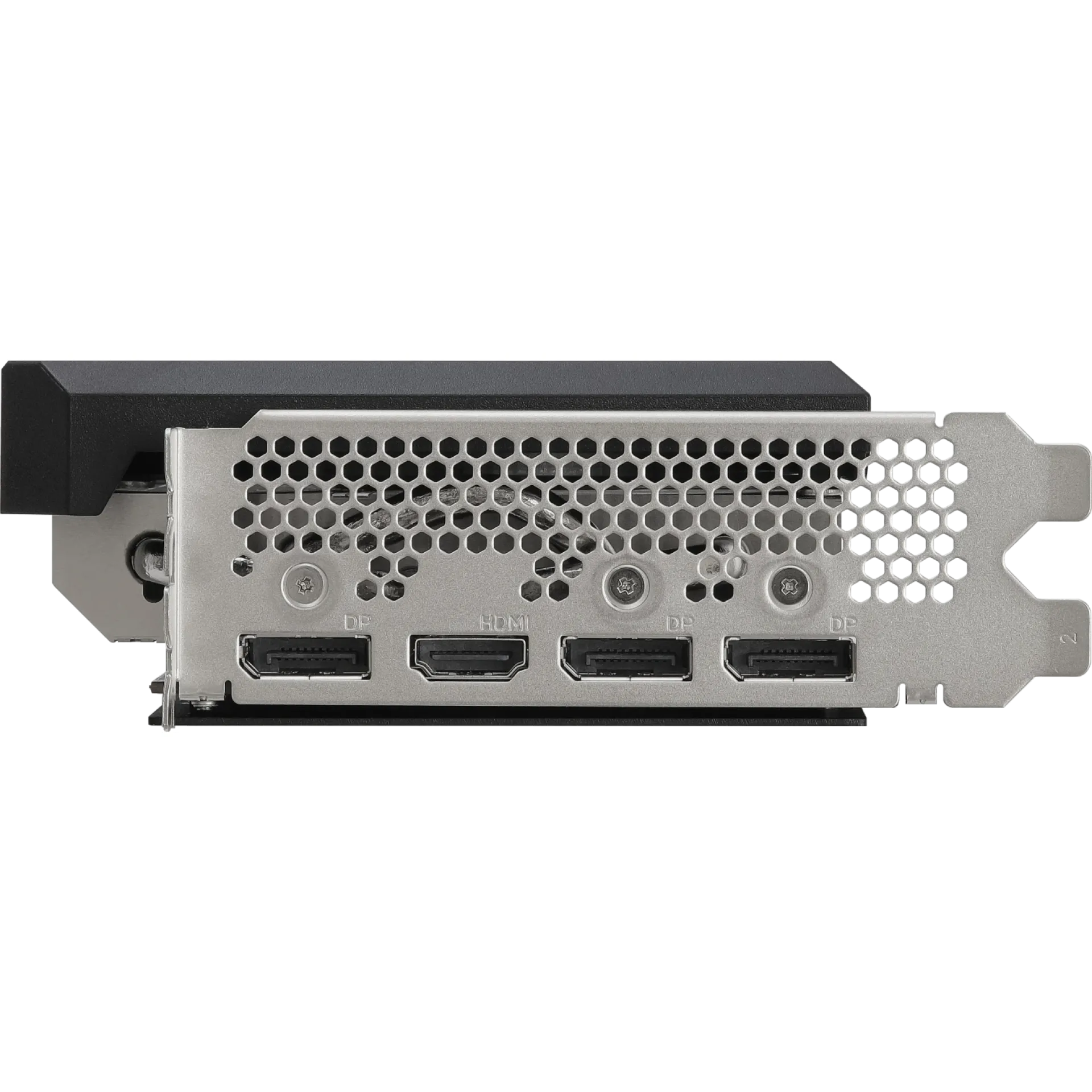

With 8GB GDDR6 on a 256-bit bus, the 90-GA5AZZ-00UANF delivers high memory bandwidth for texture-heavy viewports and multi-stream processing while maintaining a manageable footprint for standard workstation chassis. The PCIe 4.0 x16 interface enables low-latency data movement from modern CPU platforms, and the dual-slot (2.4-slot) cooling solution is aligned to sustained workloads. For display estates, the 90-GA5AZZ-00UANF supports up to 4 concurrent outputs via 3x DisplayPort 2.0 and 1x HDMI 2.0b, simplifying multi-monitor engineering desktops.

Why Choose the 90-GA5AZZ-00UANF?

The 90-GA5AZZ-00UANF provides a practical density-to-performance profile for workstations and compact edge compute nodes that need PCIe 4.0 bandwidth, multi-display capability, and consistent thermals under continuous loads. With 225W board power and dual 8-pin inputs, the 90-GA5AZZ-00UANF integrates cleanly into enterprise-qualified power and airflow designs while scaling across fleet deployments.

ASRock focuses on electrically robust PCB design, validated cooling mechanics, and compatibility with current workstation and server-adjacent platforms, supporting standardized integration practices and stable operation in modern data centre and engineering environments.

Key Applications:

• CAD and 3D visualization
• Multi-display engineering desktops
• GPU-accelerated encoding and transcoding
• Content creation rendering
• Entry AI inference and FP16/FP32 compute

At Happyware - Server Hardware you benefit from non-binding offers tailored to your workstation or project rollout, helping you standardize the 90-GA5AZZ-00UANF across teams with the right integration scope, and you can extend the warranty up to 6 years to improve lifecycle predictability.
