90-MXBSG0-A0UAYZ ASRock Micro-ATX Single AM5 2 DIMM Slots Mainboard
Get extra volume discount for 90-MXBSG0-A0UAYZ and save cash:
| Quantity | Unit price |
|---|---|
| To 19 |
€155.00
|
| To 49 |
€143.00
€155.00
(7.74% saved)
|
| To 99 |
€132.00
€155.00
(14.84% saved)
|
| From 100 |
€124.00
€155.00
(20% saved)
|
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
€155.00
Do you need help or a free consultation regarding our Services?
Your contact
90-MXBSG0-A0UAYZ

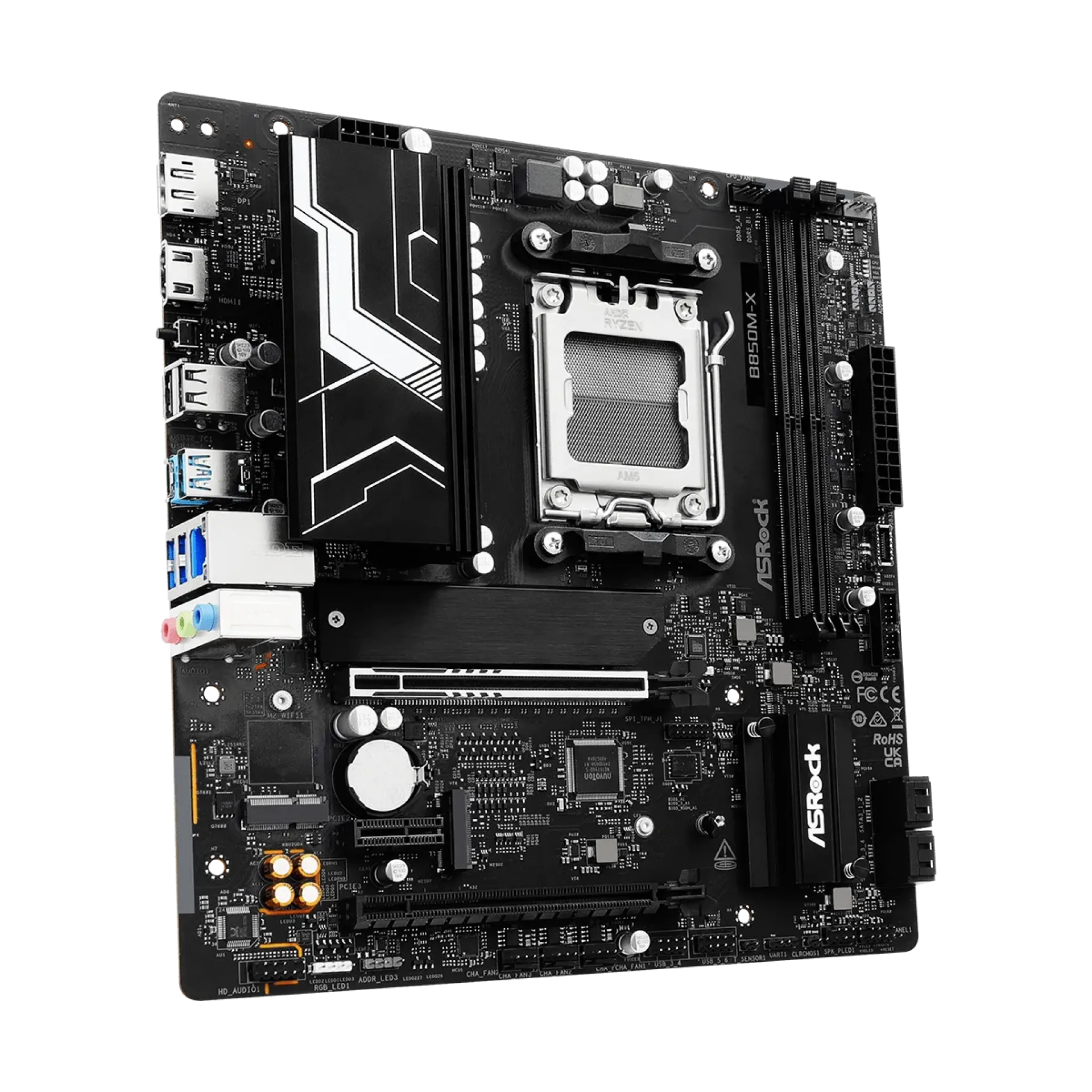

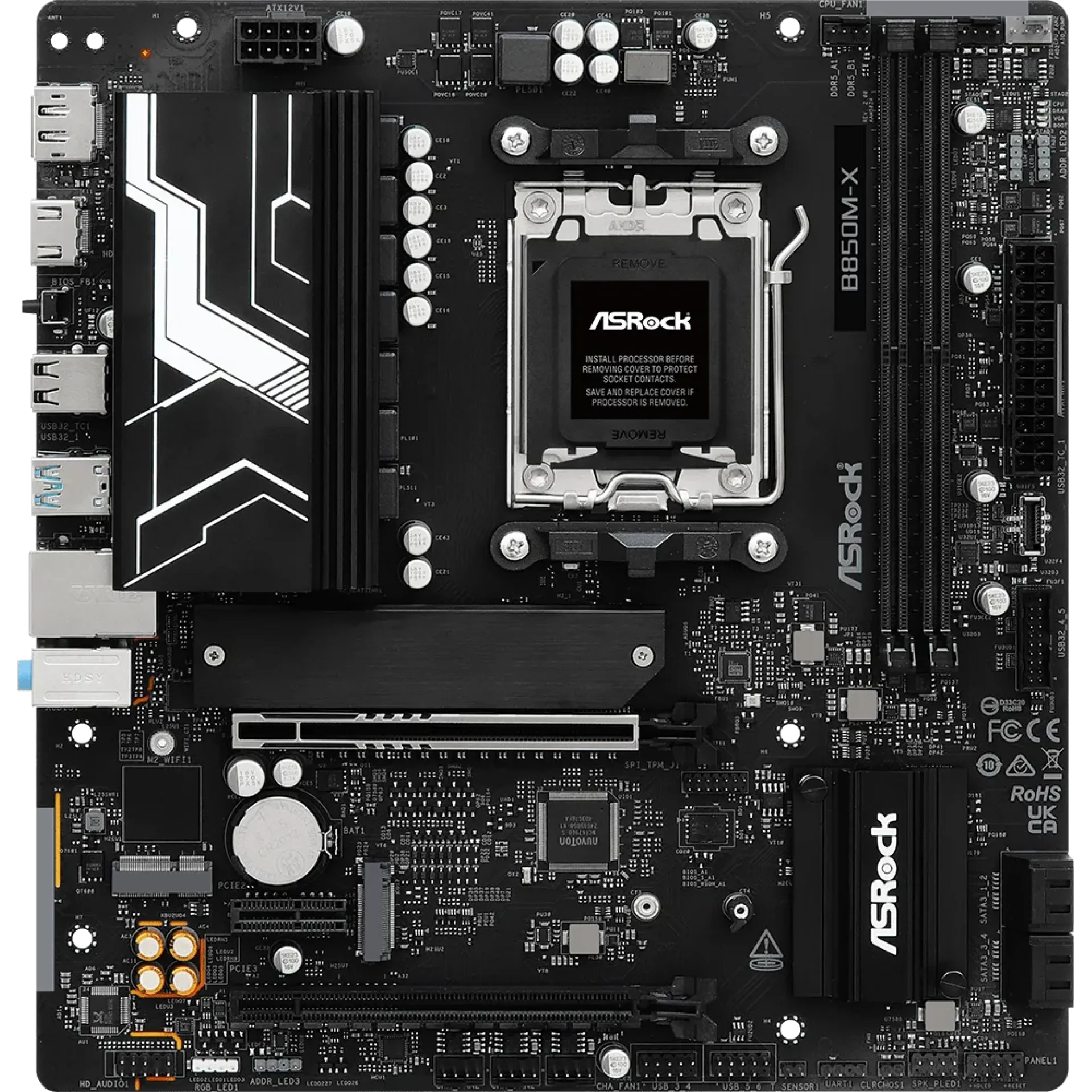

High-Performance Micro-ATX AMD AM5 Motherboard featuring PCIe Gen5 I/O with the 90-MXBSG0-A0UAYZ
The 90-MXBSG0-A0UAYZ is an ASRock Micro-ATX motherboard built on the AMD B850 chipset for Ryzen AM5 platforms, balancing compact deployment with workstation-class I/O. Its PCIe Gen5 architecture targets modern GPU and NVMe lanes, enabling high-throughput builds where low-latency storage and expansion headroom are primary design goals.
For memory, the 90-MXBSG0-A0UAYZ implements 2 DDR5 DIMM slots in dual-channel, supporting up to 128GB with ECC capability for data-integrity-focused desktop workstations and lab systems. Storage topology is designed for tiering: a dedicated M.2 2280 PCIe Gen5 slot for primary performance NVMe, a secondary PCIe Gen4 M.2 slot for additional scratch or cache, and 4 SATA III ports for bulk capacity or legacy SSD arrays. Expansion is handled through a PCIe 5.0 x16 slot for full-height, full-length accelerators, complemented by additional PCIe Gen4 slots for NICs, HBAs, capture, or test cards. Integrated 2.5GbE supports edge and small office aggregation, while DisplayPort 1.4 and HDMI 2.1 enable iGPU-driven console access.
Why Choose the 90-MXBSG0-A0UAYZ?
The 90-MXBSG0-A0UAYZ delivers a strong density-to-performance profile by pairing AM5 compute scalability with Gen5-ready storage and graphics in a Micro-ATX footprint. This approach fits standardized enclosures, simplifies spares strategy, and provides a scalable path for mixed workloads that need reliable connectivity, flexible expansion, and predictable platform behavior.
ASRock designs platforms with pragmatic routing, validated component selection, and firmware features aligned to enterprise expectations, including RAID support, optional TPM integration, and USB BIOS Flashback for controlled lifecycle management in modern data centre and edge standards.
Key Applications:
- PCIe Gen5 NVMe workstation builds
- Edge compute nodes with 2.5GbE
- Lab and development validation systems
- Virtualization and container hosts
- Mixed NVMe/SATA storage tiers
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your 90-MXBSG0-A0UAYZ rollout plan, helping you standardize configurations across teams and sites. For fleet deployments, bulk order discount options support cost-controlled scaling without compromising platform consistency.
Technical details of 90-MXBSG0-A0UAYZ
How long is the Warranty and how you can get technical support for 90-MXBSG0-A0UAYZ
| Warranty: | 12 months (part) |
|---|---|
| RMA Url: | https://www.asrock.com/support/?cat=RMA |
| Description: | Items must be returned first for RMA processing. No advanced replacements. |
| Support Portal: | https://support.happyware.com |
|---|
