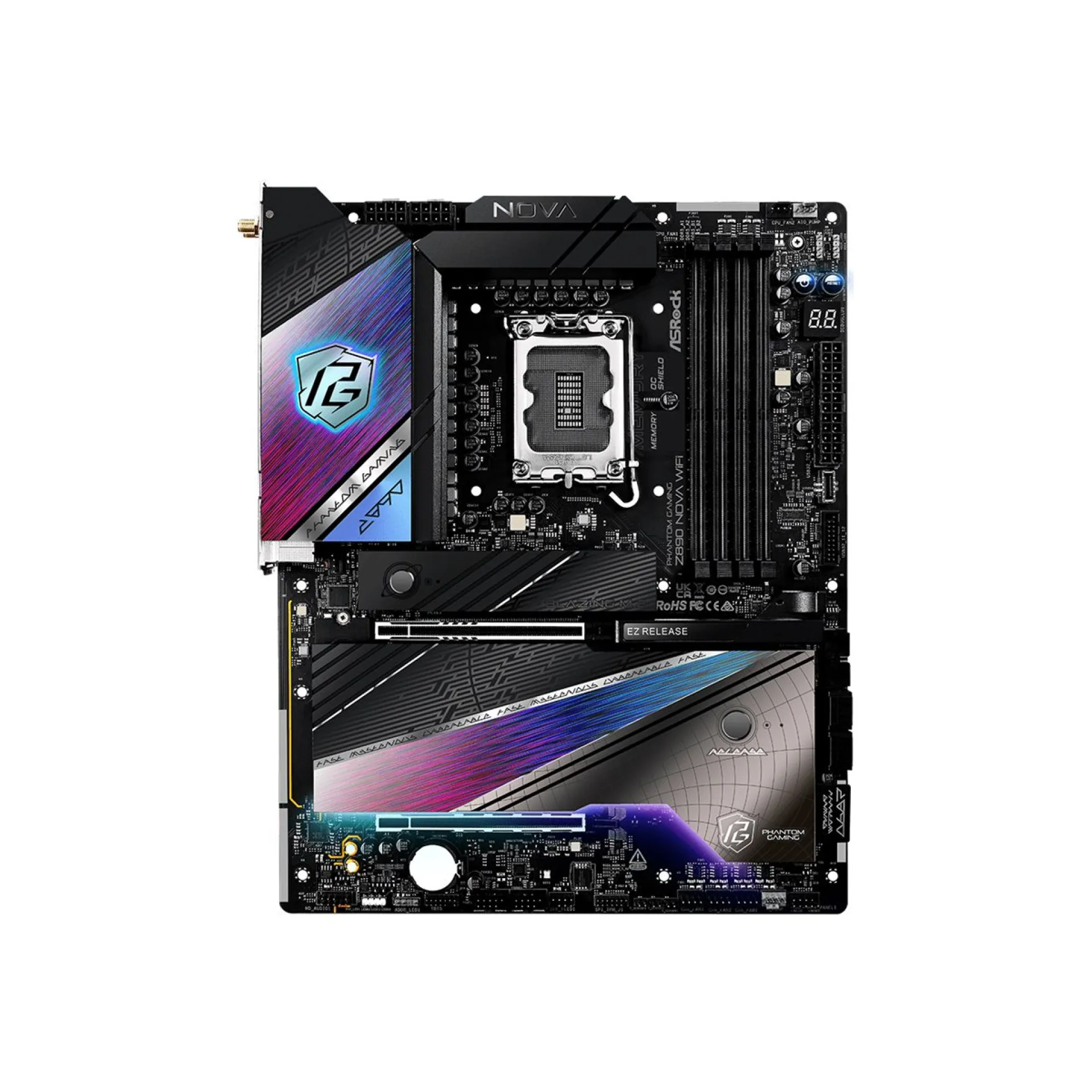

90-MXBPS0-A0UAYZ ASRock ATX Single V1 (LGA 1851) 4 DIMM Slots Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for 90-MXBPS0-A0UAYZ and save cash:

Quantity	Unit price
To 9	€403.00
To 19	€383.00 €403.00 (4.96% saved)
To 49	€375.00 €403.00 (6.95% saved)
From 50	€363.00 €403.00 (9.93% saved)

Product line:

Phantom Gaming

See all ASRock

See other ASRock products

€403.00

In stock

Happyware Article Number:

SH8M1901-266520

Manufacturer Number:

90-MXBPS0-A0UAYZ

Brand:

ASRock

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

90-MXBPS0-A0UAYZ

High-Performance ATX Intel Z890 Motherboard for LGA1851 Workstations and Enthusiast Desktops with 90-MXBPS0-A0UAYZ

The 90-MXBPS0-A0UAYZ is an ATX motherboard built on the Intel Z890 chipset for the LGA1851 desktop platform, aligning compute, I/O, and storage lanes for modern workstation and lab/dev builds using Intel Core Ultra 200S processors. Its dual-channel DDR5 architecture supports up to 256GB across 4 DIMM slots, enabling high-frequency memory configurations that reduce latency for interactive content creation and accelerate compile and test pipelines in local development environments.

For expansion, the 90-MXBPS0-A0UAYZ provisions PCIe 5.0 where it matters most: a full-height, full-length x16 slot for discrete GPU acceleration and a PCIe 5.0 x4 M.2 socket for next-generation NVMe scratch and dataset staging. Additional M.2 capacity scales to 6 total sockets, complemented by 4x SATA III for bulk or archival tiers, while RAID and UEFI BIOS features support repeatable deployments. High-speed I/O is engineered for peripheral density with 2x Thunderbolt 4 and a USB 3.2 Gen2x2 internal USB-C header, plus HDMI 2.1 for integrated display use cases.

Why Choose the 90-MXBPS0-A0UAYZ?

The 90-MXBPS0-A0UAYZ balances PCIe Gen5 throughput, multi-NVMe storage density, and robust connectivity in an ATX footprint, delivering a practical density-to-performance ratio for single-socket workstations and test benches. With dual wired LAN (5GbE and 2.5GbE) and integrated Wi-Fi 7, it scales cleanly from desk-side systems to lab networks where predictable bandwidth and isolation matter.

ASRock designs the Phantom Gaming series with a focus on signal integrity, stable power delivery, and platform compatibility, supporting enterprise-style build repeatability and long-term serviceability. The 90-MXBPS0-A0UAYZ aligns with current data centre and edge standards through TPM header support, RAID options, and modern high-speed external I/O for secure, modular system integration.

Key Applications:

Content creation workstations with discrete GPU
PCIe Gen5 NVMe scratch and dataset staging
Software build, CI, and lab validation nodes
Multi-NVMe local storage development systems
Dual-LAN edge and branch office compute

At Happyware - Server Hardware you benefit from non-binding offers tailored to your 90-MXBPS0-A0UAYZ rollout requirements and an extended warranty of up to 6 years, supporting predictable lifecycle planning for workstation fleets and lab platforms.

Technical details of 90-MXBPS0-A0UAYZ

CPU Socket:

V1 (LGA 1851)

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Core Ultra 200S

Form Factor:

ATX

Chipset:

Intel Z890

RAM Maximum Capacity:

256GB

Max RAM Frequency :

9600MHz

RAM Slots:

4 DIMM DDR5

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 4.0 x16 1 PCIe 5.0 x16

M.2 Slots:

1 PCIe 5.0 M.2 2280 M-Key 1 PCIe Gen 4/SATA M.2 2280/2260/2242/2230 M-Key 1 WiFi+BT-Modul M.2 2230 E-Key 4 PCIe 4.0 M.2 2280/2260 M-Key

Network Ports:

1 RJ45 2.5 Gbps 1 RJ45 5 Gbps

ECC Support:

Non-ECC

Onboard Network:

Ethernet

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x HDMI 2.1 2x Thunderbolt 4

USB Ports:

1x USB-C 3.2 Gen 2x2 2x USB 2.0 4x USB 3.2 Gen 1 4x USB 3.2 Gen 2 2x Thunderbolt 4 4x USB 2.0

Other Ports:

1x Speaker-Header 1x TPM Header

Trusted Platform Module (TPM):

Optional

BIOS:

AMI UEFI

Wi-Fi Support:

Wi-Fi 7

Bluetooth integrated:

5.4

Onboard Audio Chipset:

Realtek ALC4082

Embedded:

How long is the Warranty and how you can get technical support for 90-MXBPS0-A0UAYZ

Warranty:	12 months (part)
RMA Url:	https://www.asrock.com/support/?cat=RMA
Description:	Items must be returned first for RMA processing. No advanced replacements.
