90-MXBNN0-A0UAYZ ASRock Mini-ITX Single V (LGA 1700) 2 DIMM Slots Mainboard

Get extra volume discount for 90-MXBNN0-A0UAYZ and save cash:

Quantity	Unit price
To 9	€209.00
To 19	€199.00 €209.00 (4.78% saved)
To 49	€195.00 €209.00 (6.7% saved)
From 50	€189.00 €209.00 (9.57% saved)

Product line:

Phantom Gaming

See all ASRock

See other ASRock products

€209.00

Out of stock

Not available

Happyware Article Number:

SH4M6914-303872

Manufacturer Number:

90-MXBNN0-A0UAYZ

Brand:

ASRock

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

90-MXBNN0-A0UAYZ

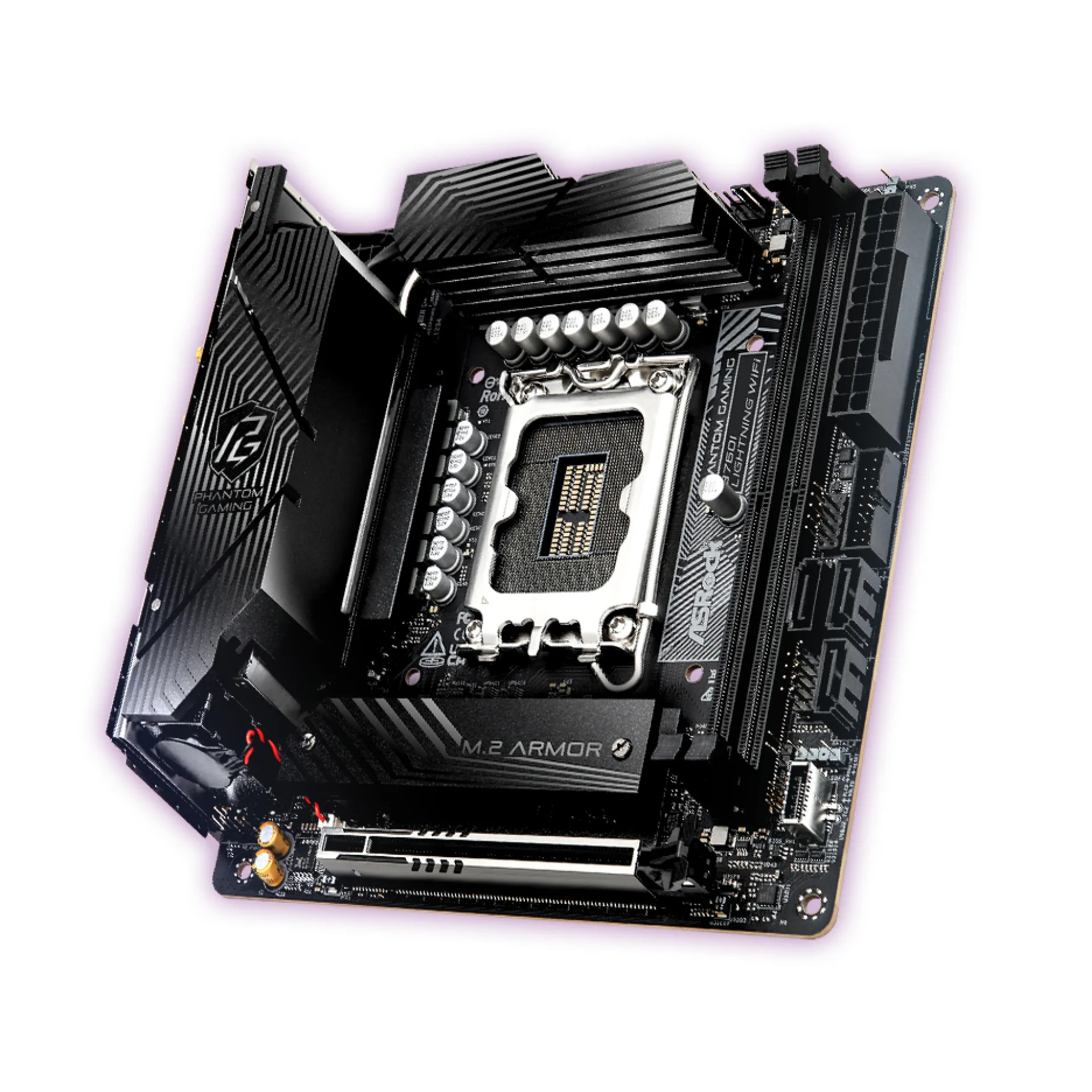

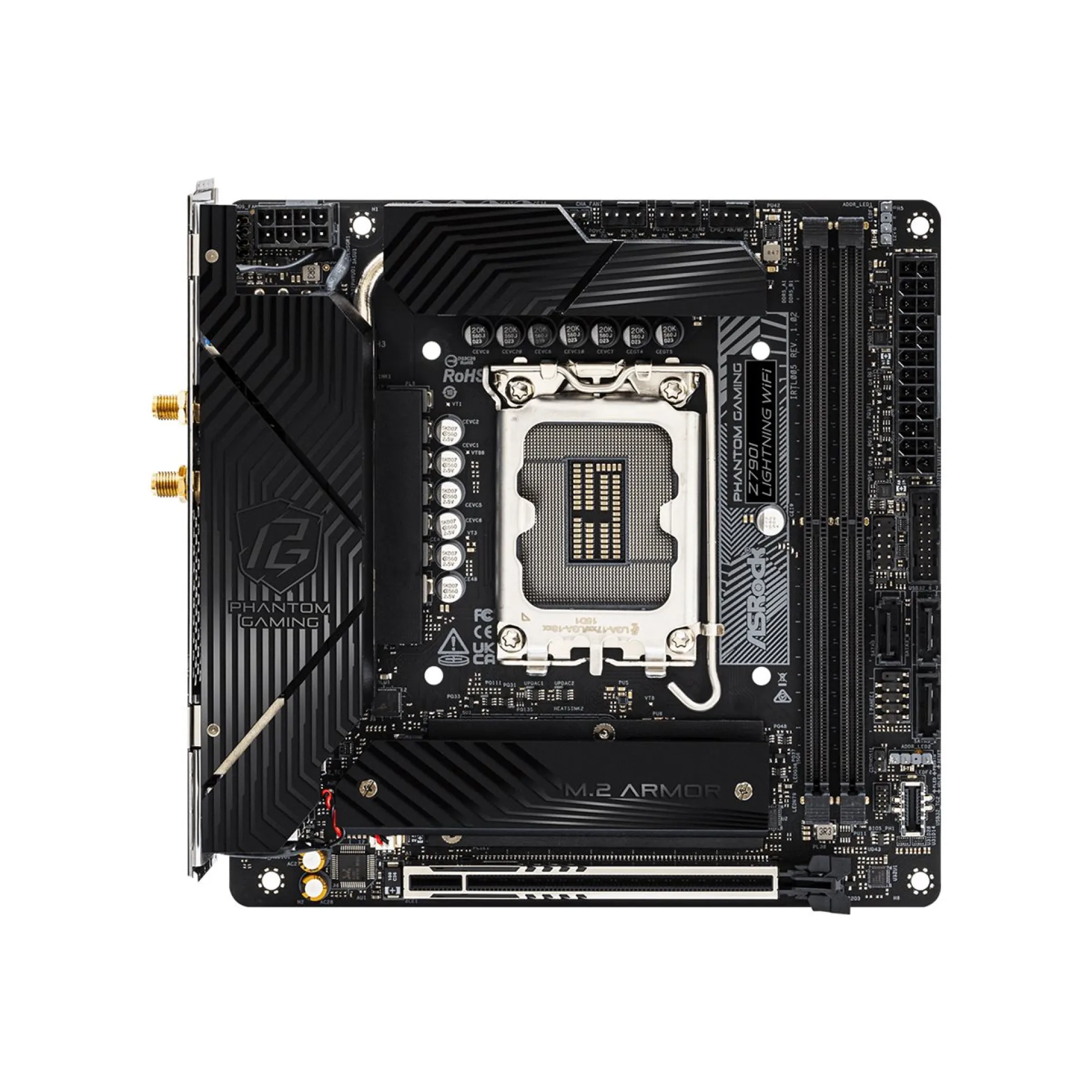

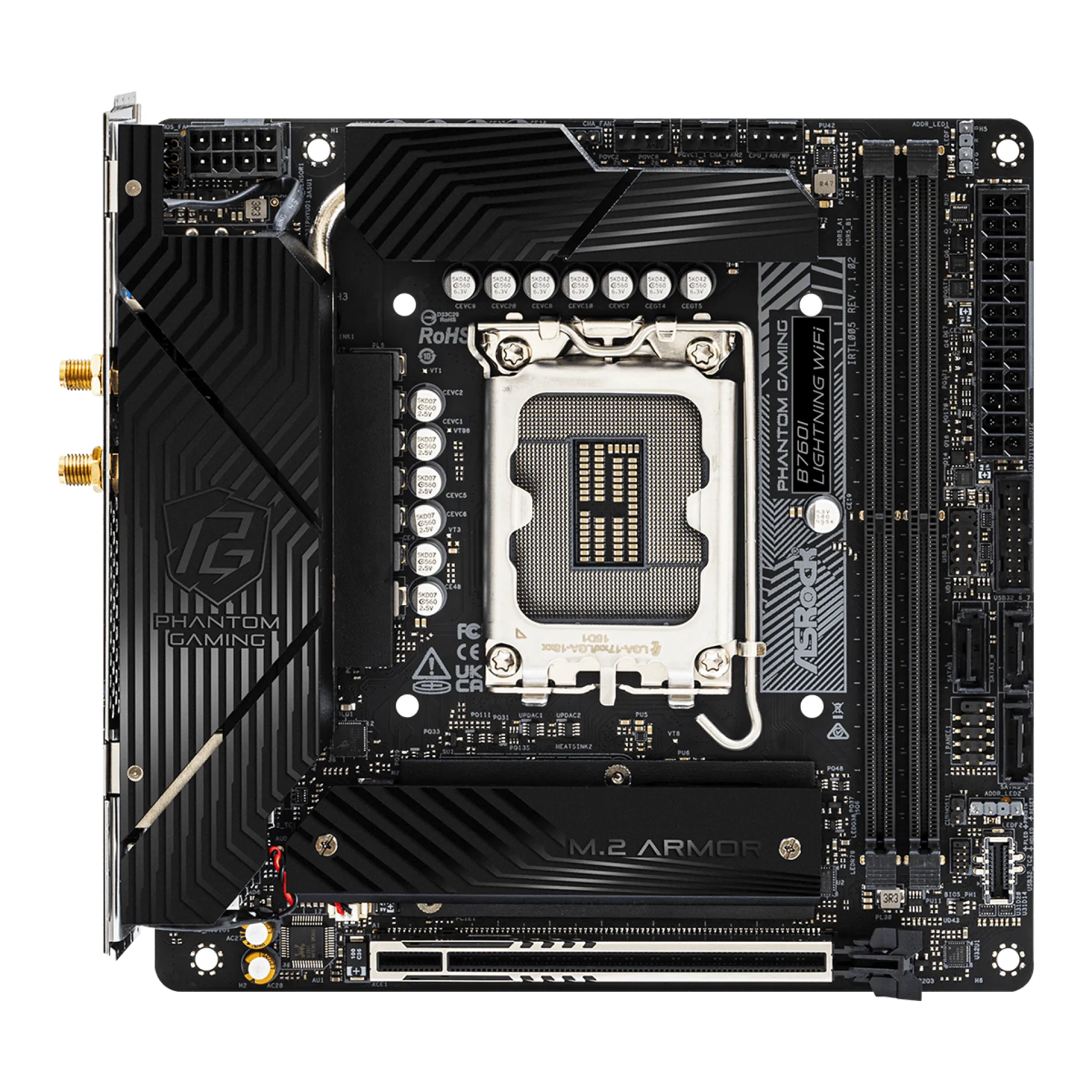

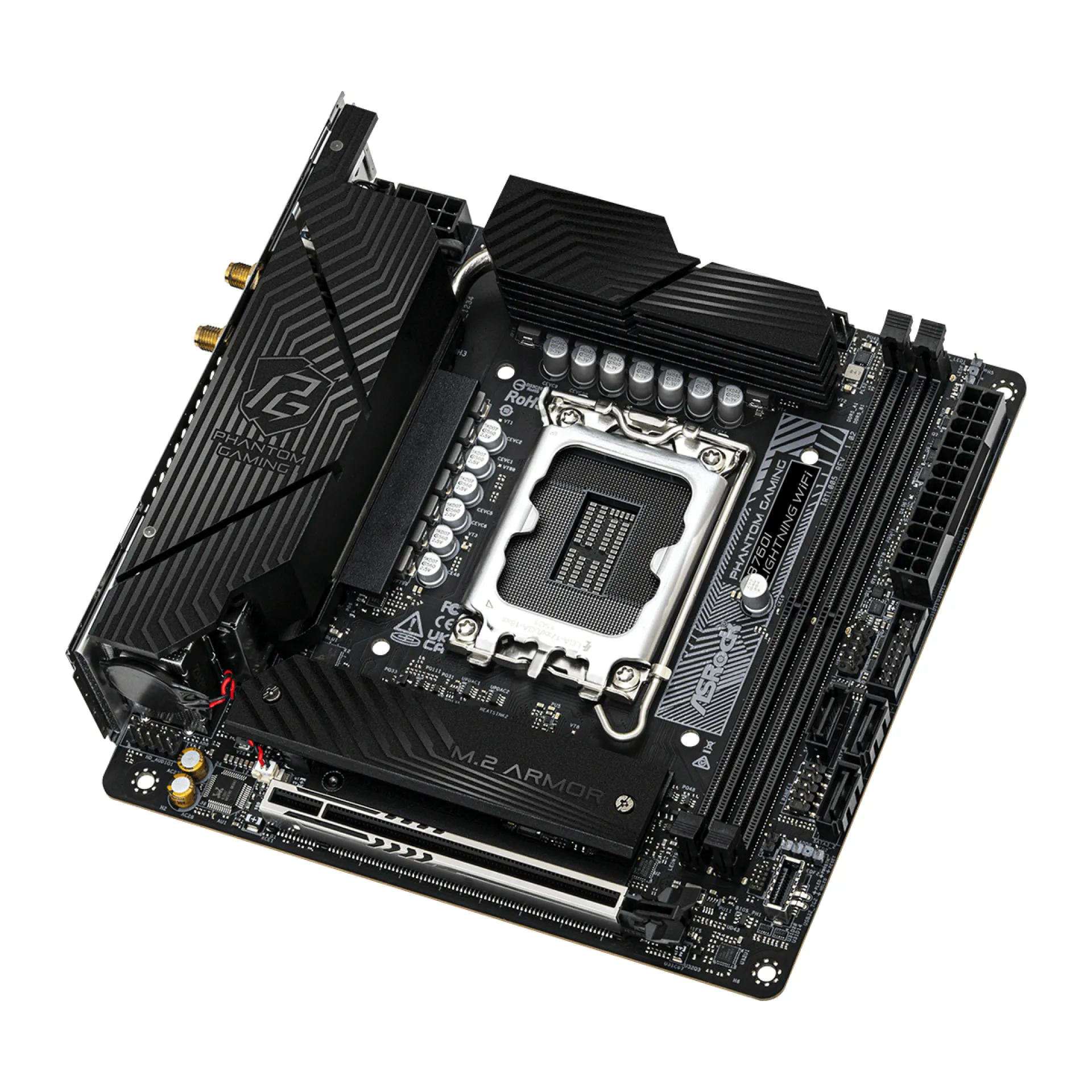

High-Performance Mini-ITX DDR5 Platform Motherboard featuring PCIe 5.0 Expansion with the 90-MXBNN0-A0UAYZ

The 90-MXBNN0-A0UAYZ is a compact ASRock Mini-ITX motherboard built on the Intel B760 chipset for LGA1700 processors, engineered for edge/branch deployments and space-constrained workstations that still require modern I/O. It supports Intel Core, Pentium Gold, and Celeron CPUs, enabling flexible compute scaling while keeping platform power and thermals manageable in SFF chassis.

With dual-channel DDR5 across 2 DIMM slots up to 96GB, the 90-MXBNN0-A0UAYZ targets responsive multitasking and content pipelines where memory bandwidth matters more than raw slot count. A full-height PCIe 5.0 x16 slot (x16 electrical) is optimized for a single high-value expansion device such as a GPU, high-speed accelerator, or advanced NIC. Storage is architected around 2 PCIe 4.0 x4 M.2 2280 NVMe slots for low-latency primary and secondary tiers, complemented by 3 SATA III ports for capacity-oriented SSD/HDD pools, with chipset RAID support to streamline local resiliency.

Why Choose the 90-MXBNN0-A0UAYZ?

The 90-MXBNN0-A0UAYZ delivers a high density-to-performance ratio by concentrating DDR5, PCIe 5.0, and dual NVMe on Mini-ITX, reducing chassis volume without sacrificing expansion. For enterprise IT, it offers predictable deployment with UEFI manageability, stable networking via 2.5GbE plus Wi‑Fi 6E, and a scalable profile for standardized SFF builds across distributed sites.

ASRock designs this platform with a pragmatic engineering focus: signal integrity for high-speed PCIe and DDR5 links, validated component selection, and compatibility aligned to modern data centre and edge standards where reliability, repeatability, and lifecycle planning are critical.

Key Applications:

Edge and branch compute nodes
Small form factor workstations
Compact GPU-enabled systems
NVMe-focused local storage tiers
Wireless-enabled enterprise endpoints

At Happyware - Server Hardware you benefit from non-binding offers tailored to your configuration goals for the 90-MXBNN0-A0UAYZ, with 24/7 customer service to support validation, rollout planning, and order processing for enterprise deployments.

Technical details of 90-MXBNN0-A0UAYZ

CPU Socket:

V (LGA 1700)

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Pentium Gold Celeron Core

Form Factor:

Mini-ITX

Chipset:

Intel B760

RAM Maximum Capacity:

96GB

Max RAM Frequency :

8600MHz

RAM Slots:

2 DIMM DDR5

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 5.0 x16

M.2 Slots:

1 WiFi+BT-Modul M.2 2230 E-Key 2 PCIe 4.0 x4 M.2 2280 M-Key

Network Ports:

1 RJ45 2.5 Gbps

ECC Support:

Non-ECC

Onboard Network:

Ethernet

RAID Support:

Yes

Onboard Graphic:

Yes

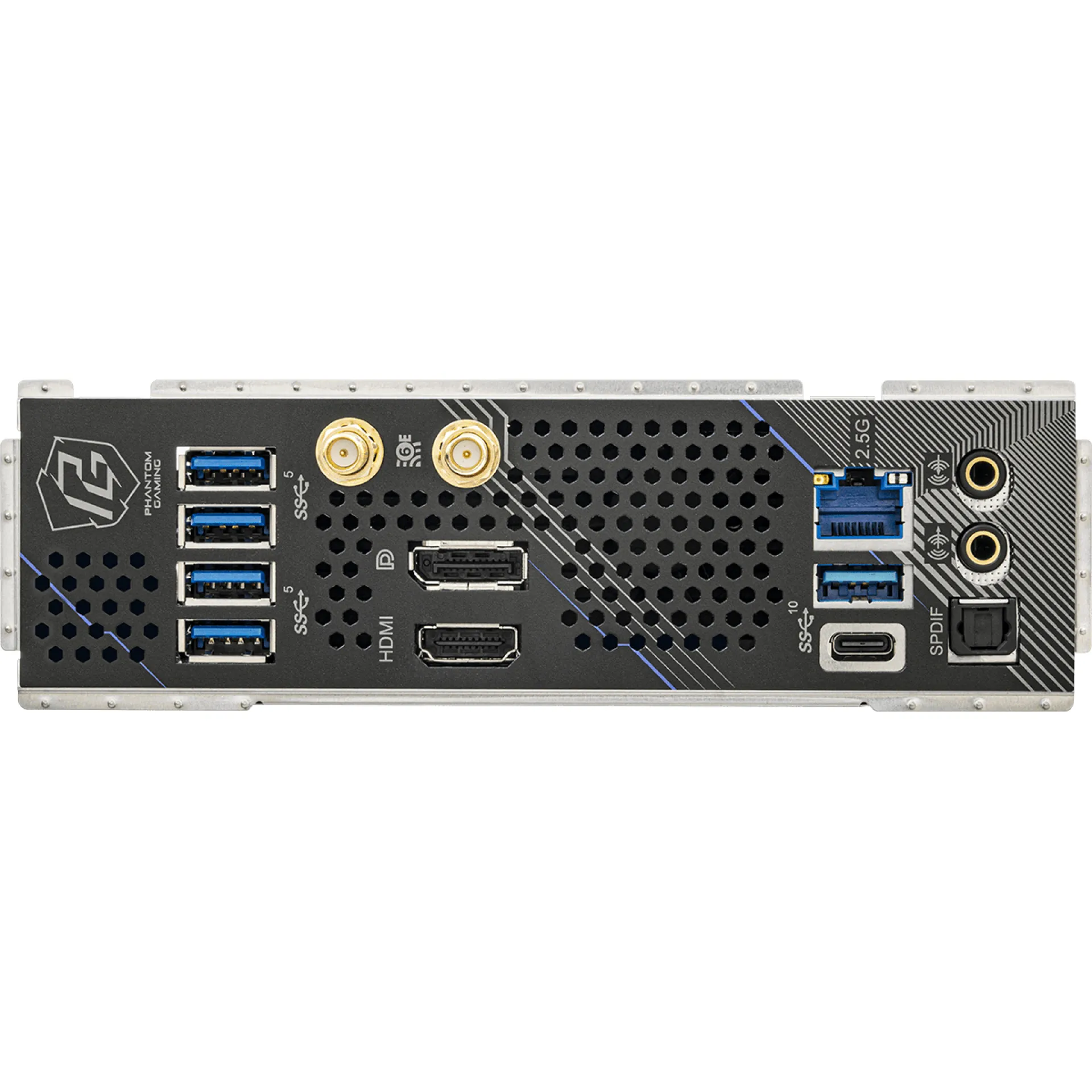

Video Output:

1x HDMI 2.1 1x DisplayPort 1.4

USB Ports:

1x USB 3.2 Gen 2 Type-C 2x USB 3.2 Gen 1 Type-A 4x USB 3.2 Gen 1 Type-A 1x USB 3.2 Gen 1 Type-C 1x USB 3.2 Gen 2 Type-A 2x USB 2.0 Type-A

Trusted Platform Module (TPM):

BIOS:

AMI UEFI

Wi-Fi Support:

Wi-Fi 6E

Bluetooth integrated:

5.3

Onboard Audio Chipset:

Realtek ALC897

Card Reader:

How long is the Warranty and how you can get technical support for 90-MXBNN0-A0UAYZ

Warranty:	12 months (part)
RMA Url:	https://www.asrock.com/support/?cat=RMA
Description:	Items must be returned first for RMA processing. No advanced replacements.
