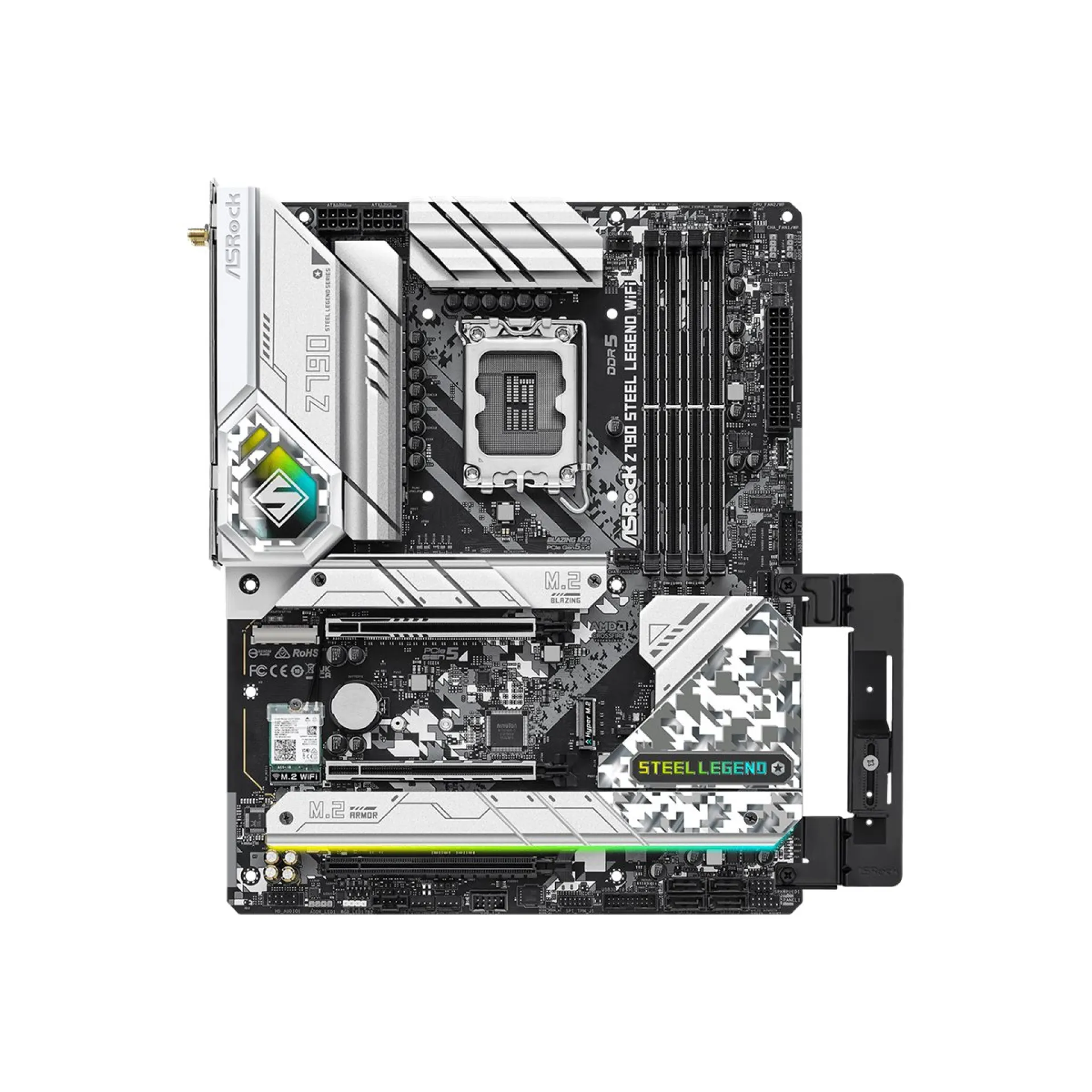

90-MXBKD0-A0UAYZ ASRock ATX Single V (LGA 1700) 4 DIMM Slots Mainboard

*Picture may not be exactly the same as the product

Get extra volume discount for 90-MXBKD0-A0UAYZ and save cash:

Quantity	Unit price
To 9	€329.00
To 19	€313.00 €329.00 (4.86% saved)
To 49	€306.00 €329.00 (6.99% saved)
From 50	€297.00 €329.00 (9.73% saved)

Product line:

Steel Legend

See all ASRock

See other ASRock products

€329.00

Out of stock

Not available

Happyware Article Number:

SH6M5075-908755

Manufacturer Number:

90-MXBKD0-A0UAYZ

Brand:

ASRock

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

90-MXBKD0-A0UAYZ

High-Performance ATX Intel LGA1700 Desktop Motherboard featuring Z790 PCIe Gen5 expansion with the 90-MXBKD0-A0UAYZ

The 90-MXBKD0-A0UAYZ is an ATX platform built on the Intel Z790 chipset for LGA1700 processors, enabling a stable foundation for 12th/13th Gen class Core CPUs in workstation and advanced desktop deployments. Its CPU-attached PCIe Gen5 x16 graphics slot is engineered for single-GPU visualization and accelerated content pipelines, while additional PCIe slots provide controlled expansion for capture, high-speed I/O, or secondary adapters without compromising primary GPU bandwidth.

Memory scalability on the 90-MXBKD0-A0UAYZ is delivered through 4 DDR5 DIMM slots in dual-channel mode, supporting up to 128GB non-ECC capacity for CAD/EDA light workloads, render previews, and multi-application authoring. Storage architecture prioritizes low-latency local datasets with a dense M.2 layout including a PCIe 5.0 x4 NVMe socket and multiple PCIe 4.0 x4 M.2 sockets, complemented by 8 SATA III ports for SSD/HDD tiers, scratch volumes, and RAID-enabled arrays. Integrated 2.5GbE plus Wi‑Fi 6E and Bluetooth 5.3 simplify deployment in mixed wired/wireless environments, while HDMI and DisplayPort outputs support iGPU-driven service or diagnostic displays.

Why Choose the 90-MXBKD0-A0UAYZ?

The 90-MXBKD0-A0UAYZ balances expansion density with predictable signal integrity, aligning PCIe Gen5 graphics, multi-NVMe storage, and DDR5 headroom into a single ATX footprint. It is suited to enterprise procurement needing standardized builds that scale across departments, with practical security readiness via a TPM header and RAID options for resilient local storage configurations.

ASRock focuses on board-level engineering that supports long-term stability under sustained load, pairing modern chipset capabilities with enterprise-friendly connectivity and broad component interoperability to fit current data centre and lab standards.

Key Applications:

Content creation workstations
Light CAD/EDA builds
Single-GPU visualization systems
High-speed local NVMe scratch and cache
Departmental standardized desktop platforms

At Happyware - Server Hardware you benefit from non-binding offers tailored to your 90-MXBKD0-A0UAYZ rollout plan and an extended warranty of up to 6 years to protect long-lived workstation and lab deployments.

Technical details of 90-MXBKD0-A0UAYZ

CPU Socket:

V (LGA 1700)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Core i9 Core i7 Core i5 Pentium Gold Celeron

Form Factor:

ATX

Chipset:

Intel Z790

RAM Maximum Capacity:

128GB

Max RAM Frequency :

7200MHz

RAM Slots:

4 DIMM DDR5

RAM Channels:

Dual-Channel

PCIe Slots:

1 PCIe 3.0 x16 1 PCIe 4.0 x16 1 PCIe 5.0 x16

M.2 Slots:

1 PCIe 5.0 M.2 2280/2260 M-Key 1 WiFi+BT-Modul M.2 2230 E-Key 2 PCIe 4.0 M.2 2280/2260 M-Key 2 PCIe 4.0 M.2 2280/2260/2242 M-Key

Network Ports:

1 RJ45 2.5 Gbps

ECC Support:

Non-ECC

Onboard Network:

Ethernet

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x DisplayPort 1x HDMI

USB Ports:

1x USB 3.2 Gen 2 Type-C 1x USB 3.2 Gen 2 Type-A 2x USB 2.0 Type-A 8x USB 3.2 Gen 1 Type-A

Other Ports:

1x Thunderbolt Header 1x Speaker-Header 1x eDP 1x TPM Header

Trusted Platform Module (TPM):

Yes

BIOS:

AMI UEFI

Wi-Fi Support:

Wi-Fi 6E

Bluetooth integrated:

5.3

Onboard Audio Chipset:

Realtek ALC897

Embedded:

GPIO Pins:

Card Reader:

How long is the Warranty and how you can get technical support for 90-MXBKD0-A0UAYZ

Warranty:	12 months (part)
RMA Url:	https://www.asrock.com/support/?cat=RMA
Description:	Items must be returned first for RMA processing. No advanced replacements.
