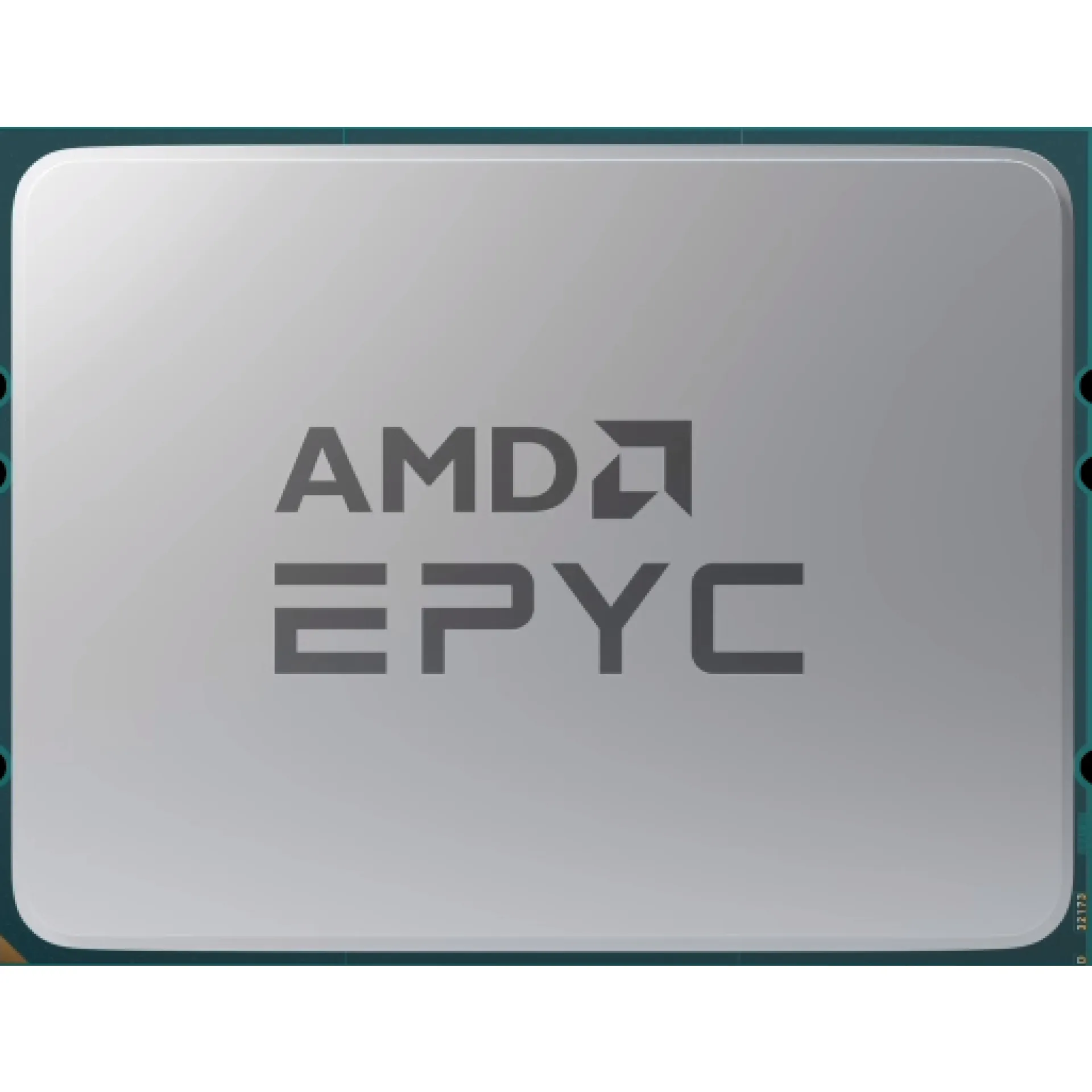

AMD EPYC 9654 96 Cores 192 Threads 3.7GHz SP5 (LGA 6096) 100-000000789 Server CPU

High-Density Server CPU platform built for scale-out compute and PCIe 5.0 expansion with the AMD EPYC 9654 / 100-000000789

The AMD EPYC 9654 is a 4th Gen EPYC 9004 Series “Genoa” server processor for the SP5 (LGA6096) platform, engineered to maximize core density per socket while keeping a balanced I/O and memory subsystem for modern data centre workloads. With 96 cores and 192 threads in a 1-socket design that also integrates cleanly into 2-socket platforms, the AMD EPYC 9654 targets consolidation-heavy virtualization hosts, scale-out analytics, and CPU-driven HPC nodes where per-node throughput and scheduler efficiency matter.

The AMD EPYC 9654 pairs its compute resources with DDR5 memory up to 4800 MT/s and ECC support, enabling higher bandwidth and capacity profiles for large VM footprints and in-memory datasets. For storage and accelerator connectivity, the platform exposes 128 PCIe 5.0 lanes, supporting dense NVMe tiers and high-speed attach for network adapters and accelerators without oversubscription. Large cache resources (96 MB L2 and 384 MB L3) help sustain throughput across multi-tenant and parallel workloads, while AMD-V and AMD Memory Guard reinforce isolation and data protection strategies in shared infrastructure.

Why Choose the AMD EPYC 9654?

The AMD EPYC 9654 delivers a strong density-to-performance ratio by concentrating 96 cores into a single socket, reducing node count for a given service level while maintaining expansion headroom through PCIe 5.0. The AMD EPYC 9654 is well suited for standardized enterprise rollouts where predictable scaling, platform longevity on SP5, and consistent memory and I/O characteristics simplify capacity planning across clusters.

AMD designs EPYC processors with a focus on server-grade validation, long-life platform enablement, and security features aligned with current data centre operational standards, supporting stable deployment in virtualized and scale-out environments.

Key Applications:

• Virtualization and private cloud compute nodes
• HPC and technical computing clusters
• Analytics and scale-out data processing
• NVMe-rich storage and I/O-heavy servers
• Database and in-memory services

At Happyware - Server Hardware you benefit from Non-Binding Offers tailored to your cluster and platform requirements and Extended Warranty options up to 6 years to secure long-term operation of AMD EPYC 9654 deployments.
