XE1-4H000-06

High-Density 4U Rack Storage Server Chassis featuring 60-Bay Hot-Swap Architecture with the XE1-4H000-06

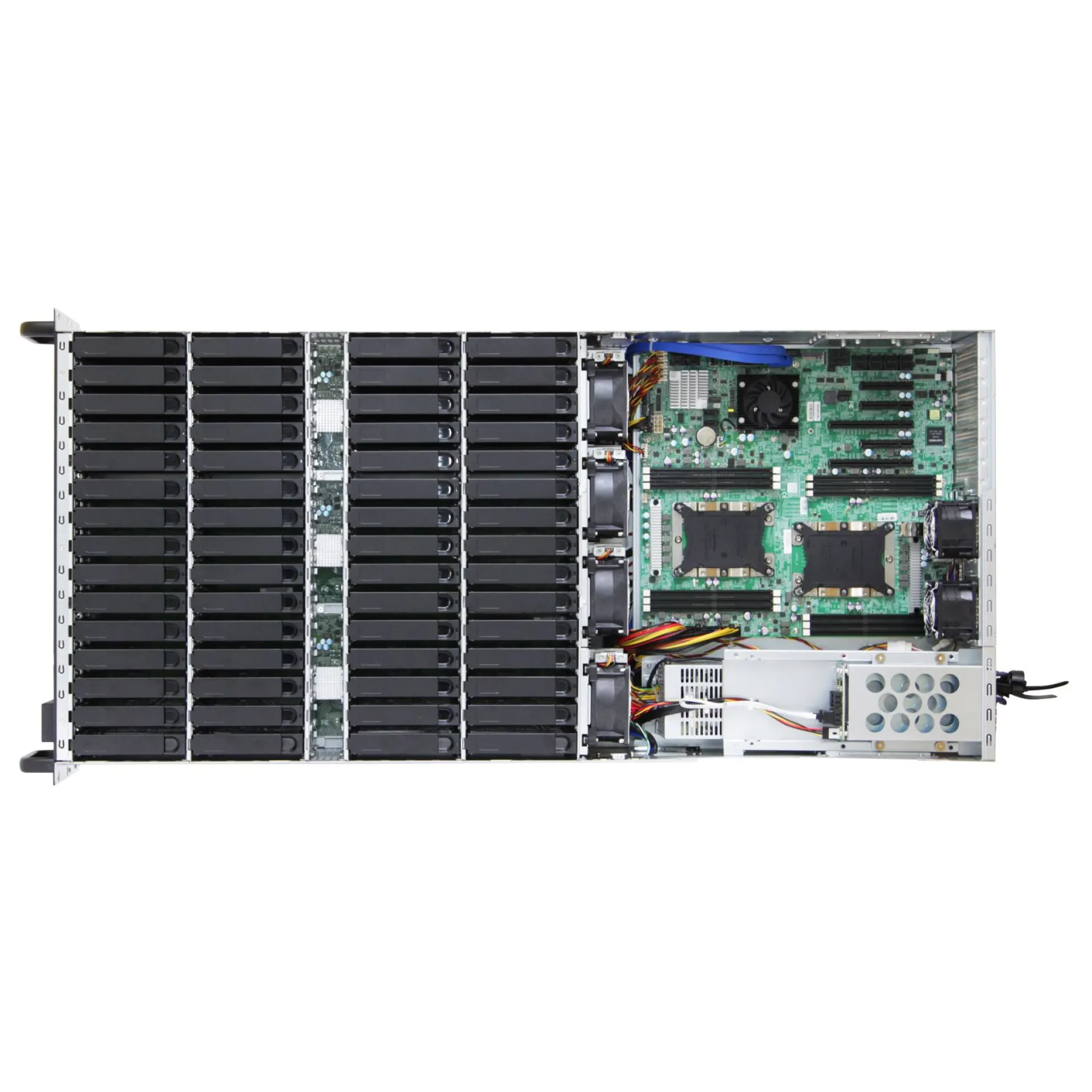

The XE1-4H000-06 is a 1-node 4U storage platform engineered to pair E-ATX/SSI EEB compute with a tiered drive topology: 60 hot-swap bays for capacity media, 6 additional SAS/SATA bays for service and metadata volumes, and 4 front-access NVMe bays for cache or journal acceleration in software-defined storage.

Why Choose the XE1-4H000-06?

The XE1-4H000-06 delivers density-to-throughput efficiency while maintaining serviceability through hot-swap backplane design and redundant power for enterprise uptime and scalable expansion.

AIC applies data centre-focused mechanical engineering, emphasizing airflow integrity with modular 80mm fan walls, cable-managed service paths, and power resilience aligned to modern rack standards and continuous-operation requirements.

Key Applications:

Backup and archive repositories
Object storage nodes
JBOD and SDS expansion
Scale-out file storage
Nearline capacity tiers

At Happyware - Server Hardware you benefit from non-binding offers tailored to the XE1-4H000-06 deployment scope and an extended warranty of up to 6 years to protect long-life storage investments.

Technical details of XE1-4H000-06

Fan Size:

Form Factor:

Rack

Rack Height Unit:

Mainboard Form Factor:

E-ATX SSI EEB

Drive Bays:

4x 2.5" NVMe 6x 2.5" SATA/SAS 60x 3.5"/2.5" Internal

Hot-Swap:

Yes

PSU Wattage:

1600W

Redundant Power Supply:

Yes

Power Supply:

Yes

How long is the Warranty and how you can get technical support for XE1-4H000-06

Warranty:	36 months (part)
Advanced replacement:	yes
RMA Url:	https://www.aicipc.com/en/RMAForm-Original/RMA
Description:	Advance replacement is only available for units considered to be in-warranty products. Advanced replacements unit may not be shipped without a new purchase order. Additional extended warranty agreement, if requested, is at the sole discretion of AIC.
