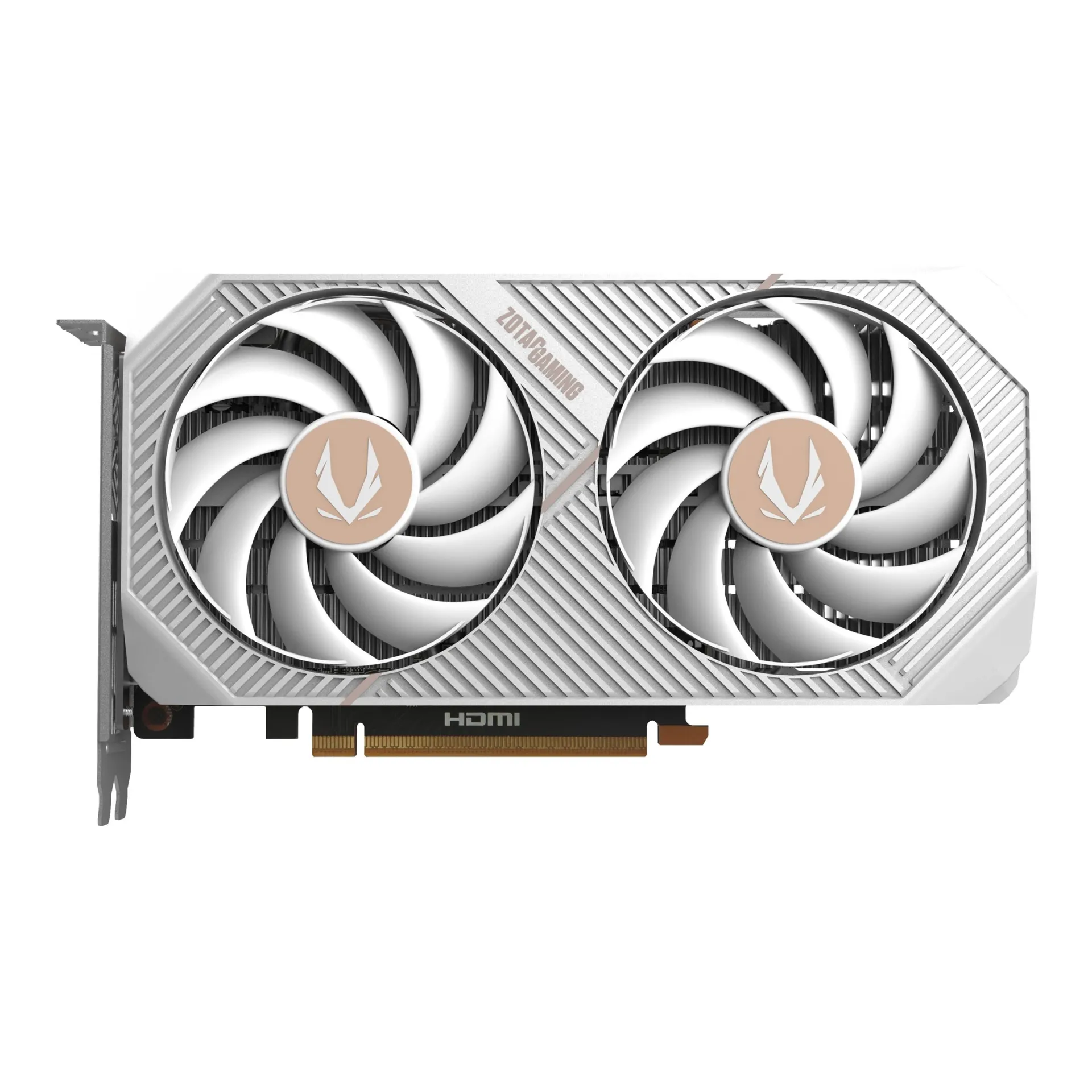

ZT-B50500Q-10M ZOTAC Nvidia GeForce RTX 5050 8GB GDDR6 2602MHz 224GT/s Desktop GPU

High-Performance PCIe 5.0 Workstation GPU Add-in Card featuring Blackwell efficiency with the ZT-B50500Q-10M

The ZT-B50500Q-10M is a full-height, dual-slot PCIe GPU add-in card built on the NVIDIA GeForce RTX 5050 (Blackwell) platform to deliver predictable acceleration for CAD/visualisation, multi-display productivity, and entry-level AI inference. With 2560 CUDA cores and an architecture tuned for modern graphics and compute APIs, it supports consistent viewport responsiveness, GPU-accelerated encoding, and creative timeline effects in workstation-class desktop builds.

For memory-sensitive workloads, the ZT-B50500Q-10M integrates 8GB GDDR6 on a 128-bit interface with 224 GB/s bandwidth, balancing capacity and throughput for content creation pipelines and interactive 3D scenes. The host interface uses PCIe 5.0 x16 mechanical with x8 electrical lanes, enabling straightforward integration into current enterprise tower and 4U platforms while preserving lanes for NICs, NVMe storage, or additional accelerators. Display I/O is engineered for dense workspaces, providing 1x HDMI 2.1b and 3x DisplayPort 2.1b (UHBR20) to drive up to 4 displays with HDCP 2.3 compliance.

Why Choose the ZT-B50500Q-10M?

The ZT-B50500Q-10M delivers a pragmatic density-to-performance profile for organizations standardizing on compact dual-slot GPUs with controlled power and broad OS/application compatibility. Its 130W TDP and 1x 8-pin PCIe power connector simplify thermal and PSU planning, while PCIe 5.0 connectivity supports scalable workstation fleets and incremental expansion without redesigning the platform.

ZOTAC applies a reliability-focused engineering approach with validated board design and a dual-fan axial cooling solution optimized for sustained workstation duty cycles. The ZT-B50500Q-10M aligns with modern data centre and enterprise lab standards by supporting current graphics APIs including DirectX 12 Ultimate, Vulkan 1.4, and OpenGL 4.6 for long-lived software stacks.

Key Applications:

• CAD and 3D visualisation
• Multi-display trading and operations desks
• Creative content creation and encoding
• Entry-level AI inference enablement
• Virtual production and real-time preview

At Happyware - Server Hardware you benefit from non-binding offers tailored to your workstation rollout and an extended warranty of up to 6 years to secure lifecycle planning for deployments based on the ZT-B50500Q-10M.
